China ZYS80 80T Hydraulic Static Press Pile Driver

China ZYS80 80T Hydraulic Static Press Pile Driver thumbnail-1
China ZYS80 80T Hydraulic Static Press Pile Driver thumbnail-2
China ZYS80 80T Hydraulic Static Press Pile Driver thumbnail-3
China ZYS80 80T Hydraulic Static Press Pile Driver thumbnail-4
China ZYS80 80T Hydraulic Static Press Pile Driver thumbnail-5
China ZYS80 80T Hydraulic Static Press Pile Driver thumbnail-6
China ZYS80 80T Hydraulic Static Press Pile Driver photo-1

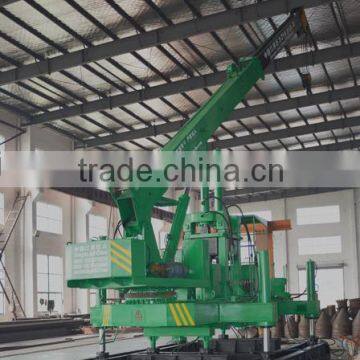

China ZYS80 80T Hydraulic Static Press Pile Driver photo-2

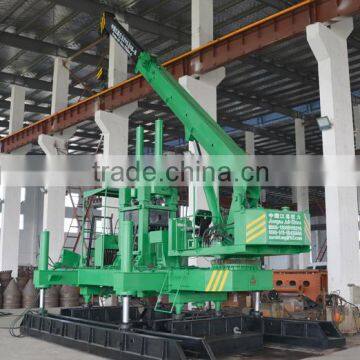

China ZYS80 80T Hydraulic Static Press Pile Driver photo-3

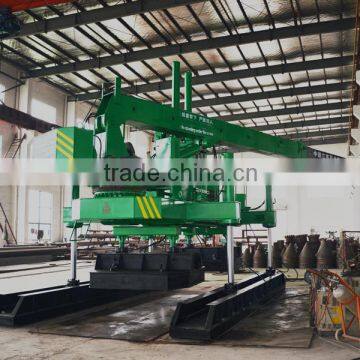

China ZYS80 80T Hydraulic Static Press Pile Driver photo-4

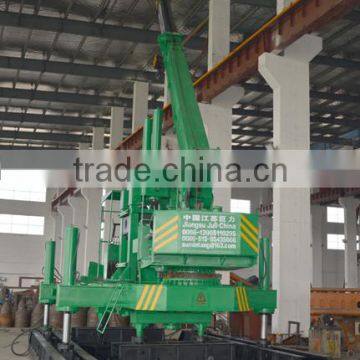

China ZYS80 80T Hydraulic Static Press Pile Driver photo-5

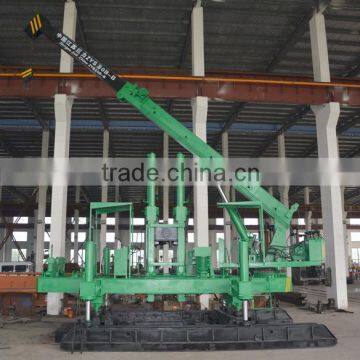

China ZYS80 80T Hydraulic Static Press Pile Driver photo-6
US$ 85,000 - 95,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Efficiency:
High Efficiency
Piling Speed(m/min):
Min. 1.1m/min
Contact Supplier Request Quote Chat Now
Dongtai Taiquan Import & Export Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Nantong or Shanghai China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Efficiency High Efficiency
Piling Speed(m/min) Min. 1.1m/min
Place of Origin Jiangsu, China
Brand Name JULI
Model Number ZYS80
Weight 60000kg
Dimension(L*W*H) 5.44*3.8*2.60m
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas
Product Description

China ZYS80 80T hydraulic static press pile driver

Variable hydraulic system with low loss and constant power is used in China ZYS80  80T static hydraulic static press pile driver. And merging hydraulic system is adopted in the main parts of the machine and the crane to save energy. The hydraulic system is with large power and great flow. The piling drive mechanism of China ZYS80  80T hydraulic static press pile driver is with multi-speed control. And it is quick to get ready for operation. We also use the hydraulic system which oil flow can merge to consumption for both the main machine and crane. Our China ZYS80 80T hydraulic static pile driver is more convenient to be dismantled and shipped because the connection and lay out of the long boad and the short ones are different. The side pilling mechanism can be taken off to reduce the length of machine to be shipped. Thus the weight of the separated units can be reduced greatly during transportation. China ZYS80 80T hydraulic static press pile driver can be opened in the middle so that the lift arm of the crane can pass throught it during transportation.

Spefications for China hydraulic static press pile driver
TYPE
ZYS60
ZYS80
ZYS120
ZYS180
ZYS240
Rated Pilling pressure(tf)
60
80
120
180
240
Pilling speed(m/min)
High speed
5.5
5.5
5.5
7.8
7.7
Low speed
1.1
1.1
0.9
1.1
1.8
Pilling stroke(m)
1.4
1.4
1.51.6
1.8
1.8
Pace(m)
Longitudinal
1.4
1.4
1.6
2.4
2.4
Horizontal
0.4
0.4
0.4
0.5
0.6
Angle range(°)
15
15
15
15
15
Lifting stroke(m)
0.6
0.6
0.8
1
1
Square pile(mm)
min
200
200
200
250
300
max
300
300
300
400
400
Circle pile(mm)
min


300
300
300
max


300
300
300
Side pilling space(mm)
400
400
450
780
900
Corner pilling space(mm)
800
800
1100
1600
2600
Weight of Lift(t)
3
3
5
8
12
Length of Hanging Pile(m)
7
7
10
12
14
Power(kw)
pilling
15
15
22
44
74
lift
7.5
7.5
11
22
30
Dimension(m)
Working length
5.44
5.98
8
10
11
Working width
3.8
4.05
4.44
5.32
6.5
Transport height
2.6
2.6
2.88
2.88
2.98
Gross Weight ≥(T)
60
800
120
180
240
Welcome  to inquiry China ZYS80 80T hydraulic static press pile driver

Main Features of China ZYS80 80T hydraulic static press pile driver

1. Low noise


2. No pullution, environmentally friendly

2.Low energy consumption

3. High efficient

4. Convenient in dismantling,transportation and maintenance

5. Much flexibility OEM design

Certifications

Strict quality management is operated in daily work. We have passed ISO9001.

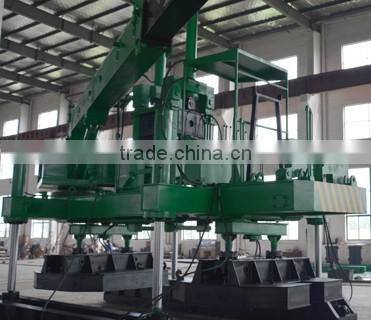

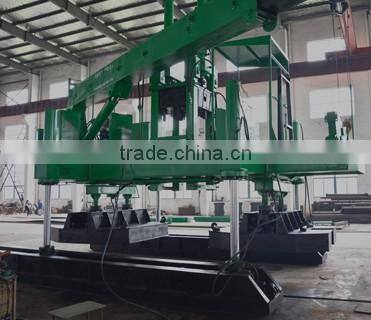

Detailed Images
Our Service

Engineers available to service China ZYS80 80T hydraulic static press pile driver

Spare part deivered in time

24 hours online technical support

Total logistics information tracking report

Packing & Delivery

Usually China ZYS80 80T hydraulic static press pile driver is with nude packing in 40ft container. The machine is firmly fixed in the container. We have much experience packing this type of machine. Due to its weight, China ZYS80 80T hydraulic static press pile driver is usually delivered by sea.

Our Company

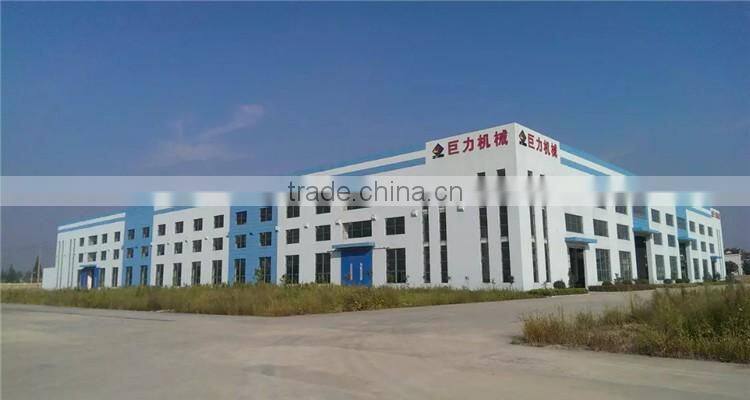

Dongtai Juli Machine Manufacture Co., Ltd. occupies over 30,000sqm and has over 100 sets of lathe, drill press, planer, milling machine, grinder, etc. The company has many years of experience in machinery manufacturing and sophisticated equipment. It is equipped with gantrys of 32tons & 16tons and has many years of experience of specializing in construction equipments including series of HDD drilling machine, KLB(step type hydraulic pile driver ), rod type diesel pile hammer, hydraulic static press pile driver), etc. Jiangsu province government has claimed this company is of technology enterprise. Our annual production capacity is now over 10000 sets. With reliable quality and excellent service, Our China ZYS80 80T hydrauclic static press pile driver and other types of machine sell very well in over 20 countries. Located in the beautiful coast of Yellow Sea, Dongtai,No.9,BeiGuan road ,Economic development zone, Jiangsu province, our factory is near Shanghai, China. Welcome to visit us, we guarantee to exceed your expectation!
