JL-18T Horizontal Directional Drilling Machine

JL-18T Horizontal Directional Drilling Machine photo-1

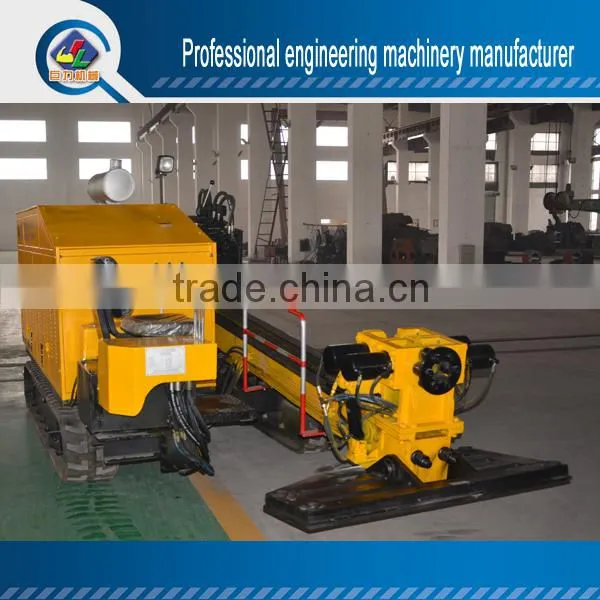

JL-18T Horizontal Directional Drilling Machine photo-2

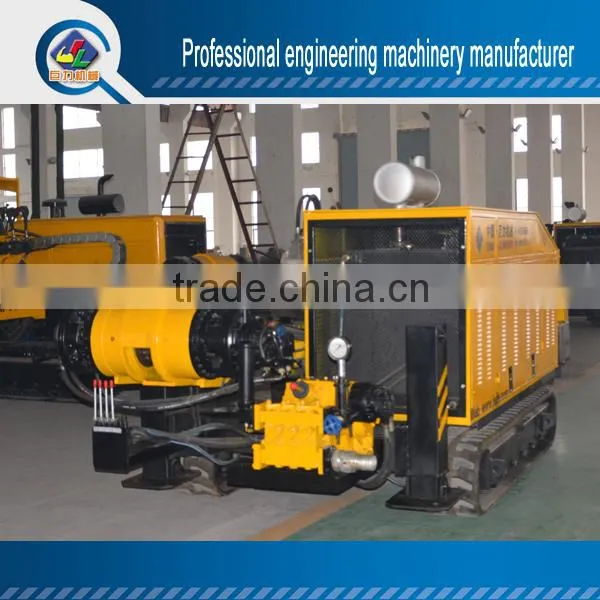

JL-18T Horizontal Directional Drilling Machine photo-3

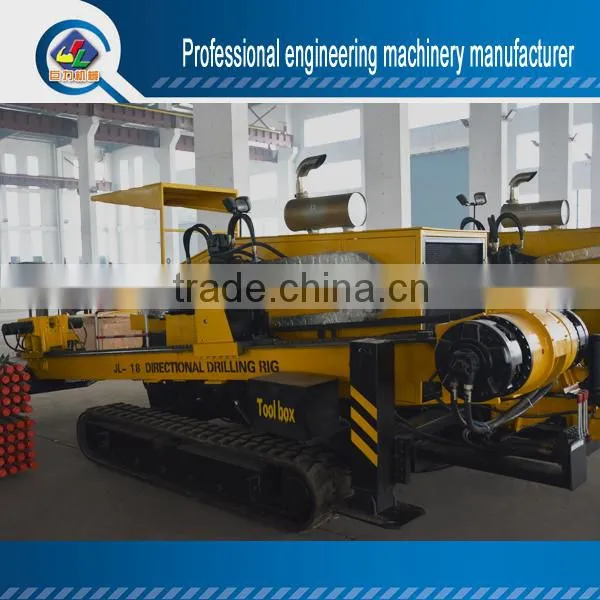

JL-18T Horizontal Directional Drilling Machine photo-4

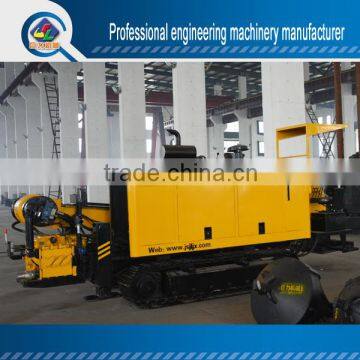

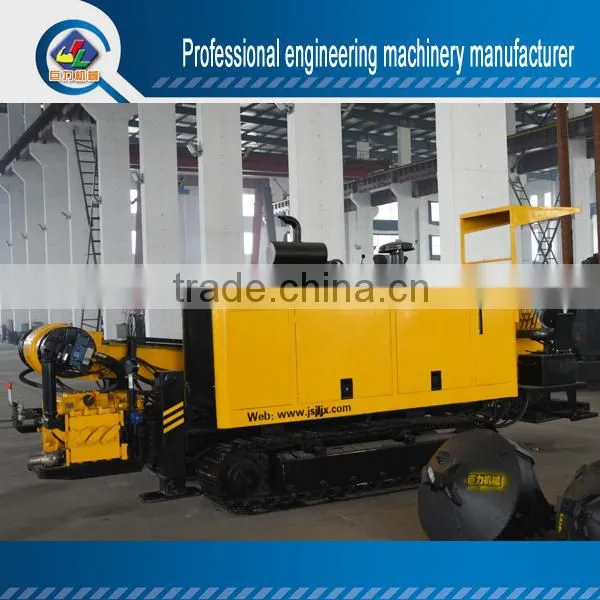

JL-18T Horizontal Directional Drilling Machine photo-5
US$ 49,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Underground horizontal directional drilling machine
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Underground horizontal directional drilling machine
Power Type Diesel
Place of Origin Jiangsu, China
Brand Name Juli Machinery
Model Number JL-18T
Usage Other, Trenchless horizontal directional drilling
Voltage 23v
Power(W) 110kw
Dimension(L*W*H) 5800*2110*2100
Weight 7500kg
Certification ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

JL-18T horizontal directional drilling machine

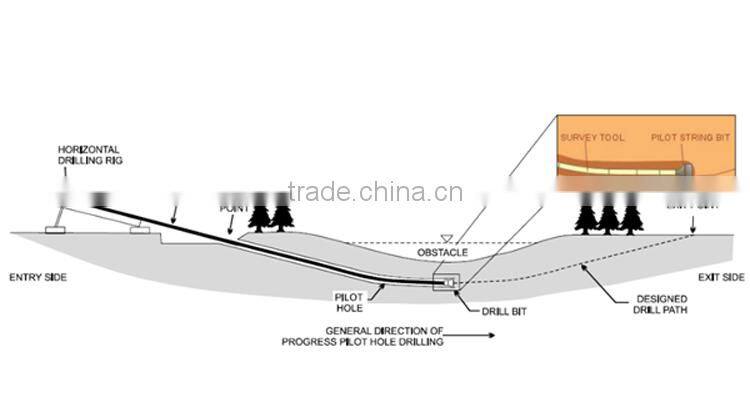

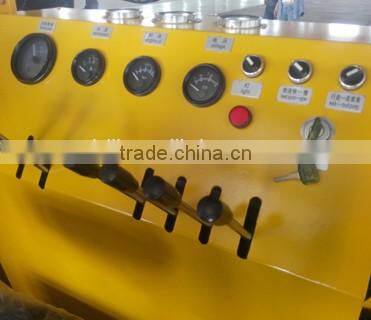

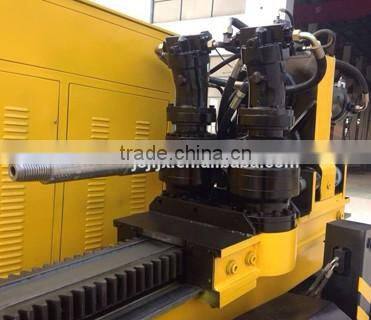

JL-18T horizontal directional drilling machine is with smaller size and strong capacity. It is a type of fully hydraulic driven drilling machine for laying pipe or cable underground. All systems including hydraulic systems, feeding system, mud pump system, power system and clamping system are installed on the high quality rubber crawler chassis. The control handle and meter are installed in the same area. It is easy for operator to control the machine. JL-18T horizontal directional drilling machine can move easily and has strong ability making the hill. Steel crawler is available if it is required by customers. The key components of its hydraulic system: hydraulick feeding pump, hydraulic rotate pump, pressure valve, oil hose, etc. are of products. The power system of JL-18T horizontal directional drilling machine is very reliable and strong. The feed system is driven by motor chain. Its speed can be adjusted. Double clamps is used for installing and dismantling the drill rod. This type of horizontal directional drilling machine sells very well in over 10 countries and regions.
The specifications of JL-18T horizontal directional drilling machine
Model
Unit
JL-15
JL-18T
JL-25
JL-33
JL-36
JL-40
Rated power
kw
75
110
125
132
160
179
Max pullback/thrusting
kn
150/150
180/180
250/250
330/330
360/360
400/400
Max spindle torch
n.m
5000
6000
8000
12000
14000
16000
Spindle speed
r/min
0-110
0-110
0-125
0-125
0-70-120
0-65-100
Travelling speed of power head
m/min
0-30
0-21
0-20
0-22
0-28
0-28
Max backreaming diameter
mm
600
700
800
800
900
900
Pipe length
mm
2500
3000
3000
3000
3000
3000
Pipe diameter
mm
60
60
73
73
76
76
Entry angle
°
10to23
10to22
10to22
10to20
10to20
10to23
Max mud flow rate
l/min
250
250
250
320
320
320
Weight
T
7
7.5
8
9.5
10.5
13
The main features of JL-18T horizontal directional drilling machine
1) Main components such as diesel engine are famous products
2) Professional low noise design makes the machine suitable for working in downtown
3) Laying cable or pipe without trench
4) Compact structure
Certifications

Strict quality management is operated in daily work. We have passed ISO9001.

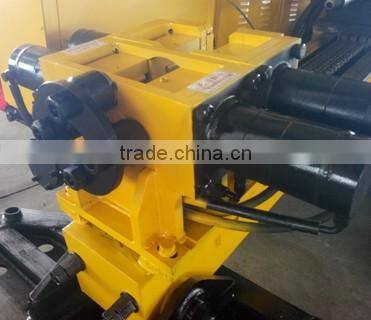

Detailed Images
Our Service
Engineers available to service our JL-18T horizontal directional drilling machine overseas
Spare part deivered in time
7+24 all time on line service
Total logistics information tracking report
Packing & Delivery
Packaging
Size
Varing in terms of different models
Weight
Varing in terms of different models

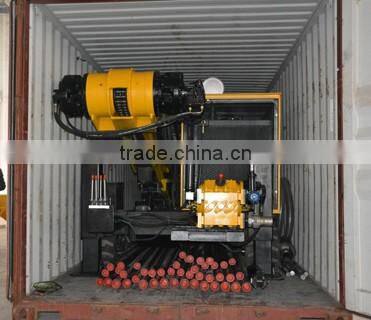

Packaging Details
Nude packed in 40ft ccontainer. JL-18T horizontal directional drilling machine is firmly fixed in the container.
Related Products

Cheap price 40T HDD drilling machine for India

JL-25T horizontal directional drilling rig

China underground horizontal directional drill

Our Company

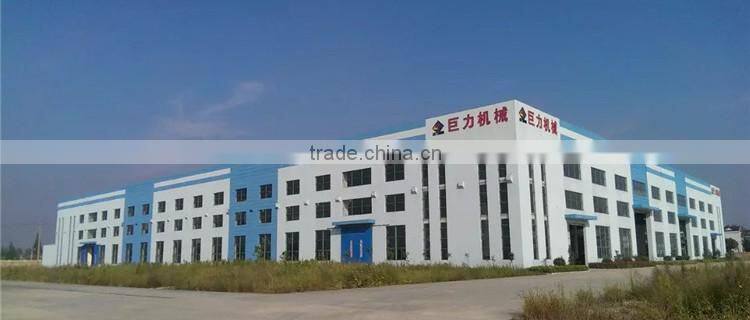

Dongtai Juli Machine Manufacture Co., Ltd. occupies over 30,000sqm and has over 100 sets of lathe, drill press, planer, milling machine, grinder, etc. The company has many years of experience in machinery manufacturing and sophisticated equipment. It is equipped with gantrys of 32tons & 16tons and has many years of experience of specializing in construction equipments including series of  horizontal directional drilling machine,  KLB(step type hydraulic pile driver ), rod type diesel pile hammer, ZYS(static hydraulic pile driver), etc. Jiangsu province government has claimed this company is of technology enterprise. Our annual production capacity is now over 10000 sets. With reliable quality and excellent service, Our horizontal directiona drilling machine and other types of machine sell very well in over 20 countries. Located in the beautiful coast of Yellow Sea, Dongtai,No.9,BeiGuan road ,Economic development zone, Jiangsu province, our factory is near Shanghai, China. Welcome to visit us, we guarantee to exceed your expectation!


Product series:

1. DD series guide rod type diesel pile hammer: 2.5 tons, 3.2 tons, 4.0 tons, 4.0 tons, 6.3 tons, 7.3 tons, 7.3 tons, 9.3 tons,

    10.3 tons, 10.3 tons, 12.8 tons, 16 tons, 20 tons;
2. Hydraulic telescopic boom drop hammer pile driver series: 40, 60, 80; tube walking type and hyraulic press static pile driver

     machine, 120 tons to 1000 tons
3. Horizontal directional drilling machine: JL - 15, JL-18T, JL - 20, JL-25, JL - 28, JL - 32, JL - 40, JL - 68 and JL - 245 type

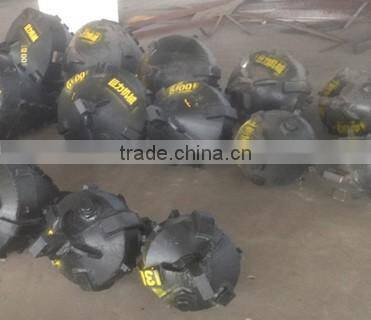

The company also supplies various types of drill pipe, drilling tools, spare parts supply, international and guide apparatus, etc.
