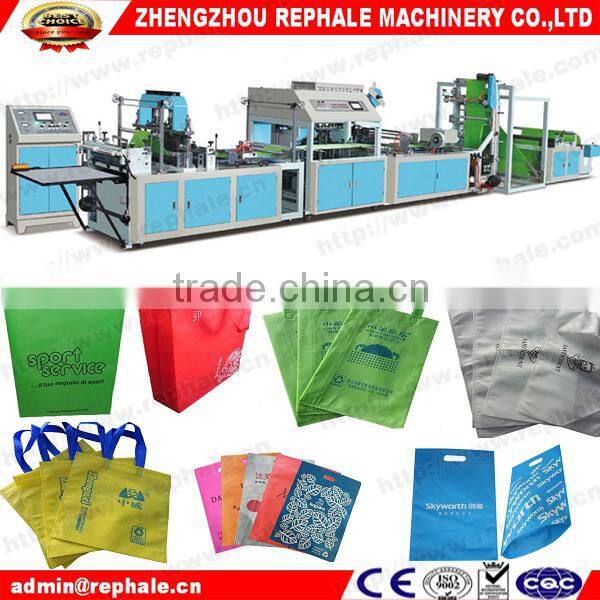

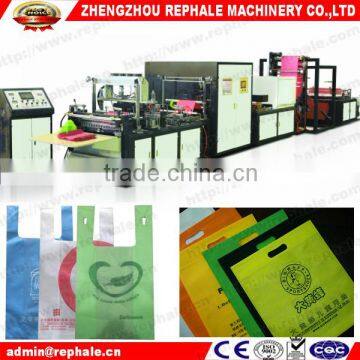

DC700 Nonwoven bag making machine
Description:
This machine is suitable for non woven fabric material only, it is the most advanced equipment and has the function of full automatic handle loop sealing. The speed is about 20-60 pcs/min, it equals to 5 workers operating 5 handle sealing machines. It can fully automatic make non woven bag products with different bag type and size, as handle attached bags, T-shirt bags (vest bags), box bags, flat bags, drawstring bags and so on. It has widely used in clothing, footwear, wine, gifts packaging etc. The machine can instead of the traditional hand-sewing and reducing labor and manufacturing costs. It’s very popular in worldwide.
Technical parameters:
Model |
ZDJ-DC700 |
Production speed |
20-55pcs/min |
Bag width |
100-800mm |
Bag length |
200-580mm |
Bag Thickness |
30-120g |
Voltage |
380V/220V |
Power |
18kw |
Size |
10.3m*2m*2.1m |
Weight |
2500kg |
1. This machine adopts Taiwan touch screen computer display, PLC computer program which can be edited.
2. Auto meter counting &stopping, could freely setting number.
3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.
4. High voltage static processor, Auto constant temperature heating controller.
5. This machine has the function of automatic punching.
6. Unwinding magnetic powder tension control with manual, Auto side-correction control.
7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate, firm sealing, beautiful and decent.
FAQ:
1.What kind of bag you want to produce?
2.What is size of bag?
3.Do you need printing machine?if you need,how many colors do you want to print on bag?
