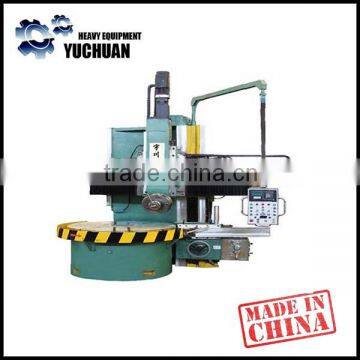

C51 Series Vertical Lathe/single Column Vertical Lathe

Detailed introduction:

1. This series of machines have the conventional type and CNC type. The conventional type is represented as “C51_” the NC_ type represented as “CK51_”.It is suitable for finely and roughly machining of the internal and external cylindrical surface, inside and outside taper,surfacing,grooving of the ferrous metals, nonferrous metals and some non-metallic materials with high-speed steel, carbide cutting tools.
2. The main transmission of the vertical lathe is performed by vector inverter system; a continuously variable speed range can be obtained by 2 speed-shifting mechanism.
3. The workable spindle is centered by high-precision double-row short cylindrical roller bearing of which the radial clearance is adjustable, the workable is equipped with constant current hydrostatic guideway,it is thereby able to achieve a high rotary accuracy, large loading and small heat deformation.
4. There are two types of rail heads: In the first type the rail head equipped with pentagonal turrel, while the side head with tetragonal turrel;in the second type the rail head is equipped tetragonal turret, no side head. All head balancing with hydrostatic tank, hydrostatic and vertical rapid feed could be a continuously variable speeds though AC servo driving.
5. The basic parts of the machine tools are all casted, processed and assembled in house. The casting material is highly quality cast iron HT250 which has clear removed the casting stress thoroughly by annealing process and vibratory process. All the guide ways of the bed and column and beam have been supersonic frequency quenched.

6. Digital control and digital display cold be equipped according to the request of customers.
   Parameters of C51 series single-column vertical lathe series:

Our Workroom:

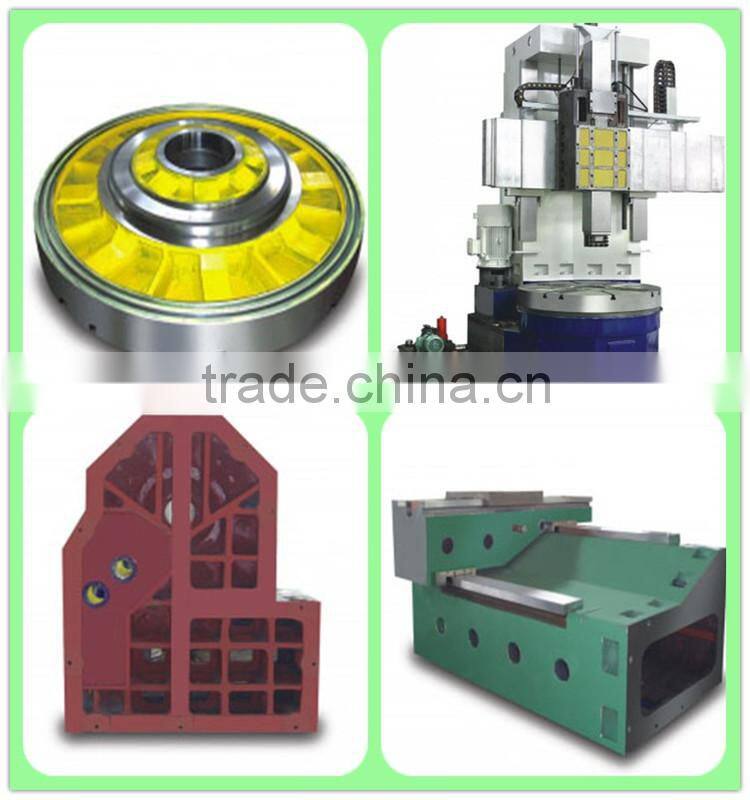

Detail Picture:
