Dream Color Addressable 60leds Apa102 Led Strip Light Ip65

Dream Color Addressable 60leds Apa102 Led Strip Light Ip65 photo-1

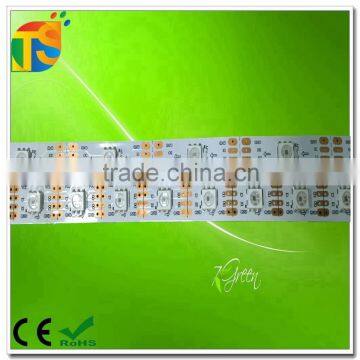

Dream Color Addressable 60leds Apa102 Led Strip Light Ip65 photo-2
Dream Color Addressable 60leds Apa102 Led Strip Light Ip65 photo-3
Dream Color Addressable 60leds Apa102 Led Strip Light Ip65 photo-4
Dream Color Addressable 60leds Apa102 Led Strip Light Ip65 photo-5
Dream Color Addressable 60leds Apa102 Led Strip Light Ip65 photo-6
US$ 1 - 8 MOQ: 5 Meters
Key Specifications
Get Latest Price
LED Light Source:
Epister SMD5050
Type:
Flex LED Strips
Input Voltage(V):
DC5V
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source Epister SMD5050
Type Flex LED Strips
Input Voltage(V) DC5V
Lamp Power 14.4W/M
Lamp Luminous Flux(lm) 18LM
Color Temperature(CCT) full color
Working Temperature(℃) 10, 50
Working Lifetime(Hour) 50000
Lamp Body Material Copper
Certification CE, PSE
Emitting Color Other, yellow/red/green/blue/white
Place of Origin Guangdong, China
Brand Name TS
Model Number TS-apa102-60
Product Description

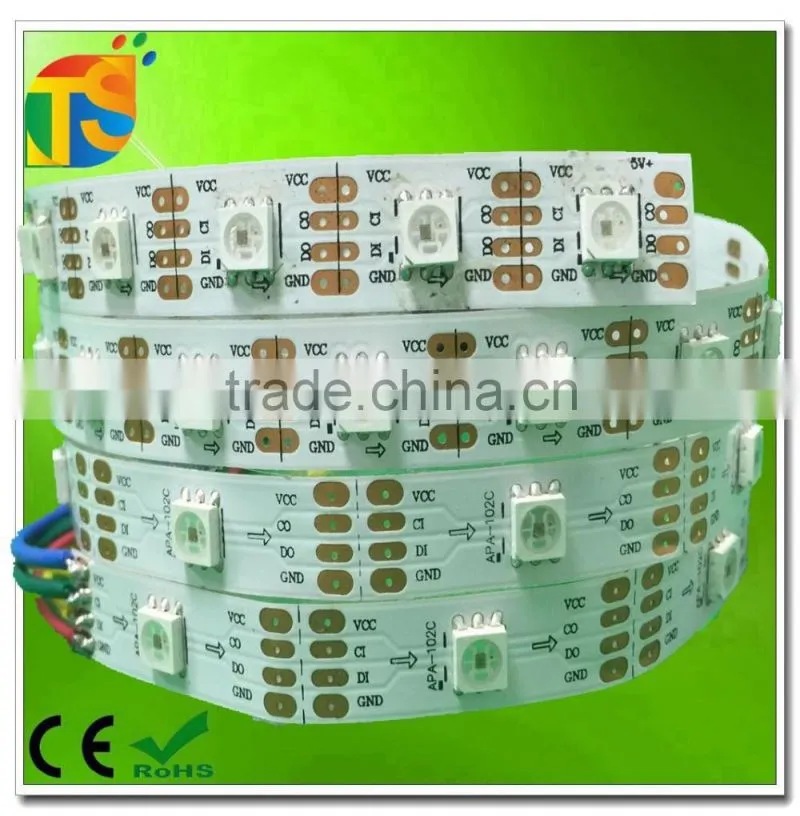

Dream color addressable 60leds apa102 led strip light ip65

Model number
TS-apa102-60
 LED TYPEE
SMD 5050  RGB  chip
Available color
RGB
IC Model
apa102 ic built-in
Color
Addressable full color
View angle
120 degree
LED QTY
60LEDS/M
POWER
14.4w
Voltage
DC5V
PCB color
white /black
PCB width
10mm
Installation
wiht 3M adhesive back ,easy for installation
IP rate
IP20/IP65(Silicon tube )/IP67/IP68

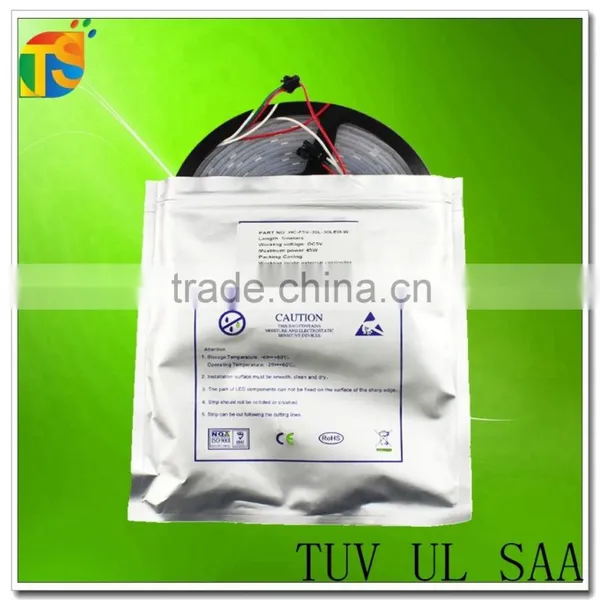

Package
1M/reel .with anti-static bag
Application
indoor /outdoor decorative lighting  ,ceiling lighting ,sign lighting etc.

Detail use information:

Dream color addressable 60leds apa102 led strip light ip65
1)Addressable full color led strips----apa102  ic built-in
2)30pcs led per one meter
3) individually control ----------1 ic& 1 led chip
4)Standard Reel Length: 5meter/roll, also can be customized.
5) Cutted: 1 integrated RGB LEDs per segment, can be cutted per 1LED.
you can cut this stuff pretty easily with wire cutters, there are cut-lines
every 0.65''/3.33cm(1 LED each), Solder to the 0.1'' copper pads and you're good to go.
6)Power supply: You must use a 5V DC power supply to power this strip, do not use higher than 6V  or you can destroy the entire strip
7)Connectors: 4PIN JST female and male connectors, DAT, CLK, DC5V+, GND-.these LEDs have 2 wires (input and out put) for sending data - one clock pin and one data pin.That means you need two pins, not one, to control DotStars. Because the clock and data is seperated, you can use any processor   speed or type to control these strips, and you don't have to worry about being careful with the timing.
8)LED Brightness: Red ~600mcd, Green ~500mcd, Blue ~150mcd

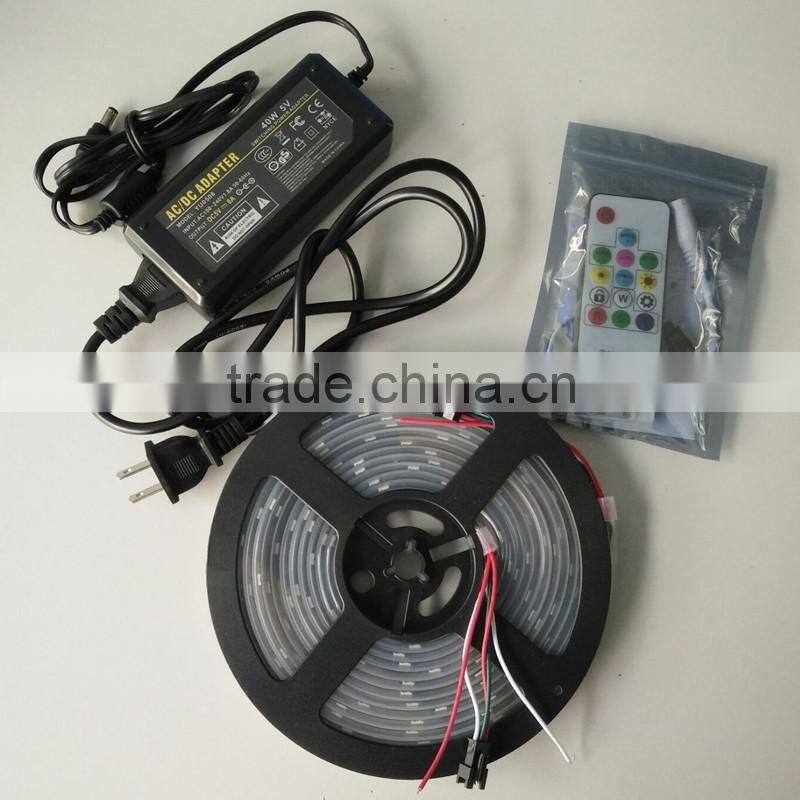

Connection:

Dream color addressable 60leds apa102 led strip light ip65
SPI signal :LED strip+ LED power  supply +led controller
DMX  control :LED strip + LED power supply+DMX controller +DMX decoder

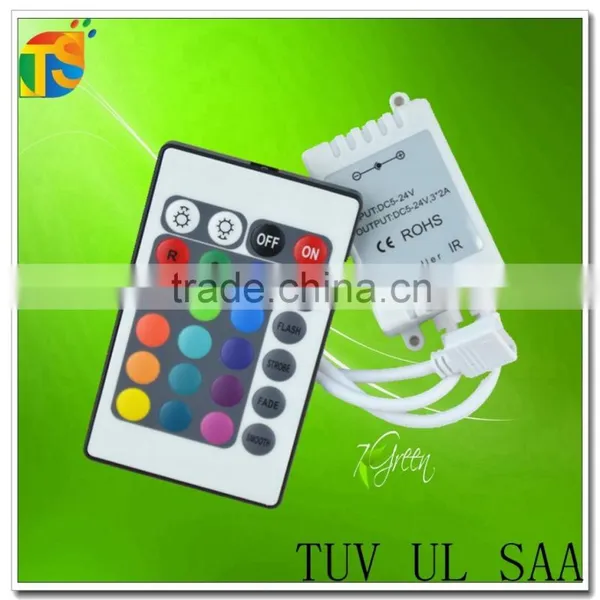

LED controller :T-series SD card controller ,RF remote controller .DMX controller,Arduino.........(off line /PC online)

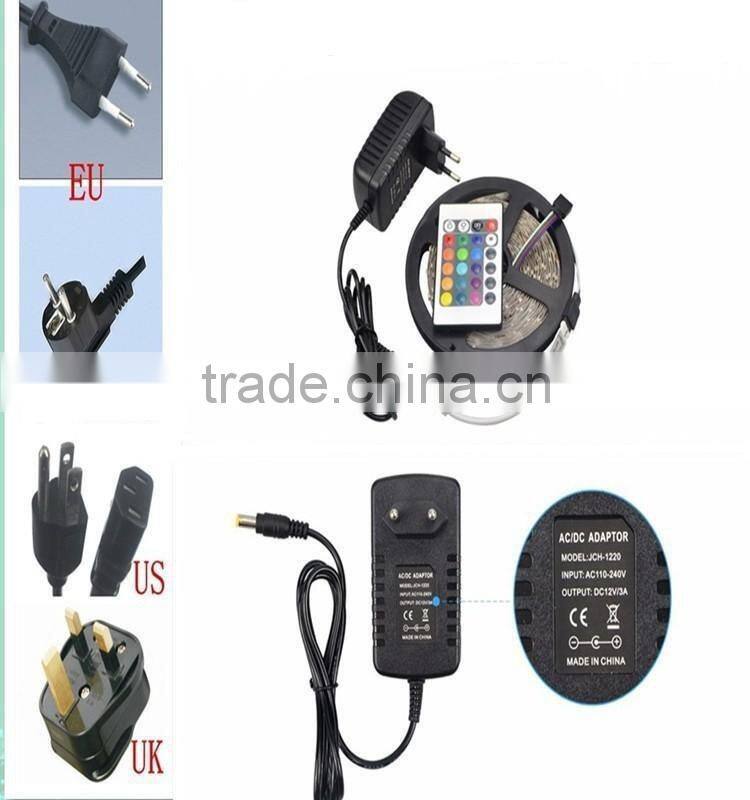

LED power supply :Meanwell power supply ,T- series ,A-series .... (waterproof /non-waterproof )

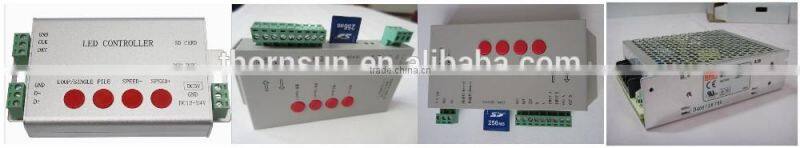

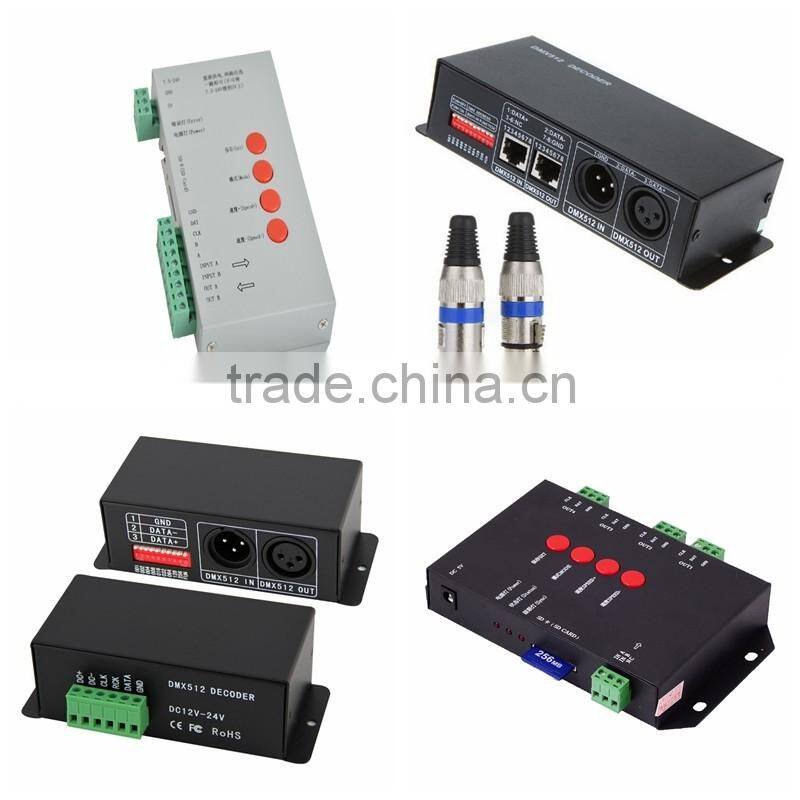

Controller and Power supply:
T-100S  +Meanwell power:

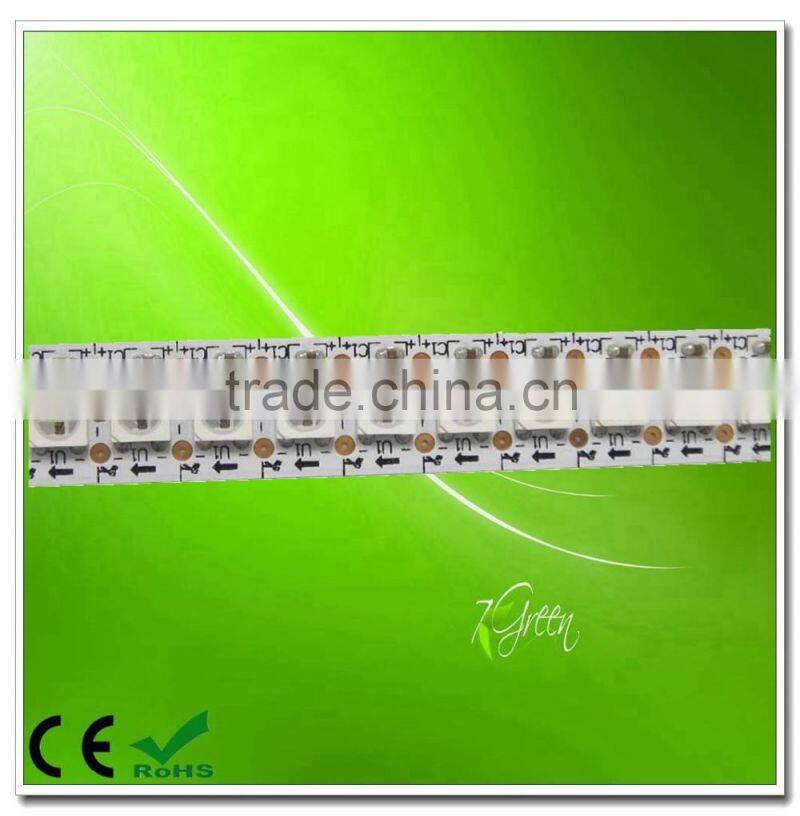

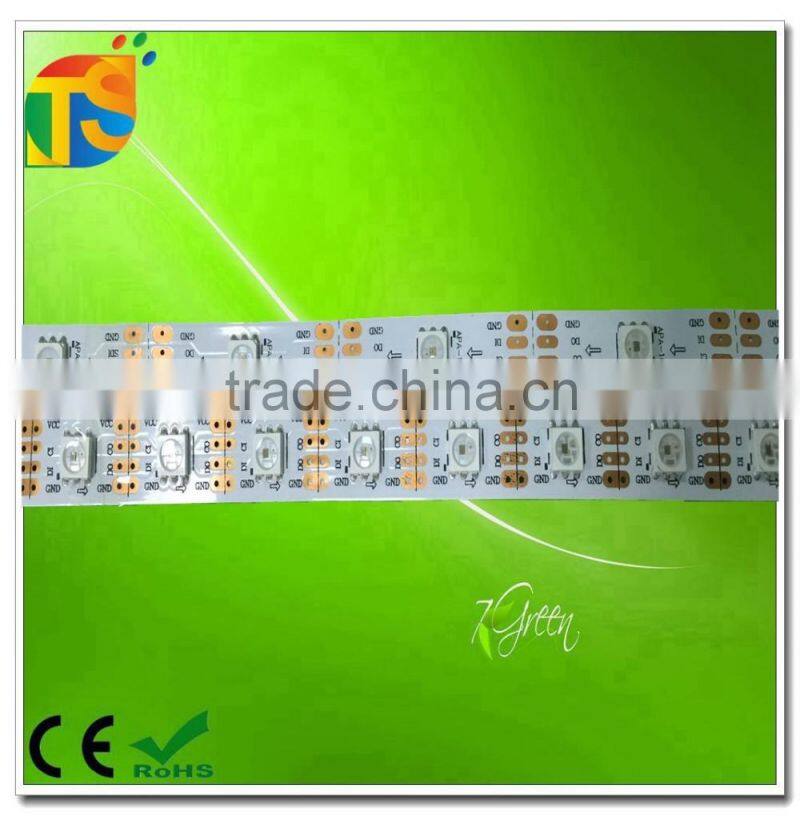

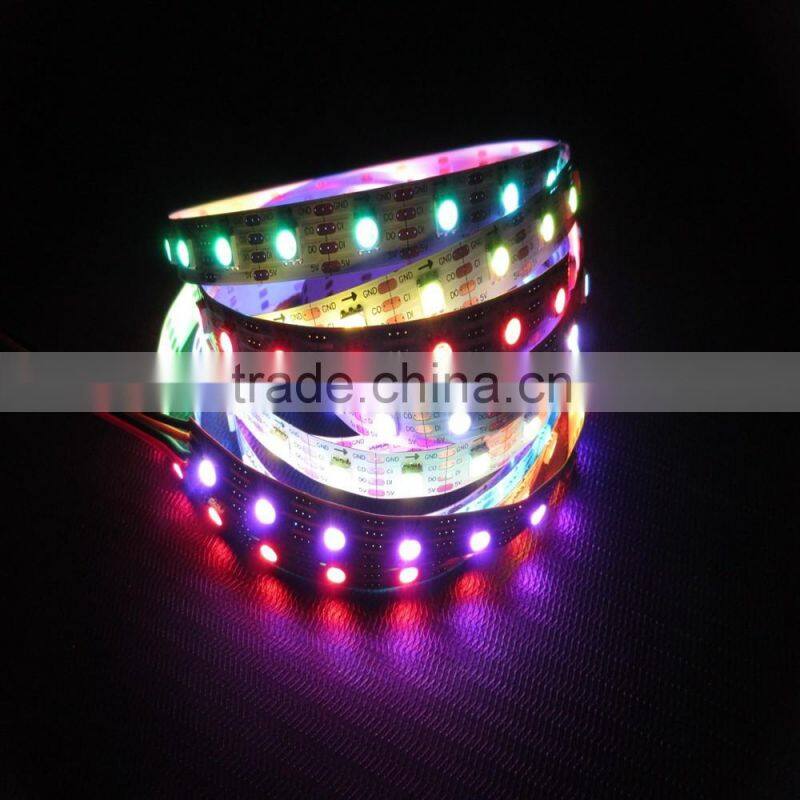

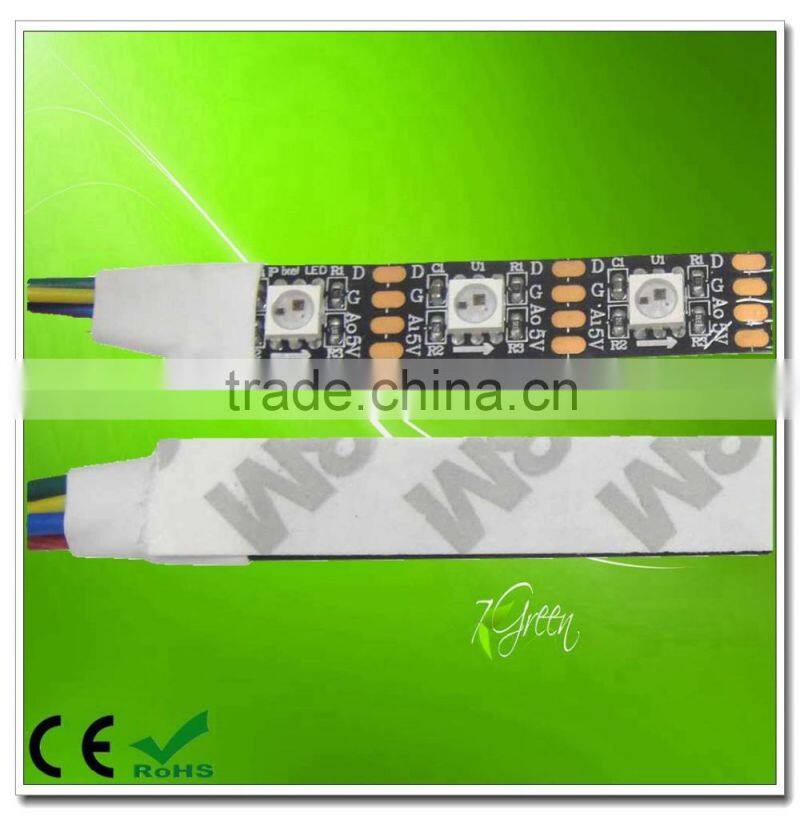

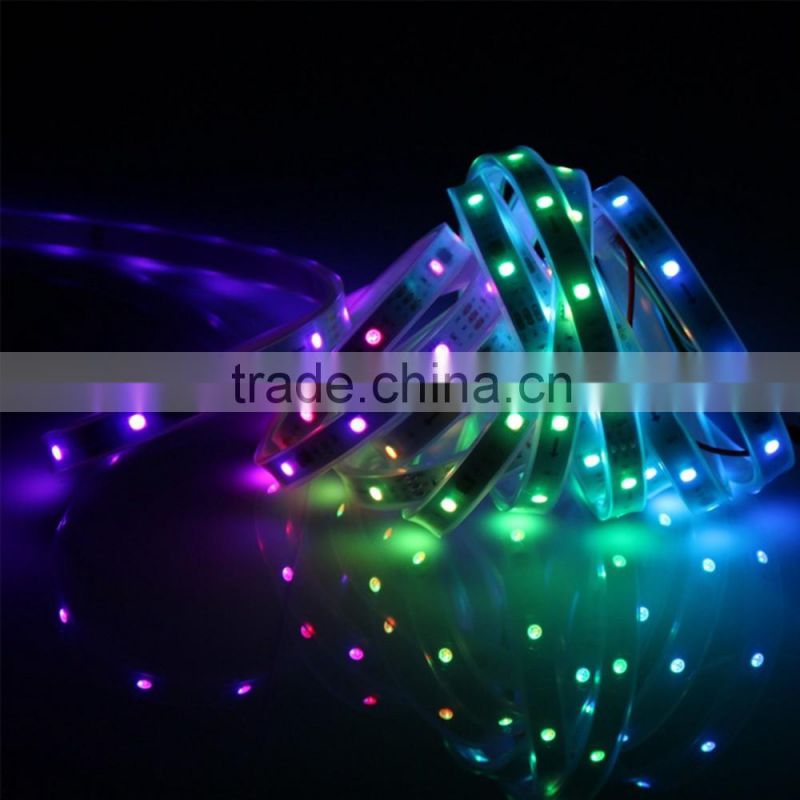

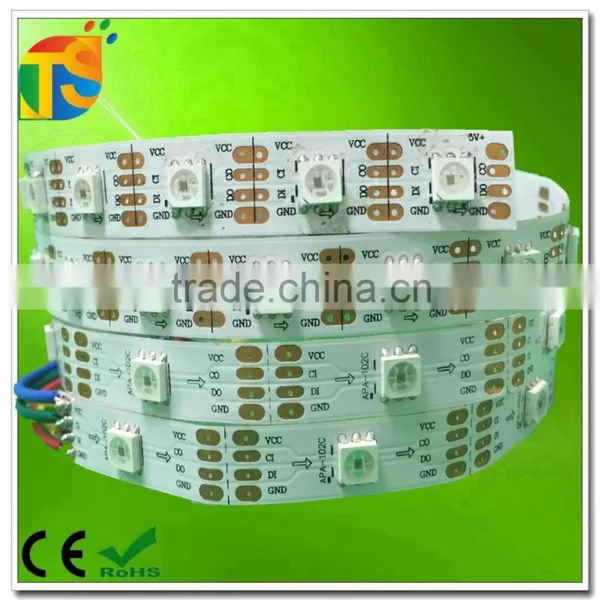

Detailed Images
Compared of Apa 102  30leds/m  60 leds/m  144leds/m rgb led strip
Type
30leds/m
60leds/m
144 leds/m
IC type
APA 102C
PCB color
white /black
standard length
5 meter/roll
Voltage
DC 5v
cutted
per 1 led
watts
7.2w/w
14.4w/m
34.56w/m
PCB width
10mm
12mm
12mm
Related  Products

Addressable  WS2812B  30/60/144 LEDS /m led strip


Addressable APA102  60LES/M led strip

LED digital Bar RGB WS2801 led stirp

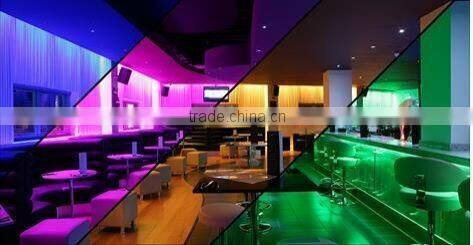

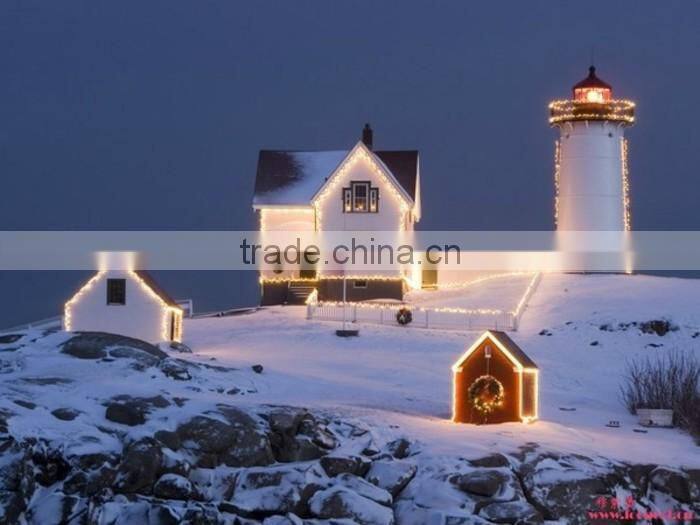

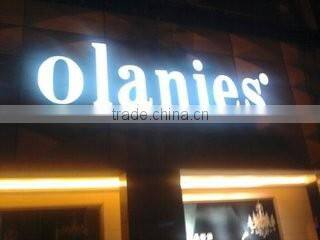

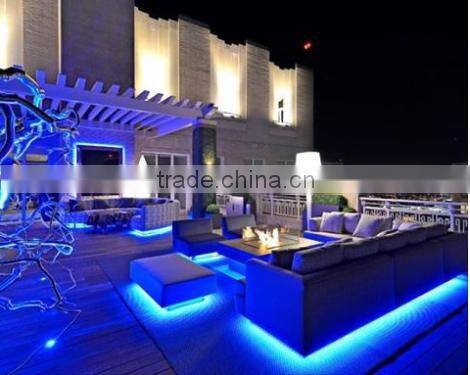

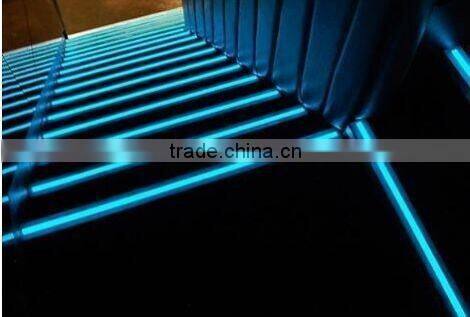

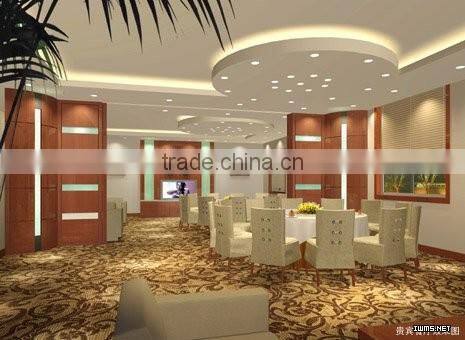

Application
house decorative lighting

 outdoor lighting

 logo   decorative lighting

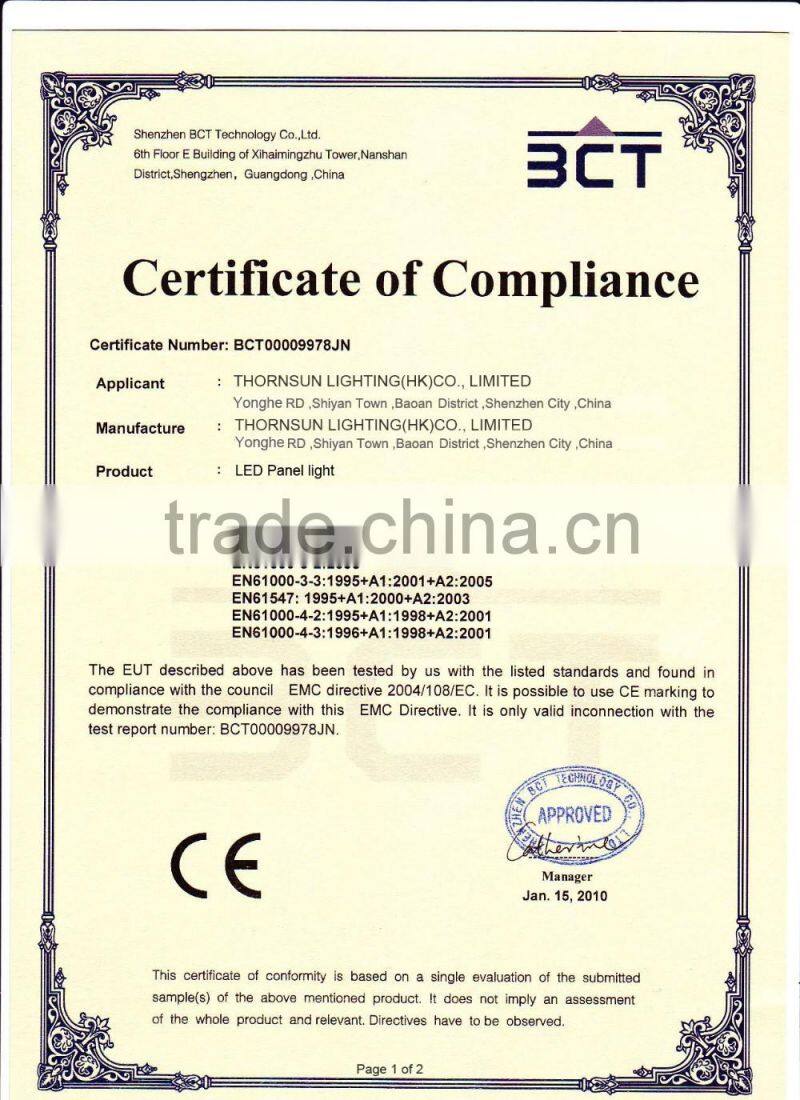

Certificate
Payment & shipping
Payment:
Standard payment Terms : pay 30% deposit in advance ,70% banalce before shipment
On-line Trade Assurance Order ,All is up to you !
 More payment  Tems could be provide!! ( T/T .Paypal .Western Union )
SHIPPING:
15-25 working days aftern payment receipt confrimed  (Based on Actual Quantity)

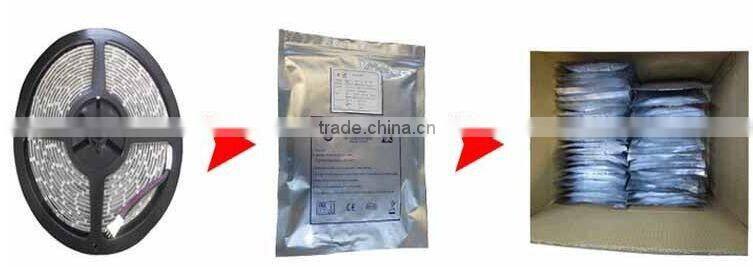

 Packing :standard export packing or according to customer's demend
 Professional Hazards Goods shipping Forwarders

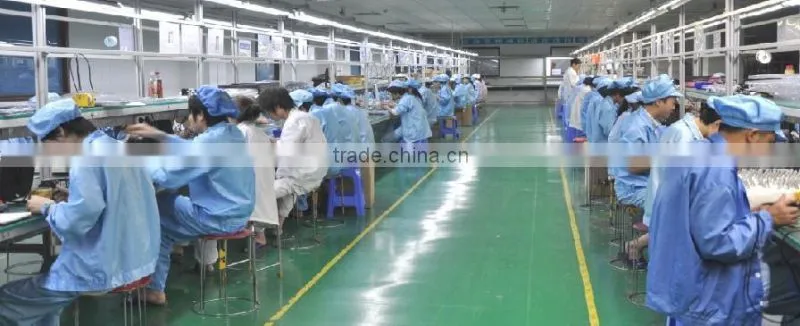

Our Company
