RGB emitting color addressable apa102 30leds 5050 flexible led strip light dc5v Supplier's Choice

FOB Price

USD $1 - $24 / Meter

5 Meters(Min.Order)

Supply Ability 50000 Meter / Meters per Month
Port shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	Epilster 5050	Type	Flex LED Strips
Input Voltage(V)	DC5V	Lamp Power	7.2W/M
Lamp Luminous Flux(lm)	18LM	Color Temperature(CCT)	full color
Working Temperature(℃)	10, 50	Working Lifetime(Hour)	50000
Lamp Body Material	Copper	Certification	CE
Emitting Color	Other, yellow/red/green/blue/white	Place of Origin	Guangdong, China
Brand Name	TS	Model Number	TS-apa102-30

Product Description

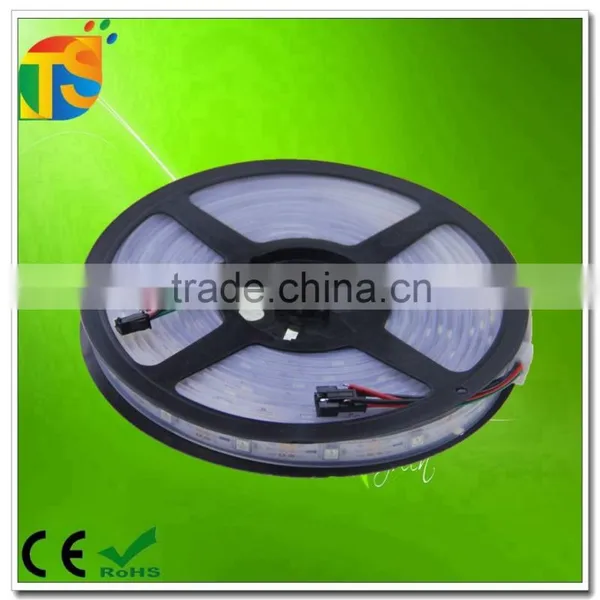

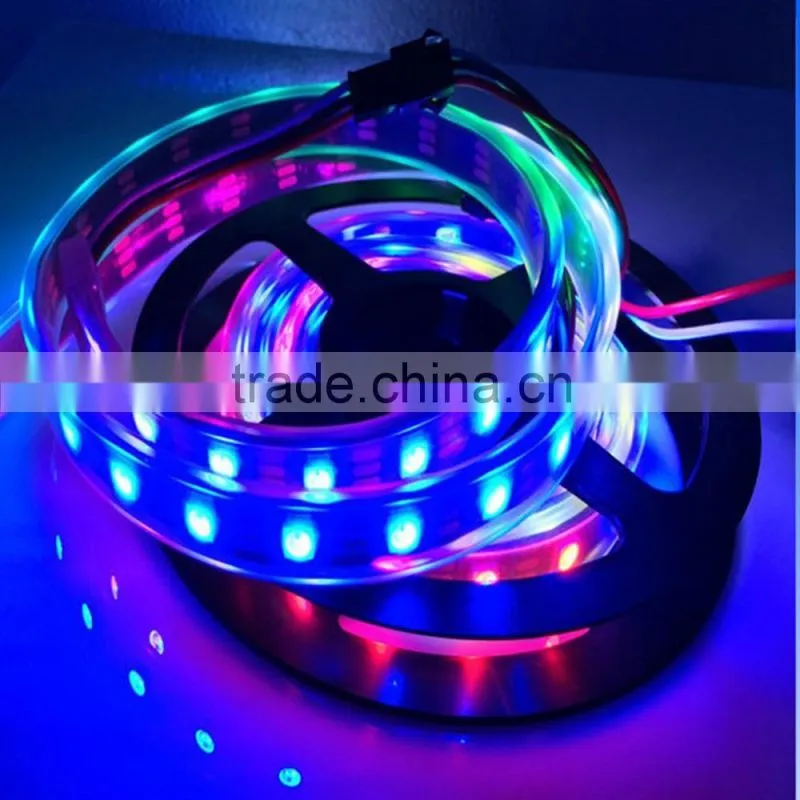

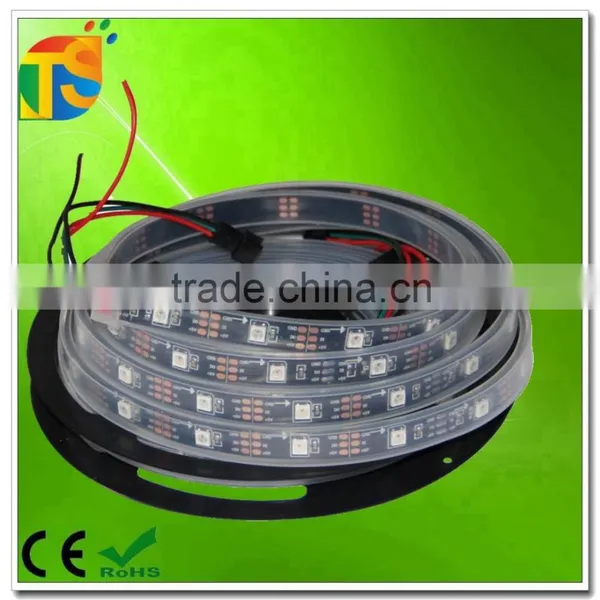

RGB emitting color addressable apa102 30leds 5050 flexible led strip light dc5v

Model number	TS-apa102-30
LED TYPEE	SMD 5050 RGB chip
Available color	RGB
IC Model	apa102 ic built-in
Color	Addressable full color
View angle	120 degree
LED QTY	30LEDS/M
POWER	7.2w
Voltage	DC5V
PCB color	white /black
PCB width	10mm
Installation	wiht 3M adhesive back ,easy for installation
IP rate	IP20/IP65(Silicon tube )/IP67/IP68

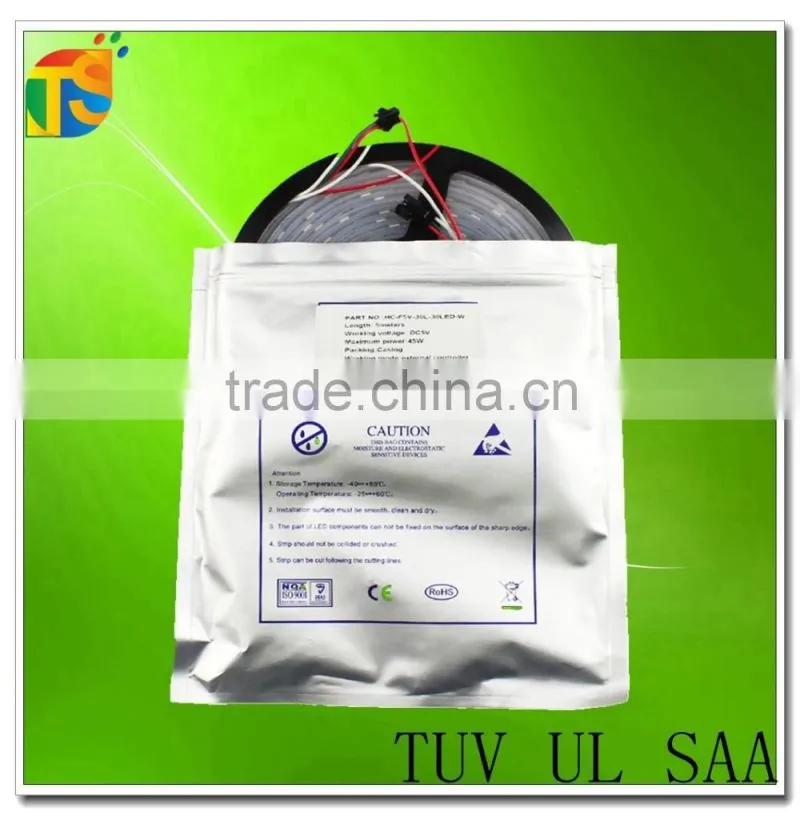

Package	1M/reel .with anti-static bag
Application	indoor /outdoor decorative lighting ,ceiling lighting ,sign lighting etc.

Detail use information:

RGB emitting color addressable apa102 30leds 5050 flexible led strip light dc5v

1)Addressable full color led strips----apa102 ic built-in

2)60pcs led per one meter

3) individually control ----------1 ic& 1 led chip

4)Standard Reel Length: 5meter/roll, also can be customized.

5) Cutted: 1 integrated RGB LEDs per segment, can be cutted per 1LED.
you can cut this stuff pretty easily with wire cutters, there are cut-lines
every 0.65''/3.33cm(1 LED each), Solder to the 0.1'' copper pads and you're good to go.

6)Power supply: You must use a 5V DC power supply to power this strip, do not use higher than 6V or you can destroy the entire strip

7)Connectors: 4PIN JST female and male connectors, DAT, CLK, DC5V+, GND-.these LEDs have 2 wires (input and out put) for sending data - one clock pin and one data pin.That means you need two pins, not one, to control DotStars. Because the clock and data is seperated, you can use any processor speed or type to control these strips, and you don't have to worry about being careful with the timing.

8)LED Brightness: Red ~600mcd, Green ~500mcd, Blue ~150mcd

Connection:

RGB emitting color addressable apa102 30leds 5050 flexible led strip light dc5v

SPI signal :LED strip+ LED power supply +led controller

DMX control :LED strip + LED power supply+DMX controller +DMX decoder

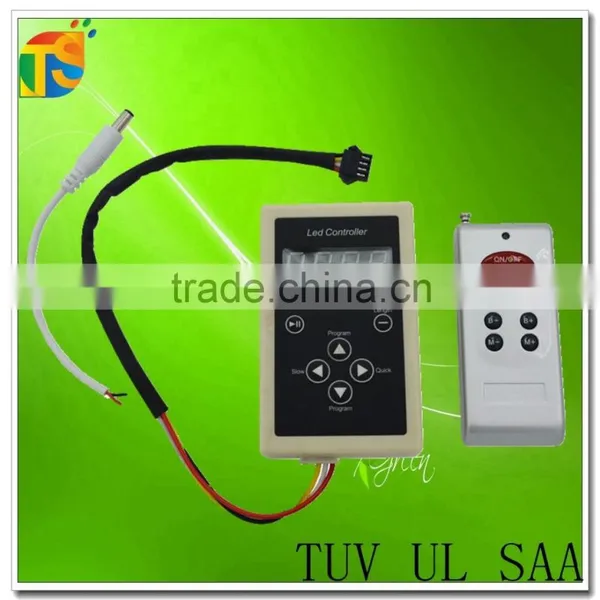

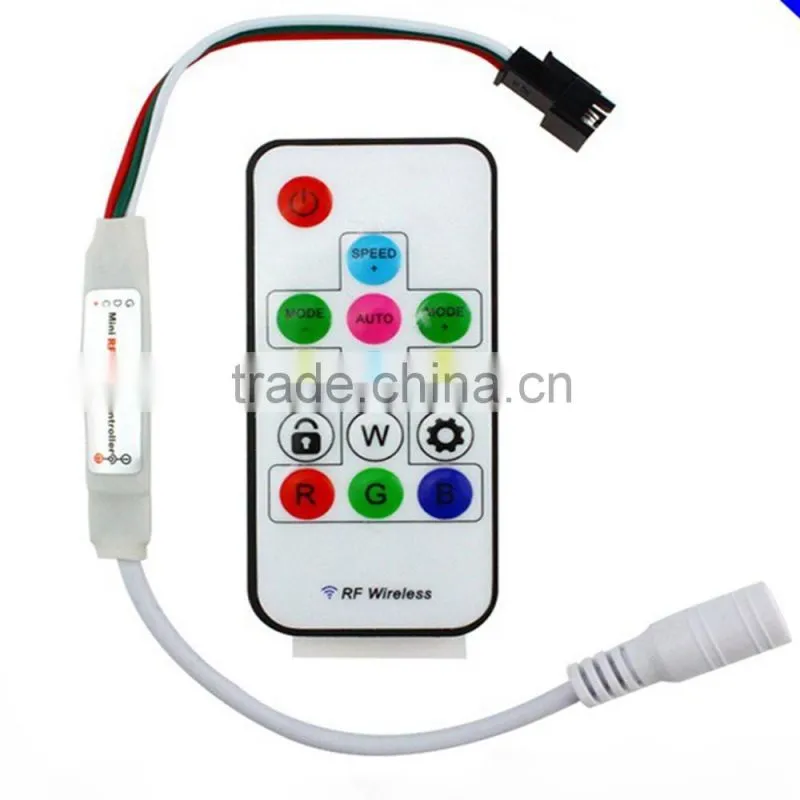

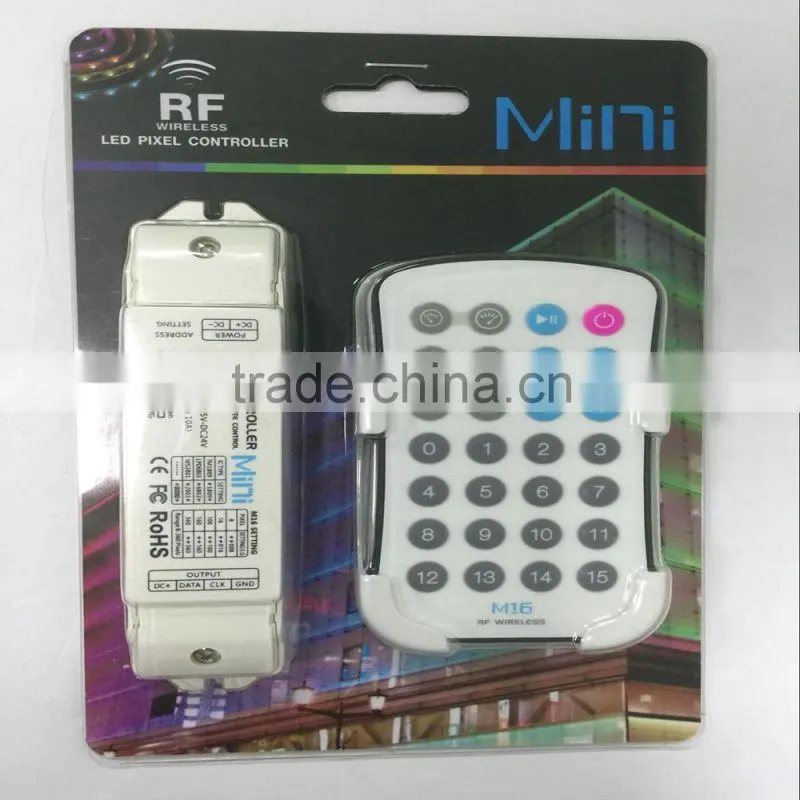

LED controller :T-series SD card controller ,RF remote controller .DMX controller,Arduino.........(off line /PC online)

LED power supply :Meanwell power supply ,T- series ,A-series .... (waterproof /non-waterproof )

Controller and Power supply:

T-1000S +Meanwell power:

Detailed Images

Compared of Apa 102 30leds/m 60 leds/m 144leds/m rgb led strip

Type	30leds/m	60leds/m	144 leds/m
IC type	APA 102C
PCB color	white /black
standard length	5 meter/roll
Voltage	DC 5v
cutted	per 1 led
watts	7.2w/w	14.4w/m	34.56w/m
PCB width	10mm	12mm	12mm

Addressable WS2812B 30/60/144 LEDS /m led strip

Addressable APA102 60LES/M led strip

LED digital Bar RGB WS2801 led stirp

Application

house decorative lighting

outdoor lighting

logo decorative lighting

Certificate

Payment & shipping

Payment:

Standard payment Terms : pay 30% deposit in advance ,70% banalce before shipment

On-line Trade Assurance Order ,All is up to you !

More payment Tems could be provide!! ( T/T .Paypal .Western Union )

SHIPPING:

15-25 working days aftern payment receipt confrimed (Based on Actual Quantity)

Packing :standard export packing or according to customer's demend

Professional Hazards Goods shipping Forwarders
