Adressable Arduino Smd5050 12v Rgb Led Strip Back Light WS2811/UCS1903 Most Popular

Adressable Arduino Smd5050 12v Rgb Led Strip Back Light WS2811/UCS1903 Most Popular thumbnail-1
Adressable Arduino Smd5050 12v Rgb Led Strip Back Light WS2811/UCS1903 Most Popular thumbnail-2
Adressable Arduino Smd5050 12v Rgb Led Strip Back Light WS2811/UCS1903 Most Popular thumbnail-3
Adressable Arduino Smd5050 12v Rgb Led Strip Back Light WS2811/UCS1903 Most Popular thumbnail-4
Adressable Arduino Smd5050 12v Rgb Led Strip Back Light WS2811/UCS1903 Most Popular photo-1
Adressable Arduino Smd5050 12v Rgb Led Strip Back Light WS2811/UCS1903 Most Popular photo-2

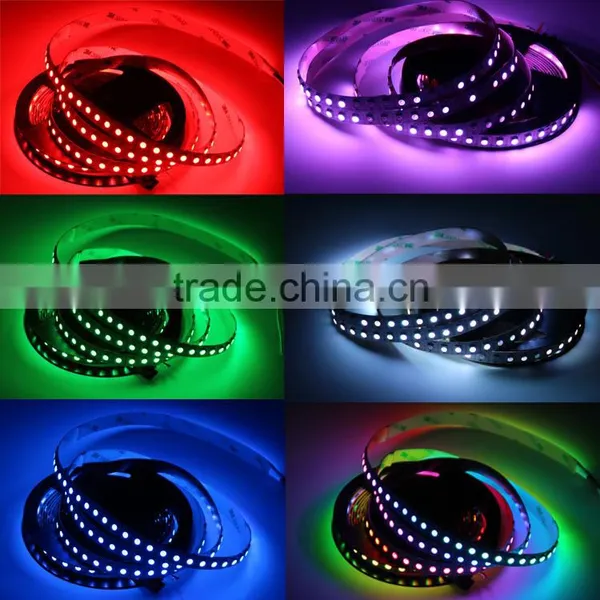

Adressable Arduino Smd5050 12v Rgb Led Strip Back Light WS2811/UCS1903 Most Popular photo-3
Adressable Arduino Smd5050 12v Rgb Led Strip Back Light WS2811/UCS1903 Most Popular photo-4
US$ 1 - 2 MOQ: 5 Meters
Key Specifications
Get Latest Price
LED Light Source:
Epilster 5050
Type:
Flex LED Strips
Input Voltage(V):
DC12V
Contact Supplier Request Quote Chat Now
Shenzhen Kaixinliang Technical Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epilster 5050
Type Flex LED Strips
Input Voltage(V) DC12V
Lamp Power 14.4W
Lamp Luminous Flux(lm) 18-20lm/led
Color Temperature(CCT) full color
Working Temperature(℃) 10, 50
Working Lifetime(Hour) 50000
Lamp Body Material Copper
Certification CE, SAA, UL
Emitting Color Other, yellow/red/green/blue/white
Place of Origin Guangdong, China
Brand Name TS
Model Number TS-WS2811-60
Product Description

Adressable arduino  smd5050 12v rgb led strip back light WS2811/UCS1903

Model number
TS-WS2811-60
 LED TYPEE
SMD 5050  RGB  chip
Available color
RGB
IC Model
ws2811/UCS1903
Color
Addressable full color
View angle
120 degree
LED QTY
60led/m
POWER
14.4w
Voltage
DC12V
PCB color
white /black
PCB width
10mm
Installation
wiht 3M adhesive back ,easy for installation
IP rate
IP20/IP65(Silicon tube )/IP67/IP68
Package
1M/reel .with anti-static bag
Application
indoor /outdoor decorative lighting  ,ceiling lighting ,sign lighting etc.

Detail use information:

Adressable arduino  smd5050 12v rgb led strip back light WS2811/UCS1903
1)Addressable full color led strips---WS2811 IC/UCS1903 IC
2)60pcs led per one meter
3) individually control ----------1 ic& 3led chip
4)Standard Reel Length: 5meter/roll, also can be customized.

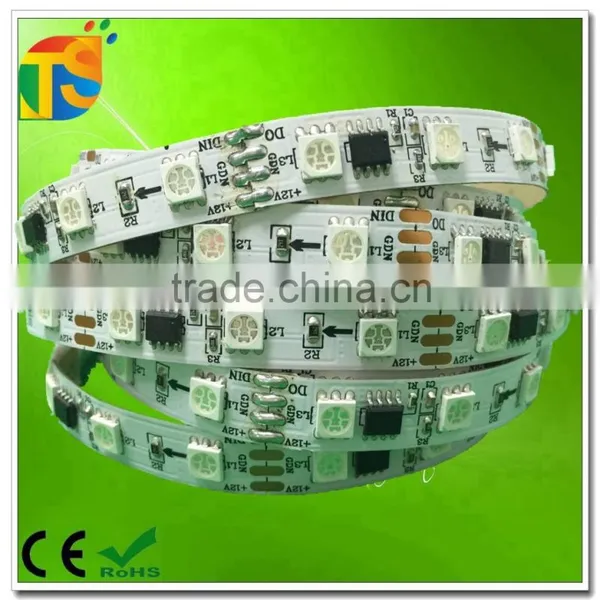

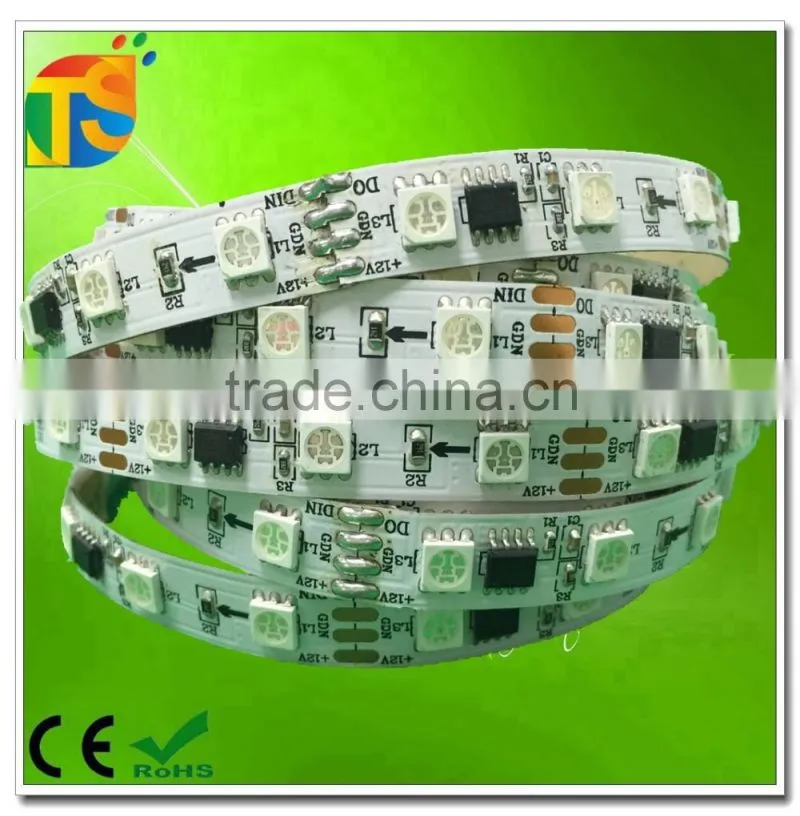

5) Cutted: 3 integrated RGB LEDs per segment, can be cutted per 3LED.
you can cut this stuff pretty easily with wire cutters, there are cut-lines
every 0.65''/3.33cm(1 LED each), Solder to the 0.1'' copper pads and you're good to go.
6)Power supply: You must use a 12 DC power supply to power this strip, do not use higher than 12V  or you can destroy the entire strip
7)3PIN JST SM connector(non-waterproof)soldered in each end of strip,extra 2single wire for powering in input side
8)Customised length available

Connection:

SPI signal :LED strip+ LED power  supply +led controller

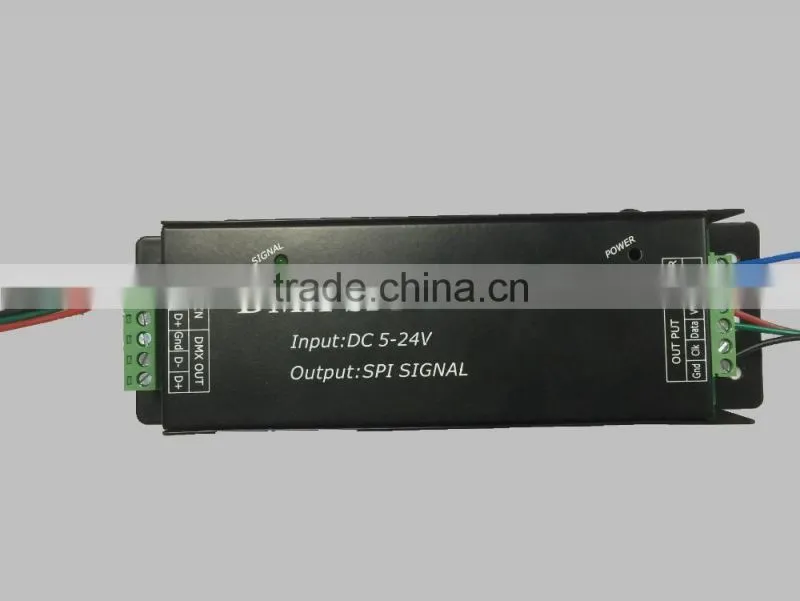

DMX  control :LED strip + LED power supply+DMX controller +DMX decoder
LED controller :T-series SD card controller ,RF remote controller .DMX controller,Arduino.........(off line /PC online)
LED power supply :Meanwell power supply ,T- series ,A-series .... (waterproof /non-waterproof )
Controller and Power supply:
T-1000S  +Meanwell power:
Detailed Images
Compared of WS281130leds/m  60 leds/m rgb led strip
                          30leds/m
                                              60leds/m
IC type
WS2811ic/UCS1903 ic
PCB color
white /black
standard length
5 meter/roll
            PCB width
                                                                    10mm
                Cutted
                                                                 per 3 leds cutted
Voltage
DC 12v
watts
7.6w
                   14.4w
Related  Products

Addressable  WS2812B  30/60/144 LEDS /m led strip


Addressable APA102  60LES/M led strip

LED digital Bar RGB WS2801 led stirp

Application
house decorative lighting

 outdoor lighting

 logo   decorative lighting

Certificate
Payment & shipping
Payment:
Standard payment Terms : pay 30% deposit in advance ,70% banalce before shipment
On-line Trade Assurance Order ,All is up to you !
 More payment  Tems could be provide!! ( T/T .Paypal .Western Union )
SHIPPING:
15-25 working days aftern payment receipt confrimed  (Based on Actual Quantity)
 Packing :standard export packing or according to customer's demend
 Professional Hazards Goods shipping Forwarders
