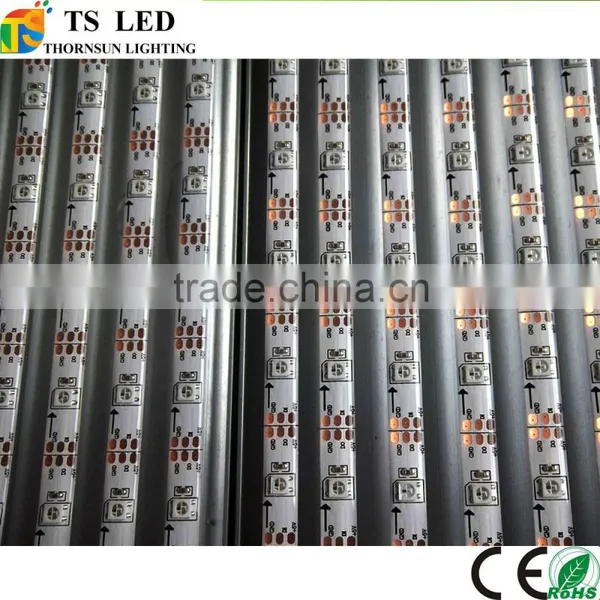

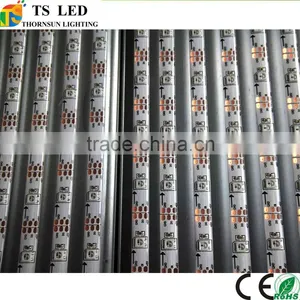

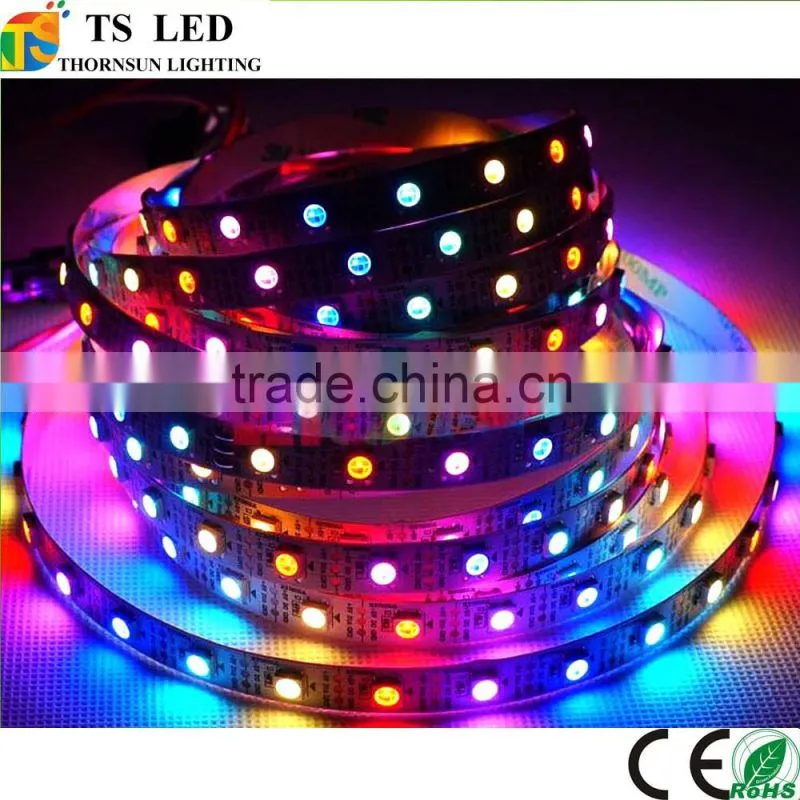

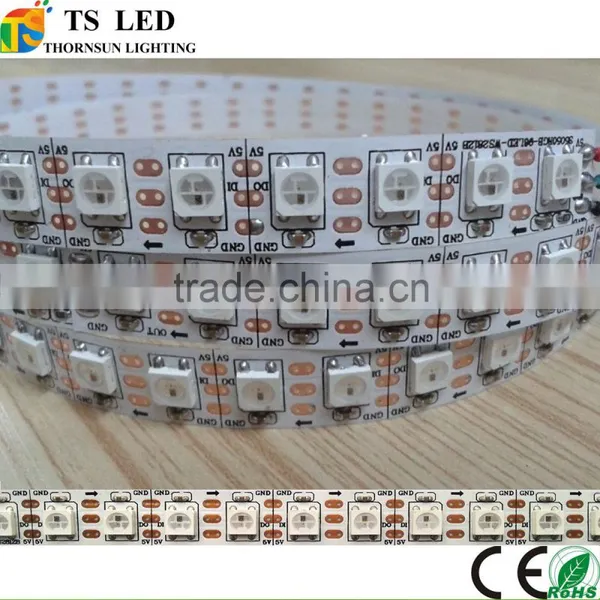

IP20 IP65 addressable flexible led strips ws2812b 60 leds/m
FULL COLOR LED STRIP --Newest WS2812B LED(with WS2811 IC built-in 5050 LED chip)
Magic( Pixel ) led strip, Addressable dream color led strips
LED Chip |
SMD5050 RGB LED chip |
IC Chip |
WS2812B(WS2811 IC built-in 5050 RGB LED chip) |
LED Quantity |
144LEDs/m |
Input Voltage |
DC5V |
Watts |
34.6W/M |
IP Rate |

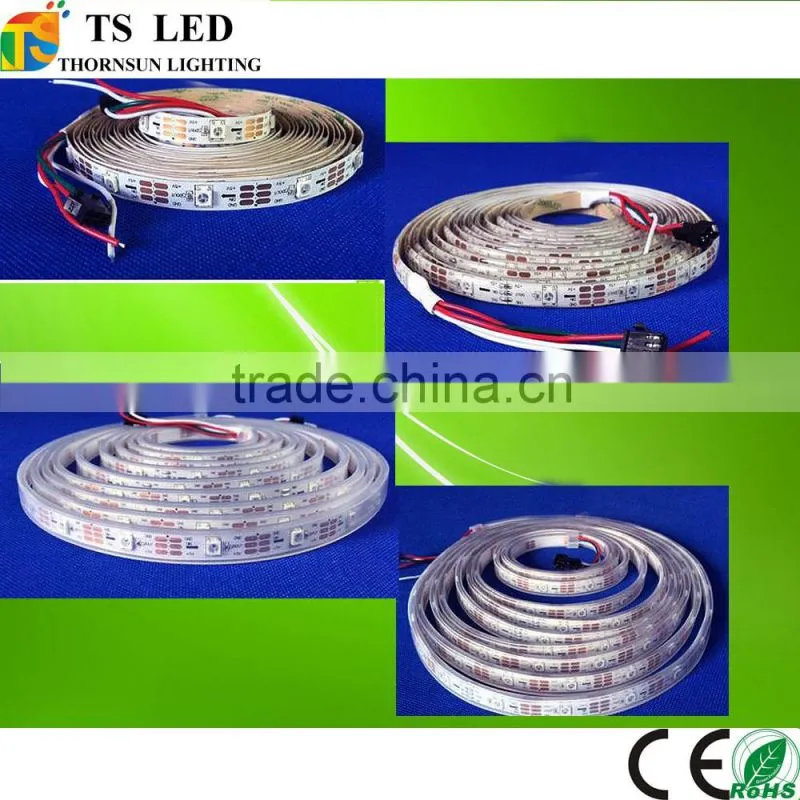

IP20(non-waterproof), IP65(Silicon-tube waterproof) |
PCB Color |
White PCB, Black PCB |
View Angle |
120° |
Standard Reel Length |
5meter/roll, also can be customized |
PCB Width |
10mm |
Operating Temperature |
-20 ~ +40°C |
Storage Temperature |
-40 ~ +80°C |
Color |
Addressable full color |
Feature:
1. LED Resource: SMD 5050 RGB Led + WS2811IC
2.Addressable full color led strips(ws2812B) :WS2811 IC built-in 5050 RGB LED chip.
3. Led : Each LED separately controlled,60IC/meter (1 IC drives 1 led chip)
4. PCB Color: Black/White
5. Colors: Full color RGB, dream color changing
6. Grey Scale: 256
7. Wave Length: 620-630 (λ) 520-525 (λ) 465-470 (λ)
8. Light Intensity:350-450mcd/led
9.Standard Reel Length: 5meter/roll, also can be customized.

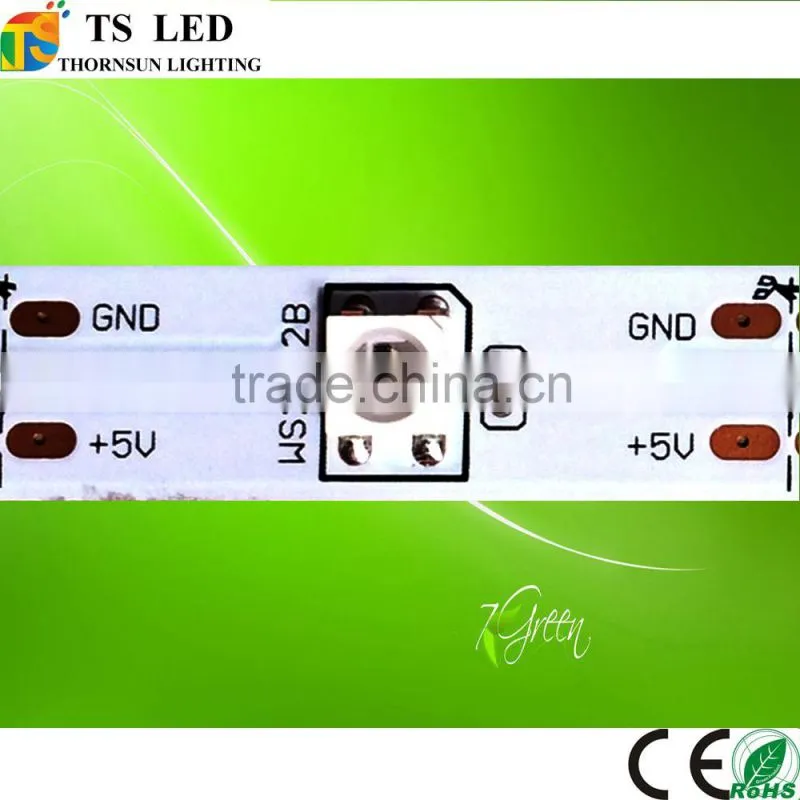

10.Cuttable: Each integrated RGB LED per segment, can be cutted per 1LED.

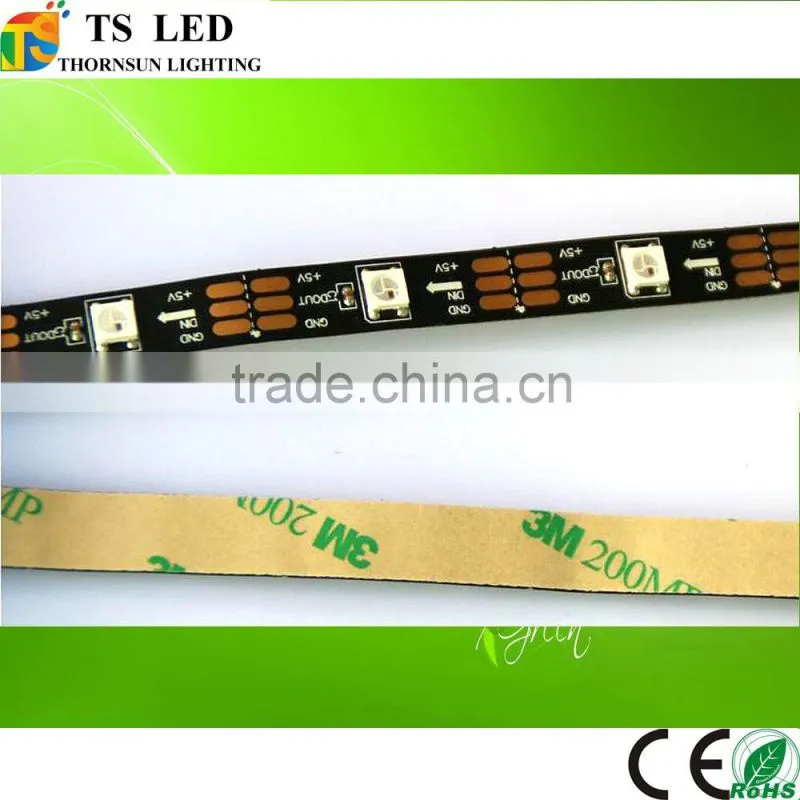

11.Sticky: with 3M adhesive on back side for sticky.
The compared of WS2812b 20leds/m ,30leds/m, 60leds/m, 144leds/m:
|
Product Model Type |
TS/F-WS2812B-1020 |
TS/F-WS2812B-1030 |
TS/F-WS2812B-1060 |
TS/F-WS2812B-10144 |
LED Qty./m |
20LEDs/m |
30LEDs/m |
60LEDs/m |
144LEDs/m |
IC Type |
WS2812B |
WS2812B |
WS2812B |
WS2812B |
PCB Wide |
10mm |
10mm |
10mm |
12mm |
Standard Length |
5meter/roll |
5meter/roll |
5meter/roll |
1meter/roll |
LED Color |
Dream Color RGB |
Dream Color RGB |
Dream Color RGB |
Dream Color RGB |
PCB color |
white/black |
white/black |
white/back |
white/black |
Voltage |
DC5V |
DC5V |
DC5V |
DC5V |
Watt/m |
4.8W/M |
7.2W/M |
14.4W/M |
34.6W/M |
Cutted |
per 1 LED |
per 1 LED |
per 1 LED |
per 1 LED |
IP Grade |
IP20 IP65 |
IP20 IP65 |
IP20 IP65 |
IP20 IP65 |
Standard Reel Length |
5meter/roll, |
5meter/roll, |
5meter/roll, |
1meter/roll, |
Product Overview for Led Pixel Strip:

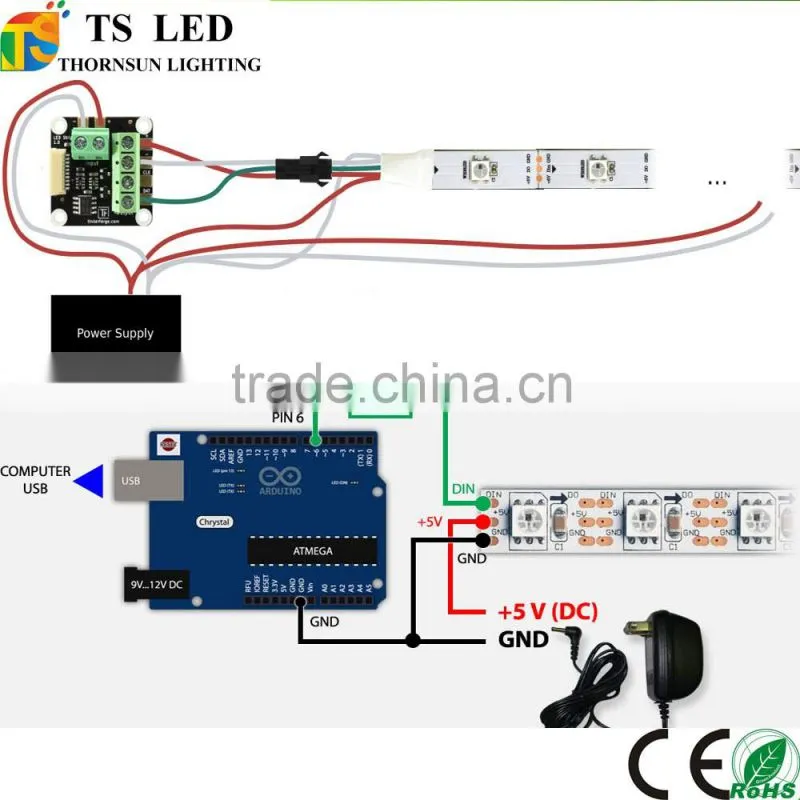

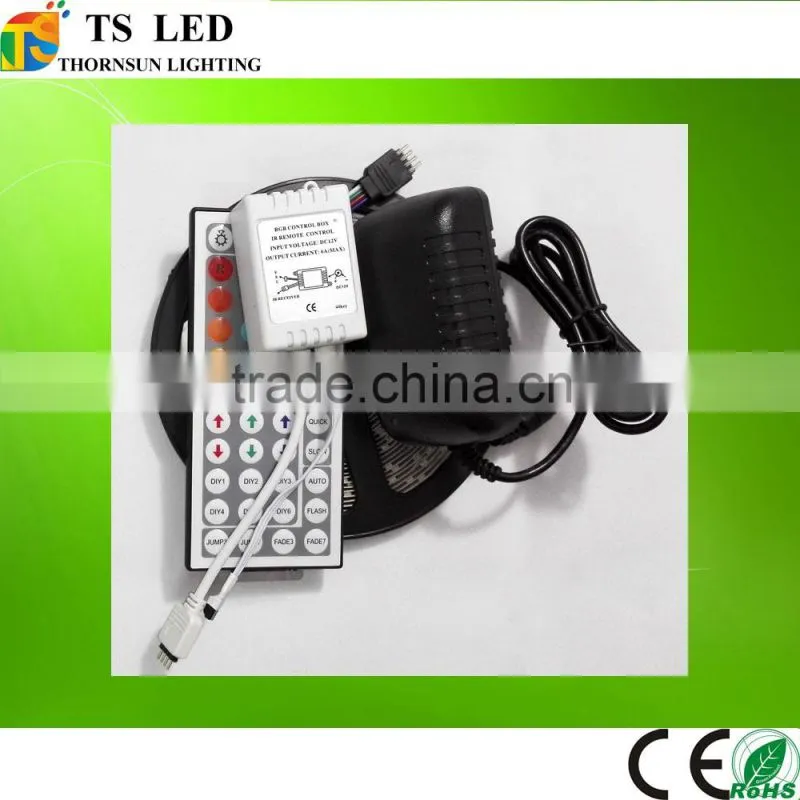

Connection way:
addressable 60 LED RGB LED Strip ws2812B
SPI signal: LED Strip+LED power supply +LED controller
DMX control: LED Strip+LED pwer supply+DMX Controller+DMX decoder

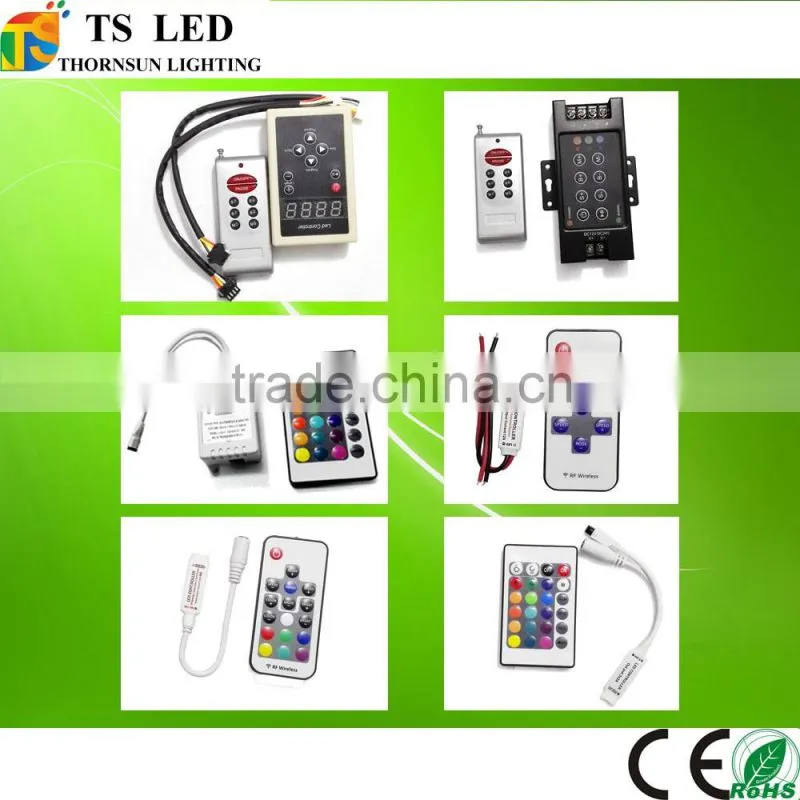

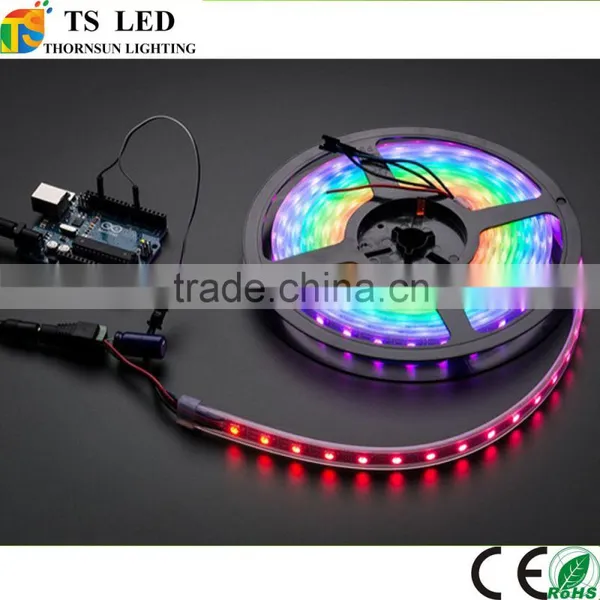

LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino...
(offline / PC online)
LED power suppply: Meanwell power supply, T- series, A- series power supply...
(waterproof / non-waterproof)

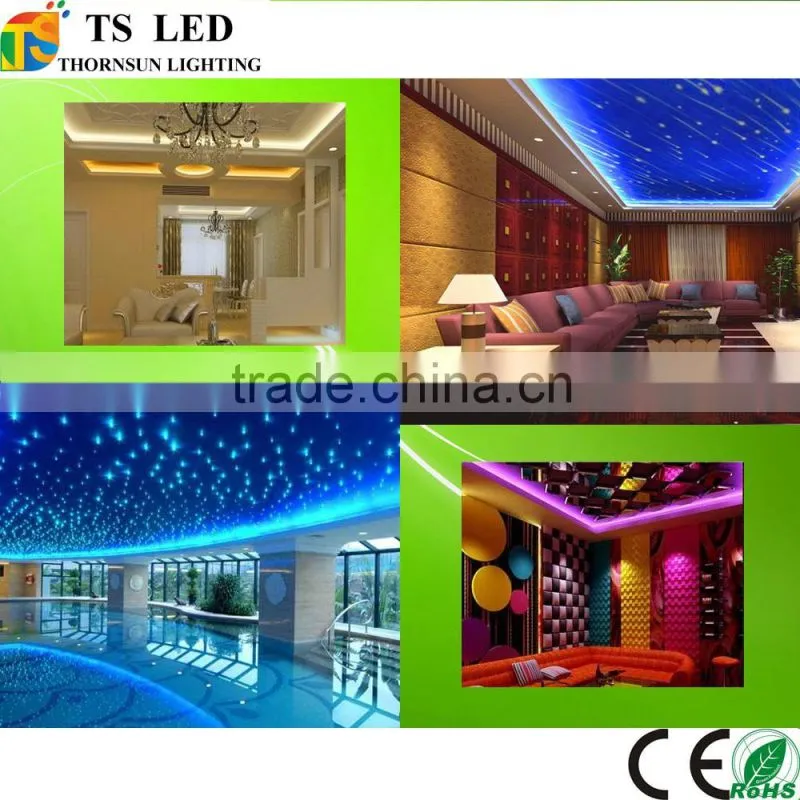

Application of Led Pixel Strip
- Car decoration
- Architectural decorative lighting
- Archway, canopy and bridge edge lighting
- Amusement park, theater and aircraft cabin mood lighting
- Emergency hallway lighting
- Auditorium walkway lighting
- Stairway accent lighting
- Concealed lighting
- Backlighting for signage letters
- Channel letter lighting
- Emergency exit path lighting

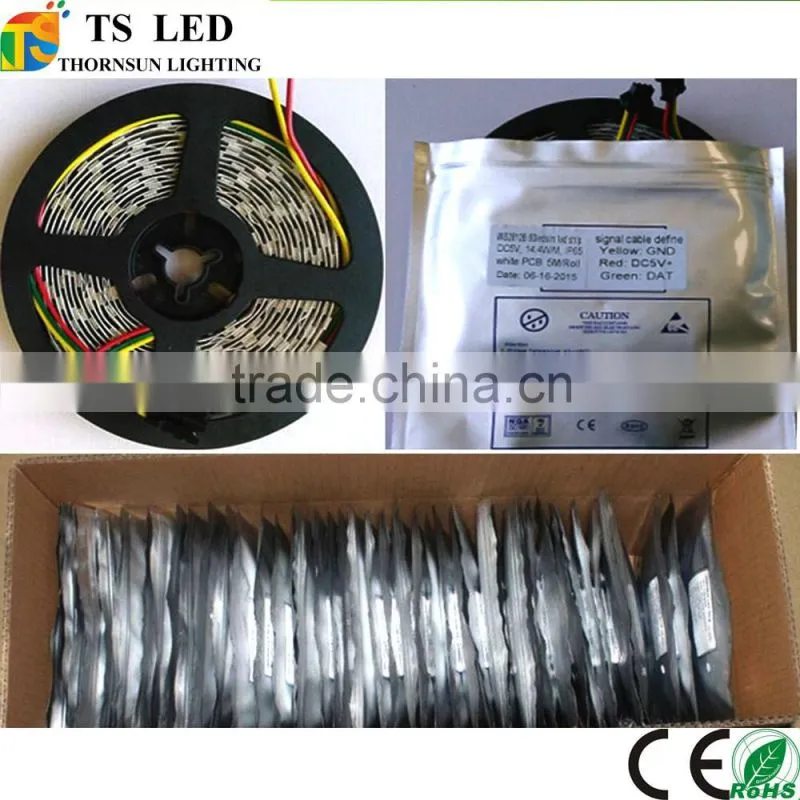

Usually 5meter/roll, 1roll/bag
waterproof: 60rolls/carton, 17.5KG/Carton
non-waterproof: 90rolls/carton, 12.4KG/Carton(Volume Weight)
Carton Size: 46cmx27cmx46cm
1. For all your inquires about us or our products, we will reply you in detail within 12 hours.
2. We own well-tranied and passional sales & after-sale services who can speak fluent Engligh language.
3. We offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects

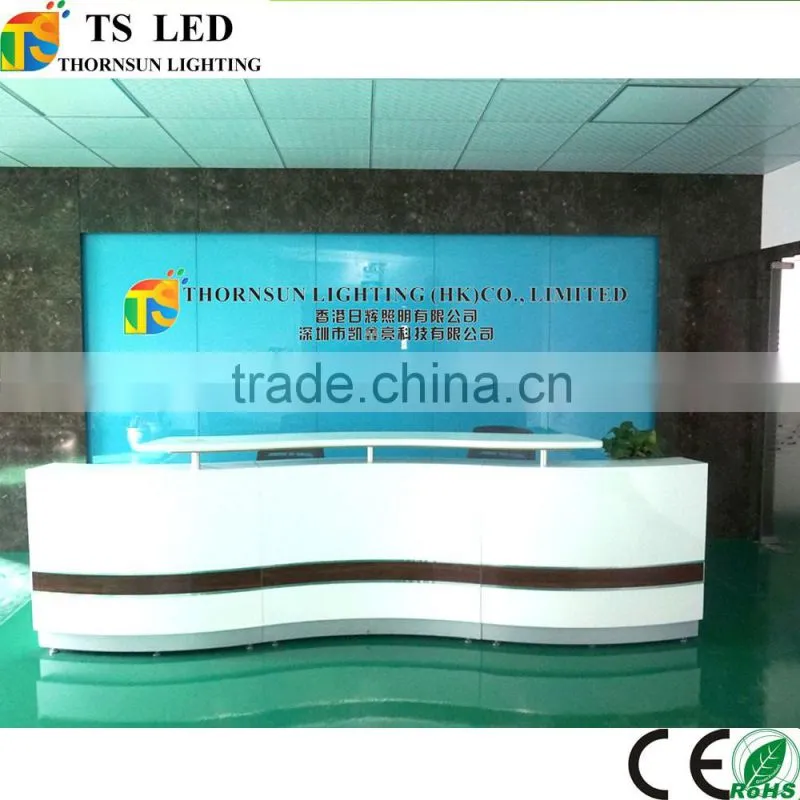

Thornsun lighting (hk) Co., Limite is a professional LED Lamp and accessories manufacturer for many years, We are specializing in research, manufacturing and sales of LED lighting products."Attitude is everything" is the spirit of our company. Choosing TS LED means you have chosen satisfaction!

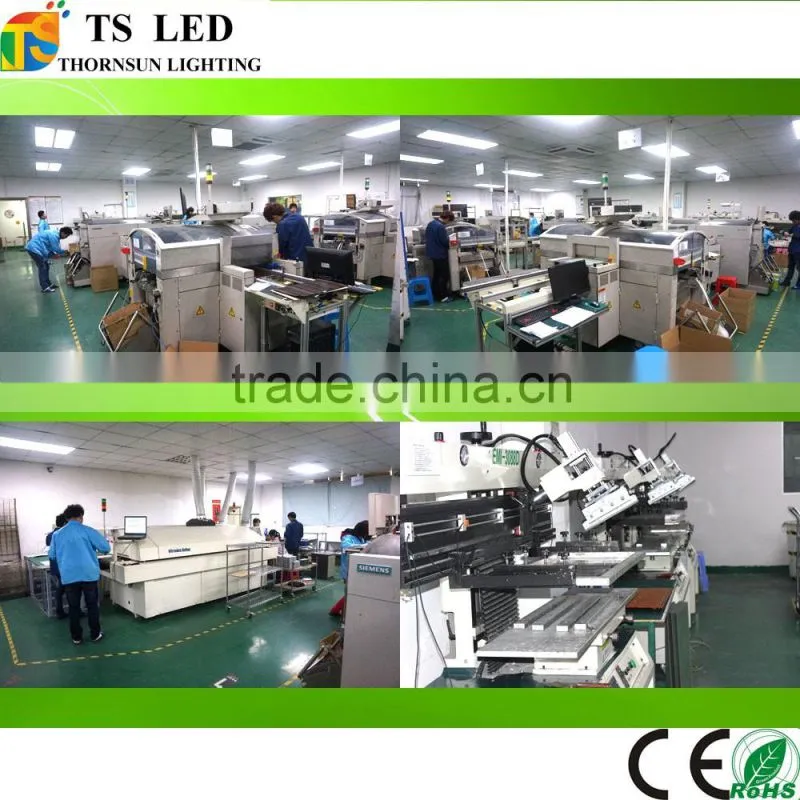

EQUIPMENT
.
