Direct Selling!! generator 250kva Bottom price
Parameter:
|
Genset Model |
Genset Specification |
Engine Specification |
Alternator Model |
|||||||
KVA |
Cons.100%(L/H) |
dB(A)@7m |
Tank (L) |
Model |
Cyl. |
Gov. |
Asp. |
|||
ESP |
PRP |
|||||||||
ENEC250-1 |
275 |
250 |
51.5 |
N/A |
618 |
6LTAA8.9-G2 |
6 |
E |
TW |
UCD274K |
ENEC250S-1 |
275 |
250 |
51.5 |
75 |
618 |
6LTAA8.9-G2 |
6 |
E |
TW |
UCD274K |
ENEC250-1 |
275 |
250 |
51.5 |
N/A |
618 |
6LTAA8.9-G2 |
6 |
E |
TW |
ENA274K |
ENEC250S-1 |
275 |
250 |
51.5 |
75 |
618 |
6LTAA8.9-G2 |
6 |
E |
TW |
ENA 274K |

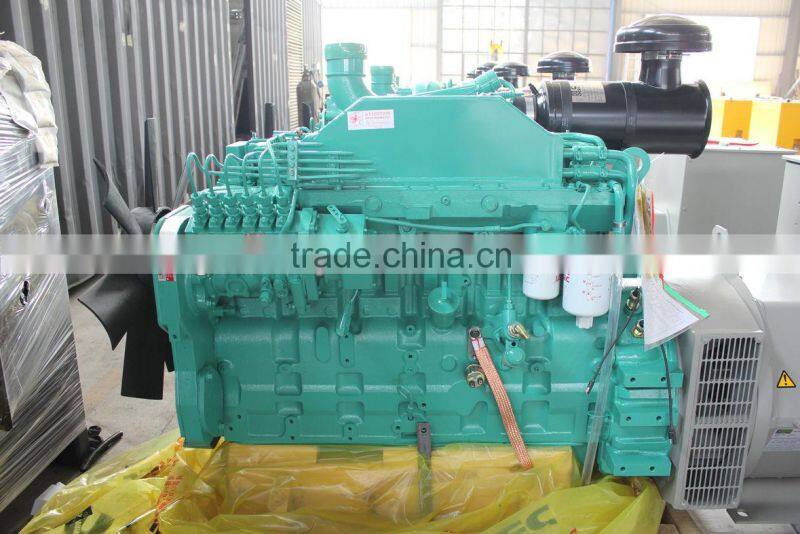

Engine Model |
6LTAA8.9-G2 |
Number of Cylinders |
6 |
Cylinder arrangement |
Vertical in-line |
Cycle |
Four stroke |
Aspiration |
Turbocharged after cooled |
Bore×Stroke (mm×mm) |
114 x 135 |
Displacement (Liter) |
8.9 |
Compression Ratio |
16:1 |
Prime Power/Speed (kva/rpm) |
275/1500 |
Standby Power/Speed (kva/rpm) |
303.75/1500 |
Speed Governor |
electrical |
Cooling System |
Water-cooled, 40°C Radiator As Standard, 50°C Is Optional. |
Speed Stability (%) |
≤5% |
Total lubrication system capacity (L) |
23.8 |
Coolant capacity (without radiator) (L) |
12.3 |
Fuel Consumption at 100% Load(g/kWh) |
197 (at 1500RPM) |
Starter Motor |
DC24V, |
Alternator |
AC24V
|
Alternator Model |
UCD274K (Stamford) Please Refer To The“ Genset Main Technical Data” |
Phase/Connect |
3-phase 4-wire ,Y type connection |
Excition Model |
Self-excite, automatic voltage regulation,Insulation:H,Bruhless,Enclosure:IP21—IP23 |
Power Factor |
0.8 |
The regulating rate of instantaneous voltage: |
-15%~ +20% |
The time of steady voltage: |
≤1.5sec |
The waving rate of voltage: |
≤1.0% |
The regulating rate of steady frequency: |
≤5% |
regulating rate of instantaneous frequency: |
≤±10% |
The time of steady frequency: |
3sec |
The waving rate of frequency: |
≤1% |

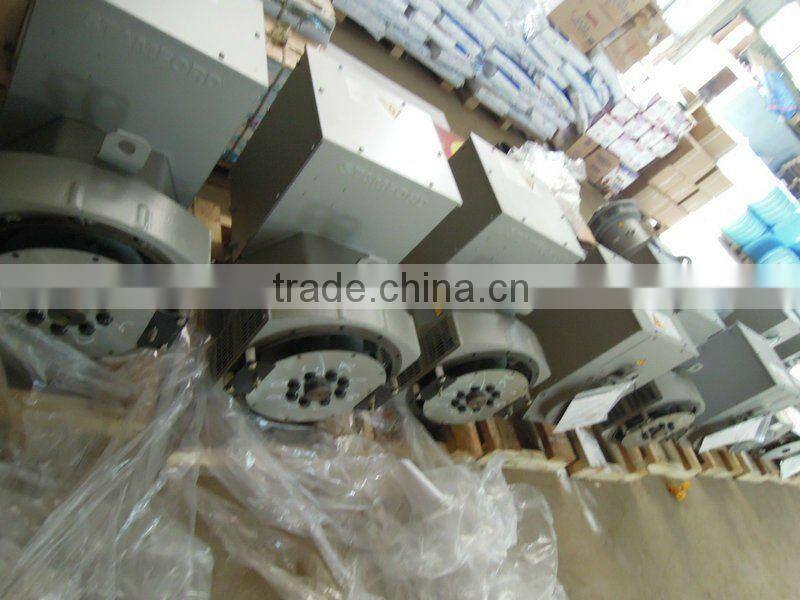

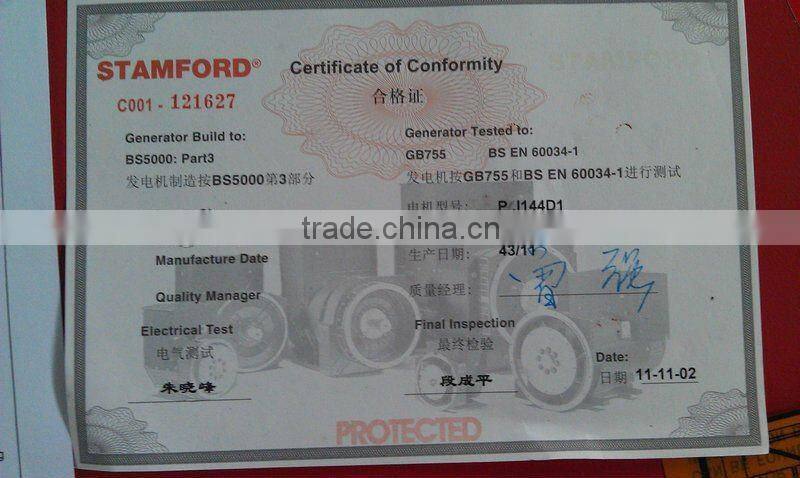

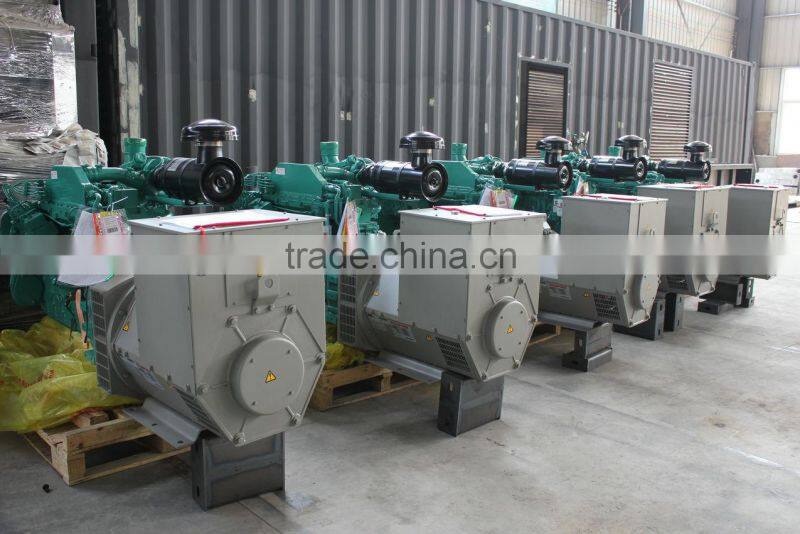

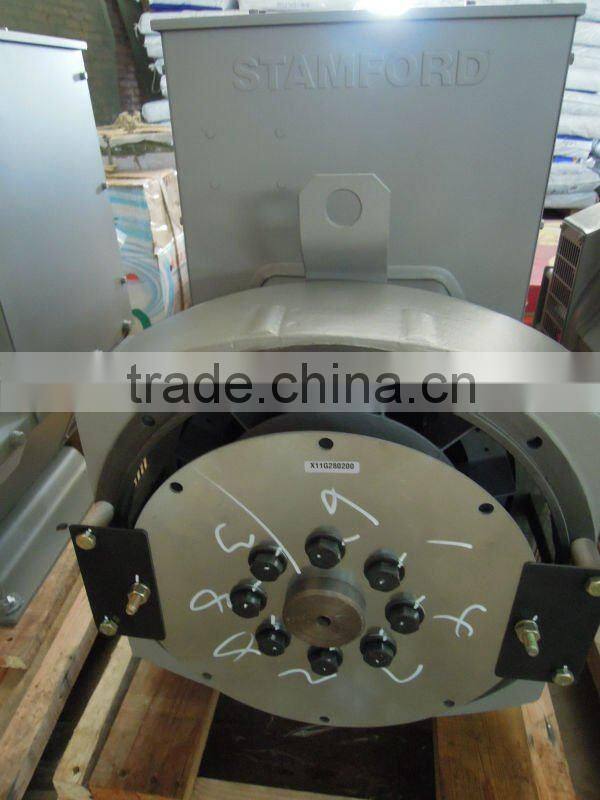

Original stamford alternator and certificate :

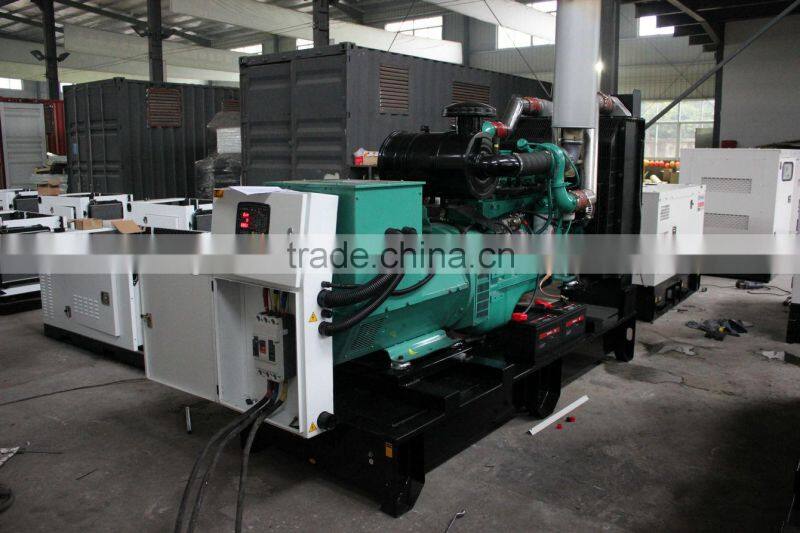

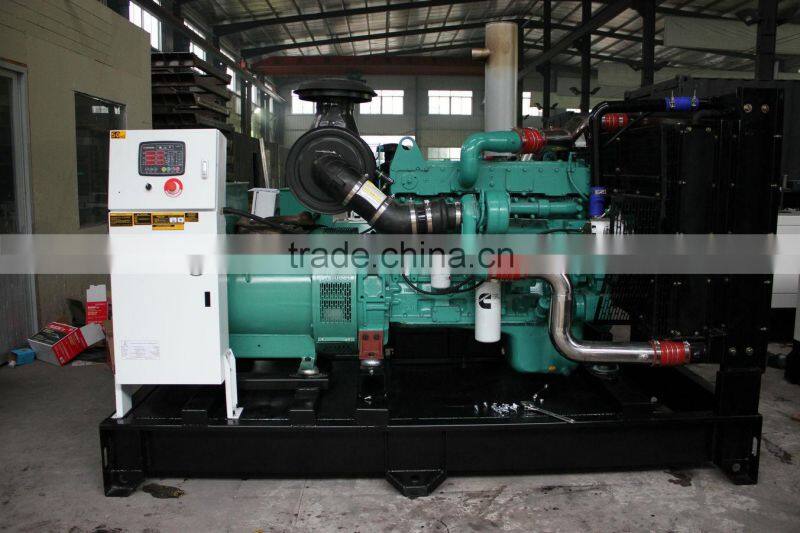

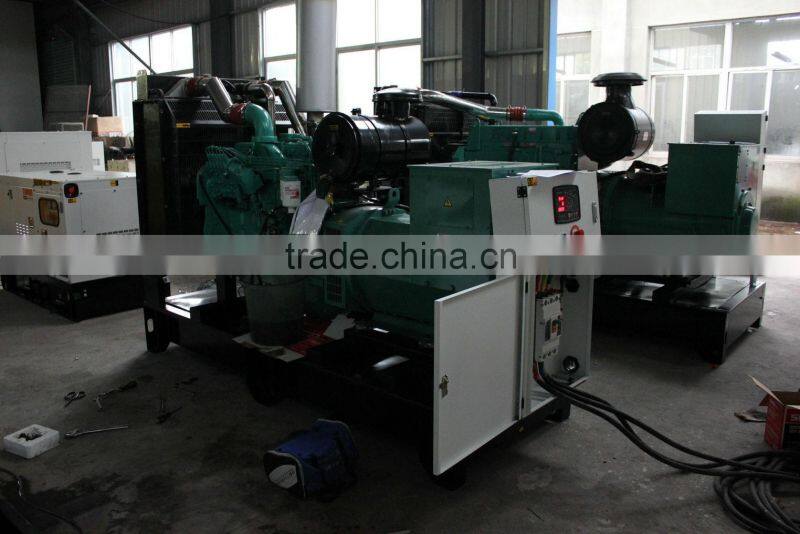

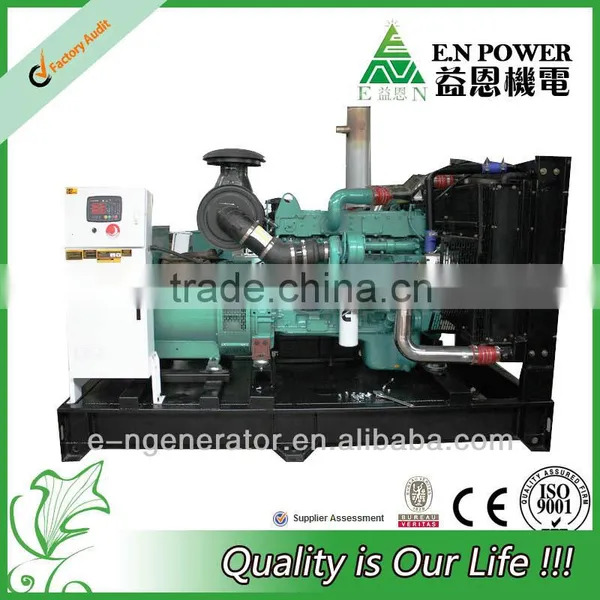

Open type Genset :

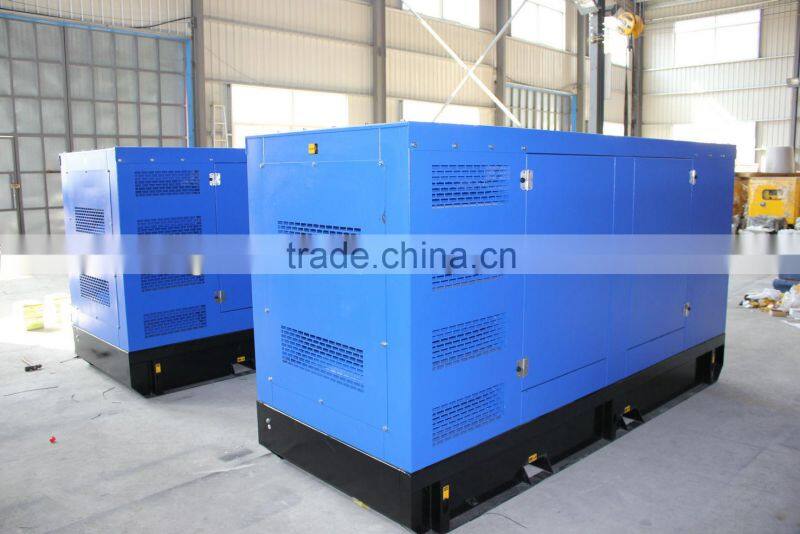

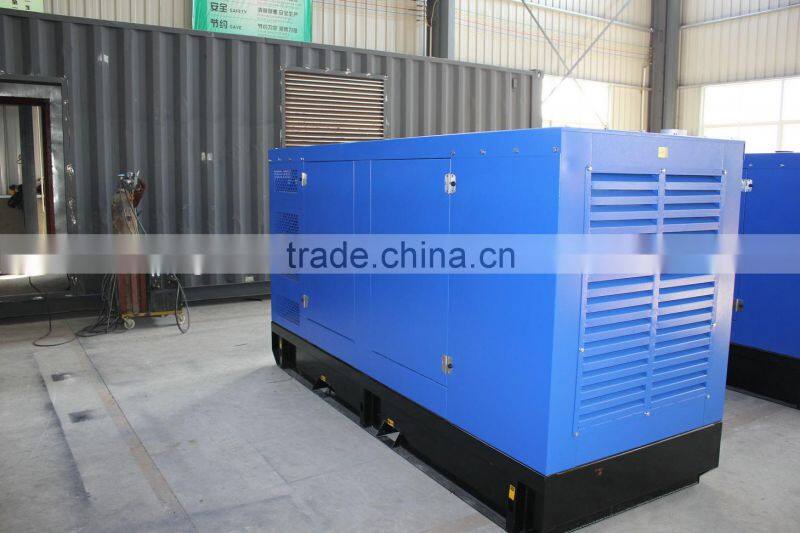

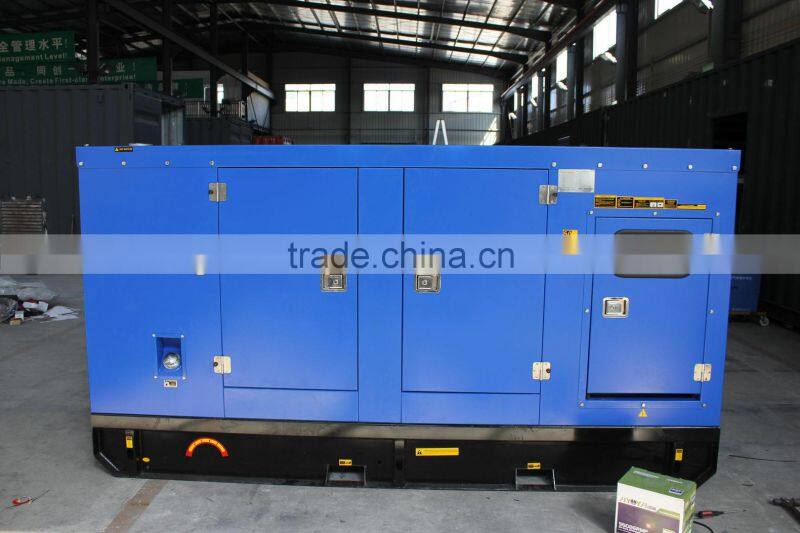

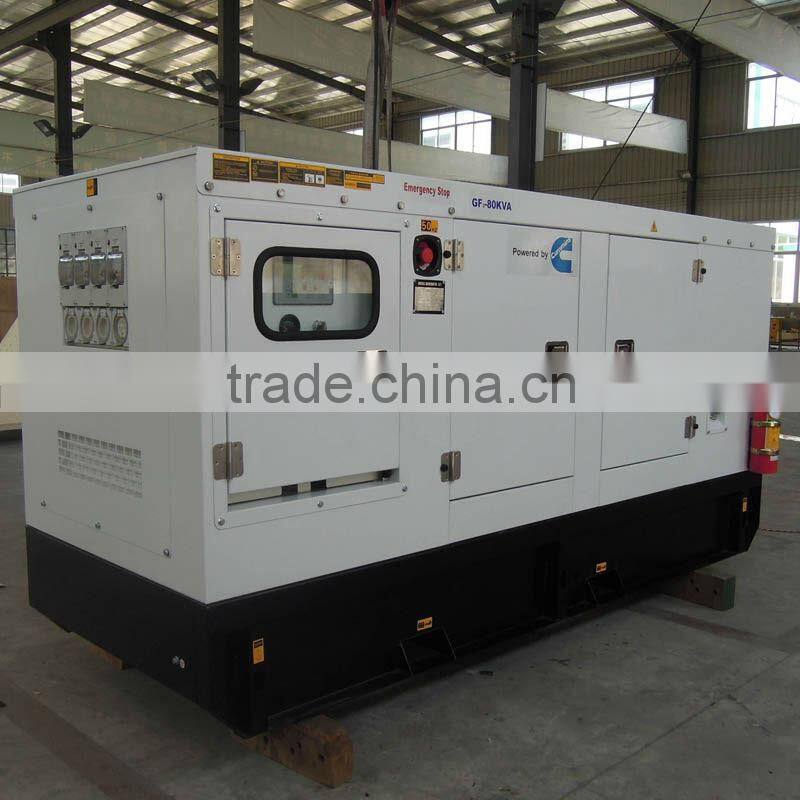

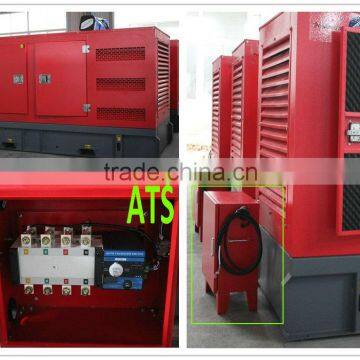

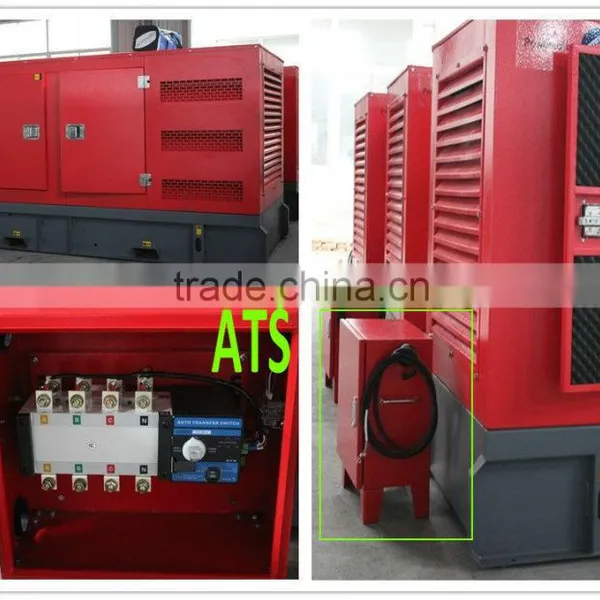

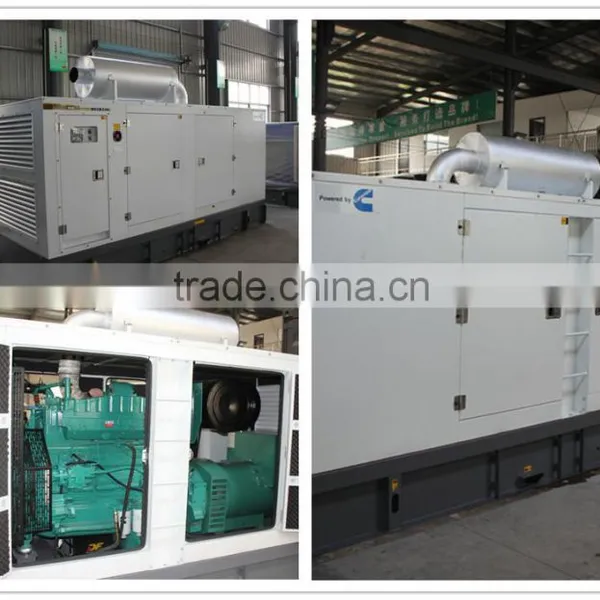

E.N power silent ( inBuild canopy ) type Genset :

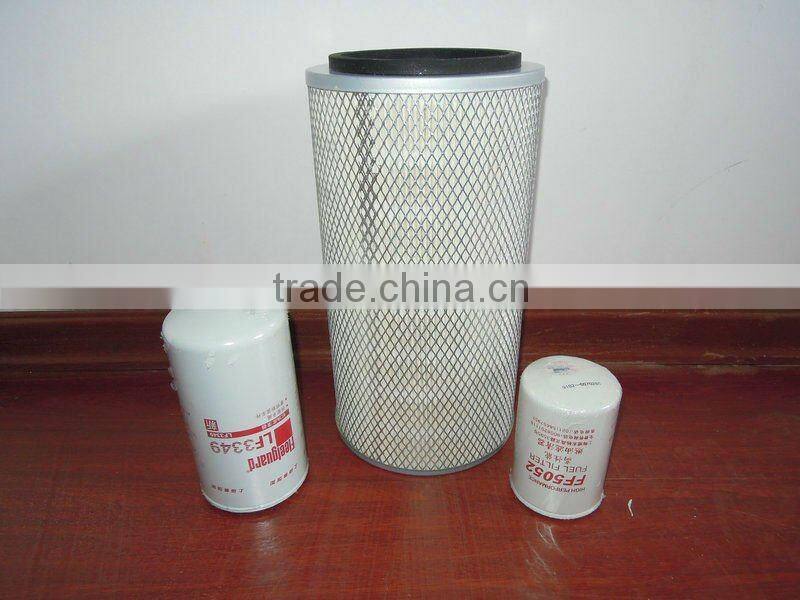

One set of filters as free ( Oil fiter , Fuel filter ,Air Filter )

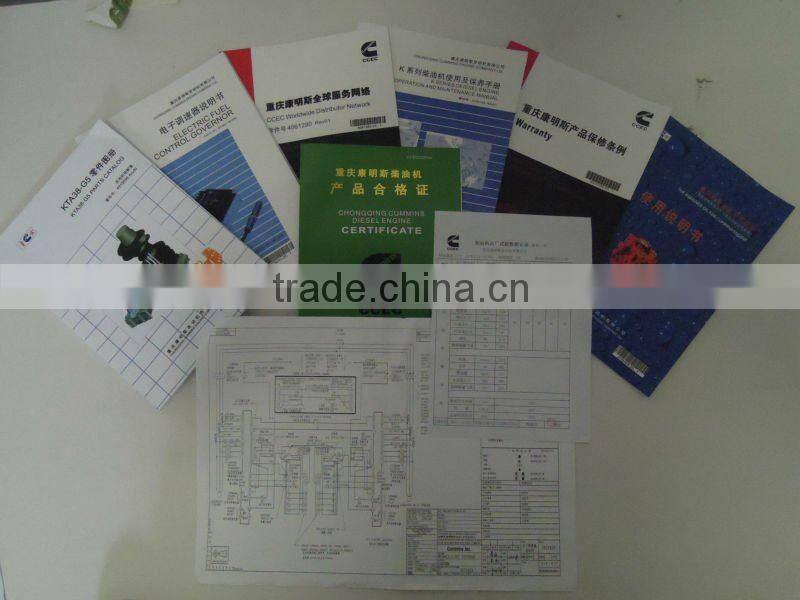

engine Manual and catalogue :
Quality control of E.N power Genset
1.The genset canopy can be designed by customers demand free of charge.
2.Noise level can be designed by customer demand, standard noise level is 70-73DB at 7m. Super silent is 60-65DB at7m.
3. Canopy color can be painted free of charge by customer demand. It is high quality paint.
4.All connection components and door lock are stainless steel.
5. We added oil filling inlet with lock
6. The oil box is separate madeand then welded to the base frame, not by simple welding on the base frame. It is to make sure there is no oil leakage
7. The base frame is with forklift mouthwhich is easy to load and discharge
8. For Logo, we can paint customer's logo when the order is more than 5sets.
9. For technical specification or question, we can support you by our strong technical team.

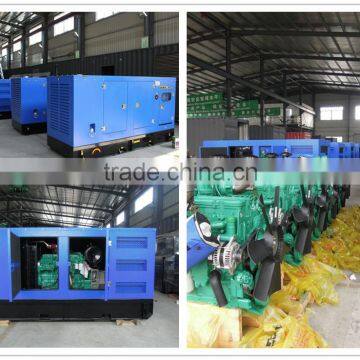

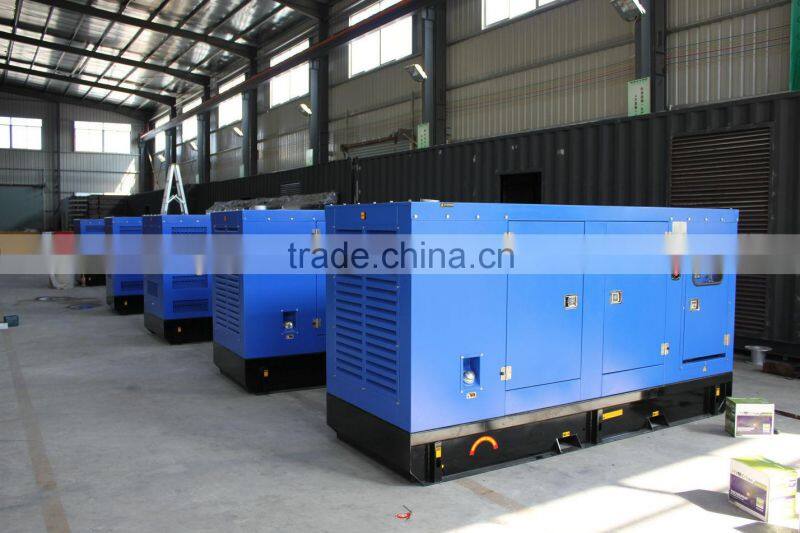

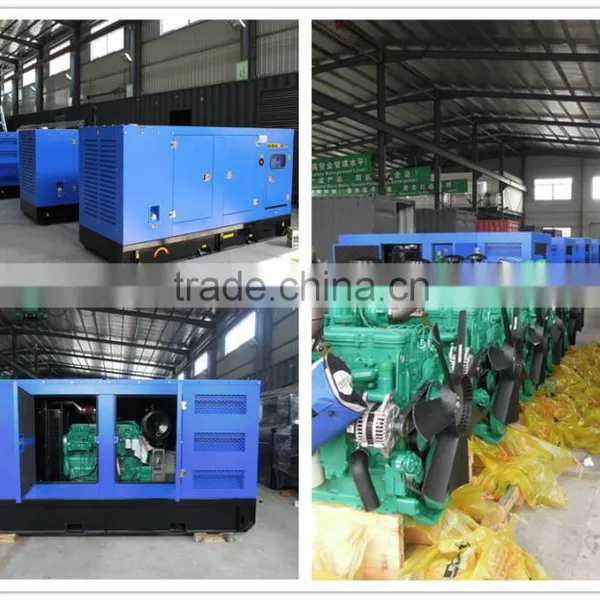

In stock Information :
( All for silent generator )
We have 20kva Chinese engine in stock 6pcs
20kva genset in stock 10pcs
40kva genset in stock 4 pcs
100kva Genset in stock 7 pcs
150kva genset in stock 2pcs
200kva genset in stock 2pcs
250kva Genset in stock 2 pcs
If you are interested in the above, pls Send Inquiry to us Immediately! Catch the Precious Chance!!
