powered by Cummins engine generator AMF Controller
Parameters:
Genset Model |
Prime Power |
Fuel Lubrication |
Engine Model |
Fuel Consumption (g/kwh) |
Bore X Stroke |
Dimension (mm) L x W x H |
|
KW |
KVA |
||||||
ENC20 |
20 |
25 |
1 |
4B3.9-G |
≤229 |
102*120 |
1800*800*1200 |
ENC56 |
56 |
70 |
0.92 |
6BT5.9-G |
≤215 |
102*120 |
2200*960*1400 |
ENC120 |
120 |
150 |
0.84 |
6CTA8.3-G2 |
≤210 |
114*135 |
2600*1060*1700 |
ENC160 |
160 |
200 |
0.84 |
6CTAA8.3-G2 |
≤210 |
114*135 |
2900*1100*1800 |
ENC200 |
200 |
250 |
0.84 |
6LTAA8.9-G2 |
≤210 |
114*135 |
2900*1100*1800 |
ENC225 |
180 |
225 |
0.89 |
NT855-GA |
≤214 |
140*152 |
3100*1000*1600 |
ENC250 |
200 |
250 |
0.89 |
NT855-GA |
≤214 |
140*152 |
3100*1060*1600 |
ENC375 |
300 |
375 |
0.7 |
NTAA855-G7 |
≤206 |
140*152 |
3100*1060*1600 |
ENC500 |
400 |
500 |
1.02 |
KTA19-G4 |
≤203 |
159*159 |
3700*1400*2000 |
ENC625 |
500 |
625 |
1.37 |
KTAA19-G6A |
≤206 |
159*159 |
3700*1400*2300 |
ENC750 |
600 |
750 |
1.14 |
KTA38-G2 |
≤214 |
159*159 |
4600*1700*2500 |
ENC900 |
720 |
900 |
1.08 |
KTA38-G2A |
≤215 |
159*159 |
4600*1700*2500 |
ENC1000 |
800 |
1000 |
1.07 |
KTA38-G5 |
≤202 |
159*159 |
4900*1900*2500 |
Engine Features:
1. with Dongfeng Cummins engine 16w-200kw
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling
7. Wide range of flange adaptors and single bearing disc coupling

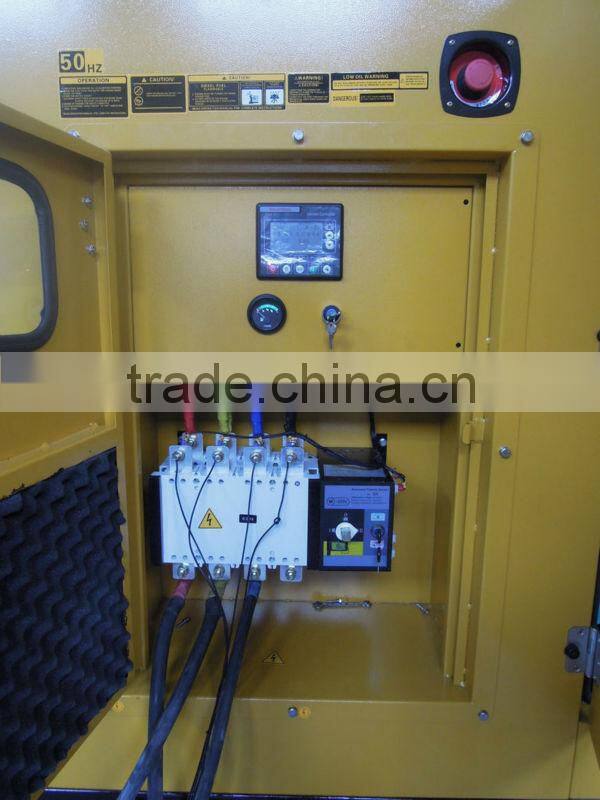

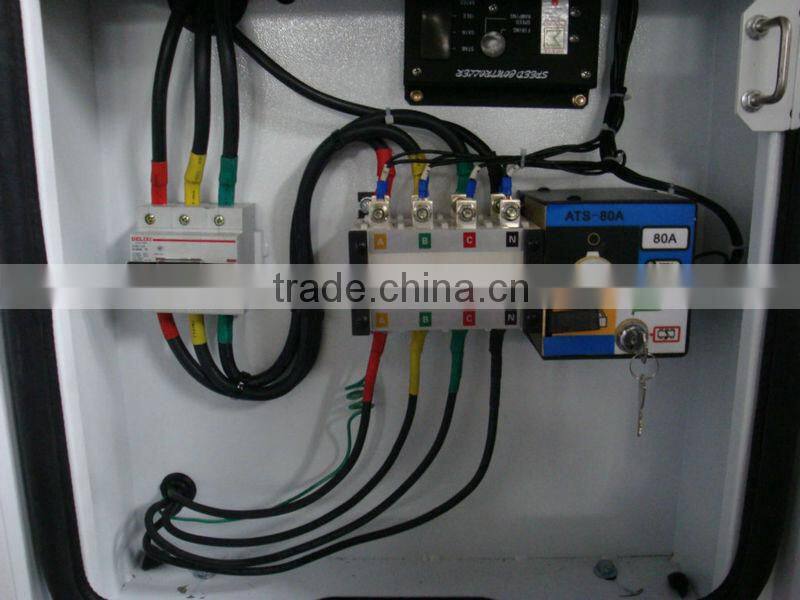

ATS (Automatic Transfer Switch):

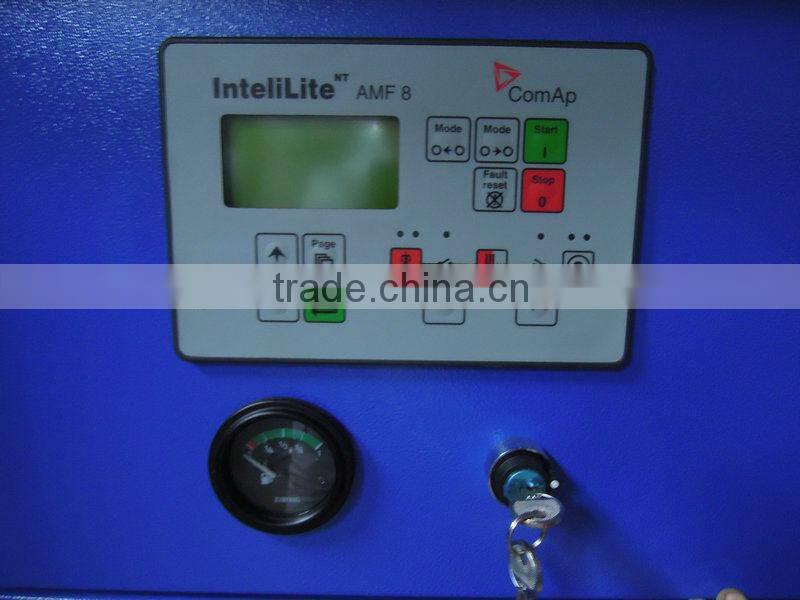

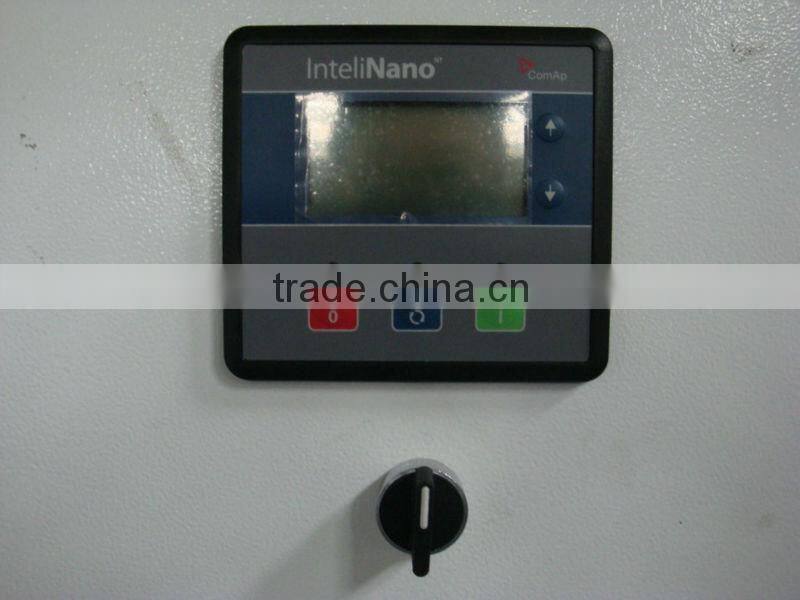

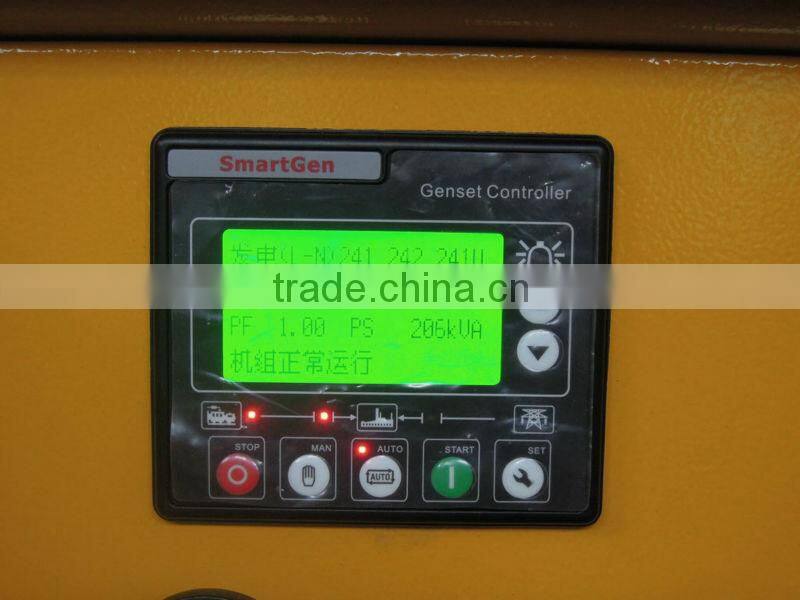

Control Panel:
Original stamford alternator:

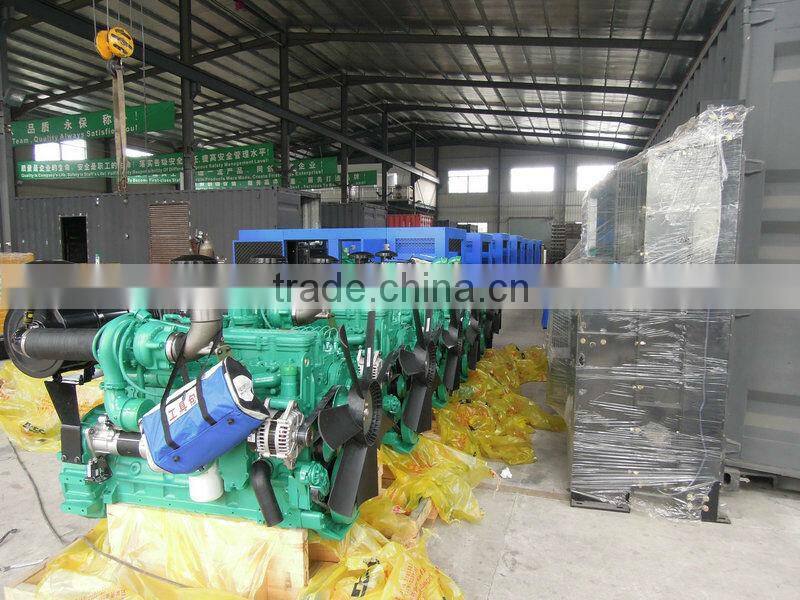

Engine :

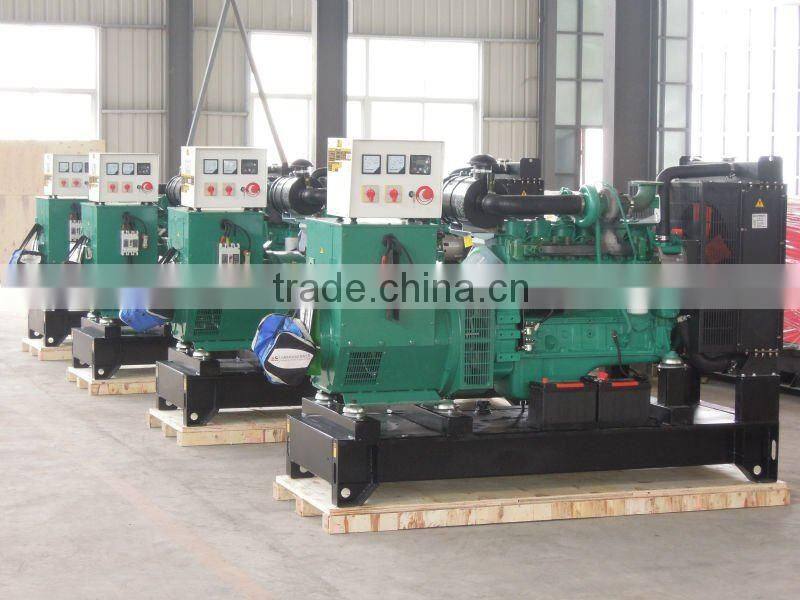

Open type Genset :
Open type Genset Packing : ( PLYWOOD CASES )

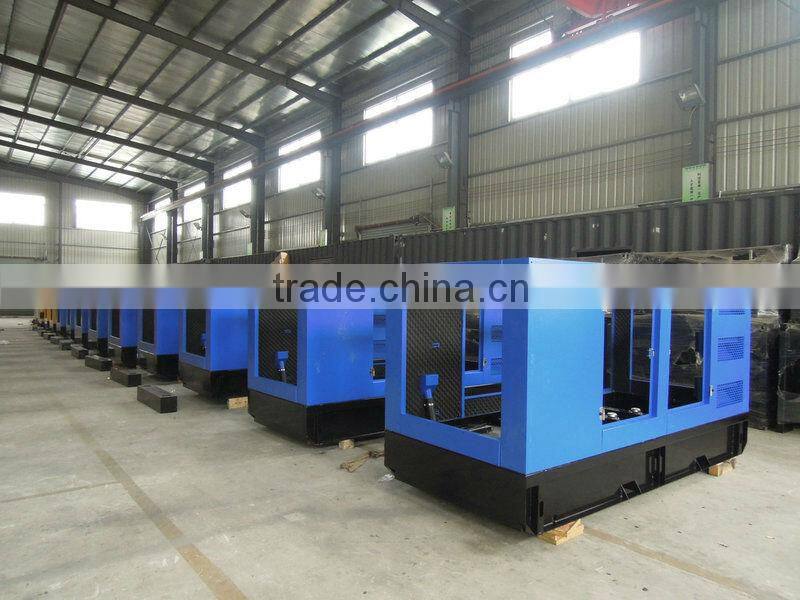

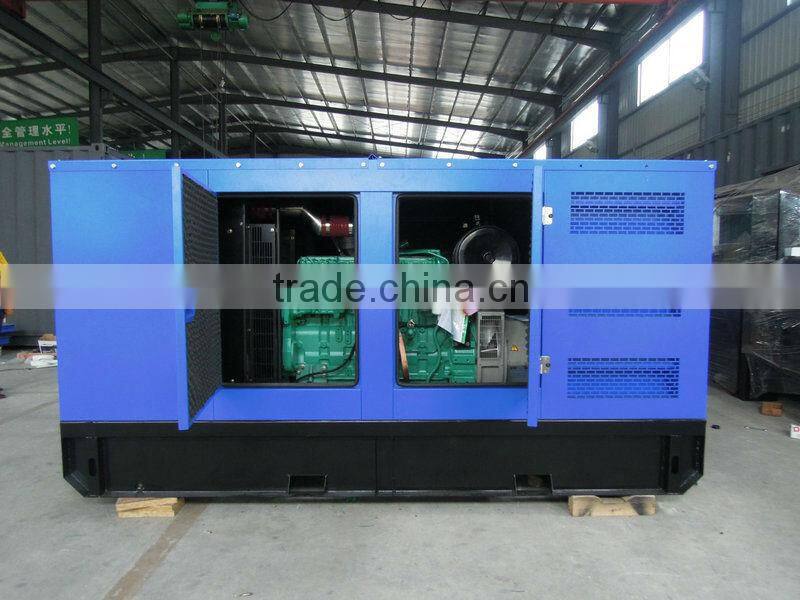

E.N power silent ( inBuild canopy ) type Genset :
One set of filters as free ( Oil fiter , Fuel filter ,Air Filter )
engine Manual and catalogue :
1.The genset canopy can be designed by customers demand free of charge.
2.Noise level can be designed by customer demand, standard noise level is 70-73DB at 7m. Super silent is 60-65DB at7m.
3.Canopy color can be painted free of charge by customer demand. It is high quality paint.
4.All connection components and door lock are stainless steel.
5. We added oil filling inlet with lock
6. The oil box is separate madeand then welded to the base frame, not by simple welding on the base frame. It is to make sure there is no oil leakage
7. The base frame is with forklift mouthwhich is easy to load and discharge
8. For Logo, we can paint customer's logo when the order is more than 5sets.
9. For technical specification or question, we can support you by our strong technical team.
