ENG 72kva mobile trailer generator, 58kw portable genset

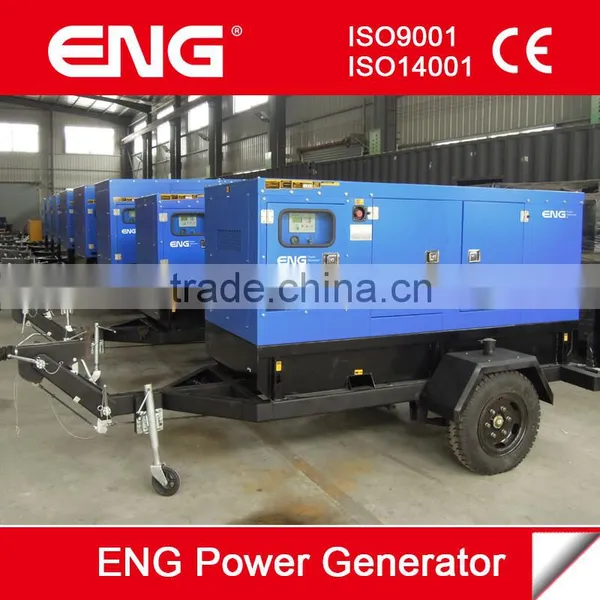

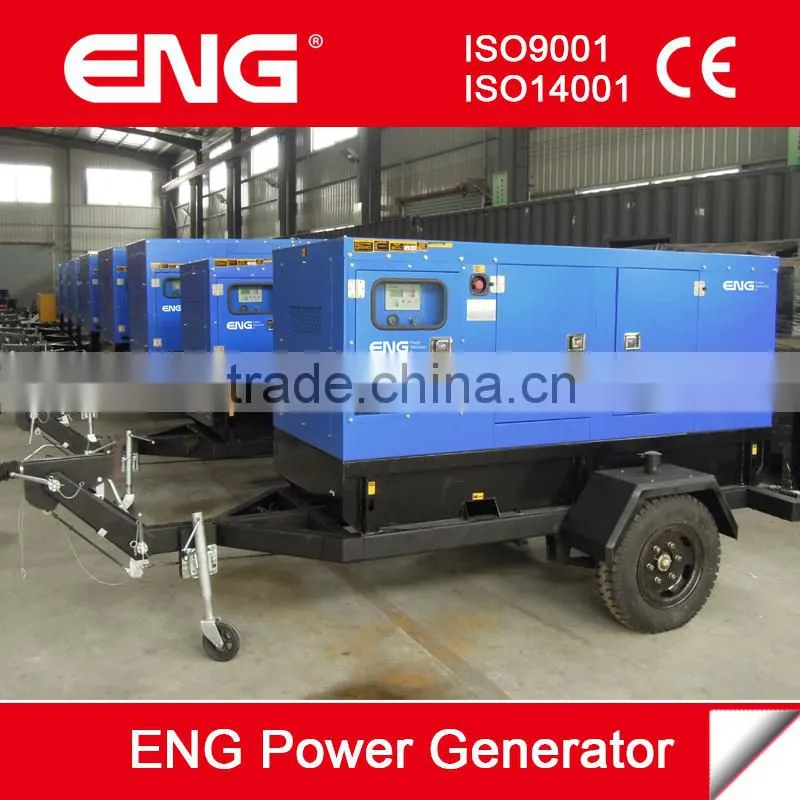

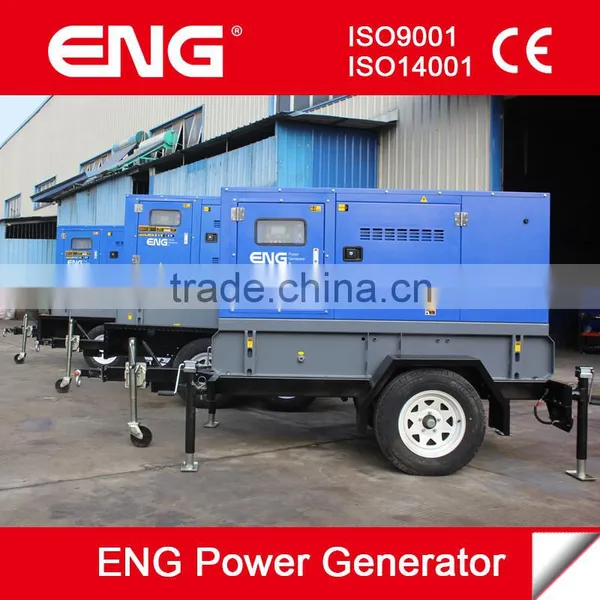

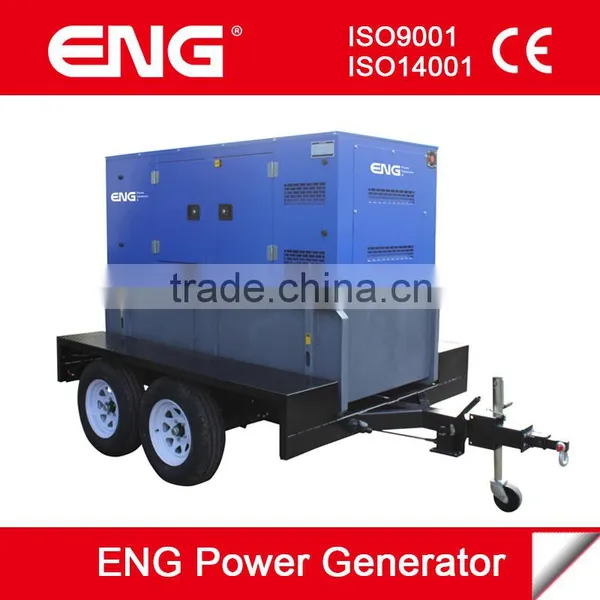

72kva/58kw mobile trailer generator
Technical
Genset specification | |
Genset Model |
ENSC72T-3 |
Prime Power(50HZ) |
58KW /72KVA |
Standby Power(50HZ) |
63.8KW /79KVA |
Frequency/Speed |
50Hz/1500rpm |
Standard Voltage |
230V/400V |
Voltage Available |
220V/380V |
Phases |
Three phases, four wires |
Engine Specification General Performance | |
Manufacturer: |
Dongfeng Cummins Engine Co. Ltd. |
Engine Model: |
6BT5.9-G1 |
Engine Type: |
4 stroke, in-line, 6-cylinder |
Engine Speed: |
1500 r.p.m |
Prime Power: |
86kw /115HP |
Standby Power: |
92kw /123HP |
Governor Type: |
mechanic |
Air Intake Way: |
Turbocharged |
Displacement: |
5.9L |
Cylinder Bore * Stroke: |
102mm × 120mm |
Compression Ratio: |
17:3:1 |
Coolant Capacity Engine Only |
9.9Liters |
Alternator data | |
Engine Model: |
Stamford UCDI224F |
Phase |
3 Phase |
Power Factor |
0.8 |
Drip Proof |
IP 23 |
Insulation class |
H |
Voltage regulation |
± 0,5 % |
Altitude |
≤ 1000 m |
Over speed |
2250 min -1 |

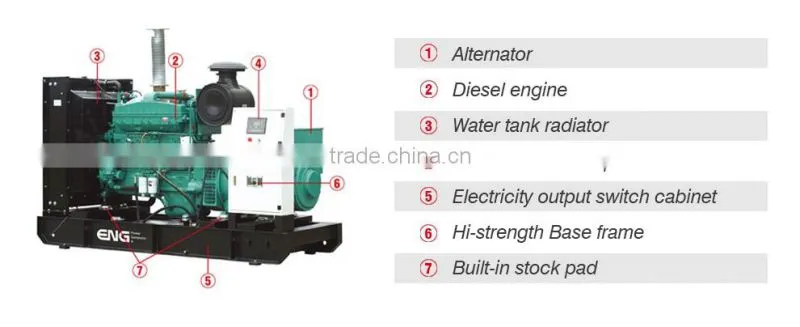

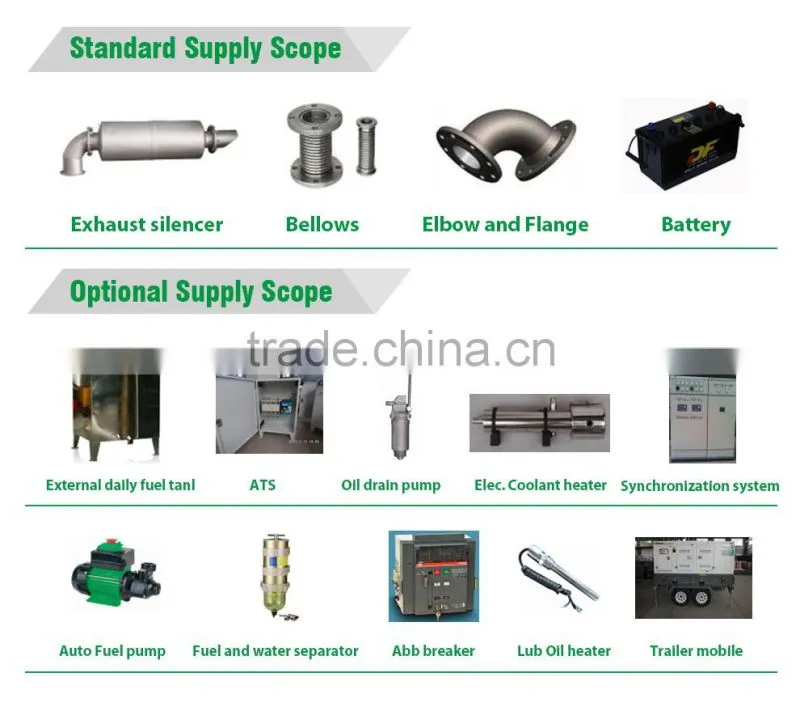

Genset Standard Configuration |

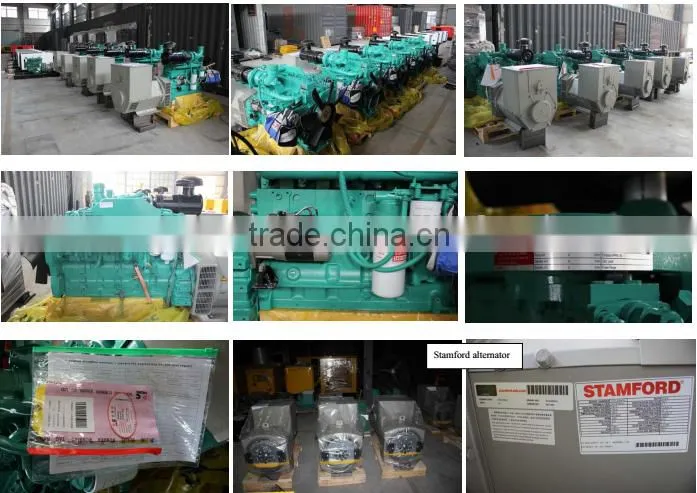

♦ Assembled by Cummins diesel engine and world famous brand alternator |
Our Commitment |
|
♦ Products and services all comply with ISO8528 and GB/T2820 manufacturing standards. ♦ Management is implemented in strict accordance with ISO9001 Quality Management System and ISO14001Environmental Management System. |

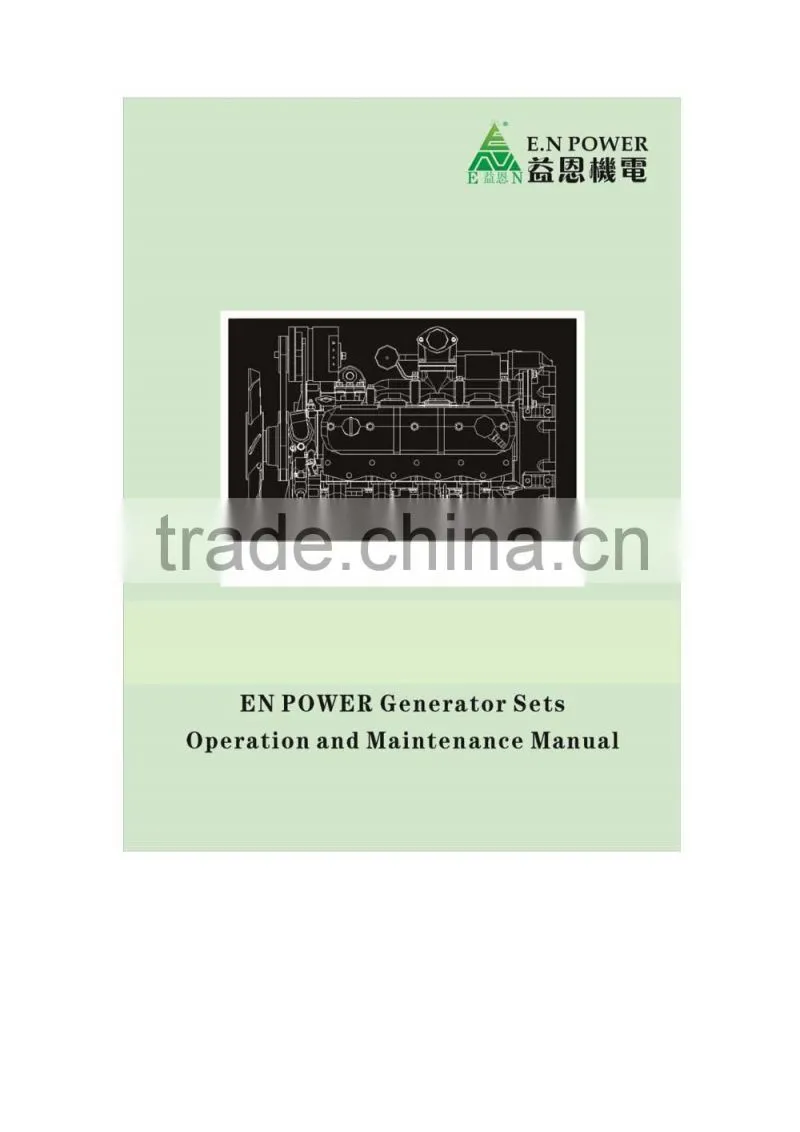

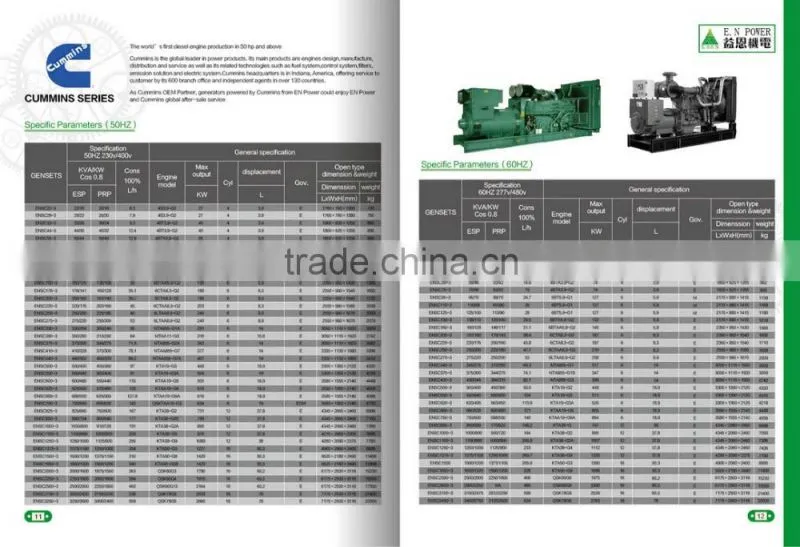

Engine Manual and Catalogue | |
|
|
More choose: | |
|
Powered by Cummins series power range from 20kva-1500kva.
Welcome inquiry to us, EN Power sales team will send our proposal to your immediately. |

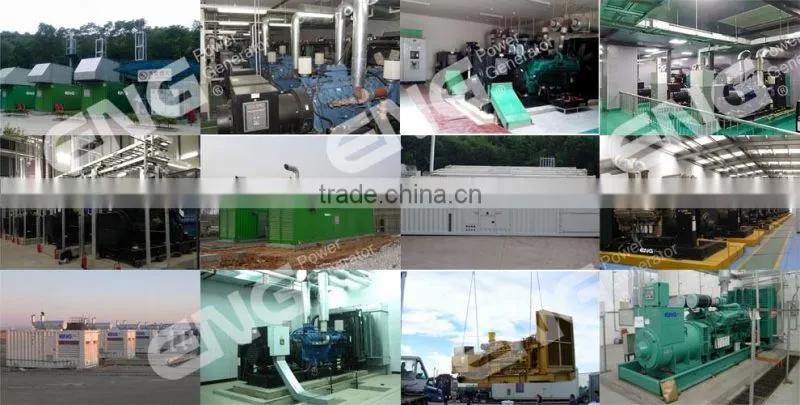

Our Project reference |
|
FAQ(Frequently Asked Question): |
|
1.What is your warranty period? Our warranty period is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period. 2.Does your generator have global warranty? Yes, most of our products like Cummins, Perkins, Doosan power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service. 3.Can you accept OEM? Yes, we can accept OEM. 4.What is your payment terms? We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union. 5.What is your delivery time? Our normal delivery time is 2 to 5 weeks. But if your order is some special engine and alternator, then the delivery time is longer. |
.Thanks
Power solutions supply
HOTEL,INDUSTRIAL,MINING,CONSTRUCTION,BLACK START,POWER STATION,DATA CENTER,MILITARY
Welcome to inquiry our products,EN Power sales team will send our proposal to your analysis within 24Hours,thanks!
