Lovol engine 1003TG diesel generator 30kw
Genset Model |
Prime Power |
Standby Power |
Engine |
Fuel Lubri cation (g/kwh) |
Cylinder No. |
Displacement (L ) |
Bore X Stroke (mm) |
Net Dimension |
Net Weight (kg) |
||
KW |
KVA |
KW |
KVA |
||||||||
ENP-16 |
16 |
20 |
18 |
22.5 |
1003G |
1.14 |
3 |
3 |
100*127 |
1800*850*1100 |
700 |
ENP-20 |
20 |
25 |
24 |
30 |
1003G |
1.14 |
3 |
3 |
100*127 |
1800*850*1100 |
720 |
ENP-24 |
24 |
30 |
28 |
35 |
1003G |
1.14 |
3 |
3 |
100*127 |
1800*850*1200 |
750 |
ENP-30 |
30 |
37.5 |
35 |
43.5 |
1003TG |
1.14 |
4 |
3.99 |
100*127 |
2000*900*1300 |
850 |
ENP-36 |
36 |
45 |
40 |
50 |
1003TG |
1.14 |
4 |
3.99 |
100*127 |
2000*900*1300 |
900 |
ENP-48 |
48 |
60 |
52 |
65 |
1004TG |
0.45 |
4 |
3.99 |
100*127 |
2200*960*1400 |
950 |
ENP-56 |
56 |
70 |
60 |
75 |
1004TG |
0.45 |
4 |
3.99 |
100*127 |
2200*960*1400 |
1000 |
ENP-75 |
75 |
93.5 |
80 |
100 |
1006TA1 G |
1.1 |
6 |
5.99 |
100*127 |
2400*1060*1600 |
1200 |
ENP-80 |
80 |
100 |
85 |
106 |
1006TA2 G |
0.46 |
6 |
5.99 |
100*127 |
2400*1060*1600 |
1250 |
ENP-96 |
96 |
120 |
104 |
130 |
1006TAG |
0.42 |
6 |
5.99 |
100*127 |
2400*1060*1600 |
1400 |
ENP-108 |
108 |
135 |
120 |
150 |
1006TAG |
0.42 |
6 |
5.99 |
100*127 |
2600*1060*1700 |
1450 |
Engine Features:
1. World most famous brand diesel engine: LOVOL 1000 series engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80 dB / 7m<70dB
Control Panel:
1. Automatic control panel (AMF), LCD display
2. Four protection systems
3. Emergency stop
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
PMC System:
1. Standard 23 pitch windings avoid excessive neutral current
2. Permanent magnet generator system provides constant excitation under all condition
3. Optional accessories available for easy paralleling with mains or other generators
4. AVR auto voltage regulation, auto exciter, auto adjustment
Accessories:
1) Standard accessories: Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, operation manual and document
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, control system with RS232/485, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer

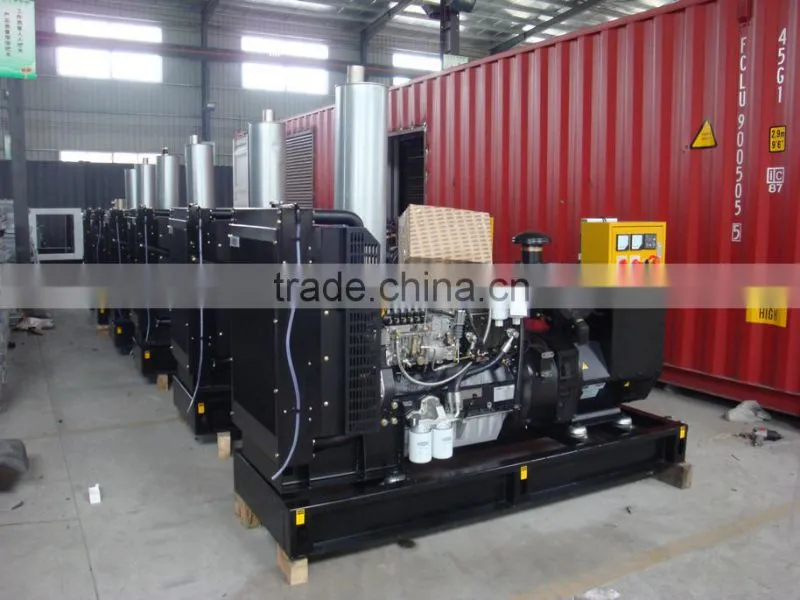

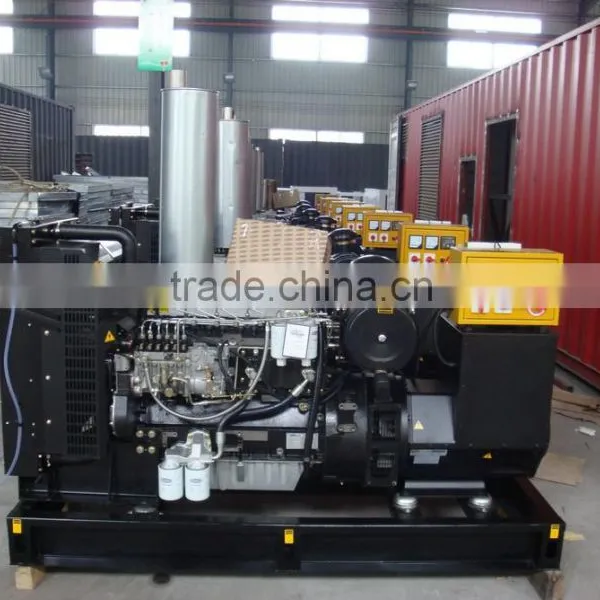

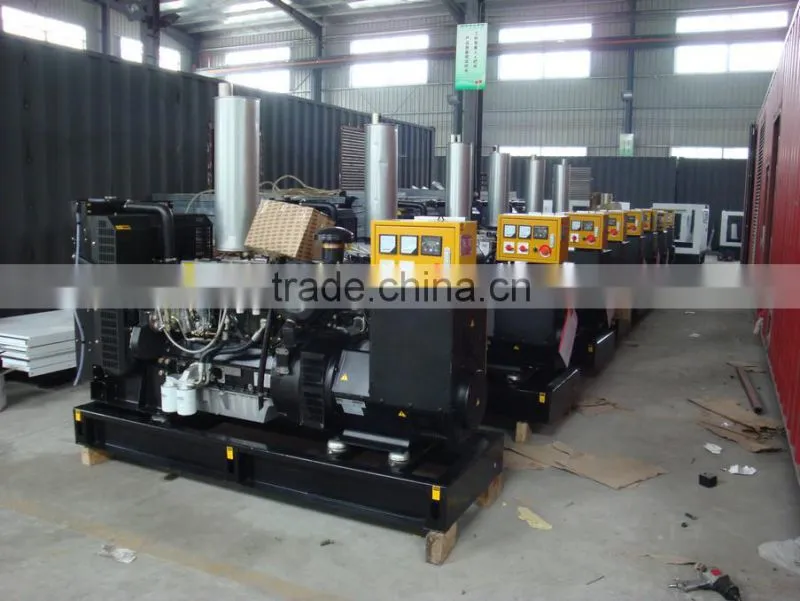

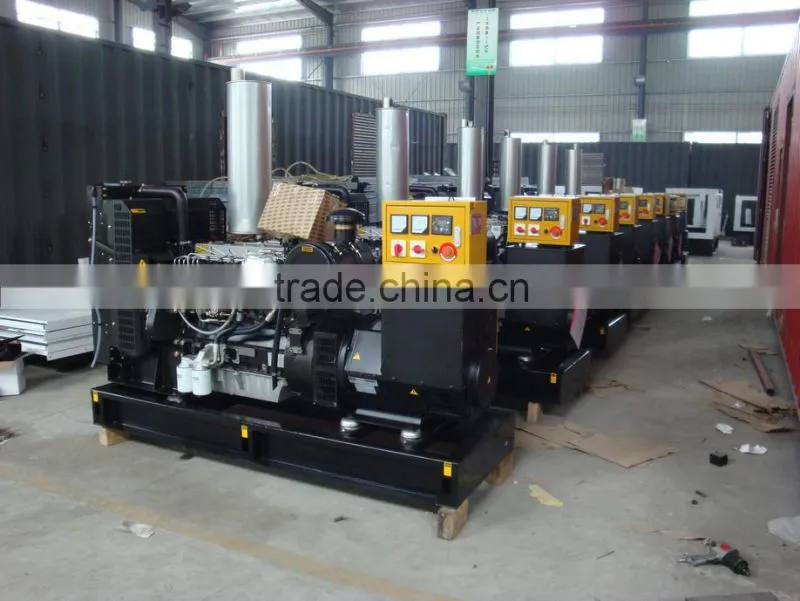

Lovol Open type generator

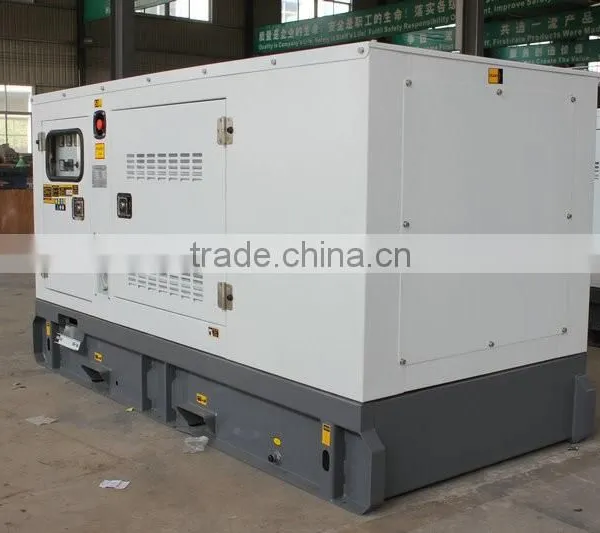

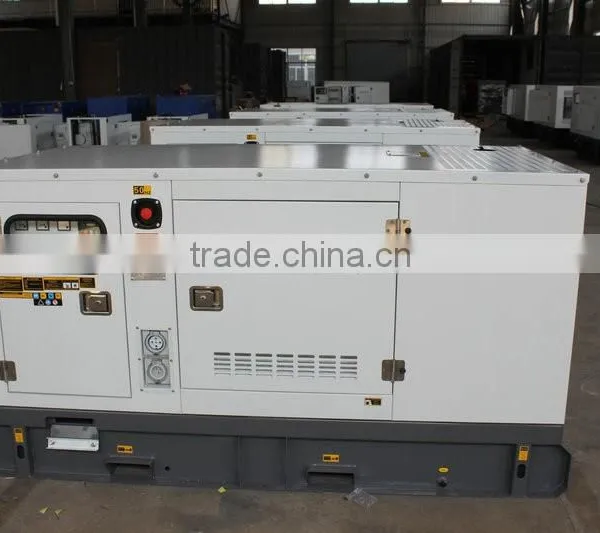

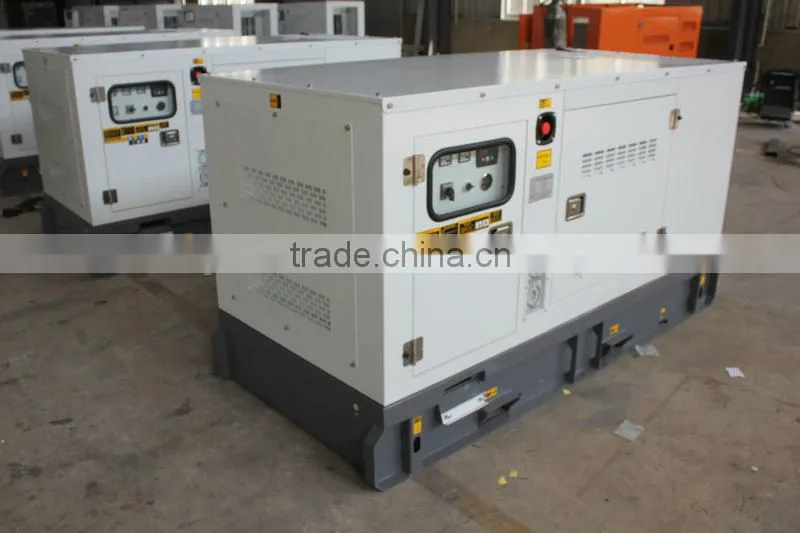

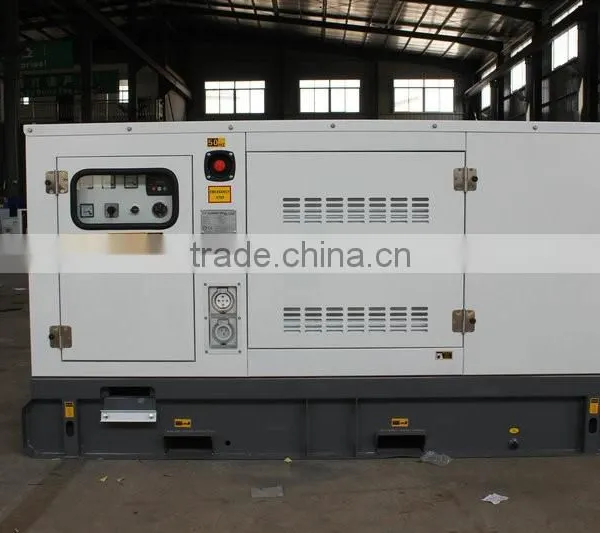

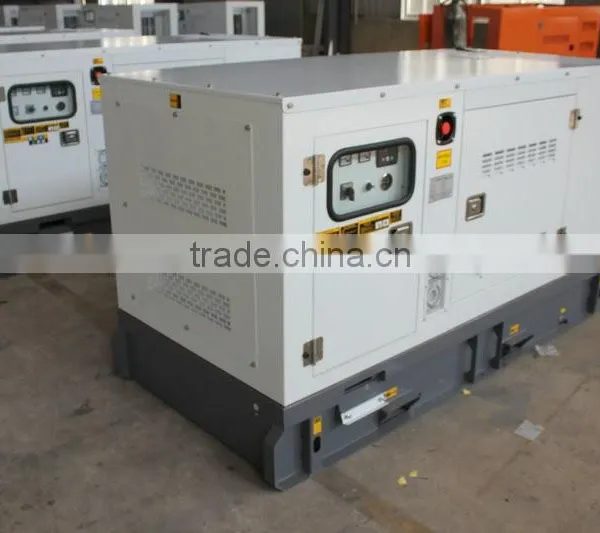

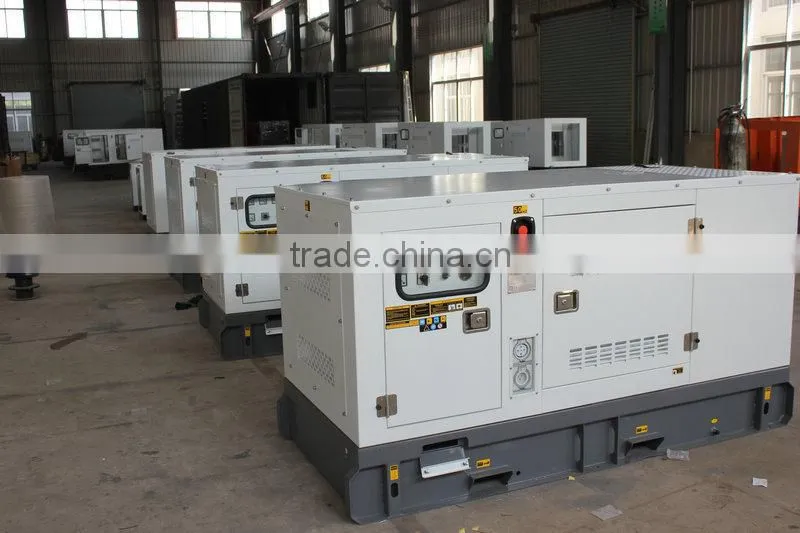

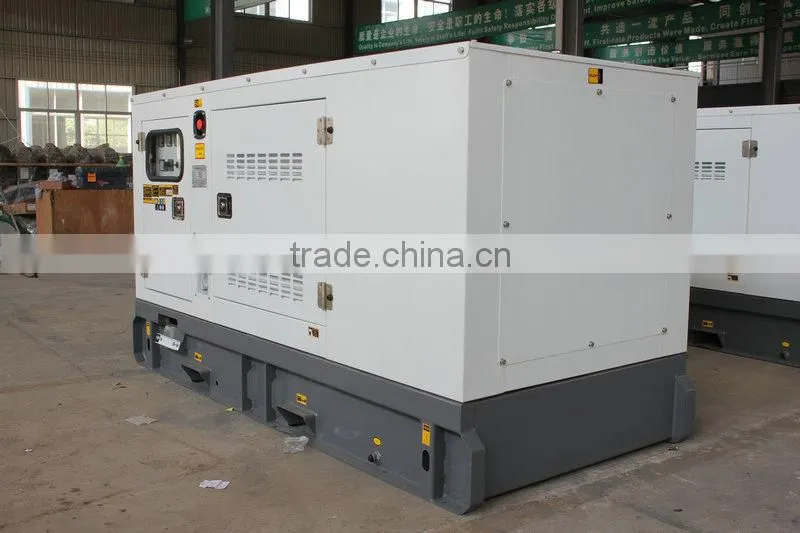

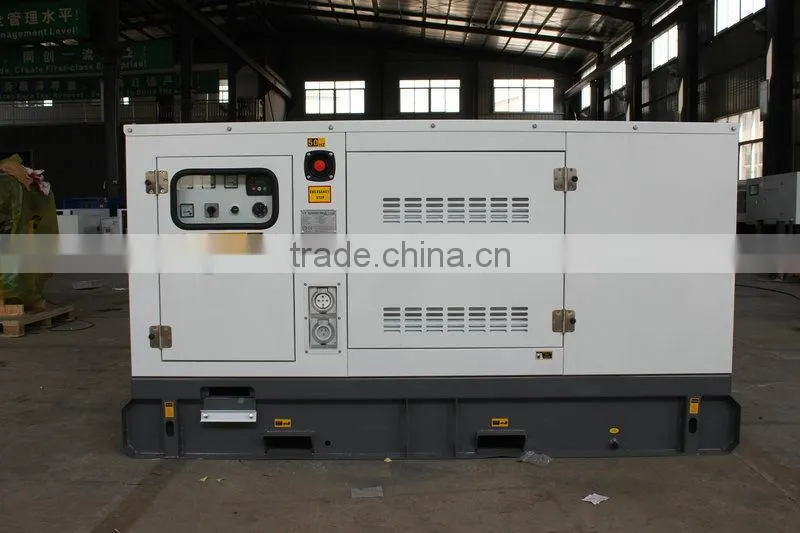

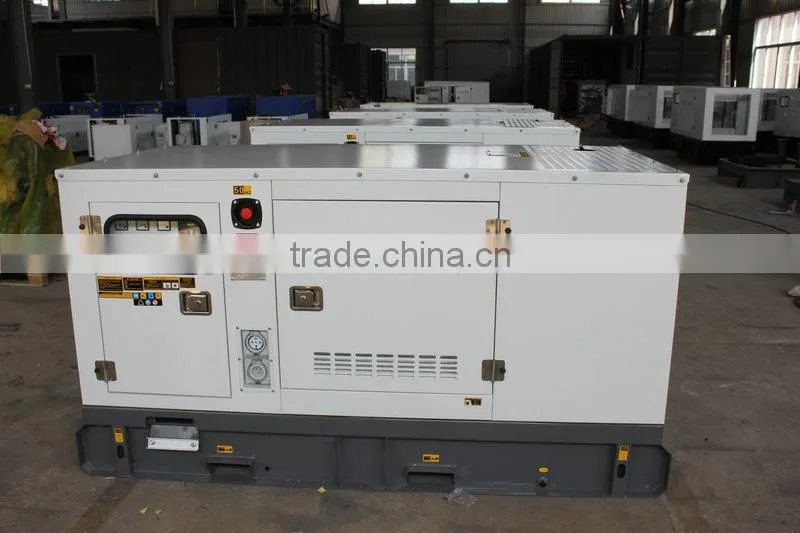

SIlent type generator:
