Help Center6kw Diesel Engine Generator Power by Japan Engine
Related Products
-
Super Silent Kubota Generator D1703 12kwUS$ 999 - 9,999MOQ: 1 Set -
the Lowest Noise 15kw Silent Diesel Generator With Kubota EngineUS$ 999 - 9,999MOQ: 1 Set
-
Super Silent 7kw Diesel Generator With Kubota EngineUS$ 999 - 9,999MOQ: 1 Set
-
Super Silent 8 Kva Generator With Kubota EngineUS$ 999 - 9,999MOQ: 1 Set
-
Diesel Generator 8.5kva Power by Japan EngineNegotiableMOQ: 1 Set
Genset Model |
K6 |
K8 |
K9 |
K10 |
K12 |
K16 |
K18 |
K25 |
|||
Diesel Engine |
Model |
D905-E2BG1 |
D1105-E2BG |
V1505-E2BG |
D1703-E2BG |
V2203-E2BG |
V2003-T-E2BG |
V3300-E2BG2 |
V3300-T-E2BG2 |
||
Type |
Four-Stroke, water-cooling, vertical |
||||||||||
NO. of Cylinders |
3 |
3 |
4 |
4 |
4 |
4 |
4 |
4 |
|||
Bore* Stroke (mm) |
78*78.4 |
78*78.4 |
78*78.4 |
87*92.4 |
87*92.4 |
87*92.4 |
98*100 |
98*100 |
|||
Displacement |
1.123 |
1.123 |
1.498 |
1.647 |
2.197 |
2.999 |
3.318 |
3.318 |
|||
Air intake mode |
Naturally-Aspriated |
Turbocharged |
Naturally-Aspriated |
Turbocharged |
|||||||
Rated Output (kw) |
7.4 |
9.5 |
12.5 |
15 |
20.1 |
22.5 |
28.9 |
35.3 |
|||
Rated Speed (rpm) |
1500/1800 |
||||||||||
Cooling Method |
Water-cooled with Radiator |
||||||||||
Starting Method |
D.C.12V or 24V Electric Radiator |
||||||||||
Alternator |
Model (Stamford) |
BCI164A |
BCI164B |
BCI164C |
BCI164D |
BCI184E |
BCI184F |
BCI184G |
BCI184H |
||
Rated power (KW) |
6 |
8 |
10 |
12 |
16 |
20 |
24 |
30 |
|||
Rated Voltage |
220V, 230V, 220V/380V, 230V/400V, ect. |
||||||||||
Rated Current |
According to the voltage be selected |
||||||||||
Rated Frequency |
50Hz/60Hz |
||||||||||
Rated Speed (rpm) |
1500/1800 |
||||||||||
Power Factor |
1 for single phase/ 0.8 for three phases |
||||||||||
Phase Connection |
Single Phase or Three Phases |
||||||||||
Winding Connection |
3 or 4- wire connection (12-wire for 3-phases) |
||||||||||
Excitation Method |
Brushless |
||||||||||
Voltage Regulation |
AVR |
||||||||||
Control Panel |
V-Meter, A-Meter, Frequency Meter, Circuit Breaker, Transfer Switch, AVR, Temp, and Pressure Gauges, Lighter, Hour Meter, Key Starter, ect. |
||||||||||
G/N. WET (kg) |
500/450 |
560/500 |
650/600 |
760/700 |
770/710 |
790/730 |
810/750 |
1000/920 |
|||
Packing Size (cm) |
185*96*110 |
185*96*110 |
200*96*110 |
200*96*110 |
200*96*110 |
200*96*110 |
230*110*130 |
230*110*130 |
|||

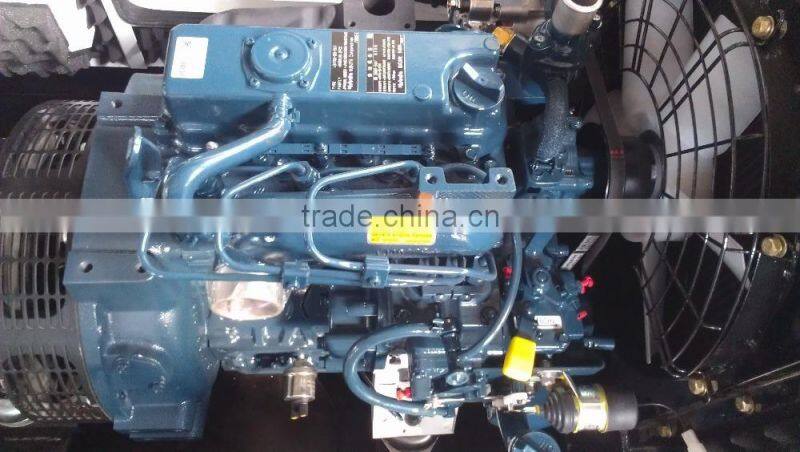

Engine Features:
1. World most famous brand diesel engine: Kubota
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily

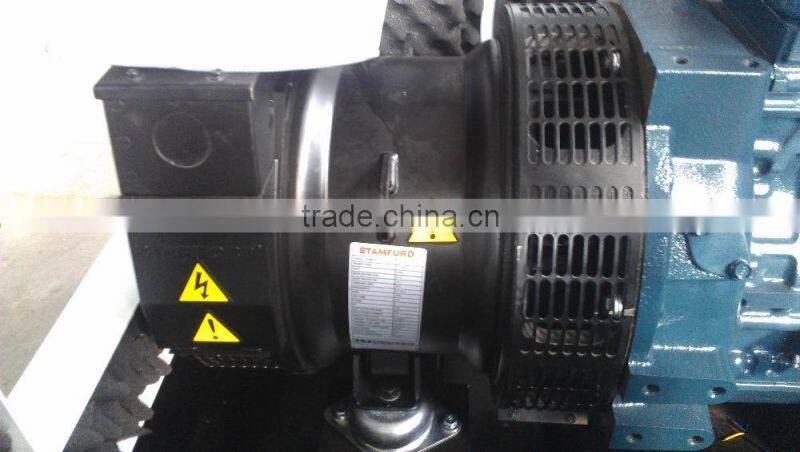

Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%

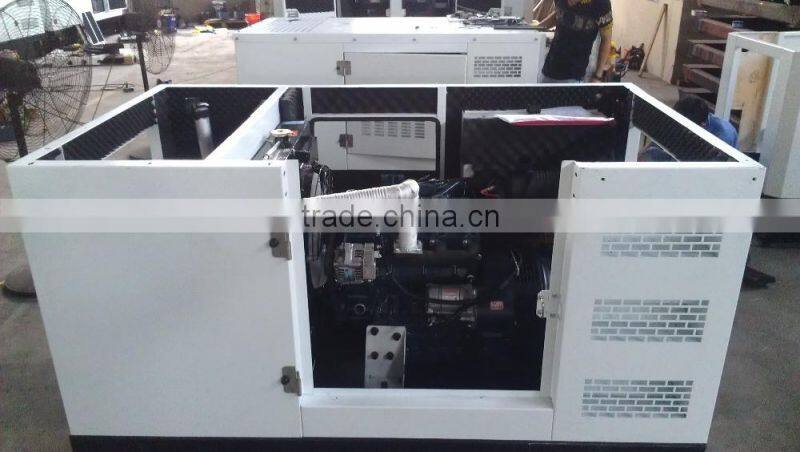

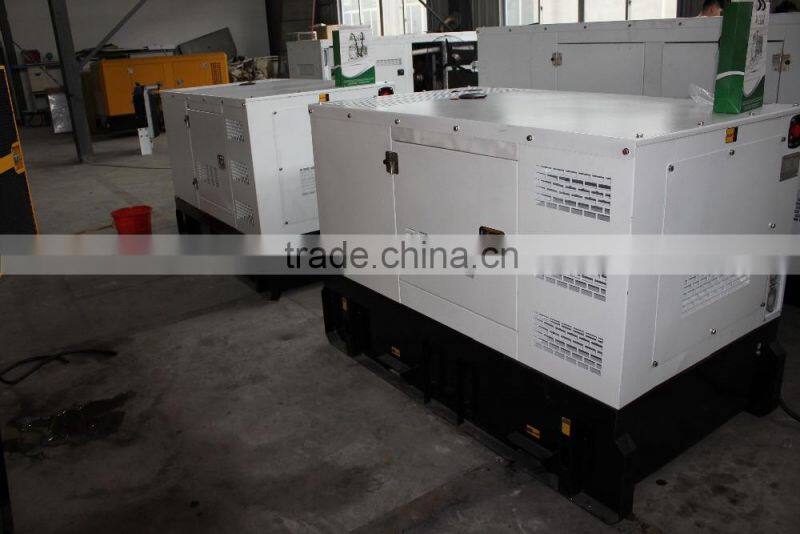

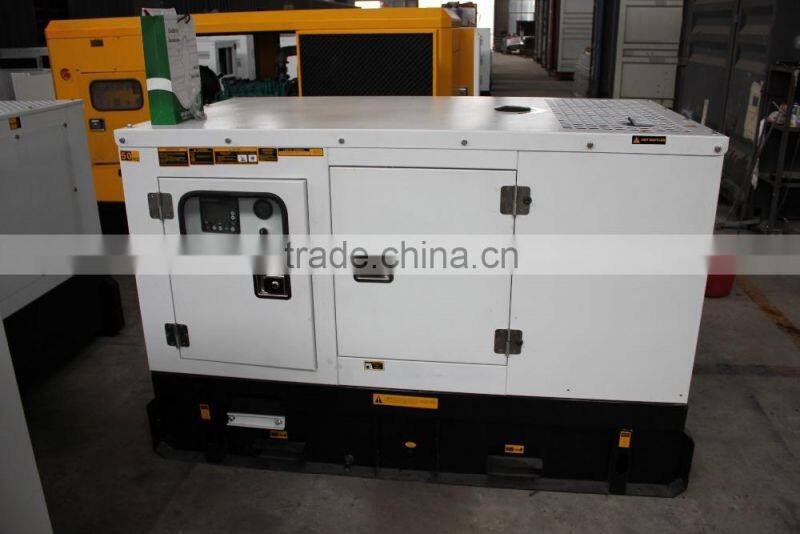

Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80 dB / 7m<70dB

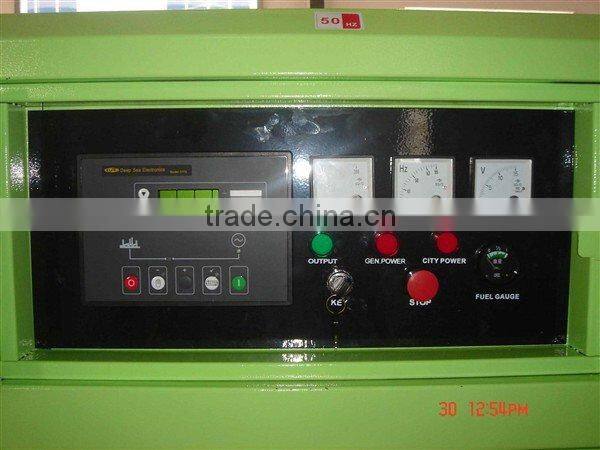

Control Panel:
1. Automatic control panel (AMF), LCD display
2. Four protection systems
3. Emergency stop
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
genset
