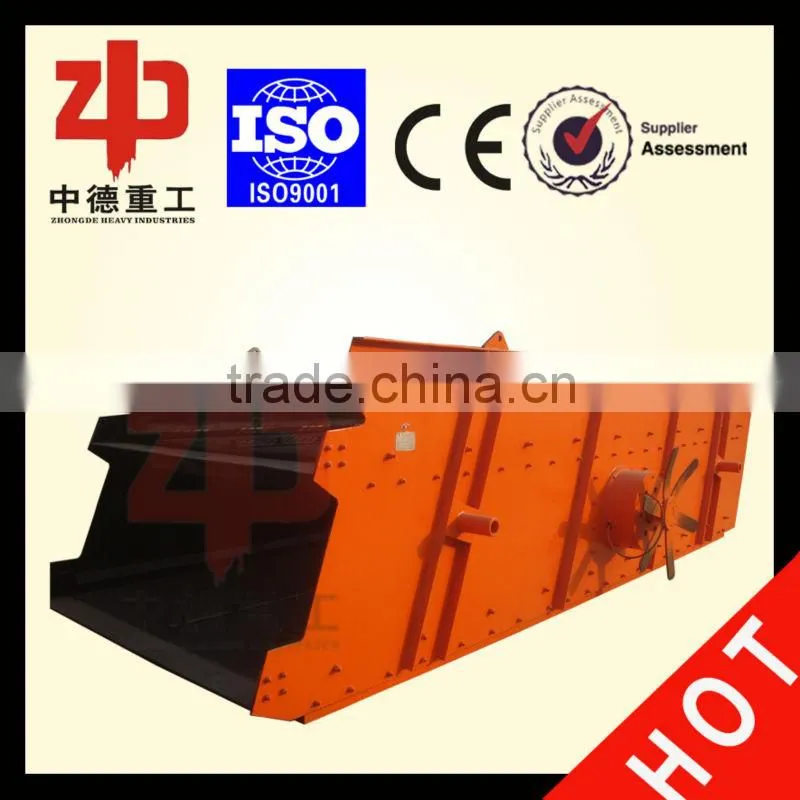

YK series Vibrating Screen
Introduction:
The YK series of vibrating screen moves on a circular motion. It is a multi-layer and high efficient vibrating screen.
Advantages :
Stable structure, strong exciting force, high efficiency, low noise pollution, easy to maintain and durability.
Circular vibrating screen has been widely used in mine, construction, transportation, energy and chemical industries.
Characteristics:
1) stable structure and strong exciting force
2) high efficiency and little noise pollution
3) handy maintenance and durability 4) Materials blocked in meshes can be automatically out; 5) Simple structure and easy to disassemble and replace; 6) Less electricity power consumption
Technical parameters:
| Model | Sieve layer | Sieve area(m2) | Mesh size(mm) | Max. feeding size(mm) | Processing capacity(m3/h) | Vibrating power(r/min) | Double amplitude(mm) | Motor power(kw) | Sieve obliquity(°) | Sieve specification(mm) | Total weight(kg) | Dimensions(l*w*h)(mm) |
| 2YK1225 | 2 | 6 | 4 - 50 | 400 | 8-60 | 800-970 | 8 | 5.5 | 20 | 1200*2500 | 3500 | 2930*1860*870 |
| 3YK1225 | 3 | 9 | 4 - 50 | 400 | 10-70 | 800-970 | 8 | 5.5 | 20 | 1200*2500 | 3850 | 3070*1860*1210 |
| 2YK1230 | 2 | 7.2 | 4 - 50 | 400 | 12-78 | 800-970 | 8 | 7.5 | 20 | 1200*3000 | 4200 | 3430*1860*870 |
| 3YK1230 | 3 | 10.8 | 4 - 50 | 400 | 13-80 | 800-970 | 8 | 7.5 | 20 | 1200*3700 | 4600 | 3570*1860*1210 |
| 2YK1237 | 2 | 8.88 | 4 - 50 | 400 | 15-86 | 800-970 | 8 | 7.5 | 20 | 1200*3700 | 4600 | 4050*1860*870 |
| 3YK1237 | 3 | 13.22 | 4 - 50 | 400 | 16-90 | 800-970 | 8 | 7.5 | 20 | 1200*3700 | 5200 | 4270*1860*1210 |
| 2YK1535 | 2 | 10.5 | 5 - 50 | 400 | 20-125 | 800-970 | 8 | 11 | 20 | 1500*3500 | 5890 | 4120*2210*1230 |
| 3YK1535 | 3 | 15.75 | 5 - 50 | 400 | 21-125 | 800-970 | 8 | 11 | 20 | 1500*3500 | 6700 | 4360*2210*1610 |
| 2YK1545 | 2 | 13.5 | 5 - 50 | 400 | 22-150 | 800-970 | 8 | 15 | 20 | 1500*4500 | 6330 | 5120*2210*1230 |
| 3YK1545 | 3 | 20.25 | 5 - 50 | 400 | 22-150 | 800-970 | 8 | 15 | 20 | 1500*4500 | 6800 | 5360*2210*1610 |
| 4YK1545 | 4 | 27 | 5 - 50 | 400 | 22-155 | 800-970 | 8 | 18.5 | 20 | 1500*4500 | 7800 | 5930*2210*2060 |
| 2YK1548 | 2 | 14.4 | 5 - 50 | 400 | 22.5-162 | 800-970 | 8 | 15 | 20 | 1500*4800 | 6980 | 5420*2210*1230 |
| 3YK1548 | 3 | 21.6 | 5 - 50 | 400 | 22.5-162 | 800-970 | 11 | 15 | 20 | 1500*4800 | 7700 | 5660*2210*1610 |
| 4YK1548 | 4 | 28.8 | 5 - 50 | 400 | 22.5-162 | 800-970 | 8 | 18.5 | 20 | 1500*4800 | 8700 | 6230*2210*2060 |
| 2YK1848 | 2 | 17.28 | 5 - 80 | 400 | 25-206 | 750 | 8 | 15 | 20 | 1800*4800 | 9080 | 5420*2550*1420 |
| 3YK1848 | 3 | 25.92 | 5 - 80 | 400 | 32-276 | 750 | 8 | 18.5 | 20 | 1800*4800 | 9600 | 5660*2550*1780 |
| 4YK1848 | 4 | 34.54 | 5 - 80 | 400 | 32-285 | 750 | 8 | 22 | 20 | 1800*4800 | 11100 | 6290*2550*2160 |
| 2YK1854 | 2 | 19.44 | 5-80 | 400 | 32-312 | 800-970 | 8 | 18.5 | 20 | 1800*5400 | 10150 | 5960*2550*1420 |
| 3YK1854 | 3 | 29.16 | 5 - 80 | 400 | 32-312 | 800-970 | 8 | 22 | 20 | 1800*5400 | 10840 | 6260*2550*1780 |
| 4YK1854 | 4 | 38.88 | 5 - 80 | 400 | 32-336 | 800-970 | 8 | 30 | 20 | 1800*5400 | 12840 | 6830*2550*2160 |
| 2YK2160 | 2 | 25.2 | 5-100 | 400 | 50-475 | 970 | 8 | 30 | 20 | 2100*6000 | 11780 | 6720*2840*1530 |
| 3YK2160 | 3 | 37.8 | 5-100 | 400 | 50-475 | 970 | 8 | 30 | 20 | 2100*6000 | 12800 | 7030*2840*1910 |
| 4YK2160 | 4 | 50.4 | 5-100 | 400 | 50-497 | 970 | 8 | 37 | 20 | 2100*6000 | 14800 | 7300*2840*2380 |
| 2YK2460 | 2 | 28.8 | 5-100 | 400 | 65-550 | 970 | 8 | 37 | 20 | 2400*6000 | 15600 | 7020*3140*1530 |
| 3YK2460 | 3 | 43.2 | 5-100 | 400 | 70-620 | 970 | 8 | 37 | 20 | 2400*6000 | 17600 | 7300*3140*1910 |
| 4YK2460 | 4 | 57.6 | 5-100 |
400 | 80-680 | 970 | 8 | 45 | 20 | 2400*6000 | 19600 | 7600*3140*2380 |
| 2YK2870 | 2 | 39.2 | 5-100 |
400 | 120-680 | 750 | 8 | 22*2 | 20 | 2800*7000 | 21200 | 7600*4320*1620 |
| 3YK2870 | 3 | 58.8 | 5-100 |
400 | 180-720 | 750 | 8 | 22*2 | 20 | 2800*7000 | 22400 | 7800*4320*2120 |
| 2YK3072 | 2 | 43.2 | 5-100 |
400 | 200-700 | 750 | 8 | 22*2 | 20 | 3000*7200 | 23600 | 7800*4520*1750 |
| 3YK3072 | 3 | 64.8 | 5-100 |
400 | 230-800 | 750 | 8 | 22*2 | 20 | 3000*7200 | 25500 | 8000*4520*2300 |

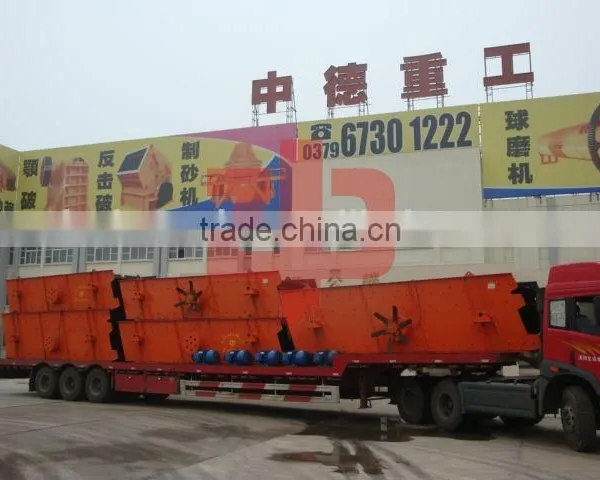

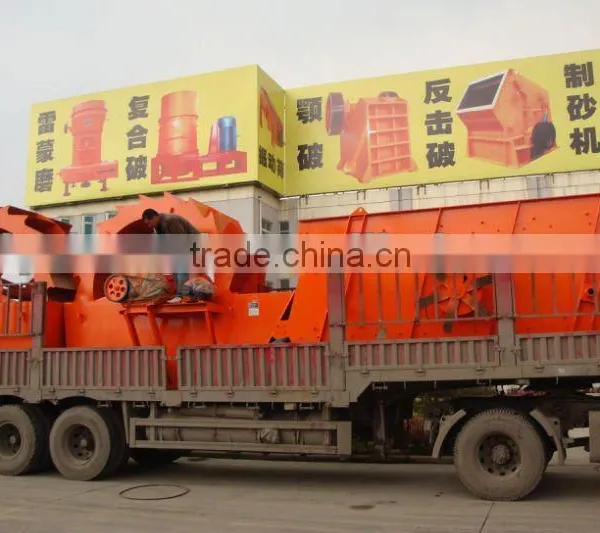

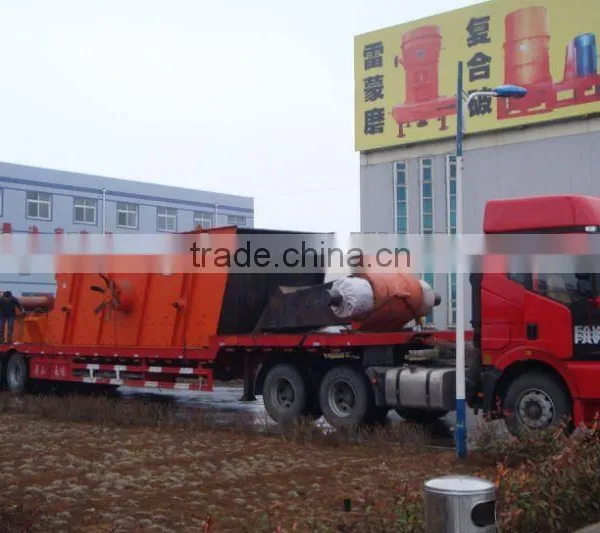

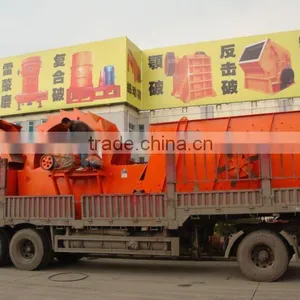

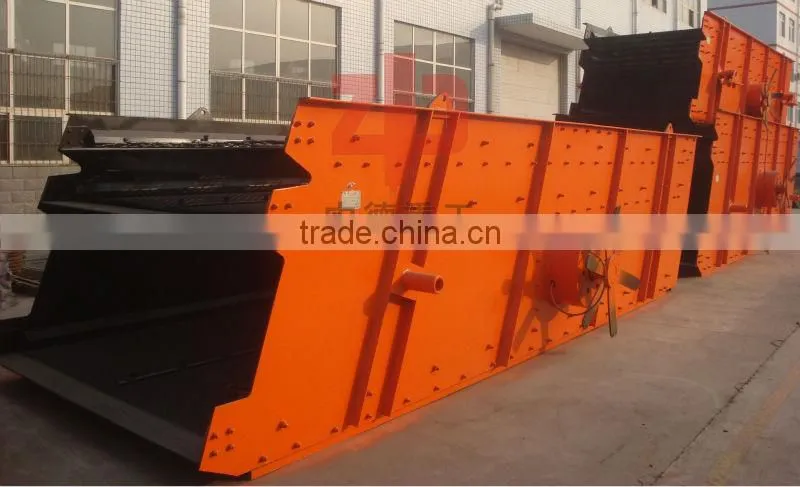

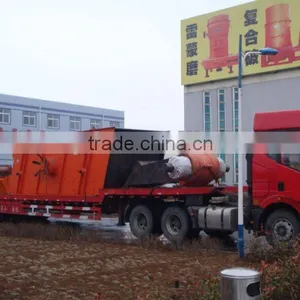

pictures for reference:
Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959. Over the past 50 years, Zhongde has made significant contribution to the economic development in China. In 1995, it took the lead in changing into the joint stock company, which had brought a rapid development to the company. In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park, Luoyang city, the middle of China.
We are a professional manufacturer of mining equipments, such as crusher, mining mill, tube mill, rotary kiln, cooler, rotary dryer, magnetic separator, flotation machine, thickener, etc. Our machines are widely used in the fields of mine, smelting, chemicals, building materials, coal, refractory materials, ceramics, etc. Moreover, technological designs on program, process flow, standard& non-standard parts are also provided from the beginning to the end for clients.
The total area of the three standard heavy-duty industrial workshops covers 70000 square meters. More than 500 sets advanced processing equipments, including 300 sets of high-precision digital control machine tools, large-sized processing equipment and special processing, riveting& installing machines, are introduced to guarantee for product quality and company development.
In 2010, we have accessed the ISO9001:2008 certification, and in 2012 we have acquired the BVQI certificate. To establish the business with credit and honesty is our management belief all the time.
Company pictures:
Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
How about the quality of your YK series vibrating screen?
- Our YK series vibrating screen is manufactured strictly according national and international standard.
- We take a test on every YK series vibrating screen before delivery.
How about price of your YK series vibrating screen ?
- We can give the lowest price of YK series vibrating screen than market one.
- We do quotation of YK series vibrating screen as soon as possible for any customer.
- Discount of YK series vibrating screen can be given according to quantity.
How about the after-sale service of your company?
- Our engineer is available to install YK series vibrating screen overseas.
- The guarantee period of our YK series vibrating screen is one year.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price.
