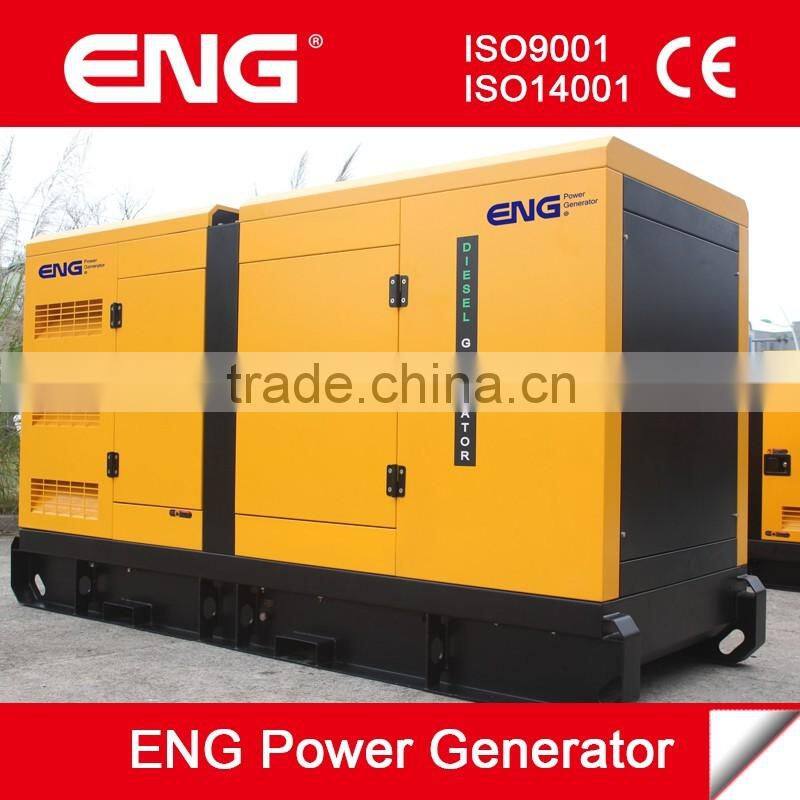

With Cummins Engine 200kva Silent Genset 15day Delivery

Genset  specification

Genset Model

ENSC200S-3

Prime Power(50HZ)

160KW /200KVA

Standby Power(50HZ)

176KW /220KVA

Frequency/Speed

50Hz/1500rpm

Standard Voltage

230V/400V

Voltage Available

220V/380V,240V/415V

Phases

Three phases, four wires

Engine Specification General Performance

Manufacturer:

Dongfeng Cummins Engine Co. Ltd.

Engine Model:

6CTAA8.3-G2

Engine Type:

4 stroke, Vertical in-line, 6-cylinder

Engine Speed:

1500 r.p.m

Prime Power:

183kw

Standby Power:

203kw

Governor Type:

Electrical

Air Intake Way:

Turbocharged , Air to air Aftercooled

Displacement:

8.3L

Cylinder Bore * Stroke:

114mm × 135mm

Lubrication system Min. capacity

23.8L

Coolant Capacity Engine Only

12.3 Liters

Alternator data

Engine Model:

Stamford  UCI274H

Phase

3 Phase

Power Factor

0.8

Drip Proof

IP 23

Insulation class

H

Voltage regulation

± 0,5 %

Altitude

≤ 1000 m

Over speed

2250 min -1

Genset Standard Configuration

♦ Assembled by Cummins diesel engine and world famous brand alternator
♦ Radiator and fan with safety guard
♦ Automatic control panel and electricity output switch cabinet
♦ Float battery charger and solenoid switch as standard supply scope
♦ Built-in shock pad
♦ Heavy duty steel as base frame and 6-8hrs operation base fuel tank.(suit for 8kva-750kva)
♦ Optional voltage rank: 230V/400V, 220V/380V, 127V/220V, 240V/480V etc.

Our Commitment

♦ Products and services all comply with ISO8528 and GB/T2820 manufacturing standards.

♦ Management is implemented in strict accordance with ISO9001 Quality Management System and ISO14001Environmental Management System.
♦ All products are CE-certified.
♦ All products have passed rigorous factory test to ensure high quality.
♦ Product warranty terms are strictly enforced.
♦ High-efficiency assembly and production lines ensure on-time delivery.
♦ Professional, timely, thoughtful and dedicated services are offered.
♦ Favorable and complete original accessories are supplied.
♦ Regular and irregular technical training are provided all year round.
♦ 24/7/365 Customer Service Center provides fast and effective responses to customers’ service demands.
