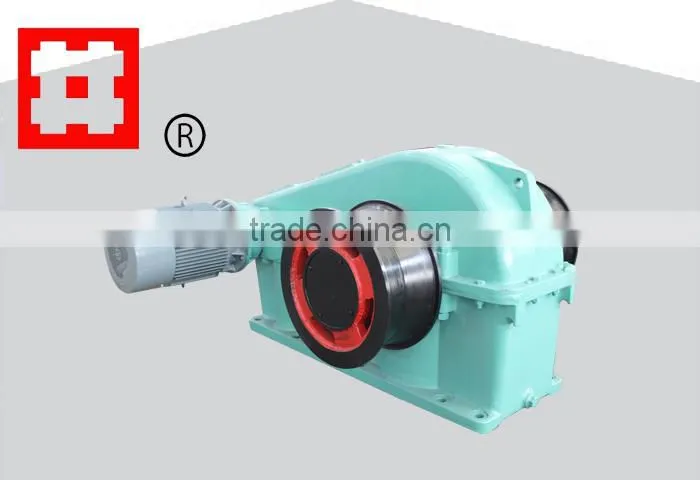

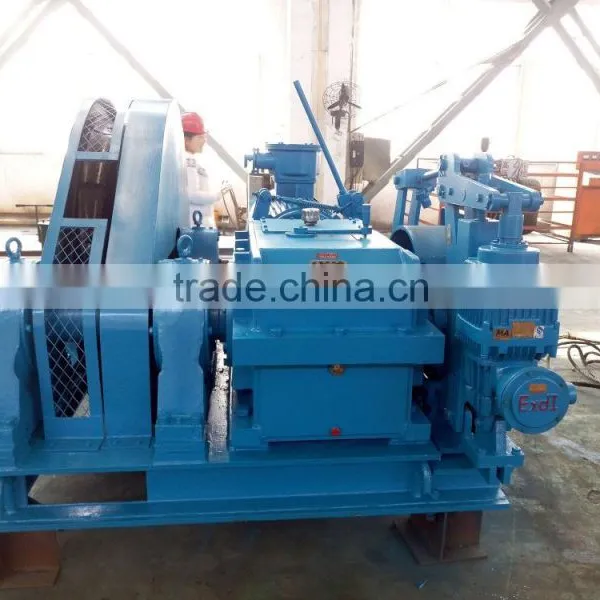

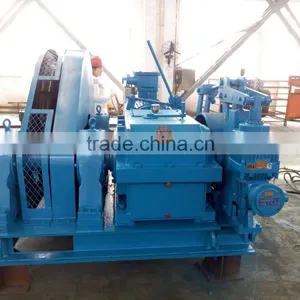

China maunfacturer continous traction mining winch rope
Main Configuration:
Traction winch, tension device, shuttle cart, tail block wheel, pressing line wheel, holding rope wheel and electric controller etc. With steel rope consists of the whole transportation system.
Product catalog and technical paremeter:
| Number | Model | Maximum tractor KN | Motor power Kw | Tractor speed m/s | roller diameter | Nominal diameter mm | minimum KN | Dimension mm |
| 1 | SQ-20/22 | 20 | 22 | 1 | 950 | 18 | 179 | 1770*1330*1045 |
| 2 | SQ-30/37 | 30 | 37 | 1 | 1200 | 18 | 179 | 2210*1440*1355 |
| 3 | SQ-40/45 | 40 | 45 | 1 | 1200 | 22 | 267 | 2352*1500*1366 |
| 4 | SQ-50/55 | 50 | 55 | 1 | 1200 | 22 | 267 | 2402*1500*1366 |
| 5 | SQ-60/55B | 60/40 | 55 | 0.67/1.12 | 1200 | 22 | 267 | 2598*1698*1478 |
| 6 | SQ-60/75B | 60/40 | 75 | 1.0/1.68 | 1200 | 22 | 267 | 2548*1698*1478 |
| 7 | SQ-80/75B | 80/53 | 75 | 0.67/1.12 | 1200 | 24 | 317 | 2808*1698*1478 |
| 8 | SQ-80/110B | 80/53 | 110 | 1.0/1.68 | 1200 | 24 | 317 | 2808*1698*1478 |
| 9 | SQ-110/90B | 100/65 | 90 | 0.67/1.12 | 1400 | 26 | 373 | 2859*1698*1606 |
| 10 | SQ-100/132B | 100/65 | 132 | 1.0/1.68 | 1400 | 26 | 373 | 2859*1698*1606 |
| 11 | SQ-120/110B | 120/80 | 110 | 0.67/1.12 | 1400 | 28 | 432 | 2910*1698*1606 |
| 12 | SQ-120/132B | 120/80 | 132 | 0.8/1.4 | 1400 | 28 | 432 | 3080*1850*1606 |
| 13 | SQ-80/110P | 80/80-40 | 110 | 1.24-2.48 | 1200 | 24 | 317 | 2670*1550*1530 |
| 14 | SQ-90/160P | 90/90-55 | 160 | 1.38-2.13 | 1600 | 26 | 373 | 3783*1747*1650 |
| 15 | SQ-100/132P | 100/100-50 | 132 | 1.2-2.4 | 1400 | 26 | 373 | 4194*1700*1560 |
| 16 | SQ-120/132P | 120/120-160 | 132 | 0.86-1.72 | 1400 | 28 | 432 | 2886*1636*1606 |
| 17 | SQ-160/160P | 160/160-80 | 160 | 0.7-1.4 | 1600 | 32 | 564.3 | 4920*1770*1950 |
Our Packaging : The standard wooden case, or as custumer required.
Xuzhou Mine Equipment Manufacturing Co.,Ltd founded in 1956. As a leader of mining equipment manufacture in China,we have been devoted to creating new and high quality products in mining field for more than 50 years.

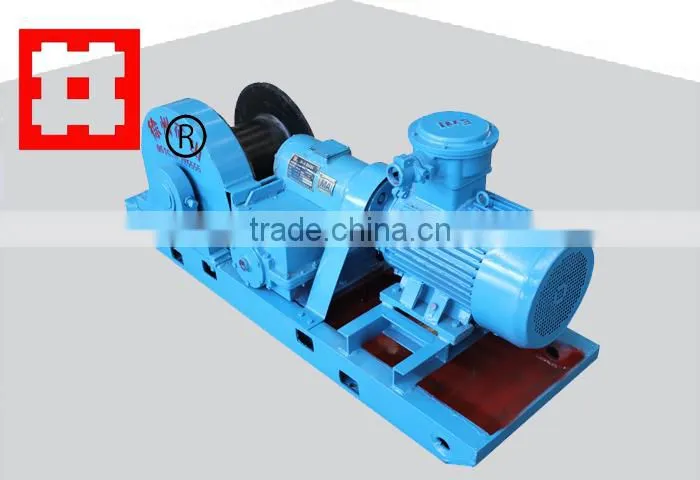

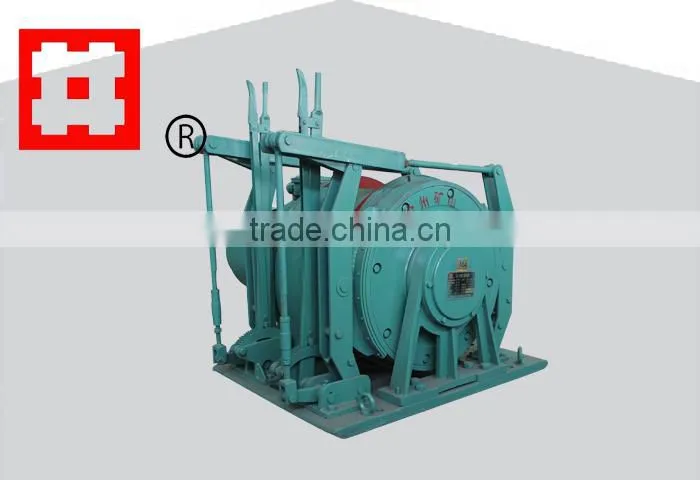

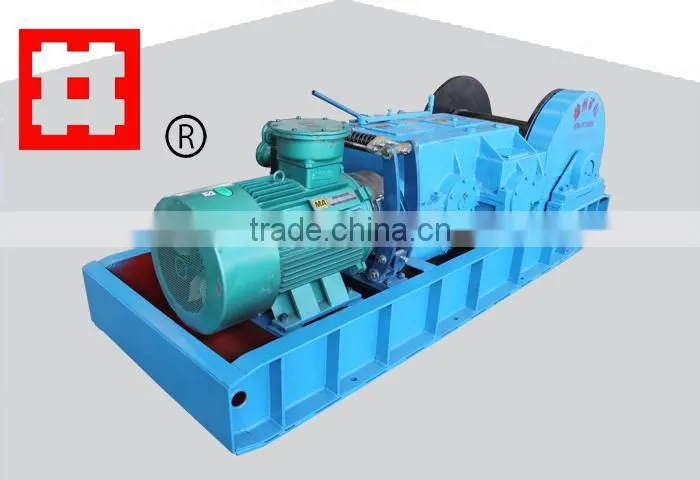

Our main products including SQ and JWB endless rope continuous tractor, JSDB series double speed multi-purpose winch, JYB series transport winch, JD series shunting winch, JH series prop-pulling winch, JHMB series slow speed drawing winch, and JZ series sinking winch and etc.
Our sales network is not only in domestic, but also exported to foreign for many years.
1. One year warranty for whole machines
2. Low charge for continue maintenance when warranty is expired
3. Exclusive engineer support at any time
Any inquiry,pls feel free to contact us!
