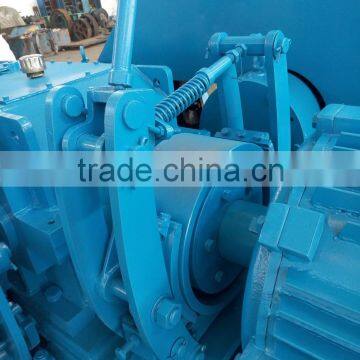

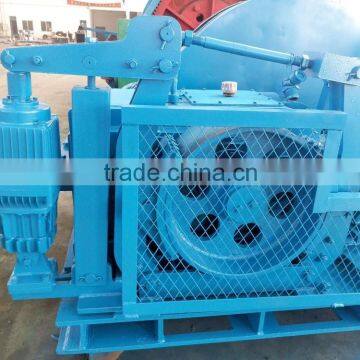

2 ton electric endless rope rail winch
2 ton electric endless rope rail winch
Main Configuration:
Traction winch, tension device, shuttle cart, tail block wheel, pressing line wheel, holding rope wheel and electric controller etc. With steel rope consists of the whole transportation system.
Product category and telechinal parameter:
electric endless rope hoist winch
| Number | Model | Maximum tractor KN | Motor power Kw | Tractor speed m/s | roller diameter | Nominal diameter mm | minimum KN | Dimension mm |
| 1 | SQ-20/22 | 20 | 22 | 1.0 | 950 | 18 | 179 | 1770*1330*1045 |
| 2 | SQ-30/37 | 30 | 37 | 1.0 | 1200 | 18 | 179 | 2210*1440*1355 |
| 3 | SQ-40/45 | 40 | 45 | 1.0 | 1200 | 22 | 267 | 2352*1500*1366 |
| 4 | SQ-50/55 | 50 | 55 | 1.0 | 1200 | 22 | 267 | 2402*1500*1366 |
| 5 | SQ-60/55B | 60/40 | 55 | 0.67/1.12 | 1200 | 22 | 267 | 2598*1698*1478 |
| 6 | SQ-60/75B | 60/40 | 75 | 1.0/1.68 | 1200 | 22 | 267 | 2548*1698*1478 |
| 7 | SQ-80/75B | 80/53 | 75 | 0.67/1.12 | 1200 | 24 | 317 | 2808*1698*1478 |
| 8 | SQ-80/110B | 80/53 | 110 | 1.0/1.68 | 1200 | 24 | 317 | 2808*1698*1478 |
| 9 | SQ-110/90B | 100/65 | 90 | 0.67/1.12 | 1400 | 26 | 373 | 2859*1698*1606 |
| 10 | SQ-100/132B | 100/65 | 132 | 1.0/1.68 | 1400 | 26 | 373 | 2859*1698*1606 |
| 11 | SQ-120/110B | 120/80 | 110 | 0.67/1.12 | 1400 | 28 | 432 | 2910*1698*1606 |
| 12 | SQ-120/132B | 120/80 | 132 | 0.8/1.4 | 1400 | 28 | 432 | 3080*1850*1606 |
| 13 | SQ-80/110P | 80/80-40 | 110 | 1.24-2.48 | 1200 | 24 | 317 | 2670*1550*1530 |
| 14 | SQ-90/160P | 90/90-55 | 160 | 1.38-2.13 | 1600 | 26 | 373 | 3783*1747*1650 |
| 15 | SQ-100/132P | 100/100-50 | 132 | 1.2-2.4 | 1400 | 26 | 373 | 4194*1700*1560 |
| 16 | SQ-120/132P | 120/120-160 | 132 | 0.86-1.72 | 1400 | 28 | 432 | 2886*1636*1606 |
| 17 | SQ-160/160P | 160/160-80 | 160 | 0.7-1.4 | 1600 | 32 | 564.3 | 4920*1770*1950 |
| 2 ton electric endless rope rail winch | ||||||||
Our packaging: The standard wooden case or as custmers required.
Xuzhou Mine Equipment Manufacturing Co.,Ltd founded in 1956. As a leader of mining equipment manufacture in China,we have been devoted to creating new and high quality products in mining field for more than 50 years.
Our main products including SQ and JWB endless rope continuous tractor, JSDB series double speed multi-purpose winch, JYB series transport winch, JD series shunting winch, JH series prop-pulling winch, JHMB series slow speed drawing winch, and JZ series sinking winch and etc.
Our sales network is not only in domestic, but also exported to foreign for many years.
1. One year warranty for whole machines
2. Low charge for continue maintenance when warranty is expired
3. Exclusive engineer support at any time
Why choose your company?
1. We are the professional maufacturer since 1956,one of biggest supplier in China.
2. We supply high quality products with reasonable price.
3.We have professional sales team.
4.Experienced exporting for all over the world.
5.We provide good after-sales sevice.
Any inquiry,pls feel free to contact us!
2 ton electric endless rope rail winch
