160KW underground electric mining vehicle
160KW underground electric mining vehicle

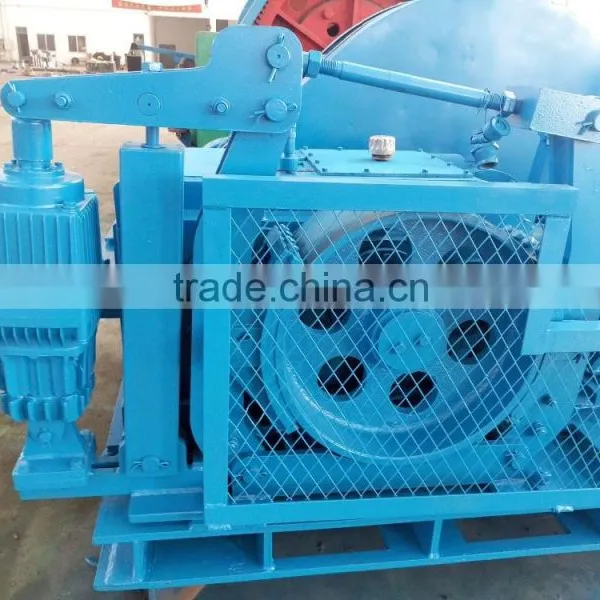

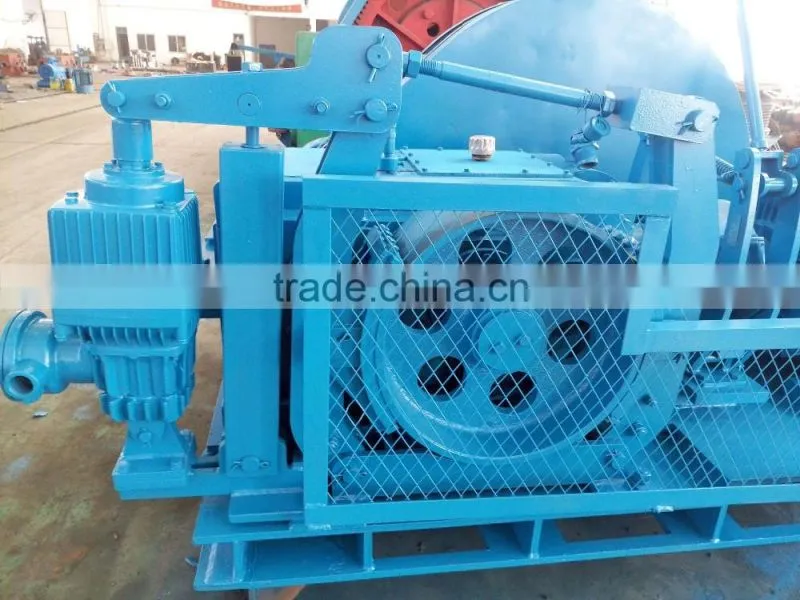

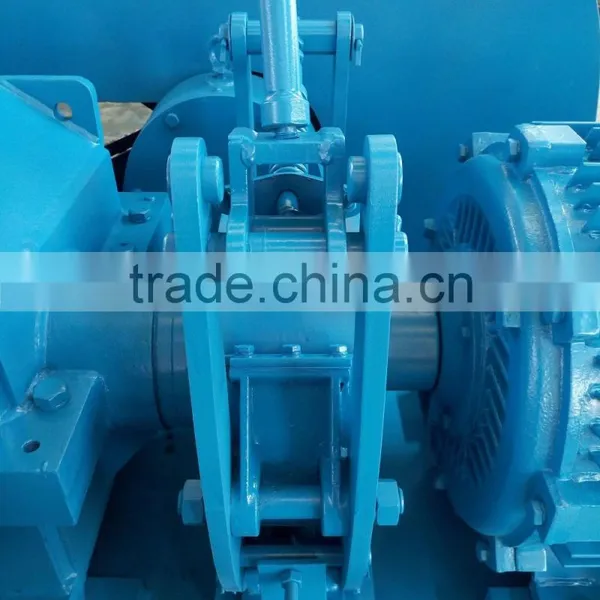

SQ series electric railway endless rope pulling winch mainly consisted of machinery system and auxiliary system. Machinery system including winch, tension device, shuttle cart, tail wheel and wheel sets while auxiliary parts including comprehensive protection system, leakage communication system and steel rope.
SQ endless winch is a novel and practical auxiliary transport equipment which inherit fine technique from rope pulling tractor and at the same time take advantage of the using experience of tranditional endless winch. All of these strive make our SQ endless winch being unique.
Features:
1. High reliability with machanical drive.
2. Easy operation with visible control panel.
3. Flexible system layout. The winch can be arranged on the rail, can be parallel to the rail and also can be perpendicular to the rail.
4. Wide-range application.
5. convenience for installing and moving.
6. High efficiency.
| Model | Maximum tractor KN | Motor power Kw | Tractor speed m/s | Drum diameter | Nominal diameter mm | Structure form | Minimum breaking force KN | Dimension mm | Rail gauge mm |
| SQ-20/22 | 20 | 22 | 1 | 950 | 18 | 6*19S+FC 1670Mpa | 179 | 1770*1330*1045 | 600 (900) |
| SQ-30/37 | 30 | 37 | 1 | 1200 | 18 | 179 | 2210*1440*1355 | ||
| SQ-40/45 | 40 | 45 | 1 | 1200 | 22 | 267 | 2352*1500*1366 | ||
| SQ-50/55 | 50 | 55 | 1 | 1200 | 22 | 267 | 2402*1500*1366 | ||
| SQ-60/55B | 60/40 | 55 | 0.67/1.12 | 1200 | 22 | 267 | 2598*1698*1478 | ||
| SQ-60/75B | 60/40 | 75 | 1.0/1.68 | 1200 | 22 | 267 | 2548*1698*1478 | ||
| SQ-80/75B | 80/53 | 75 | 0.67/1.12 | 1200 | 24 | 317 | 2808*1698*1478 | ||
| SQ-80/110B | 80/53 | 110 | 1.0/1.68 | 1200 | 24 | 317 | 2808*1698*1478 | ||
| SQ-110/90B | 100/65 | 90 | 0.67/1.12 | 1400 | 26 | 373 | 2859*1698*1606 | ||
| SQ-100/132B | 100/65 | 132 | 1.0/1.68 | 1400 | 26 | 373 | 2859*1698*1606 | ||
| SQ-120/110B | 120/80 | 110 | 0.67/1.12 | 1400 | 28 | 432 | 2910*1698*1606 | ||
| SQ-120/132B | 120/80 | 132 | 0.8/1.4 | 1400 | 28 | 432 | 3080*1850*1606 | ||
| SQ-80/110P | 80/80-40 | 110 | 1.24-2.48 | 1200 | 24 | 317 | 2670*1550*1530 | ||
| SQ-90/160P | 90/90-55 | 160 | 1.38-2.13 | 1600 | 26 | 373 | 3783*1747*1650 | ||
| SQ-100/132P | 100/100-50 | 132 | 1.2-2.4 | 1400 | 26 | 373 | 4194*1700*1560 | ||
| SQ-120/132P | 120/120-160 | 132 | 0.86-1.72 | 1400 | 28 | 432 | 2886*1636*1606 | ||
| SQ-160/160P | 160/160-80 | 160 | 0.7-1.4 | 1600 | 32 | 564.3 | 4920*1770*1950 | ||
| other: 160KW underground electric mining vehicle | |||||||||
Our Packaging: Standard Wooden case, or as customer required.
Our Shipping: Delivery within 7days after receive the deposit.
1.One year warranty from delivery
2. Free components for replacement within warranty period
3. Professional solution provider
4. Free technical support at any time
Xuzhou Mine Equipment Manufacturing Co., Ltd founded in 1956. As a leader of mining equipment manufacturer in China, we have been devoted to creating new and high quality products in mining field for more than 50 years. Our main products including SQ and JWB endless rope continuous tractor, JSDB series double speed multi-purpose winch, JYB series transport winch, JD series shunting winch, JH series prop-pulling winch, JHMB series slow speed drawing winch, and JZ series sinking winch and etc.
Our sales network has expanded to foreign markets as Vietnam, Russia, Bengal, India, Malaysia, Mongolia etc.for many years.
We insist on offering high quality products, comprehensive service to obtain our customer’s trust and support. Welcome to Xuzhou mine equipment manufacturer co.,ltd.
In order to recommend a most suitable model to meet every customer's specific need, we need to know:
- Intended application of the winch (including working condition)
- Steel rope pull (t)
- Steel rope speed (m/min)
- Drum capacity/rope length (m)
- Rope diameter ( if have)
- Hydraulic system pressure and pump flow ( if have)
- And other special requirements
