cement kiln
Types of cement kiln
Rotary kiln belongs to building material equipment, and it can be divided into cement kiln,
metallurgy chemical kiln and lime kiln according to different materials.
Application of cement kiln
1) cement kiln is the key equipment in cement industry for calcining clinker.
2) It is also used in various industries, such as metallurgy, chemistry, building, refractory material, environmental protection, etc.

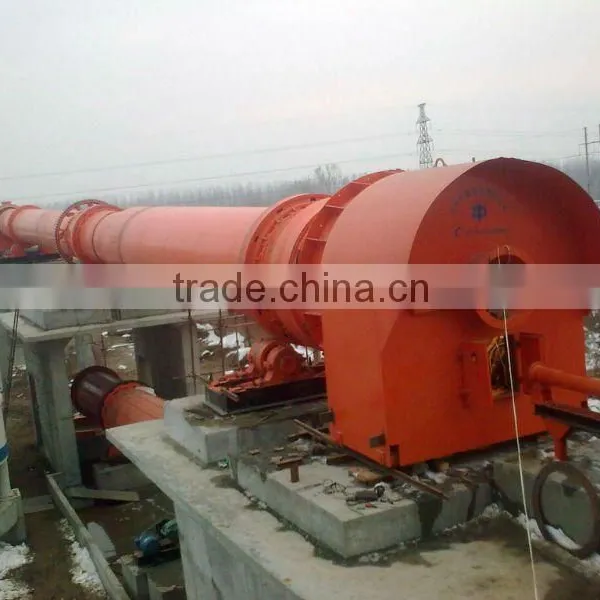

3) The cement kiln is composed of the cylindrical shell, roller supporting device with thrust roller, driving gear unit movable kiln hood, sealing device at kiln inlet, coal dust pipe device etc.
Working Principle of cement kiln

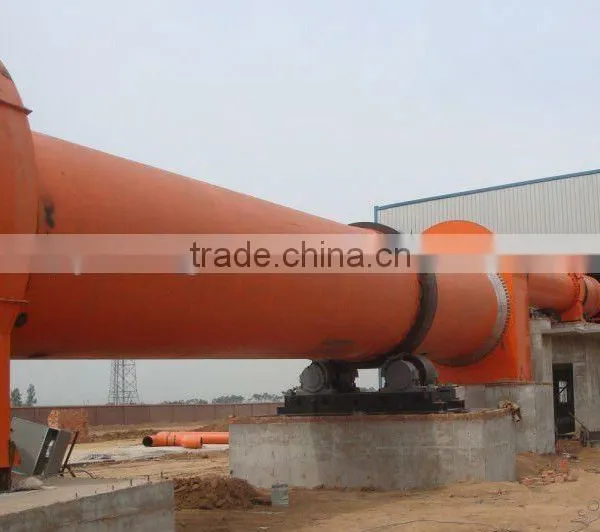

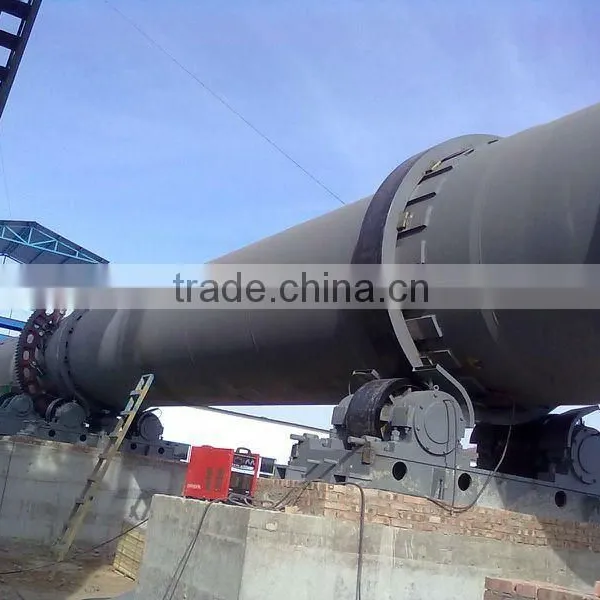

1) With a certain slope to the level, the whole kiln body is supported by rollers and fitted with thrust rollers to control up and down movement of the kiln body.
2) Besides main driving unit for driving system, it is also fitted with the auxiliary driving unit so as to ensure the kiln body still can rotating when the main motor is powered off and prevent it from deforming.
3) The kiln head adopts housing type sealing and kiln rear uses axial contact sealing unit so that reliability of sealing could be ensured.
Features of cement kiln
The special features of the kiln system are high productivity, low heat consumption, stable clinker quality and high economic efficiency.
Technical parameters of cement kiln
| Specification | Capacity(t/d) | Incline of body(°) | Speed(r/min) | Main motor(kw) | Remarks |
| Φ2.5*60 | 168 | 3.5 | 0.516-1.549 | 75 | Alumyte-alumina forge kiln |
| Φ3*48 | 700 | 3.5 | 0.726-3.63 | 110 | Kiln with 5-stage cyclone precalciner |
| Φ3*60 | 3.5 | 0.492-1.476 | 75 | Alumyte-alumina forge kiln |
|
| Φ3*100.94 | 450 | 4 | 0.3-1.503 | 90 | Multiple-drum cooling |

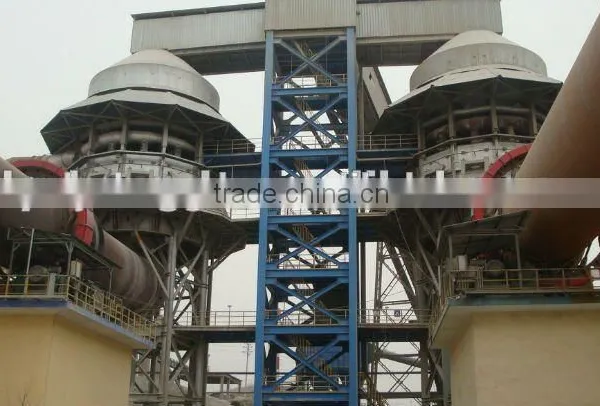

| Φ3.2*46 | 1000 | 3.5 | 0.36-3.57 | 160 | kiln with preheater precalcine |
| Φ3.2*52 | 1200 | 3.5 | 0.343-0.34 | 125 | kiln with preheater |
| Φ3.3*50 | 1300 | 3.5 | 0.676-3.38 | 160 | kiln with plateau suspension preheater |
| Φ3.3*52 | 1300 | 3.5 | 0.266-2.66 | 125 | kiln with preheater precalcine |
| Φ3.5*54 | 1500 | 3.5 | 0.55-3.4 | 220 | kiln with preheater precalcine |
| Φ3.6*70 | 1800 | 3.5 | 0.25-1.25 | 125 | Generating kiln for using ofterheat |
| Φ4*60 | 2500 | 3.5 | 0.396-3.96 | 315 | kiln with preheater precalcine |
| Φ4.15*58 | 5 | 0.35-0.7 | 110 | Zinc leaching(calcine rotary kiln) | |
| Φ4.2*60 | 3000 | 4 | 0.4-3.98 | 375 | |
| Φ4.3*60 | 3500 | 3.5 | 0.396-3.96 | 375 | kiln with preheater precalcine |
| Φ4.5*66 | 4000 | 3.5 | 0.41-4.1 | 560 | kiln with preheater precalcine |
| Φ4.8*74 | 5000 | 4 | 0.396-3.96 | 630 | kiln with preheater precalcine |
| Φ5.0*74 | 6000 | 4 | 0.35-4 | 710 | kiln with preheater precalcine |
| Φ5.6*87 | 8000 | 4 | Max4.23 | 800 | kiln with preheater precalcine |
| Φ6.0*95 | 10000 | 4 | Max5 | 950*2 | kiln with preheater precalcine |

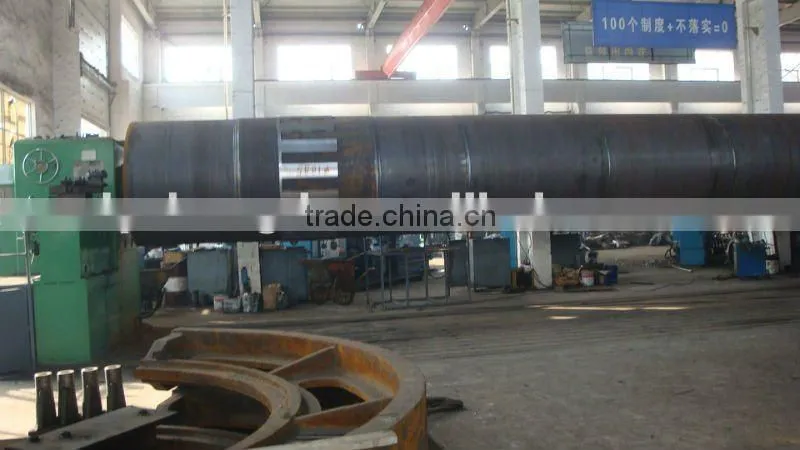

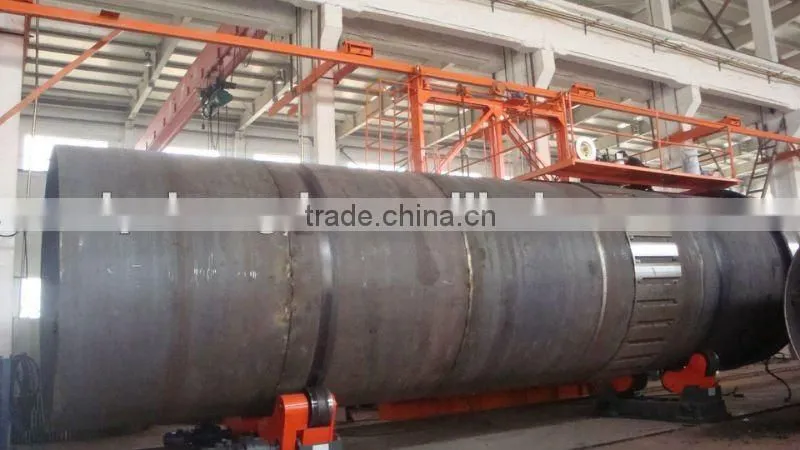

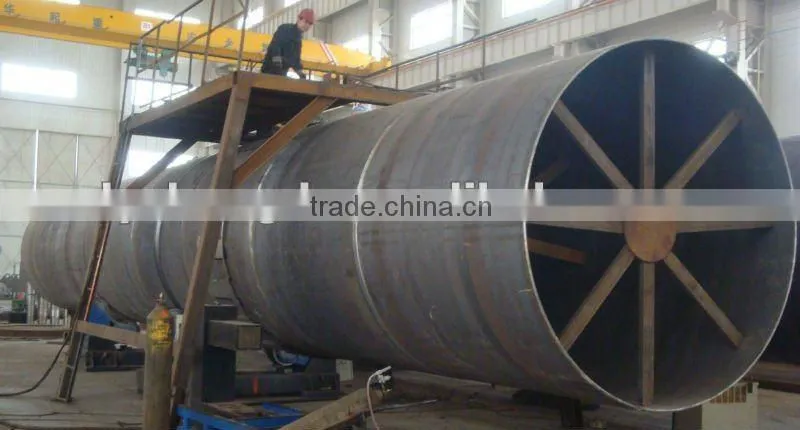

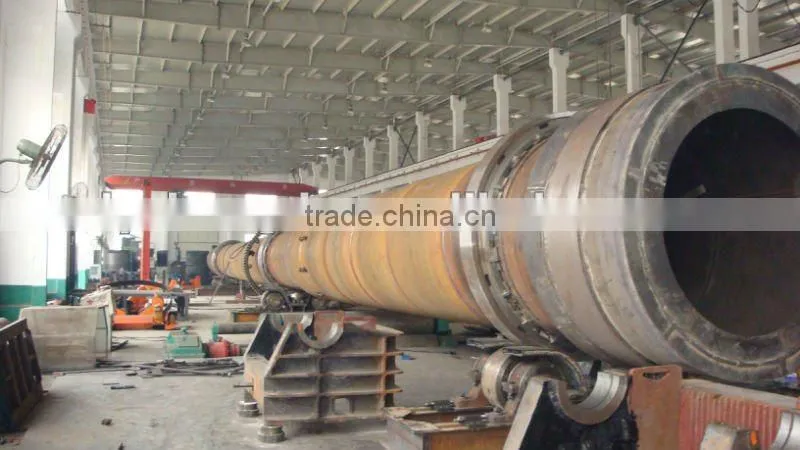

manufacturing process of cement kiln
For more our products, please go to our website at
