SQ endless-rope continous tractor for underground mining
- 500 Set / Sets per Month
- Lianyungang Port
- T/T Credit Card
- 4'' Double L Track Sliding Winch, WLL 5,500lbs
- High Quality Heavy Duty Winch Bar for Flatbed Trailer
- Introduction to Marine Electric Hoisting Winches
- Marine pneumatic winch(Good performance, high pulling force)
- Auto parts Nylon winch for Jeep wrangler JK 2007+ 12500lbs bumper winch for Jeep accessories
- Electric Lifting Winch Marine Hydraulic Winches on Dredging Machine Electric Winch for Sale
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Wells | Model Number: | SQ-50 |
Power Source: | Hydraulic | Application: | Other, mining equipment | Capacity: | 5~650KN |
Product Description

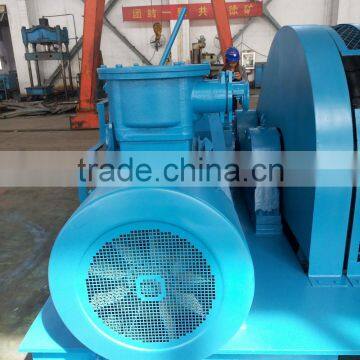

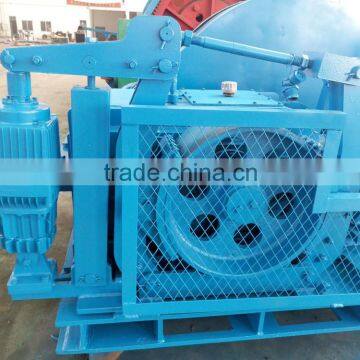

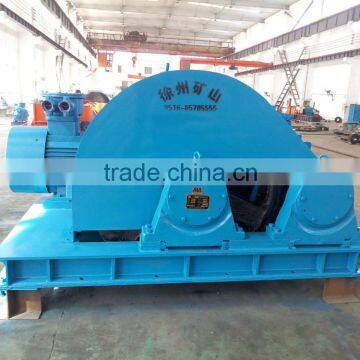

SQ endless-rope continous tractor for underground mining
SQ series endless continous tractors is a wire rope traction coal mine auxiliary transportation system, consist of endless-rope tractor winch, tension device, shuttle,tail wheel etc.
SQ series endless continous tractors are mainly for underground coal face gateway, to climb the mountain mining area and concentrate tunnelling.It directly used of existing underground rail system,to achieve continous direct transportation without reproduced.
SQ series endless continous tractors is suitable to long-distance, large angle, changeble slope,large-tonnage mining conditions of common rail transportation. It ismainly solve to the working face material,equipment and people transport, especially electric hydraulic support whole transportation. It is also used for metal underground mining rail and ground rail transportation.
Main constructure:
SQ series endless continous tractors consist of winch, tension device, shuttle, tail wheel, compression wheels, rope wheels and whole electric control etc.Be combined into transportation system through wire rope .
1.Winch:
Winch is main power the whole system.
2.Tension device:
Can absord the wire rope's stretched out parts created by deformation,and provide tension power for winch.
3.Shuttle cart:
Shuttle cart is used to connect with the mining car, falt car and material car etc. With the function of rope breakage protection, fixing and holding the wire rope.
Product category and telechinal parameter:
Number | Model | Maximum tractor KN | Motor power Kw | Tractor speed m/s | roller diameter | Nominal diameter mm | structure form | minimum KN | Dimension mm | rail diatance mm |
1 | SQ-20/22 | 20 | 22 | 1.0 | 950 | 18 | 6*19S+FC 1670Mpa | 179 | 1770*1330*1045 | 600(900) |
2 | SQ-30/37 | 30 | 37 | 1.0 | 1200 | 18 | 179 | 2210*1440*1355 | ||
3 | SQ-40/45 | 40 | 45 | 1.0 | 1200 | 22 | 267 | 2352*1500*1366 | ||
4 | SQ-50/55 | 50 | 55 | 1.0 | 1200 | 22 | 267 | 2402*1500*1366 | ||
5 | SQ-60/55B | 60/40 | 55 | 0.67/1.12 | 1200 | 22 | 267 | 2598*1698*1478 | ||
6 | SQ-60/75B | 60/40 | 75 | 1.0/1.68 | 1200 | 22 | 267 | 2548*1698*1478 | ||
7 | SQ-80/75B | 80/53 | 75 | 0.67/1.12 | 1200 | 24 | 317 | 2808*1698*1478 | ||
8 | SQ-80/110B | 80/53 | 110 | 1.0/1.68 | 1200 | 24 | 317 | 2808*1698*1478 | ||
9 | SQ-110/90B | 100/65 | 90 | 0.67/1.12 | 1400 | 26 | 373 | 2859*1698*1606 | ||
10 | SQ-100/132B | 100/65 | 132 | 1.0/1.68 | 1400 | 26 | 373 | 2859*1698*1606 | ||
11 | SQ-120/110B | 120/80 | 110 | 0.67/1.12 | 1400 | 28 | 432 | 2910*1698*1606 | ||
12 | SQ-120/132B | 120/80 | 132 | 0.8/1.4 | 1400 | 28 | 432 | 3080*1850*1606 | ||
13 | SQ-80/110P | 80/80-40 | 110 | 1.24-2.48 | 1200 | 24 | 317 | 2670*1550*1530 | ||
14 | SQ-90/160P | 90/90-55 | 160 | 1.38-2.13 | 1600 | 26 | 373 | 3783*1747*1650 | ||
15 | SQ-100/132P | 100/100-50 | 132 | 1.2-2.4 | 1400 | 26 | 373 | 4194*1700*1560 | ||
16 | SQ-120/132P | 120/120-160 | 132 | 0.86-1.72 | 1400 | 28 | 432 | 2886*1636*1606 | ||
17 | SQ-160/160P | 160/160-80 | 160 | 0.7-1.4 | 1600 | 32 | 564.3 | 4920*1770*1950 |
Xuzhou Mine Equipment Manufacturing Co.,Ltd founded in 1956. As a leader of mining equipment manufacture in China,we have been devoted to creating new and high quality products in mining field for more than 50 years.
Our main products including SQ and JWB endless rope continuous tractor, JSDB series double speed multi-purpose winch, JYB series transport winch, JD series shunting winch, JH series prop-pulling winch, JHMB series slow speed drawing winch, and JZ series sinking winch and etc.
Our sales network is not only in domestic, but also exported to foreign for many years.
We insist on offering high quality products, comprehensive service to obtain our customer’s trust and support. Welcome to Xuzhou mine equipment manufacturer co.,ltd.
Our Packaging: The standard wooden case, or as customer required.
1. One year warranty for whole machines
2. Low charge for continue maintenance when warranty is expired
3. Exclusive engineer support at any time
Why choose your company?
1. We are the professional maufacturer since 1956,one of biggest supplier in China.
2. We supply high quality products with reasonable price.
3.We have professional sales team.
4.Experienced exporting for all over the world.
5.We provide good after-sales sevice.
Any inquiry,pls feel free to contact us!
