Application of rotary dryer
Rotary dryer is widely applied in mining, metallurgy, building materials, chemistry and other industries, mainly stoving mineral powder, slag, clay, limestone, lignite and other materials.
Working principle of rotary dryer
Rotary Dryer is made up of cylinder, lifting plate, transmission, supporting devices and others. Based on reasonable layout an alternate angle-change equally spaced in cylinder, the lifting plate scatters the wet material inside rotating cylinder. Hot air flow turns water into steam letting into air, and aimed dry material is achieved.
Technical parameter of rotary dryer
| Specification(Diameter*Length)(m) | Shell cubage() | Capacity(t/h) | Installation obliquity(%) | Highest inlet air temperature(°c) | Main motor(kw) |
| Φ1.2*8.0 | 9.0 | 1.9-2.4 | 3-5 | 700-800 | 7.5 |
| Φ1.2*10 | 11.3 | 2.4-3.0 | 3-5 | 700-800 | 7.515 |
| Φ1.5*12 | 21.2 | 4.5-5.7 | 3-5 | 700-800 | 15 |
| Φ1.5*15 | 26.5 | 5.7-7.1 | 3-5 | 700-800 | 15 |
| Φ1.8*14 | 35.6 | 7.6-9.5 | 3-5 | 700-800 | 18.5 |
| Φ2.2*12 | 45.6 | 9.7-12.2 | 3-5 | 700-800 | 22 |
| Φ2.2*16 | 60.8 | 13.0-16.2 | 3-5 | 700-800 | 22 |
| Φ2.4*14 | 63.3 | 13.5-16.9 | 3-5 | 700-800 | 37 |
| Φ2.4*18 | 81.4 | 17.4-21.7 | 3-5 | 700-800 | 37 |
| Φ2.4*22 | 99.5 | 21.2-26.5 | 3-5 | 700-800 | 45 |
| Φ2.6*24 | 127.4 | 27.2-34.0 | 3-5 | 700-800 | 55 |
| Φ3.0*20 | 141.3 | 30.1-37.7 | 3-5 | 700-800 | 75 |
| Φ3.2*25 | 201 | 42.9-53.6 | 3-5 | 700-800 | 90 |
| Φ3.6*28 | 285 | 60.8-76.0 | 3-5 | 700-800 | 160 |

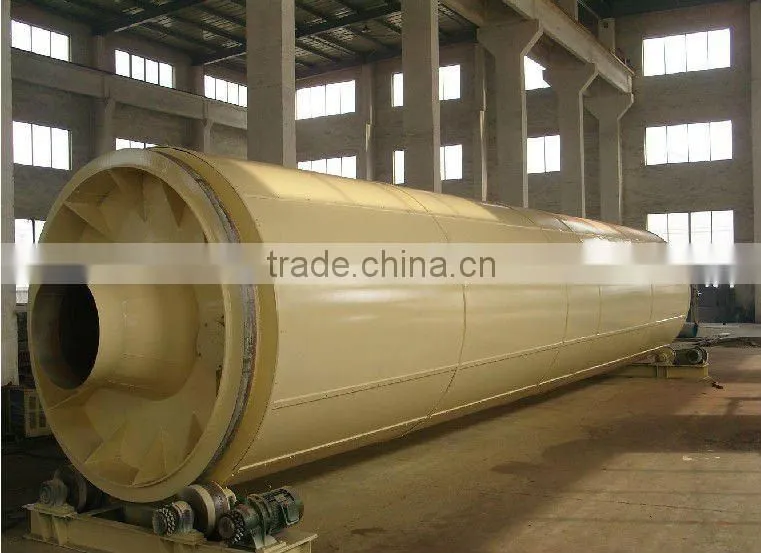

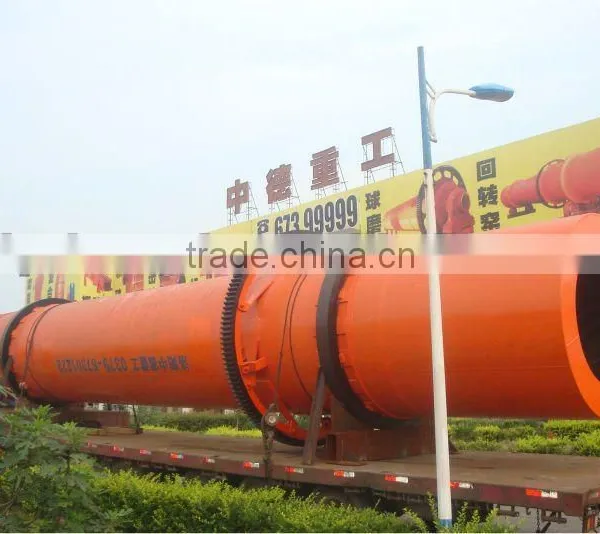

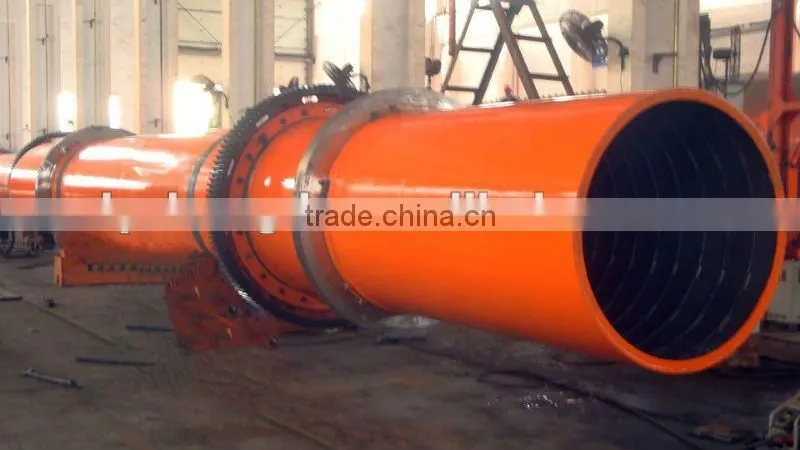

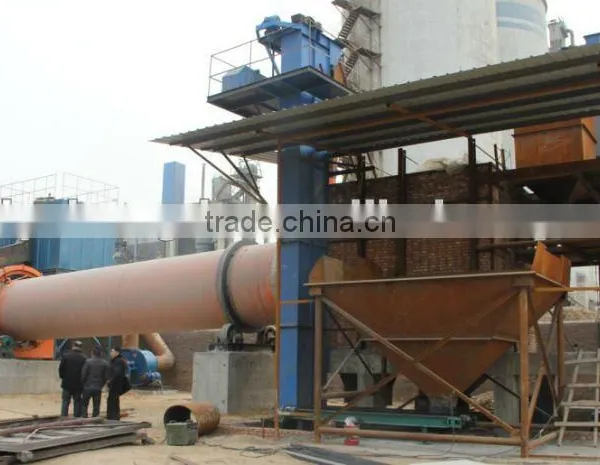

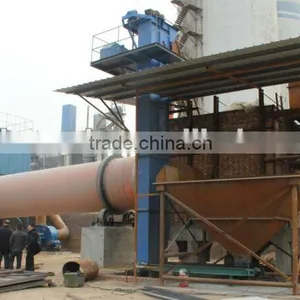

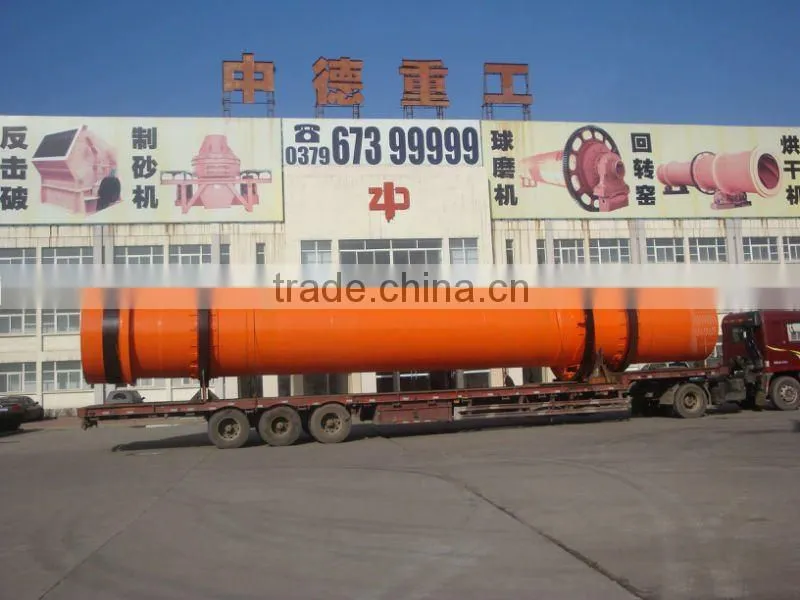

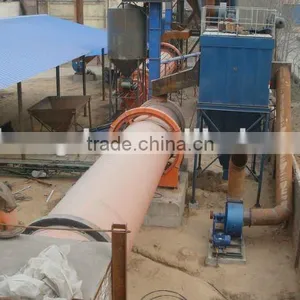

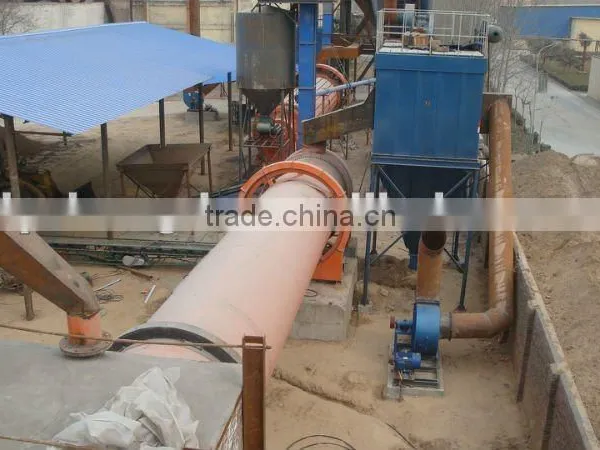

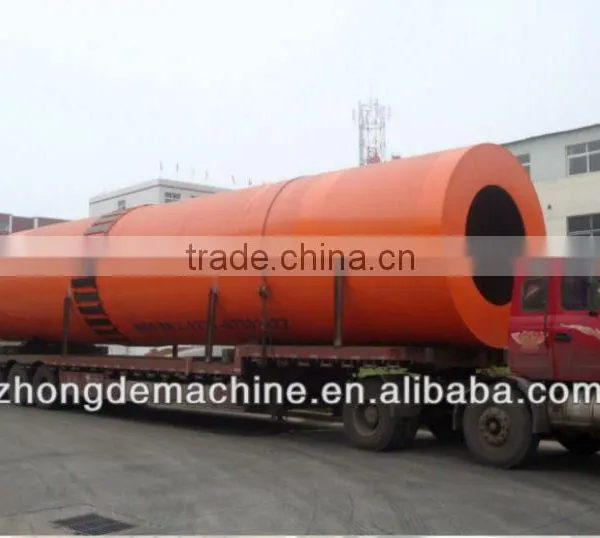

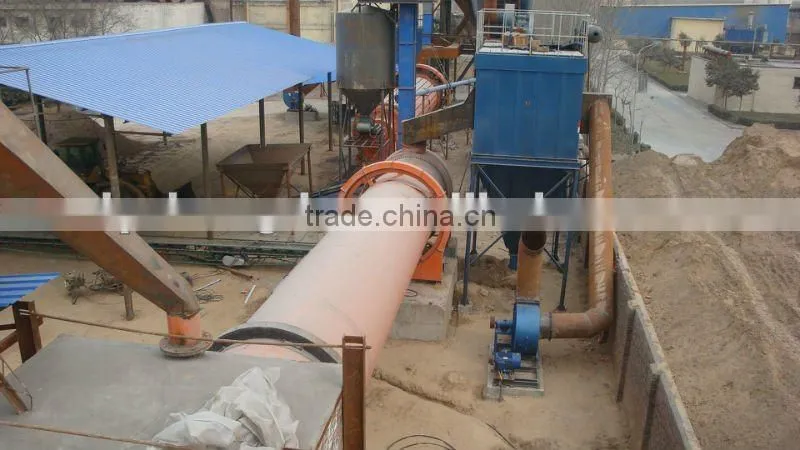

Pictures of Rotary Dryer for Reference
Introduction of company
Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959. It is a big joint-stock company integrating scientific research, producing and sales. It located in Luoyang, the Chinese heavy industrial city. It covers an area of 6000, which include 3 standard heavy industrial workshops. There are more than 100 sets of medium sized metal processing, riveting and installing machine.
Our main products include nine series of equipments, including crushers, mining mill, tube mill, rotary kiln, cooler, rotary dryer, magnetic separator, flotation machine and concentrator. Moreover, we can provide program design, process flow design, standard and non-standard design as request by clients.

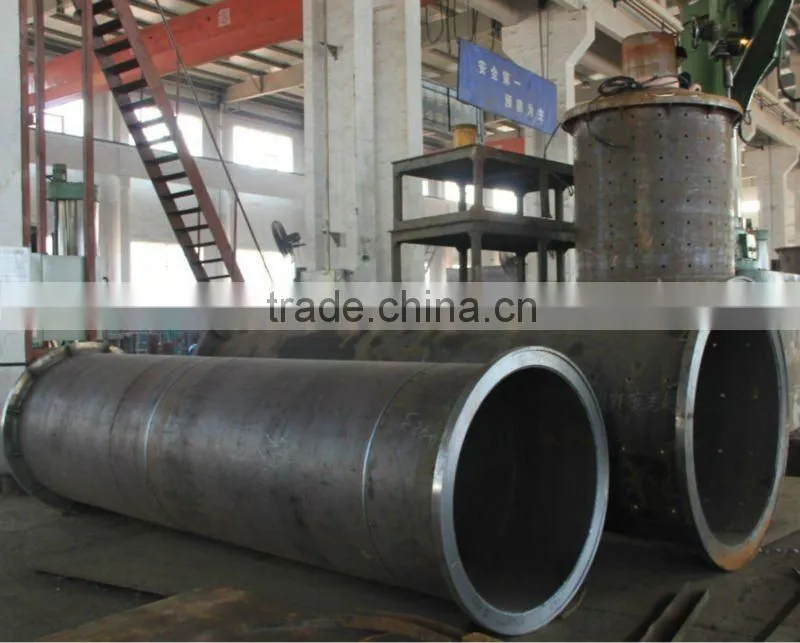

manufacturing ability
Certificate:
1. Installation and adjustment of the machine:
Technicist will be provided by supplier for buyer to assist the work such as welding connection
of shell body, equipment installation, adjustment, training, etc.
2.Technical support of rotary dryer is provided from the beginning to the end.
How about price of rotary dryer?
1.We can give the lowest price of the rotary dryer than market one.
2.We do quotation of rotary dryer as soon as possible for any customer.
3.Discount of rotary dryer can be given according to quantity.
