Introduction &Characteristics:
Three-cylinder dryer is mainly applied for stoving slag, sand, coal, fly ash, iron powder, ore, quartz sand and other particle materials. It has the following characteristics:
1. The cylinder protect itself, thermal efficiency can up to 95%.
2. The whole length of the dryer reduced to 50% approximately than mono-cylinder and reduced land investment to 50% approximately
3. Cylinder adopts heat-resistant and wear-resistant steel plate welding with long service life and easy maintenance.
4.High thermal efficiency , temperature of outer cylinder is 60or below(temperature of outer mono-cylinder is high to 150°C)
5. Low temperature of outlet, long-service of dust removal machine. It also can be directly connected to air box pulse bag filter.
6. Without gear and pinion drive, but wheel rotation applied, level operation of the complete machine makes system simple and reasonable.
7. Air heater could match boiling furnace, or oil furnace can also be applied, which can dry materials with size below 20mm.
8. Final moisture index can be adjusted according to requirements of customers.
Technical Parameter:
Specification(m) |
Shell Cubage(m 3 ) |
Capacity(t/h) |
Installation Obliquity(%) |
Highest Inlet Air Temperature(°C) |
Main Motor (KW) |
Φ1.2×8.0 |
9 |
1.9~2.4 |
3~5 |
700~800 |
7.5 |
Φ1.2×10 |
11.3 |
2.4~3.0 |
3~5 |
700~800 |
7.5 |
Φ1.5×12 |
21.2 |
4.5~5.7 |
3~5 |
700~800 |
15 |
Φ1.5×14 |
24.7 |
5.3~6.6 |
3~5 |
700~800 |
15 |
Φ1.5×15 |
26.5 |
5.7~7.1 |
3~5 |
700~800 |
15 |
Φ1.8×12 |
30.5 |
6.5~8.1 |
3~5 |
700~800 |
18.5 |
Φ1.8×14 |
35.6 |
7.6~9.5 |
3~5 |
700~800 |
18.5 |
Φ2.2×12 |
45.6 |
9.7~12.2 |
3~5 |
700~800 |
22 |
Φ2.2×14 |
53.2 |
11.4~14.2 |
3~5 |
700~800 |
22 |
Φ2.2×16 |
60.8 |
13.0~16.2 |
3~5 |
700~800 |
22 |
Φ2.4×14 |
63.3 |
13.5~16.9 |
3~5 |
700~800 |
37 |
Φ2.4×18 |
81.4 |
17.4~21.7 |
3~5 |
700~800 |
37 |
Φ2.4×20 |
90.4 |
19.3~23.1 |
3~5 |
700~800 |
45 |
Φ2.4×22 |
99.5 |
21.2~26.5 |
3~5 |
700~800 |
45 |
Φ2.6×24 |
127.4 |
27.2~34.0 |
3~5 |
700~800 |
55 |
Φ3.0×20 |
141.3 |
30.1~37.7 |
3~5 |
700~800 |
75 |
Φ3.0×25 |
176.6 |
37.7~47.1 |
3~5 |
700~800 |
75 |
Φ3.2×25 |
201 |
42.9~53.6 |
3~5 |
700~800 |
90 |
Φ3.6×28 |
285 |
60.8~76.0 |
3~5 |
700~800 |
160 |

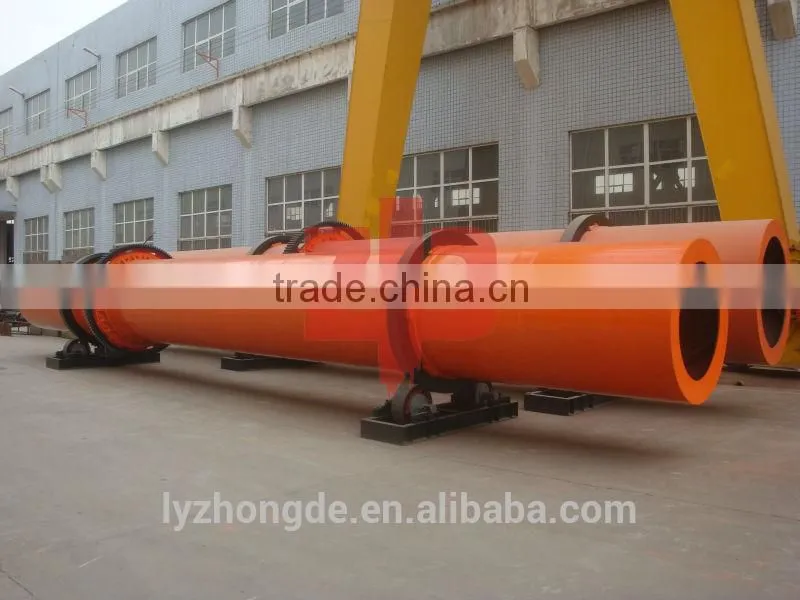

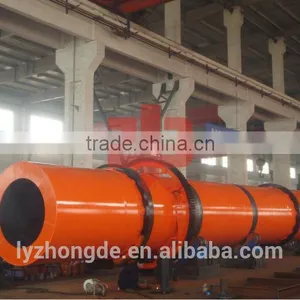

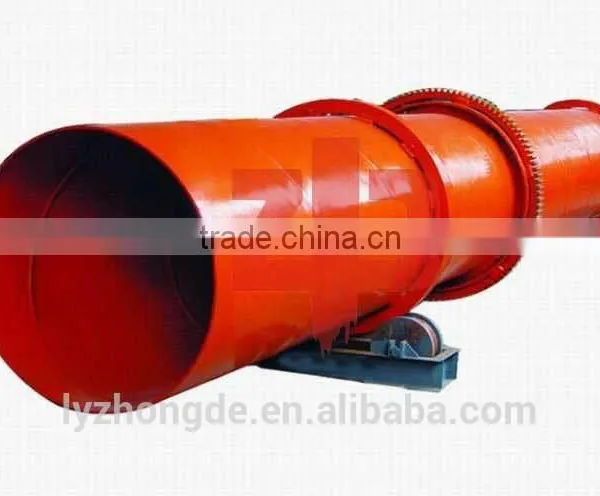

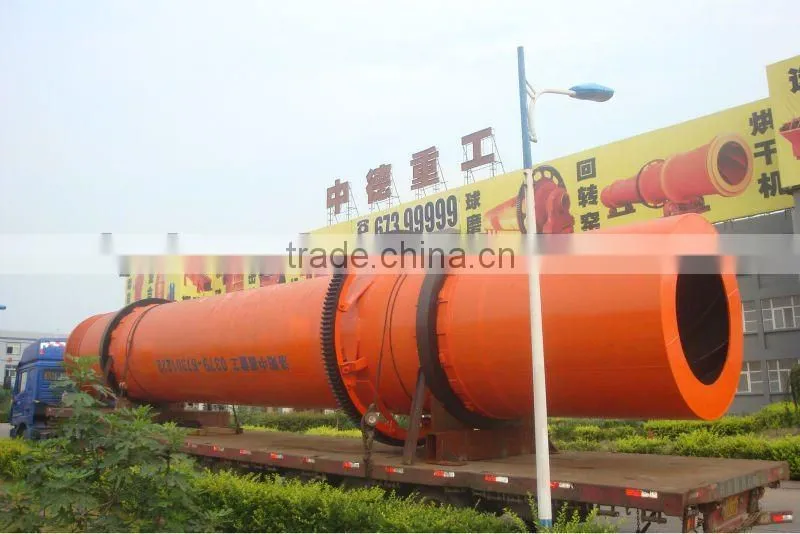

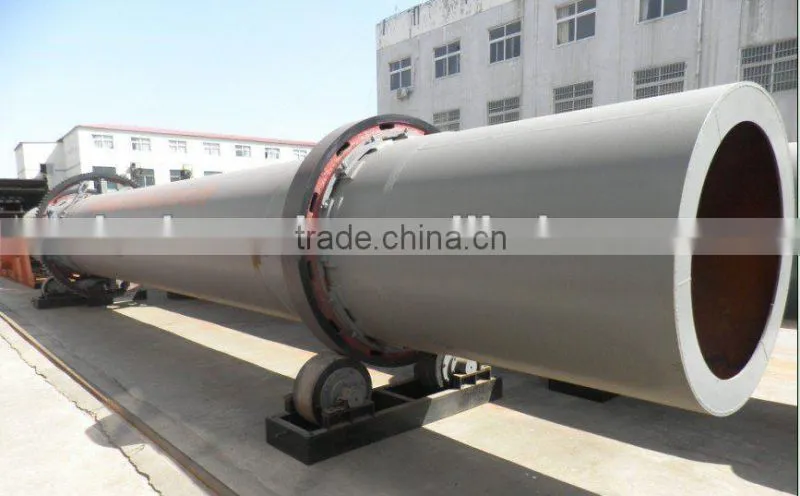

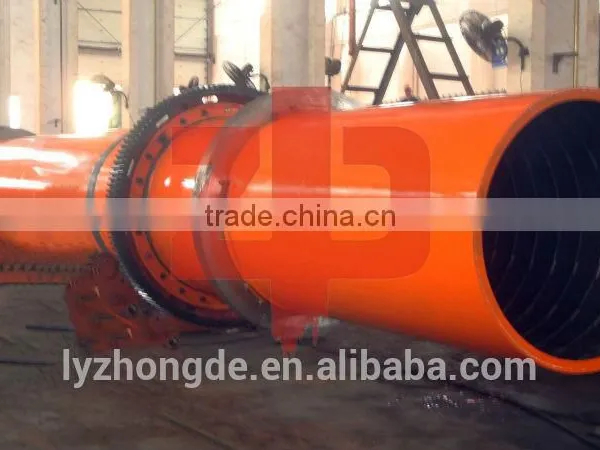

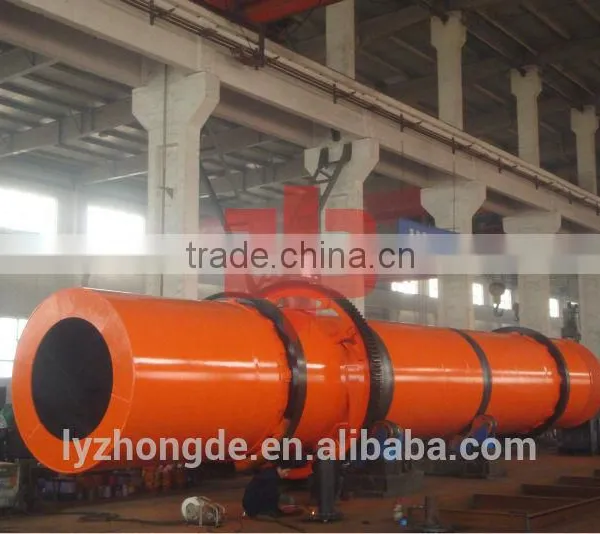

Pictures:
Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959. Over the past 50 years, Zhongde has made significant contribution to the economic development in China. In 1995, it took the lead in changing into the joint stock company, which had brought a rapid development to the company. In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park, Luoyang city, the middle of China.
We are a professional manufacturer of mining equipments, such as crusher, mining mill, tube mill, rotary kiln, cooler, rotary dryer, magnetic separator, flotation machine, thickener, etc. Our machines are widely used in the fields of mine, smelting, chemicals, building materials, coal, refractory materials, ceramics, etc. Moreover, technological designs on program, process flow, standard& non-standard parts are also provided from the beginning to the end for clients.

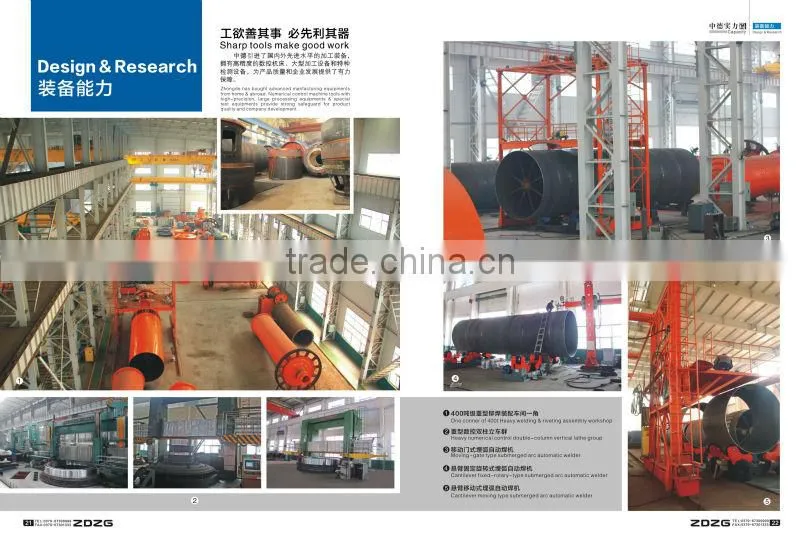

The total area of the three standard heavy-duty industrial workshops covers 70000 square meters. More than 500 sets advanced processing equipments, including 300 sets of high-precision digital control machine tools, large-sized processing equipment and special processing, riveting& installing machines, are introduced to guarantee for product qualityand company development.
In 2010, we have accessed the ISO9001:2008 certification, and in 2012 we have acquired the BVQI certificate. To establish the business with credit and honesty is our management belief all the time.
Installation and adjustment of rotary dryer: The Installation and adjustment of our rotary dryer is provided by our company.
Technicist of rotary dryer will provided by supplier for buyer to assist the work such as weding connecion of shell body ,equipment installation, adjustment, training etc.Three-guarantees of rotary dryer and warrantly period id one year.
Technical support of rotary dryer is provided from the beginning to the end.
How about the quality of your rotary dryer?
Our rotary dryer is manufactured strictly according national and international standard.
We take a test on every rotary dryer before delivery.
How about price of your rotary dryer?
We can give the lowest price of rotary dryer than market one.
We do quotation of rotary dryer as soon as possible for any custome.
Discount of rotary dryer can be given according to quantity.
How about the after-sale service of your company?
Our engineer is aviliable to installation rotary dryer overseas.
The guarantee period of our rotary dryer is one year.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price.
