Iron Construction Price, Mobile Crushing Plant, Mobile Crusher
Specifications
1.Low energy and steel consumption2.High capacity and crushing efficiency
3.Movable type
4.Mobile crusher plant for various
Mobile Crusher:
1.Optimized design of ship form frame structure, the low vehicle chassis, compact and reasonable structure, modular assembly structure, small turning radius and convenient transportation.
2.Folding type feeding bin, hydraulic support guard board, easy and reliable operation.
3.The control cabinet equips with the advanced words touch control screen, PLC control system, ensuring the functions of starting, process adjustment, disoperation tip and protection, electrical control operation, fault and safety tip.
4.The feeder can presort fines, automatic design for silo door, controlling the direction of dividing material.
5.The angle of conveyor is adjustable, and the conveyor can be turned and folded, extending operation conditions, easy for transportation.
6.Adopt stream-line design for vehicle structure, compact and reasonable mechanics optimization structure.
7.Landing leg can hydraulically rise and fall, easy and flexible for operation.
Mobile Crusher Technical Parameters:
Model |
938F1210 |
938FW1214 II |
1149F1214 |
1149F1315 |
1149FW1315 II |
HX1349FW1318 II |
Transportation Length(mm) |
12000 |
12000 |
13500 |
13500 |
13500 |
14600 |
Transportation Width(mm) |
2550 |
2550 |
2800 |
2900 |
2800 |
2800 |
Transportation Height(mm) |
3900 |
3900 |
4450 |
4450 |
4350 |
4500 |
Maximum Lengt(mm) |
12500 |
12500 |
13500 |
13500 |
14600 |
14600 |
Maximum Width(mm) |
2900 |
2950 |
2950 |
2950 |
2950 |
3250 |
Maximum Height(mm) |
4100 |
4100 |
5200 |
5200 |
5200 |
5200 |
Tire Configuration |
Dualaxial |
Duaxial |
Triaxial |
Triaxial |
Triaxial |
Triaxial |
Jaw Crusher |
PF-1210 |
PFW-1214 II |
PF-1214 |
PFW-1315 II |
PFC1315S |
PFW1318 II |
The Maximum Feeding Size(mm) |
300 |
500 |
300 |
350 |
600 |
700 |
Capacity(t/h) |
70-130 |
130-200 |
90-180 |
120-250 |
180-320 |
240-400 |
Vibrating Feeder |
ZSW950Χ3800 |
ZSW950Χ3800 |
ZSW110Χ4900 |
ZSW110Χ4900 |
ZSW110Χ4900 |
ZSW130Χ4900 |
Main Belt Conveyor |
B800Χ8.5M |
B800Χ8.5M |
B1000Χ9M |
B1000Χ9M |
B1000Χ9M |
B1200Χ9.5M |
Side-opening Belt Conveyor(Optional) |
B450Χ3.2M |
B450Χ3.2M |
B500Χ3.5M |
B500Χ3.5M |
B500Χ3.5M |
B650Χ4M |
Genset (Optional)(KW) |
200 |
250 |
250 |
330 |
330 |
380 |
Iron Seperator (Optional) |
RCYD(C)-8 |
RCYD(C)-8 |
RCYD(C)-10 |
RCYD(C)-10 |
RCYD(C)-12 |
RCYD(C)-12 |

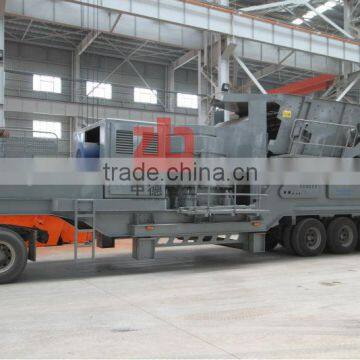

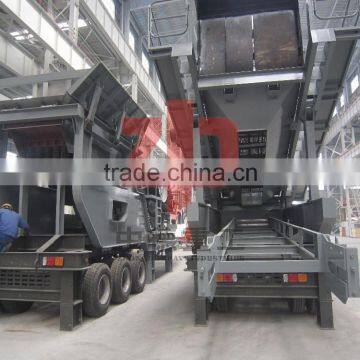

Pictures of Mobile Crusher for Reference:
Introduction of company
Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959. It is a big joint-stock company integrating scientific research, producing and sales. It located in Luoyang, the Chinese heavy industrial city. It covers an area of 6000, which include 3 standard heavy industrial workshops. There are more than 100 sets of medium sized metal processing, riveting and installing machine.
Our main products include nine series of equipments, including crushers, mining mill, tube mill, rotary kiln, cooler, rotary dryer, magnetic separator, flotation machine and concentrator. Moreover, we can provide program design, process flow design, standard and non-standard design as request by clients. Zhongde occupies market by products, creat market by service, leads market by popularity.
Manufacturing Ability:
Certificate:
1. Installation and adjustment of the machine:
Technicist will be provided by supplier for buyer to assist the work such as welding connection of shell body, equipment installation, adjustment, training, etc.
2. Warrantly period is one year except the easy-wearing parts.
3.Technical support of Jaw Crusher is provided from the beginning to the end.
4.Spare parts of Jaw crusher are serviced for sale in the whole year.
How about the quality of your mobile crusher?
1.Our mobile crusher manufactured strictly according to national and international standard.
2.We take a test on every mobile crusher before delivery.
How about price of mobile crusher?
1.We can give the lowest price of the mobile crusher than market one.
2.We do quotation of mobile crusher as soon as possible for any customer.
3.Discount of mobile crusher can be given according to quantity.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price.
