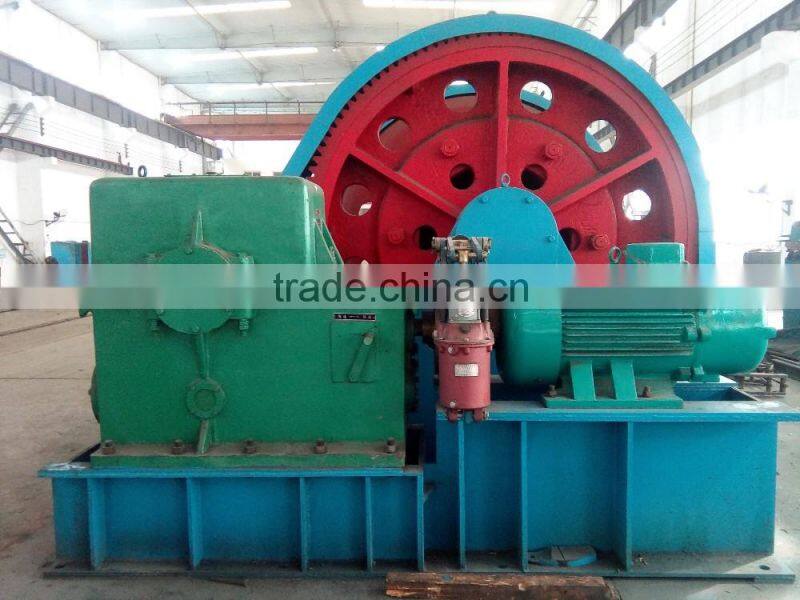

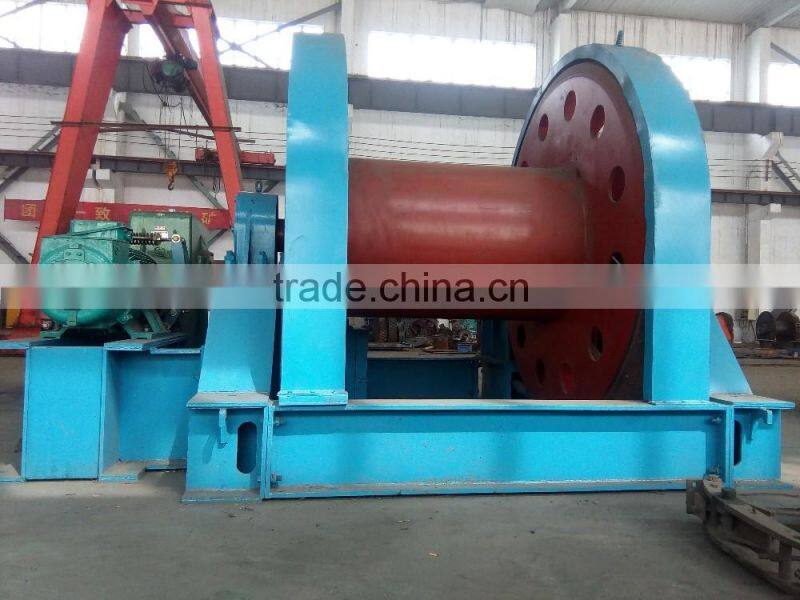

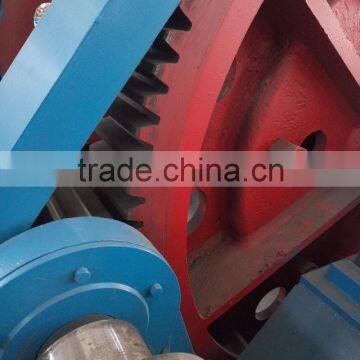

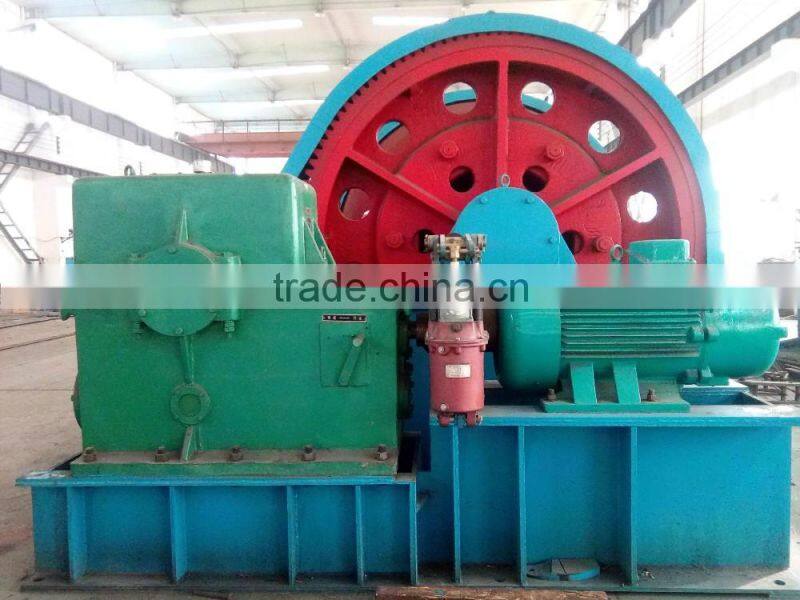

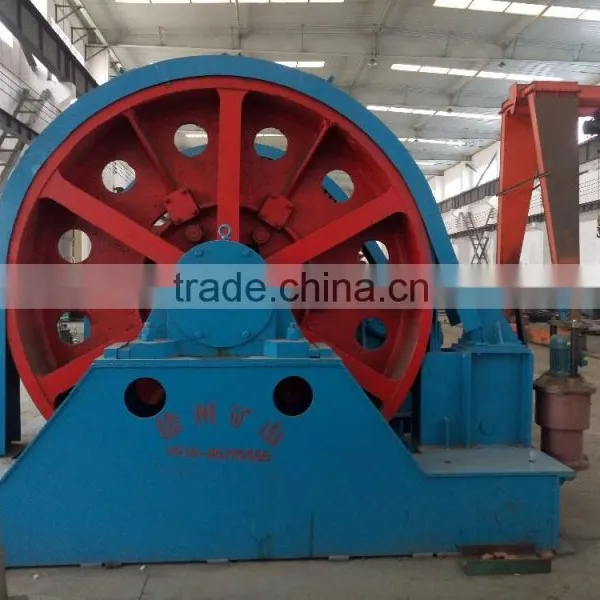

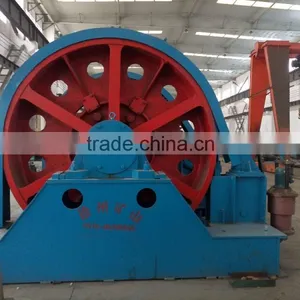

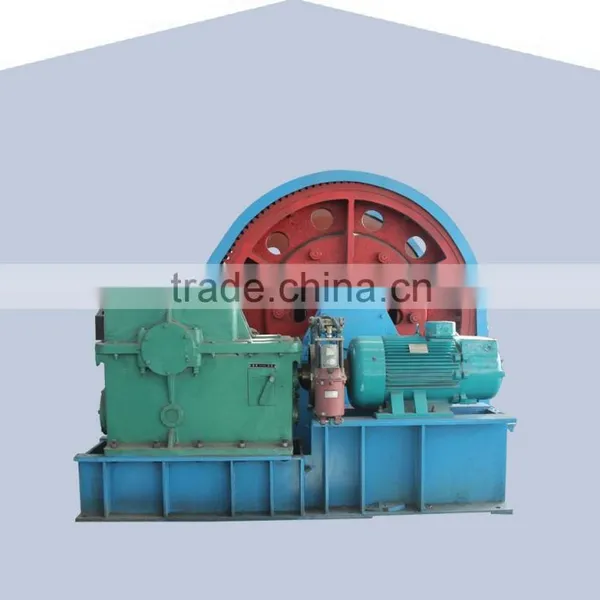

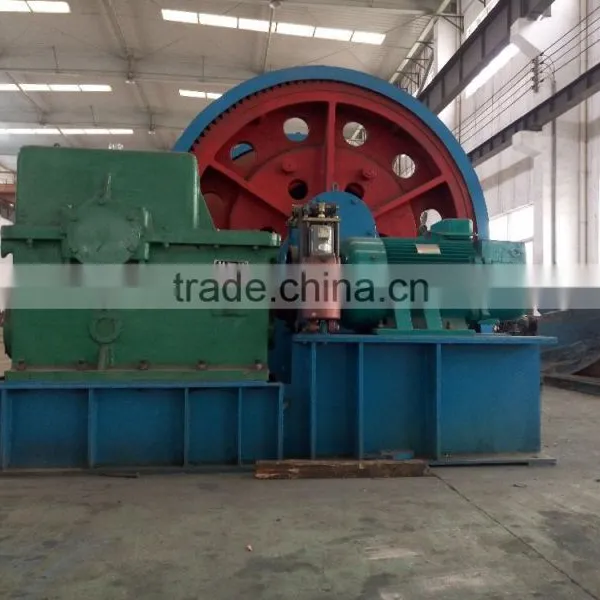

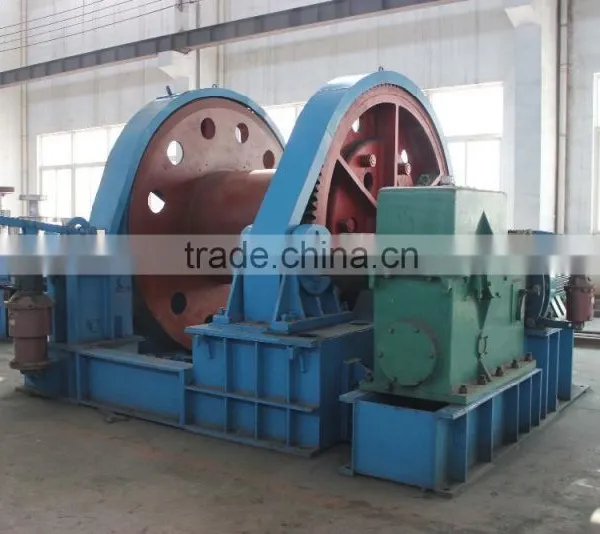

16 ton Mining winch lifting windlass
16 ton Mining winch lifting windlass
JZ series shunting winch mainly used for coal mining, metallic mine and non-metallinc mine.Whiletunneling, it can be used got hanging swaying tray, water pump, water pipe, gtouting pipe,ram and tunnel excavating equipment. It also can take place of construction winch to move facilities abover the ground or lift the heavy load.
The series winch is designed for overhanging devices during mine shafting,so it is suitable for short-time working,not long-time hoisting operation.
product type and technical parameter
16 ton Mining winch lifting windlass
| Model | JZ-10/600 | JZ-10/800 | JZ-16/800 | JZ-16/1000 | JZ-16/1300 | JZ-25/1000 | JZ-25/1300 | 2JZ-16/1000 | 2JZ-16/1300 |
| Wire rope maximum static tension KN | 100 | 100 | 160 | 160 | 160 | 250 | 250 | 160 | 160 |
| Roller capacity m | 600 | 800 | 800 | 1000 | 1300 | 1000 | 1300 | 1000 | 1300 |
| First layer of wire rope (fast speed) m/s | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| low speed m/s | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Wire rope diameter mm | 32 | 32 | 40 | 40 | 40 | 52 | 52 | 40 | 40 |
| Roller diameter mm | 800 | 800 | 1000 | 1000 | 1000 | 1050 | 1050 | 1000 | 1000 |
| Roller width mm | 820 | 1050 | 1400 | 1400 | 1400 | 1210 | 1500 | 1400 | 1400 |
| Roller centre height mm | 900 | 900 | 1050 | 1050 | 1050 | 1326 | 1326 | 1200 | 1200 |
| Motor model | Y225M-8 | Y225M-8 | YZR250M2-8 | YZR250M2-8 | YZR250M2-8 | YZR280S-8 | YZR280S-8 | YZR280M-8 | YZR280M-8 |
| Motor power kw | 22 | 22 | 37 | 37 | 37 | 45 | 45 | 55 | 55 |
| Motor speed r/min | 740 | 740 | 740 | 740 | 740 | 730 | 730 | 730 | 730 |
| Winch length mm | 2483 | 2883 | 3600 | 3600 | 3600 | 3890 | 4180 | 5736 | 5736 |
| Winch width mm | 2962 | 2963 | 3280 | 3280 | 3280 | 3935 | 3935 | 3806 | 3806 |
| Winch height mm | 1728 | 1728 | 2300 | 2300 | 2300 | 2620 | 2620 | 3000 | 3000 |
| Weight kg | 7280 | 7480 | 11500 | 11800 | 12100 | 14130 | 14680 | 18000 | 18800 |
Xuzhou Mine Equipment Manufacturing Co.,Ltd founded in 1956. As a leader of mining equipment manufacture in China,we have been devoted to creating new and high quality products in mining field for more than 50 years.
Our main products including SQ and JWB endless rope continuous tractor, JSDB series double speed multi purpose winch, JYB series transport winch, JD series shunting winch,JH series proppulling winch, JHMB series slow speed drawing winch, and JZ series sinking winch and etc.
Our sales network is not only in domestic, but also exported to foreign for many years.
Our packaging: The standard wooden case or as custmers required.
1. One year warranty for whole machines
2. Low charge for continue maintenance when warranty is expired
3. Exclusive engineer support at any time
Why choose your company?
1. We are the professional maufacturer since 1956,one of biggest supplier in China.
2. We supply high quality products with reasonable price.
3.We have professional sales team.
4.Experienced exporting for all over the world.
5.We provide good after-sales sevice.
Any inquiry,pls feel free to contact us!
16 ton Mining winch lifting windlass
