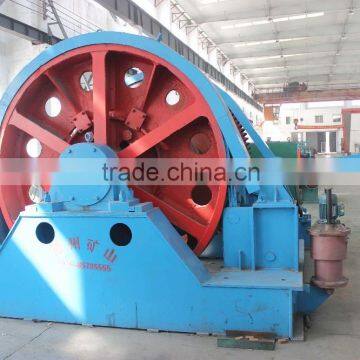

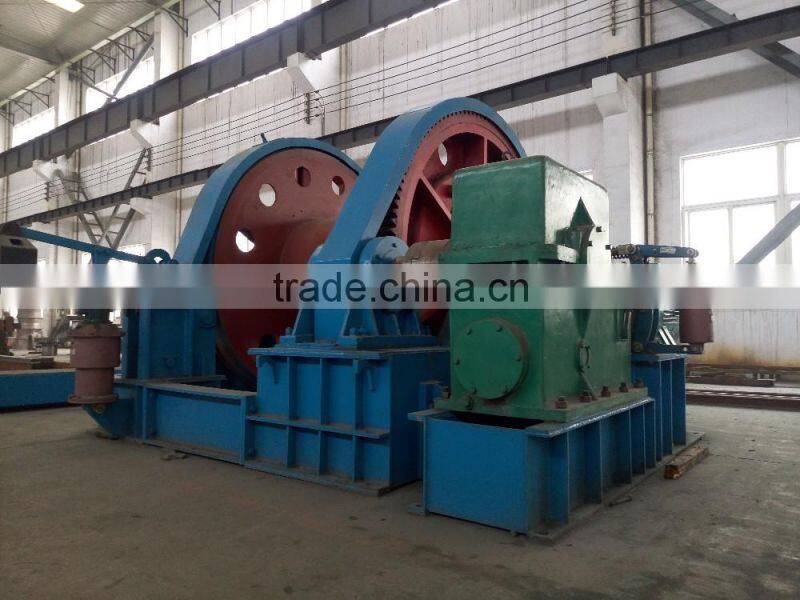

16ton lifting coal mine remote control conveying winch
JZ series electric sinking and lifting mining winch Mainly applied in coal mine, metallurgical mine, non-metallic mine. While excavating coal mine shaft, it can be used got hanging swaying tray, water pump, water pipe, grouting tube, and tunnel excavation equipment.
It also can take place of construction winch to move facilities above the ground or lift the heavy load.
This series is designed for overhanging devices during mine shaft tunneling, for it is suitable for short-time working, not for long term over work.
| Model | JZ-10/600 | JZ-10/800 | JZ-16/800 | JZ-16/1000 | JZ-16/1300 | JZ-25/1000 | JZ-25/1300 |
| rope maximum static tension (KN) | 100 | 100 | 160 | 160 | 160 | 250 | 250 |
| Drum capacity (m) | 600 | 800 | 800 | 1000 | 1300 | 1000 | 1300 |
| First layer of wire rope (fast speed) (m/s) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| low speed (m/s) | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Wire rope diameter (mm) | 32 | 32 | 40 | 40 | 40 | 52 | 52 |
| Drum diameter (mm) | 800 | 800 | 1000 | 1000 | 1000 | 1050 | 1050 |
| Drum width (mm) | 820 | 1050 | 1400 | 1400 | 1400 | 1210 | 1500 |
| Drum centre height (mm) | 900 | 900 | 1050 | 1050 | 1050 | 1326 | 1326 |
| Motor model | Y225M-8 | Y225M-8 | YZR250M2-8 | YZR250M2-8 | YZR250M2-8 | YZR280S-8 | YZR280S-8 |
| Motor power (kw) | 22 | 22 | 37 | 37 | 37 | 45 | 45 |
| Motor speed (r/min) | 740 | 740 | 740 | 740 | 740 | 730 | 730 |
| Winch length (mm) | 2483 | 2883 | 3600 | 3600 | 3600 | 3890 | 4180 |
| Winch width (mm) | 2962 | 2963 | 3280 | 3280 | 3280 | 3935 | 3935 |
| Winch height (mm) | 1728 | 1728 | 2300 | 2300 | 2300 | 2620 | 2620 |
| Weight (kg) | 7280 | 7480 | 11500 | 11800 | 12100 | 14130 | 14680 |
| other: 16ton lifting coal mine remote control conveying winch | |||||||
Our Packaging: Standard Wooden case, or as customer required.
Our Shipping: Delivery within 7days after receive the deposit.
1.One year warranty from delivery
2. Free components for replacement within warranty period
3. Professional solution provider
4. Free technical support at any time
Xuzhou Mine Equipment Manufacturing Co., Ltd founded in 1956. As a leader of mining equipment manufacturer in China, we have been devoted to creating new and high quality products in mining field for more than 50 years. Our main products including SQ and JWB endless rope continuous tractor, JSDB series double speed multi-purpose winch, JYB series transport winch, JD series shunting winch, JH series prop-pulling winch, JHMB series slow speed drawing winch, and JZ series sinking winch and etc.
Our sales network has expanded to foreign markets as Vietnam, Russia, Bengal, India, Malaysia, Mongolia etc.for many years.
We insist on offering high quality products, comprehensive service to obtain our customer’s trust and support. Welcome to Xuzhou mine equipment manufacturer co.,ltd.
In order to recommend a most suitable model to meet every customer's specific need, we need to know:
- Intended application of the winch (including working condition)
- Steel rope pull (t)
- Steel rope speed (m/min)
- Drum capacity/rope length (m)
- Rope diameter ( if have)
- Hydraulic system pressure and pump flow ( if have)
- And other special requirements
