Specifications
1.ISO9001:20082.Big air inlet amount, low energy consumption
3.Rational ore pulp circulation
4.Used in ore classification
Flotation machine
Characteristics of flotation Machine:
1. The impeller consists of closed double section cones, which can produce strong down-circulation;
2. Big air inlet amount, low energy consumption;
3. Each trough has the function of air suction, ore pulp suction and flotation, it can make a flotation circuit itself, with no auxiliary equipments. The horizontal configuration makes it easy to change process;
4. Rational ore pulp circulation reduces coarse sand sediment;
5. There are automatic and electric control devices of ore pulp level, which makes easy adjustment.
Technical parameters of flotation machine:
Category | Specification | Effective cubage (m³) | Processing capacity (m³/min) | main shaft | loam board | Dimensions (L*W*H) (mm) | Single trough weight(kg) | ||
Power (kw) | Rotate speed(r/min) | Rotate speed(r/min) | Power (kw) | ||||||
XJK type flotation machine | XJK-0.35 | 0.35 | 0.18-0.4 | 1.5 | 483 | 25 | 1.1 | 700*700*700 | 460 |
XJK-0.62 | 0.62 | 0.3-0.9 | 3.0 | 400 | 25 | 1.1 | 900*820*850 | 980 | |
XJK1.1 | 1.1 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1100*1100*1000 | 1390 | |
XJK-2.8 | 2.8 | 1.5-3.5 | 11 | 280 | 25 | 1.1 | 1750*1600*1100 | 2430 | |
XJK-5.8 | 5.8 | 5-7 | 22 | 240 | 25 | 1.5 | 2200*2200*1200 | 3533 | |
SF type flotation machine | SF-0.37 | 0.37 | 0.2-0.4 | 1.5 | 386 | 25 | 1.1 | 700*700*750 | 468 |
SF-0.7 | 0.7 | 0.3-0.9 | 3 | 400 | 25 | 1.1 | 900*820*950 | 990 | |
SF-1.2 | 1.2 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1100*1100*1100 | 1873 | |
SF-2.8 | 2.8 | 1.5-3.5 | 11 | 268 | 25 | 1.1 | 1750*1600*1150 | 2538 | |
SF-4 | 4 | 2-4 | 15 | 220 | 25 | 1.5 | 1850*2050*1200 | 2838 | |
SF-8 | 8 | 4-8 | 30 | 191 | 25 | 1.5 | 2200*2900*1400 | 4129 | |
SF-10 | 10 | 5-10 | 30 | 191 | 25 | 1.5 | 2200*2900*1700 | 4486 | |
SF-20 | 20 | 5-20 | 30*2 | 191 | 25 | 1.5 | 2850*3800*2000 | 9828 | |
JJF type flotation machine | JJF-2 | 2 | 1-3 | 7.5 | 443 | 25 | 1.5 | 1400*1400*1100 | 1670 |
JJF-4 | 4 | 2-4 | 11 | 305 | 25 | 1.5 | 1600*2150*1250 | 2350 | |
JJF-8 | 8 | 4-8 | 22 | 233 | 25 | 1.5 | 2200*2900*1400 | 4500 | |
JJF-10 | 10 | 5-10 | 22 | 233 | 25 | 1.5 | 2200*2900*1700 | 4820 | |
JJF-16 | 16 | 5-16 | 30 | 180 | 25 | 1.5 | 2850*3800*1700 | 8000 | |
JJF-20 | 20 | 5-20 | 37 | 180 | 25 | 1.5 | 2850*3800*2000 | 10500 | |

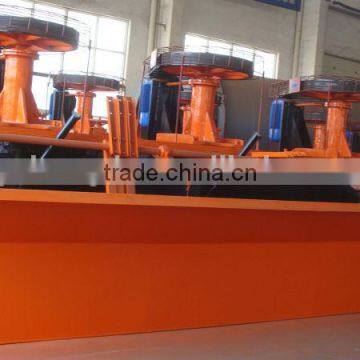

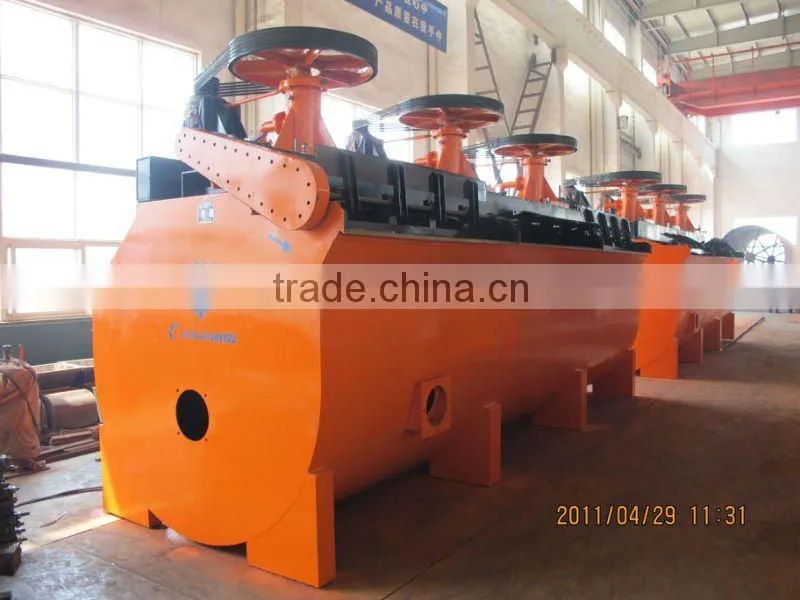

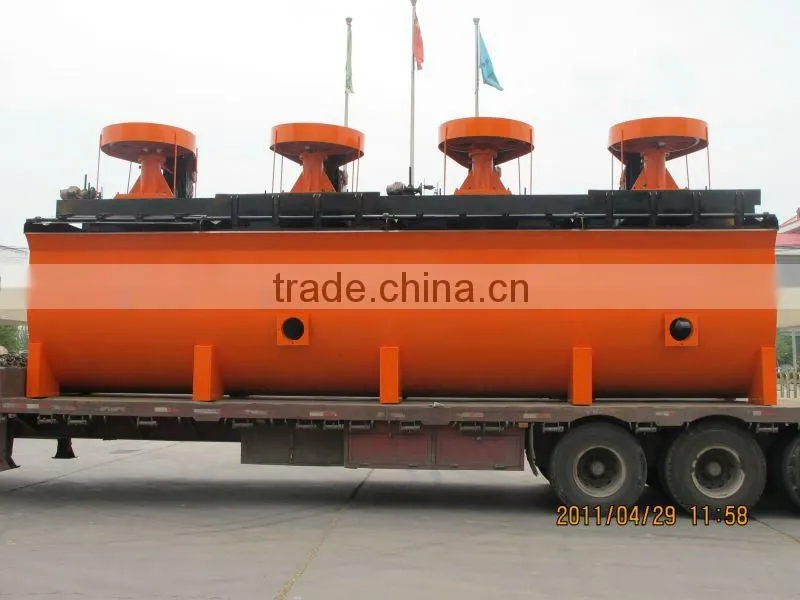

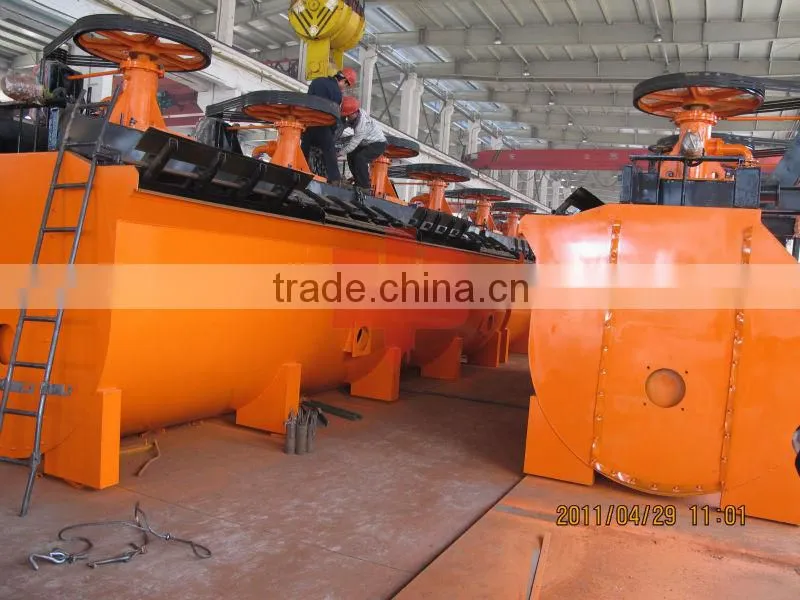

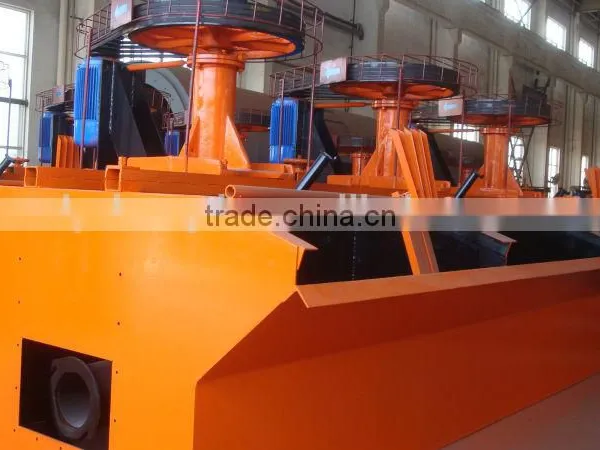

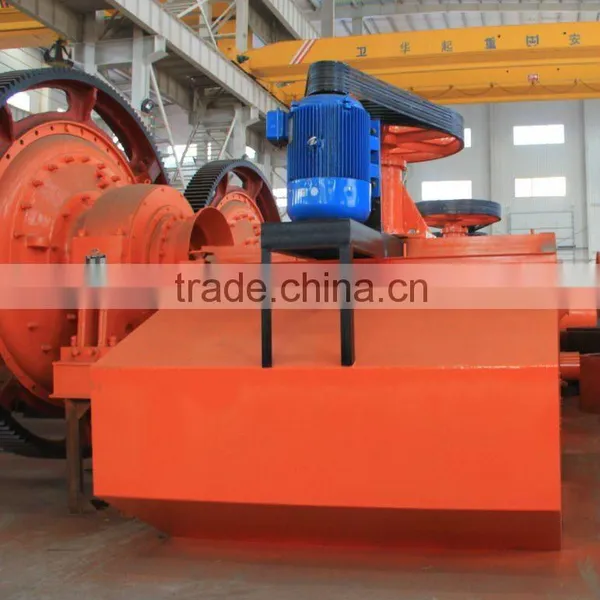

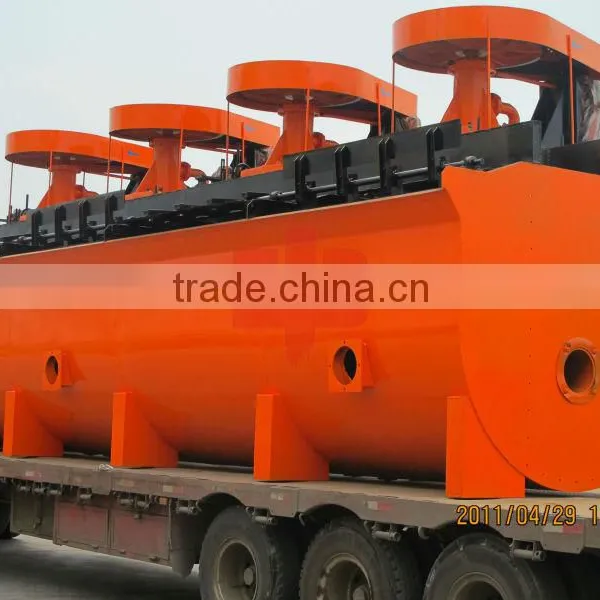

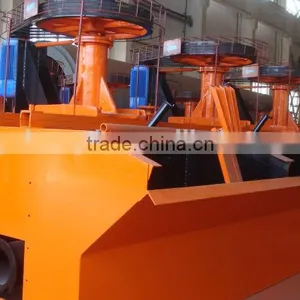

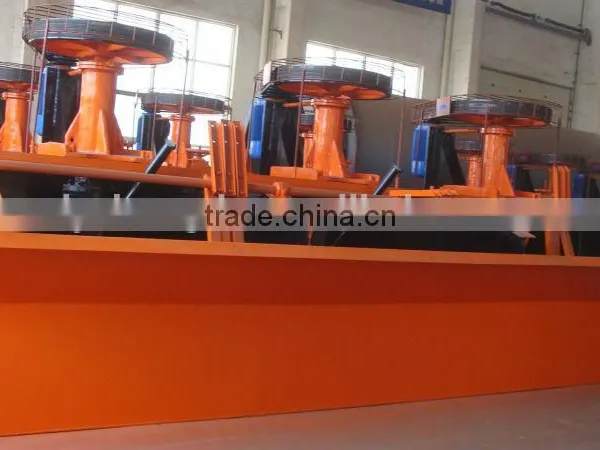

Flotation machine pictures:
| Packaging Detail: | The package of flotation machine includes export standard container 20GP OR 40GP, 40HQ, FR container, in bulk, the spare parts in wooden case. |
| Delivery Detail: | flotation machine is delivered 20 working days after receiving payment |
Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959. It is a big joint-stock company integrating scientific research, producing and sales. It located in Luoyang, the Chinese heavy industrial city. It covers an area of 6000, which include 3 standard heavy industrial workshops. There are more than 100 sets of medium sized metal processing, riveting and installing machine.
Our main products include nine series of equipments, including crushers, mining mill, tube mill, rotary kiln, cooler, rotary dryer, magnetic separator, flotation machine and concentrator. Moreover, we can provide program design, process flow design, standard and non-standard design as request by clients.

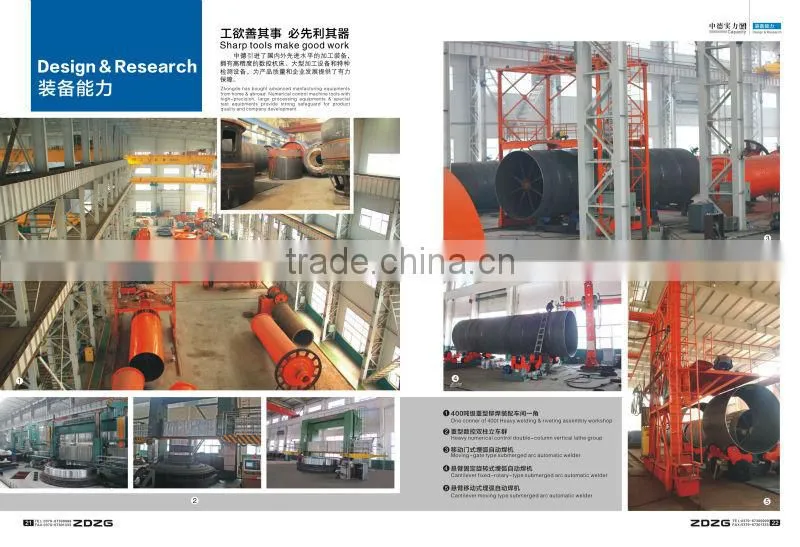

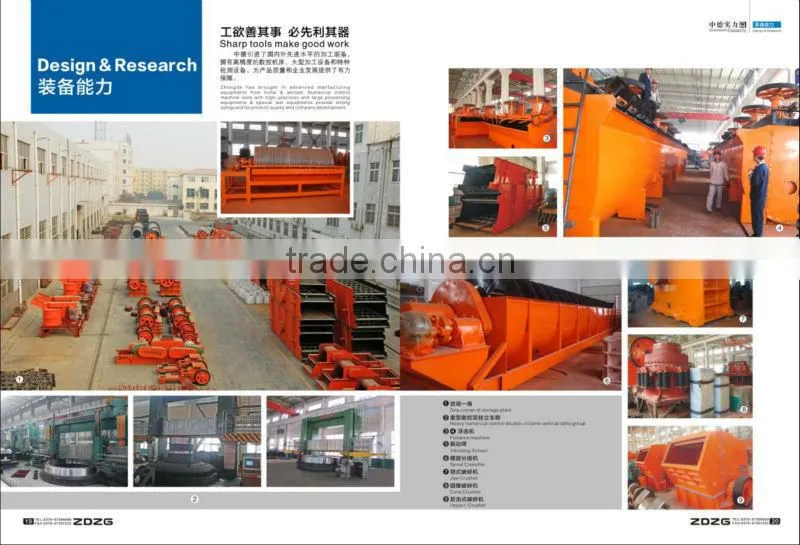

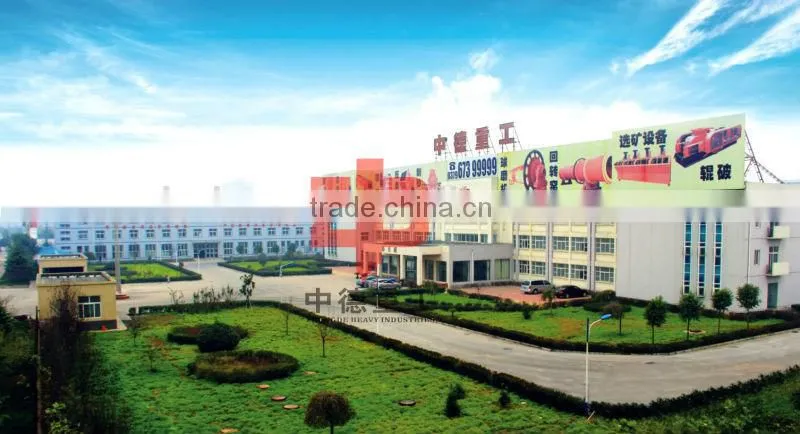

Company pictures:
Certificates:

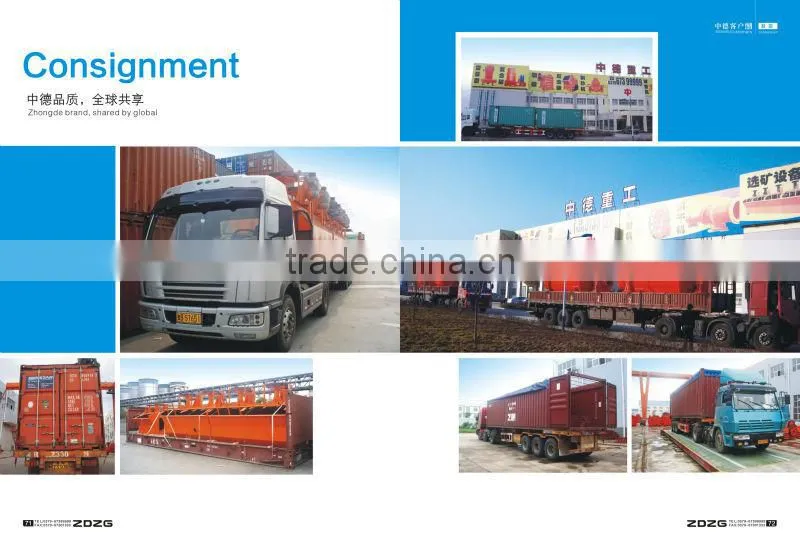

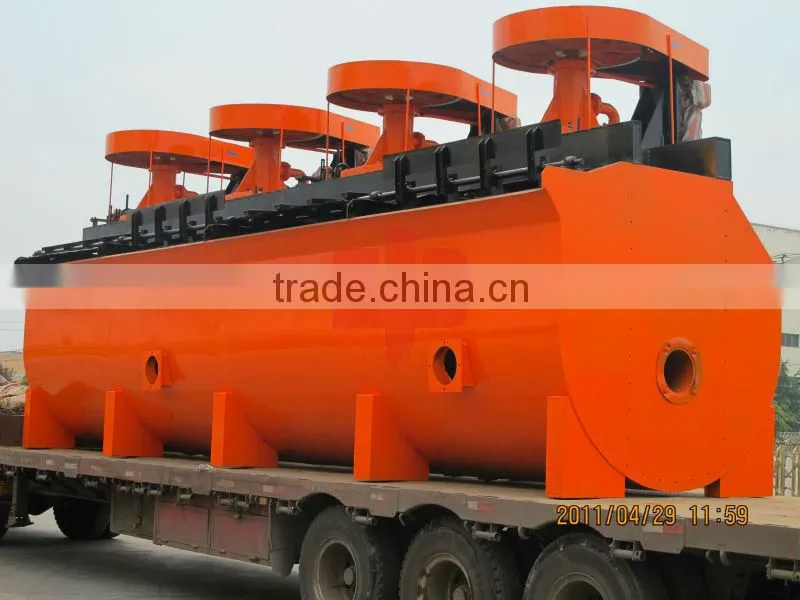

Manufacturing and consignment:
Customers onsite:
International market:
How about the quality of your Flotation machine?
- Our Flotation machine is manufactured strictly according national and international standard.
- We take a test on every Flotation machine before delivery.
How about price of your Flotation machine ?
- We can give the lowest price of Flotation machine than market one.
- We do quotation of Flotation machine as soon as possible for any customer.
- Discount of Flotation machine can be given according to quantity.
How about the after-sale service of your company?
- Our engineer is available to install Flotation machine overseas.
- The guarantee period of our Flotation machine is one year.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you the most suitable products with the most reasonable price.
