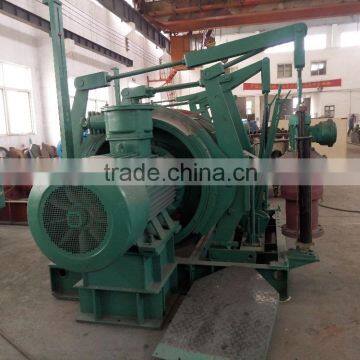

electric transport winch with 850 meters rope capacity
JYB series haulage winch mainly applied in coal mine or other mine’s underground roadway, for drawing carts and doing some assistant transfer works on the roads whose slope is lower than 30°.
It consists of two-stage planetary gear transmission system and has following
Features: compact structure, high efficiency, easy operation low noise, safe and reliable braking system.
According to customers’ requirement, we can provide winch which can adjust motor to left or right side, we can also provide winch whose base is disassembled.
Caution:JYB series winch can not be used for lifting.
| Model | JYB-40*1.25 | JYB-50*1.40 | JYB-60*1.25 |
| Wire rope base static tension KN | 40 | 50 | 60 |
| Wire rope base speed m/s | 1.25 | 1.4 | 1.25 |
| roller diameter × width mm | 580 ×600 | 580 ×600 | 710 ×800 |
| Wire capacity m | 820 | 710 | 850 |
| Wire rope diameter mm | 22 | 24 | 26 |
| Motor model | YBK2-280M-6 | YBK2-280S-4 | YBK2-315M-6 |
| Motor power kw | 55 | 75 | 90 |
| Motor speed r/min | 980 | 1480 | 989 |
| Electro-hydraulic thrusters | BYT1-180/12 | BYT1-180/12 | BYT1-320/12 |
| Dimension length*width*height mm | 2650 ×2280 ×2150 | 2650 ×2280 × 2150 | 2850 ×2732 ×2290 |
| Winch weight kg | 4620 | 4680 | 6200 |
| Other: electric transport winch with 850 meters rope capacity | |||
Our Packaging: Standard Wooden case, or as customer required.
Our Shipping: Delivery within 7days after receive the deposit.
1.One year warranty from delivery
2. Free components for replacement within warranty period
3. Professional solution provider
4. Free technical support at any time
Xuzhou Mine Equipment Manufacturing Co., Ltd founded in 1956. As a leader of mining equipment manufacturer in China, we have been devoted to creating new and high quality products in mining field for more than 50 years. Our main products including SQ and JWB endless rope continuous tractor, JSDB series double speed multi-purpose winch, JYB series transport winch, JD series shunting winch, JH series prop-pulling winch, JHMB series slow speed drawing winch, and JZ series sinking winch and etc.
Our sales network has expanded to foreign markets as Vietnam, Russia, Bengal, India, Malaysia, Mongolia etc.for many years.
We insist on offering high quality products, comprehensive service to obtain our customer’s trust and support. Welcome to Xuzhou mine equipment manufacturer co.,ltd.
In order to recommend a most suitable model to meet every customer's specific need, we need to know:
- Intended application of the winch (including working condition)
- Steel rope pull (t)
- Steel rope speed (m/min)
- Drum capacity/rope length (m)
- Rope diameter ( if have)
- Hydraulic system pressure and pump flow ( if have)
- And other special requirements
