Specifications
1 small size2 stable quality
3 less cost
4 2 years warranty
Product code: HG-2207
| LED Driver power supply ,Internal for PAR lamp etc <5-80W> | |||||||
| MODEL | HG-2207 | HG-2212 | HG-PF2220 | HG-PF2228 | HG-PF2237 | HG-PF2280 | |
| OUTPUT | RATED POWER | 5-9W/3-5*3W | 9-15W/4-7*3W | 18-24W/9-12*3W | 20-28W/30W | 30-36W/12-18*3W | 50/60W/70W |
| RATED CURRENT | 300mA/600mA | 300mA/600mA | 300mA/600mA | 300mA/900mA | 300mA/600mA | 1.5/1.8/2.1A | |
| VOLTAGE RANGE | 15-32V/9-18V | 27-53V/12-25V | 54-85V/27-42V | 60-100V/25-36V | 90-130V/36-65V | 25-36V | |
| CURRENT TOLERANCE | 5% | ||||||
| INPUT | VOLTAGE RANGE | AC90-260V | AC170-260V | AC170-260V | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| POWER FACTOR | >0.5 | >0.5 | >0.95 | >0.95 | >0.95 | >0.95 | |
| EFFICIENCY | 85.40% | 86.60% | 89% | 88% | 88% | 88% | |
| ENVIRONMENT | WORKING TEMP | -20 ~ +40°C | -20 ~ +40°C | -30 ~ +55°C | -30 ~ +55°C | -30 ~ +55°C | -30 ~ +55°C |
| QTHERS | DIMENSION (mm) | Dia42*17 | Dia44*22 | Dia66*24 | Dia66*24 | Dia78*24 | Dia85*33 |
Product characteristics:
² Constant current;
² without flicker;
² Low heat,high efficiency;
² Large selection of the parameter, long working-time;
² Using the high frequency low resistance electrolysis with 8000 hours , excellent quality and stable
performance.
² passing 100% aging test, high reliability;
² With the production of Short circuit,broken circuit,Automatic overload protection,more safety more stable.

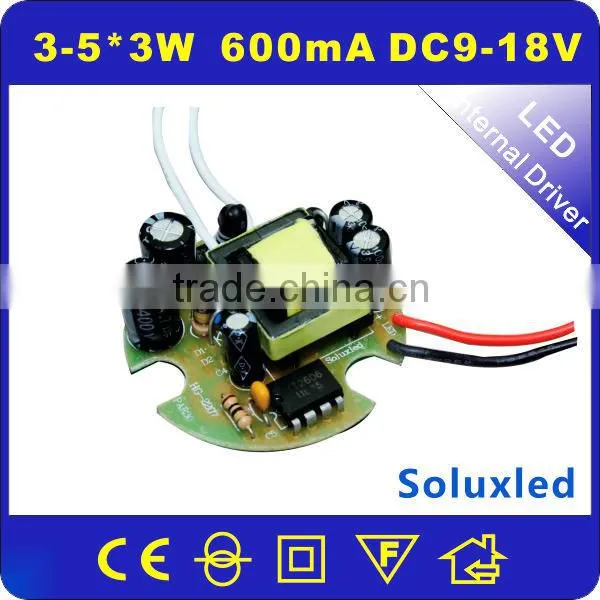

Output characteristics:
Ø type:Constant current,seclusion type
Ø watt:3-5*3w
Ø voltage:9-18V
Ø current:600mA
Ø ripple:2Vp-p
Ø Output groups:1
Working temperature:-20°C ~ +40°C
Packing:
cartons
1 OEM is welcome
2 can be customized
About us:
Custumers feedback:
Certificate: CE and BV
Quality guarantee:
ü All the driver have automatic protection of overload, short circuit, temperature,etc.
ü Guarantee:1.The warranty period is 2 years.2.During the time ,if the product have any question ,
we can change the same to you.
ü We can design the product according to your requirement. If you want to guarantee over 3 years, the
price could be negotiated separately.
FAQ
1 how to order ?
A: send me email or call me with trademanager or skype , tell me the quantity you need and the method you prefer to send , and i will send you proformer invoice for confirmation , after we recieve the payment , your order will be processing and send to you as agreement with each other .
( skype : Tyrone-Soluxled ) .
2 how to pay ?
A : we accept LC ,TT, Paypal , western union ,Ali-pay etc .
