Specifications
1 small size2 stable quality
3 less cost
4 2 years warranty

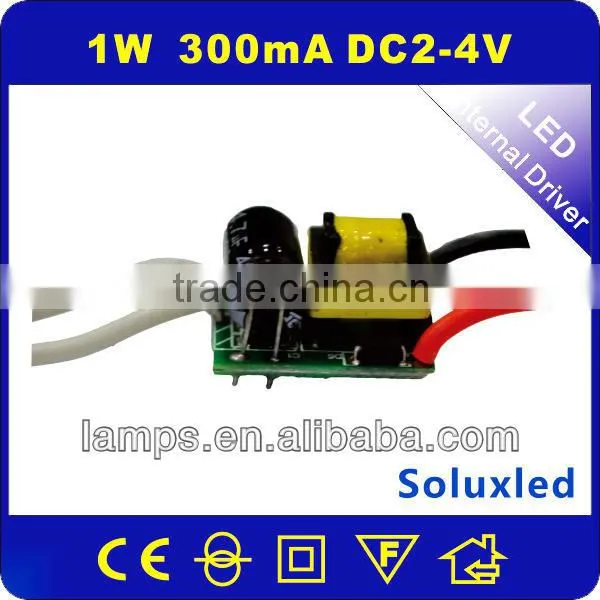

Product code: HG2232
| LED Driver power supply , Internal for bulb and spot lamp etc. <1-36W> | ||||||||
| MODEL | HG-2232 | HG-2204 | HG-2205C | HG-2207B | HG-2213B | HG-2218 | HG-2240 | |
| OUTPUT | RATED POWER | 1W/3W | 4-5W | 5-7W | 8-12W/3-4*3W | 12-18W/5-7*3W | 18-24W | 25-36W/(12-18)*3W |
| RATED CURRENT | 300mA | 280mA | 280mA | 280mA/600mA | 280mA/600mA | 280mA | 300mA/600mA | |
| VOLTAGE RANGE | 2-4V/8-12V | 12-18V | 15-24V | 24-42V/9-15V | 36-63V/15-25V | 54-85V | 70-135V/40-65V | |
| CURRENT TOLERANCE | 5% | |||||||
| INPUT | VOLTAGE RANGE | AC90-260V | ||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||
| POWER FACTOR | >0.5 | >0.5 | >0.5 | >0.5 | >0.5 | >0.5 | >0.5 | |
| EFFICIENCY | 71% | 76.12% | 79% | 80% | 85.40% | 88.60% | 88.60% | |
| ENVIRONMENT | WORKING TEMP | -20 ~ +40°C | -20 ~ +40°C | -20 ~ +40°C | -20 ~ +40°C | -20 ~ +40°C | -20 ~ +40°C | -20 ~ +40°C |
| QTHERS | DIMENSION(mm) | 21*15*13 | 25*17*15 | 35*17*17 | 40*21*15 | 56*21*15 | 71*26*17 | 96*31*22 |
Product characteristics:
² Constant current;
² without flicker;
² Low heat,high efficiency;
² Large selection of the parameter, long working-time;
² Using the high frequency low resistance electrolysis with 8000 hours , excellent quality and stable
performance.
² passing 100% aging test, high reliability;
² With the production of Short circuit,broken circuit,Automatic overload protection,more safety more stable.
Output characteristics:
Ø type:Constant current,seclusion type
Ø watt:1*1w
Ø voltage:2-4V
Ø current:300mA
Ø ripple:2Vp-p
Ø Output groups:1
Working temperature:-20°C ~ +40°C
Packing:
cartons
1 OEM is welcome
2 can be customized
About us:
Custumers feedback:
Certificate: CE and BV
Quality guarantee:
ü All the driver have automatic protection of overload, short circuit, temperature,etc.
ü Guarantee:1.The warranty period is 2 years.2.During the time ,if the product have any question ,
we can change the same to you.
ü We can design the product according to your requirement. If you want to guarantee over 3 years, the
price could be negotiated separately.
FAQ
1 how to order ?
A: send me email or call me with trademanager or skype , tell me the quantity you need and the method you prefer to send , and i will send you proformer invoice for confirmation , after we recieve the payment , your order will be processing and send to you as agreement with each other .
( skype : Tyrone-Soluxled ) .
2 how to pay ?
A : we accept LC ,TT, Paypal , western union ,Ali-pay etc .
