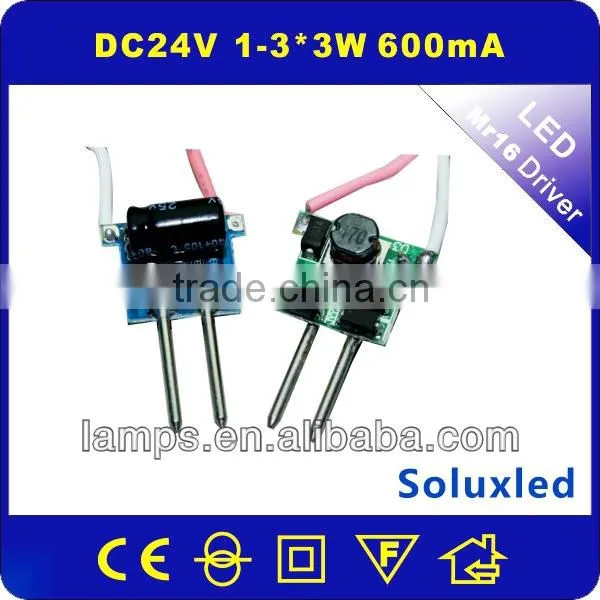

Help CenterAC/DC12V Mr16 Led Driver 1-3*3W
Related Products
-
LED Driver Power Supply With Constant Current 3-4*3WUS$ 1 - 1.5MOQ: 100 Pieces -
China Products Par30 2-4*3W 620mA Constant Current Soluxled Led Power SupplyUS$ 1.56 - 1.85MOQ: 1 Piece
-
Par30 Round Led Power Supply 4-7W Constant Current SoluxledUS$ 2.1 - 2.5MOQ: 1 Piece
-
LED Driver Power Supply 4-7*3W Round 600mAUS$ 1.5 - 2.3MOQ: 100 Pieces
-
LED Driver Power Supply 3-5*3W Round 600mAUS$ 1.17 - 1.5MOQ: 100 Pieces
Specifications
1.Accurate constant output current;2.Small size: T18*14mm;
3.Suitable for MR16 lamp holder.
| LED Driver power supply , AC/DC12V ,AC/DC24V Input series . | ||||||
| MODEL | HG-1203 | HG-2407 | HG-2412 | HG-1218 | HG-1235 | |
| OUTPUT | RATED POWER | 1-3*1W/ 1-3*3W | 1-7W/4-6*3W | 6-10W/10-12W | 12-18W/20W | 30W/40W/50W |
| RATED CURRENT | 300mA/600mA | 300mA/600mA | 300mA | 300mA/600mA | 900mA/1.2A/1.5A | |
| VOLTAGE RANGE | 3-11V | 3-24V/12-20V | 18-32V/30-43V | 36-63V/30-36V | 30-36V | |
| CURRENT TOLERANCE | 5% | |||||
| INPUT | VOLTAGE RANGE | AC/DC12VDC24V | AC/DC24V | AC/DC12V / 24V | DC24V | DC24V |
| FREQUENCY RANGE | 47 ~ 63Hz | / | / | |||
| POWER FACTOR | / | / | / | / | / | |
| EFFICIENCY | / | / | / | / | / | |
| ENVIRONMENT | WORKING TEMP | -20 ~ 40°C | -20 ~ 40°C | -20 ~ 40°C | -20 ~ 40°C | -20 ~ 40°C |
| QTHERS | DIMENSION(mm) | 28*18*13 | 36*21*13 | 42*22*15 | 42*25*20 | 100*28*23 |
| Note | openframe only | plastic cover and waterproof can be option | ||||
² Constant current
² without flicker
² Large selection of the parameter, long working-time
² Using the high frequency low resistance electrolysis with 8000 hours , excellent quality and stable performance.
² passing 100% aging test, high reliability;
² With the production of Short circuit,broken circuit,Automatic overload protection,more safety more stable.
Output characteristics:
Ø type:Constant current,seclusion type
Ø watt:1-3*3W
Ø current:600mA±5%
Ø ripple:2Vp-p
Ø Output groups:1
Working temperature:-20°C ~ +40°C
Quality guarantee:
ü All the driver have automatic protection of overload, short circuit, temperature,etc.
ü Guarantee:1.The warranty period is 1-2 years. 2.During the time ,if the product have any question ,
we can change the same to you.
ü We can design the product according to your requirement. If you want to guarantee over 3 years, the price could
be negotiated separately.
Production process:
Certificate: CE and BV
About us:
Custumers feedback:

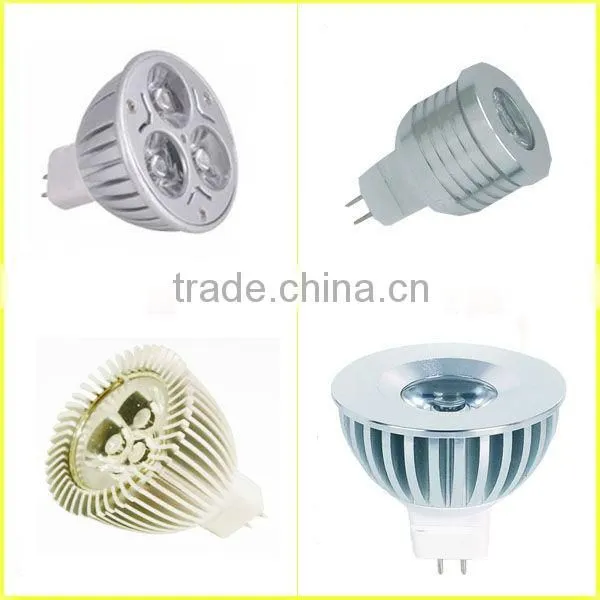

Application: Spotlight with mr16 base, indoor bulb.
Packing:
cartons
FAQ:
1 how to order ?
A: send me email ,tell me the quantity you need and the method you prefer to send , and i will send you proformer invoice for confirmation , after we recieve the payment , your order will be processing and send to you as agreement.
2 how to pay ?
A : we accept LC ,TT, Paypal , western union ,Ali-pay etc .
