China Top Quality Mining Equipments, Mineral Processing Jaw Crusher Price in India

Name: China Top Quality Mining Equipments, Mineral Processing Jaw Crusher Price in India
Brand: ZHONGDE
Availability: InStock

FOB Price

US$ 1,000 - 8,000 / Set

1 Set(Min. Order)

Port Qingdao Tianjin Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Jaw Crusher
Application	mine/building materials/road/chemical industry etc	Motor Type	AC Motor
Power(W)	110000	Capacity(t/h)	130-330
Place of Origin	Henan, China	Brand Name	ZHONGDE
Model Number	PE-800*1060	Dimension(LWH)	271024302800mm
Weight	29.8t	Certification	CE,ISO,TUV certificates etc.
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Product Introduction

Thousands of Zhongde PE Series stone crusher are installed all over the world in recent 20 years. It has been proved that this series of crushers not only effectively increase productivity and final product quality, but also greatly reduce the investment costs and operation costs. Unmatched excellent performance is shown in the secondary crushing, tertiary crushing and material recovery.Zhongde has two kinds of impact crusher, you can choose as your situation! We will provide you most resonable stone crusher price for you.

Characteristics of jaw crusher

1) high crushing ratio and equal product granularity;

2) simple structure and reliable working condition;

3) convenient maintenance and economical operation.

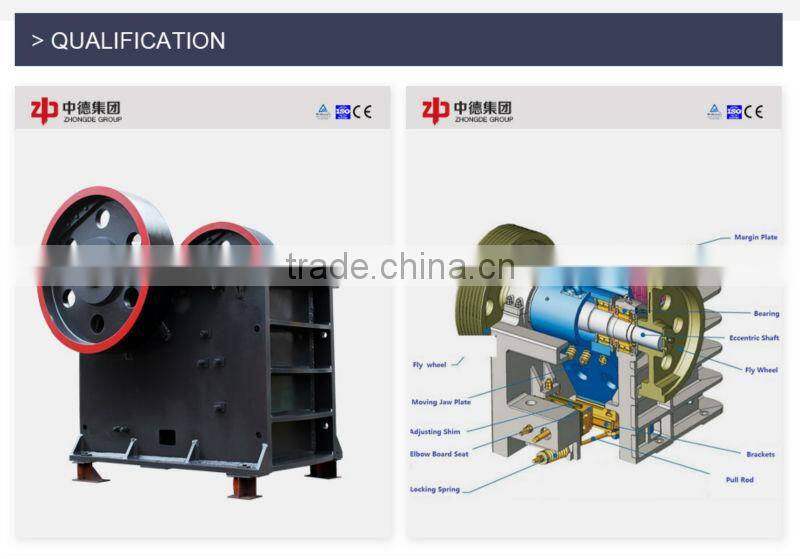

Jaw Crusher Structure:

Frame;
Jaw plate and side guard plate;
Transmission part: eccentric shaft;
Adjustment device;
Flywheel;
Lubrication device.

Technical parameters of Jaw crusher:

Model	feed opening size(mm)	Max. feeding size(mm)	Adjusting range of discharge opening(mm)	Processing capacity(t/h)	Rotation speed of eccentric shaft(r/min)	Motor power(kw)	Dimensions(L×W×H) (mm)
PE-400×600	400×600	340	40-100	16-60	275	30	1730×1730×1630
PE-500×750	500×750	425	50-100	40-110	275	55	1980×2080×1870
PE-600×750	600×750	500	150-200	80-240	275	55	2070×2000×1920
PE-750×1060	750×1060	630	80-140	110-320	250	110	2660×2430×2800
PE-800×1060	800×1060	640	130-190	130-330	250	110	2710×2430×2800
PE-870×1060	870×1060	660	200-260	190-336	250	110	2810×2430×2800
PE-900×1200	900×1200	75	95-165	220-450	200	110	3380×2870×3330
PE-1000×1200	1000×1200	85	195-265	315-500	200	110	3480×2876×3330
PE-1200×1500	1200×1500	1020	150-350	400-800	180	160-220	4200×3300×3500
PE-1500×1800	1500×1800	1200	220-350	500-1000	180	280-355	5160×3660×4248
PE- 1600×2100	1600×2100	1500	300-400	1300-2200	160	350-380	6210×4013×4716

Stone crusher price working principle:

The structure of crusher for crushing stones: main frame, eccentric shaft, a large belt pulley, fly wheel, swing jaw, side guard plate, toggle plate, Rear bracket, adjust gap screw, reset spring, and fixed jaw and swing jaw board etc., and the toggle plate also plays a

role of protection.

The motor transmits power through belt and belt pulley, drives the swing jaw surround the eccentric shaft do periodic motion. The a

ngle between toggle plate and swing jaw increases when swing jaw moves up., which makes the moving jaw get closes to the fixed jaw.

At the same time the material is squeezed, rubbing, grinding and other multiple broken. The angle of Jaw Crusher between toggle plate and swing jaw decreases when swing jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling

of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.

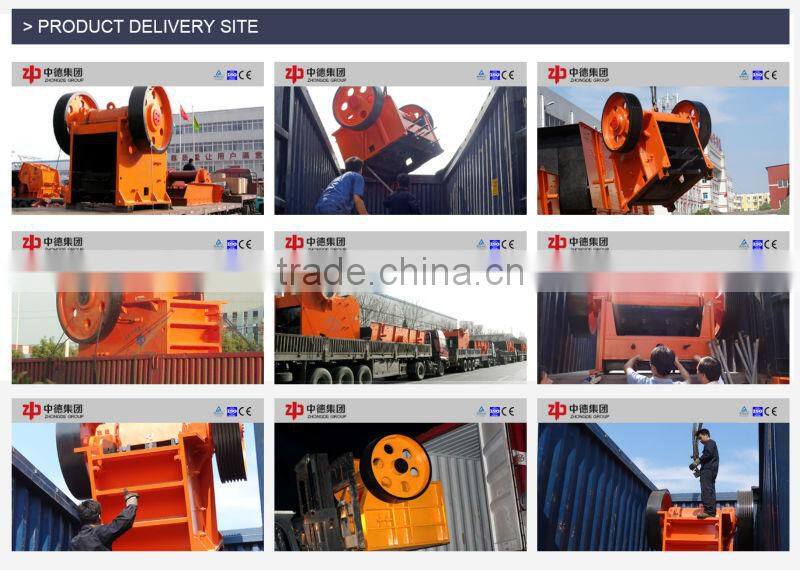

Packaging & Shipping

Our Services

1. Installation and adjustment of the machine:

Technicist will be provided by supplier for buyer to assist the work such as welding connection of shell body, equipment installation, adjustment, training, etc.

2. Warrantly period is one year except the easy-wearing parts.

3.Technical support of Jaw Crusher is provided from the beginning to the end.

4.Spare parts of Jaw crusher are serviced for sale in the whole year.

FAQ

How about the quality of your Jaw crusher?

1.Our Jaw crusher manufactured strictly according to national and international standard.

2.We take a test on every Jaw crusher before delivery.

How about price of jaw crusher?

1.We can give the lowest price of the Jaw crusher than market one.

2.We do quotation of Jaw crusher as soon as possible for any custome.

3.Discount of Jaw Crusher can be given according to quantity.

Welcome to visit our company and workshop, we sincerely look

forward to cooperating with you. We will provide you with the most

suitable products with the reasonable price.
