Introduction symons cone crusher:
PSG series cone crusher is the new type product which is researched by abdorbing the symons cone crusher technology of Nordberg company. It's widely used in metallurgy, construction, road building, chemical industries and etc. Besides, it's suitable for crushing many kinds of ores and rocks with medium hardness and above. The product is featured by high crushing ratio, high efficiency, large processing capacity, low operation cost, easy adjustment,etc. It has long life span because of the companents material and reasonable structure. The evenly particle size of finished product deduces the cieculation load. The hydraulic chamber-cleaning system in medium and large sized crushers reduces the machine'sstop time. There are many chamber types of each machine and then customers have many choices to meet their demand. This machine adopts the lubrication grease sealing system and avoids the defects of wayer-supplying and discharging block as well as the easily mixing of water and oil. The spring insurance system is overload protection device; it can make the foreign matter and iron ore go through the cruhing chamber and damage it. This machine can be devided into standard type and short head type. Genarally speaking, standard type has big feeding size and coarse discharging size. The short head type has steep crushing awl and small feeding material size, and it is helpful to produce the very small sized material. Then the standard type is used for coarse and medium crushing, short head type is used for medium and fine crushing.
Features of cs symons cone crusher:
- High-performance;
- Good products size composition;
- Good stability;
- Convenient Cleaning-up;
- High reliability;
- Easy maintenance and operation;
- Low production costs;
- Widespread use;
- Separate Lubrication.
Characteristics of symons cone crusher:
- The product is featured by high crushing ratio, high efficiency, large processing capacity, low operation cost, easy adjustment, etc.
- It has long life span because of the components material and reasonable structure. The evenly particle size of finished product reduces the circulation load.
Technical parameters of symons cone crusher:
| Type | Model | Type of chamber | Diameter of large end of crushing cone(mm) | Adjusting range of discharge cone(mm) | Feed opening size of the open edge when recommending the min discharge opening(mm) | Max.feeding size(mm) | Processing capacity(t/h) | Main motor power | Outline dimensions(L*W*H)(mm) |
| Ø900 | PSG-B0910 | standard fine type | 900 | 9-22 | 102 | 85 | 45-91 | 75 | 2656*1636*2241 |
| PSG-B0917 | standard coarse type | 13-38 | 175 | 150 | 59-163 | ||||
| PSG-B0918 | standard super coarse type | 25-38 | 178 | 150 | 118-163 | ||||
| PSG-D0904 | short head fine type | 3-13 | 41 | 35 | 27-90 | ||||
| PSG-D0906 | short head medium type | 3-16 | 61 | 55 | 27-100 | ||||
| PSG-D0907 | short head coarse type | 6-19 | 76 | 65 | 59-129 | ||||
| Ø1300 | PSG-B1313 | standard fine type | 1295 | 13-31 | 137 | 115 | 109-181 | 160 | 2983*1866*3456 |
| PSG-B1321 | standard medium type | 16-38 | 210 | 178 | 132-253 | ||||
| PSG-B1324 | standard coarse type | 19-51 | 241 | 205 | 172-349 | ||||
| PSG-B1325 | standard super coarse type | 25-51 | 259 | 220 | 236-358 | ||||
| PSG-D1306 | short head fine type | 3-16 | 64 | 54 | 36-163 | ||||
| PSG-D1308 | short head medium type | 6-16 | 89 | 76 | 82-163 | ||||
| PSG-D1310 | short head coarse type | 8-25 | 105 | 89 | 109-227 | ||||
| PSG-D1313 | short head super coarse type | 16-25 | 133 | 113 | 209-236 | ||||
Ø1600 |
PSG-B1620 | standard fine type | 1676 | 16-38 | 209 | 178 | 181-327 | 220 | 3941*2954*3771 |
| PSG-B1624 | standard medium type | 22-51 | 241 | 205 | 258-417 | ||||
| PSG-B1626 | standard coarse type | 25-64 | 269 | 228 | 299-635 | ||||
| PSG-B1636 | standard super coarse type | 38-64 | 368 | 313 |
431-630 | ||||
| PSG-D1607 | short head fine type | 5-13 | 70 | 60 | 90-209 | ||||
| PSG-D1608 | short head medium type | 6-19 | 89 | 76 | 136-281 | ||||
| PSG-D1613 | short head coarse type | 10-25 | 133 | 113 | 190-336 | ||||
| PSG-D1614 | short head super coarse type | 13-25 | 133 | 113 | 253-336 | ||||
| Ø2100 | PSG-B2127 | standard fine type | 2134 | 19-38 | 278 | 236 | 544-1034 | 400 | 4613*3302*4638 |
| PSG-B2133 | standard medium type | 25-51 | 334 | 284 | 862-1424 | ||||
| PSG-B2136 | standard coarse type | 31-64 | 369 | 314 | 1125-1814 | ||||
| PSG-B2146 | standard super coarse type | 38-64 | 460 | 391 | 1252-1941 | ||||
| PSG-D2110 | short head fine type | 5-16 | 105 | 89 | 218-463 | ||||
| PSG-D2113 | short head medium type | 10-19 |
133
|
113 | 404-580 | ||||
| PSG-D2117 | short head coarse type | 13-25 | 178 | 151 | 517-680 | ||||
| PSG-D2120 | short head super coarse type | 16-25 | 203 | 172 | 580-744 |

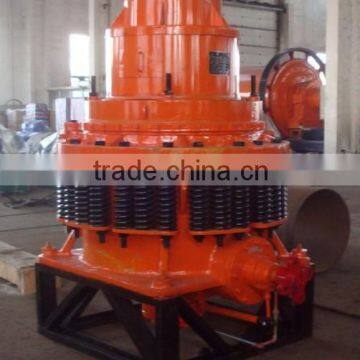

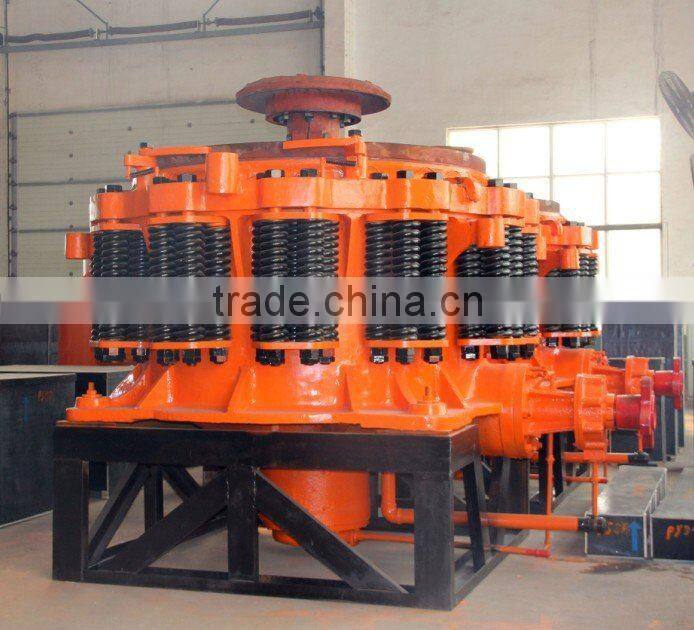

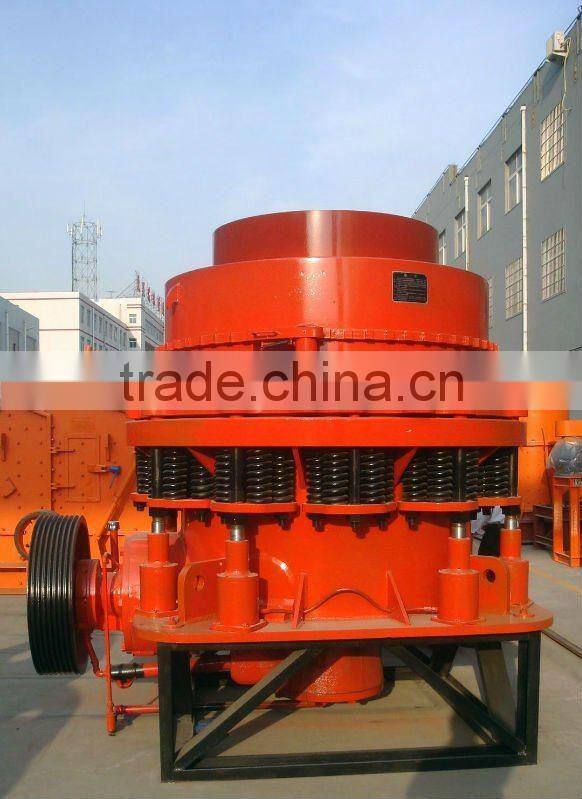

Symons cone crusher pictures:

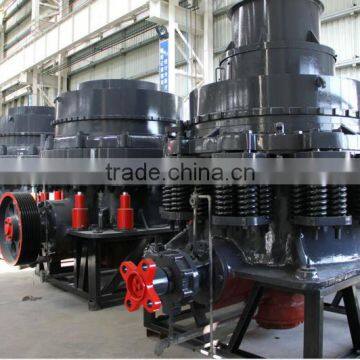

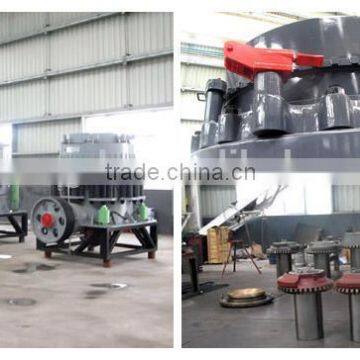

Symons cone crusher manufacturing process:

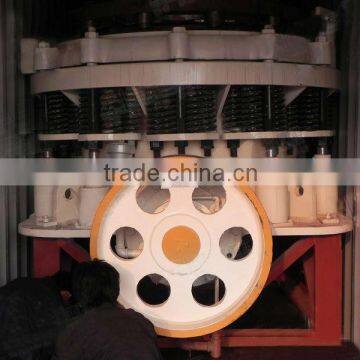

Packaging of symons cone crusher:
- Sand blasting, coat with high quality paint;
- Product wrap by PP-Bubble;
- Load container, Spear Parts in wooden case.
Shipping of symons cone crusher:
The package of cone crusher includes export standard container 20GP OR 40GP, 40HQ, FR container, in bulk, the spare parts in wooden case.
Our service of symons cone crusher:
- Installation and adjustment of symons cone crusher: The Installation and adjustment of our symons cone crusher is provided by our company. Technicist of symons cone crusher will provided by supplier for buyer to assist the work such as weding connecion of shell body ,equipment installation, adjustment, training etc.
- Quality of guarantee of symons cone crusher : Three-guarantees of symons cone crusher and warrantly period id one year.
- Technical support of symons cone crusher is provided from the beginning to the end.
- Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959.
- Over the past fifty years, it has made significant contribution to the economic development in China.
- In 1995, it took the lead in changing into the joint stock company, which brought rapid development to the company .
-
In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park.
How about the quality of your symons cone crusher?
- Our symon cone crusher is manufactured strictly according national and international standard.
- We take a test on every symons cone crusher before delivery.
How about price of your symons cone crusher?
- We can give the lowest price of symons cone crusher than market one.
- We do quotation of symons cone crusher as soon as possible for any custome.
- Discount of symons cone crusher can be given according to quantity.
How about the after-sale service of your company?
- Our engineer is aviliable to installation symons cone crusher overseas.
- The guarantee period of our symons cone crusher is one year
