Led Dimming Driver 10w for Led Light by Remote Control Switch Quality Choice

Led Dimming Driver 10w for Led Light by Remote Control Switch Quality Choice photo-1
Led Dimming Driver 10w for Led Light by Remote Control Switch Quality Choice photo-2
US$ 1.90 - 1.90 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Soluxled
Model Number:
HG-PC-DM2610
Payment & Shipping
Payment Methods:
Port of Shipment:
Jiangmen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Soluxled
Model Number HG-PC-DM2610
Output Power 1 - 50W
Output Type Single
Input Voltage 220V
Output Voltage 30-42V
Output Frequency 50Hz
Output Current 300mA±5%





 ModelHG-PC-DM2610Application
 Input Voltage Range AC170-260V









  Led bulb light,

  Led downlight light,

  Led panel light,

  Led spot light light,

  ...ect indoor lights







 Frequency Range 50/60Hz
 Power Factor(PFC)  ≥0.8
 AC Current (Max.)  0.24A
 Output  DC Voltage Range  30-42V
 Constant Current Range  300mA±5%
 Rated Max. Power  9-12*1W
 Ripple 2Vp-p
 Efficiency 77-85%
  Protection  Overload Yes
 Short Circuit Yes
 Over Voltage Yes
 Over Temperature Yes
 Others Type

 Constant Current &Isolation

 Waterproof Level  IP22
 Dimension/Weight 72*35*20mm/120g
 Packing/Carton Size 43*30*25
 Cable Yes
 Housing Meterial Plastic housing
 warranty 3 years
  Certificate   CE/ROHS

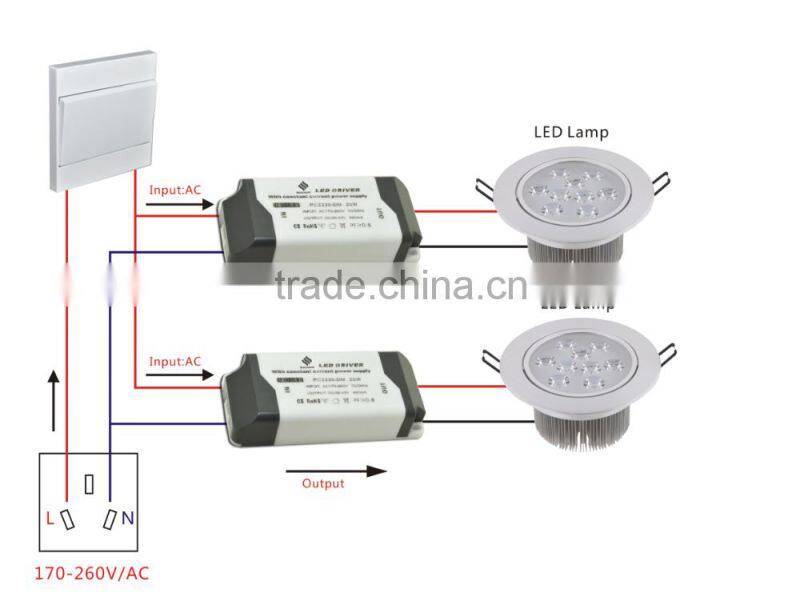

led dimming driver 10w for led light by remote control switch

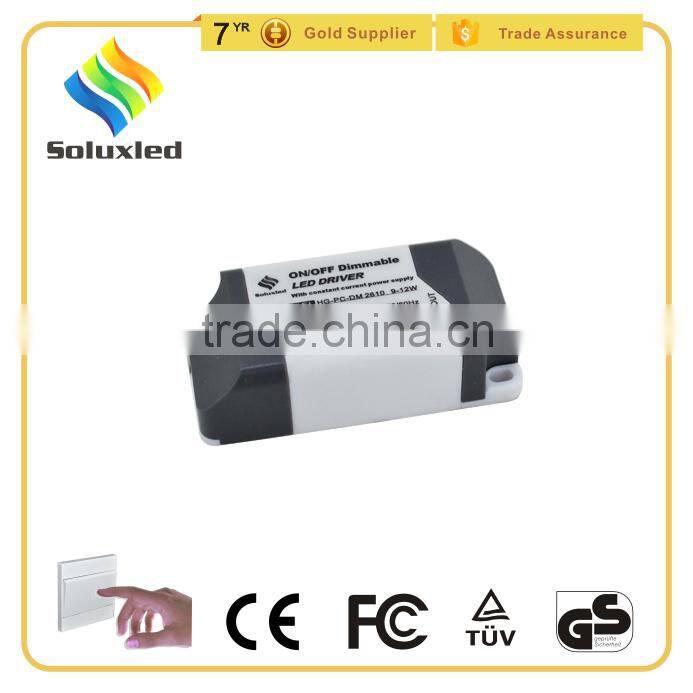

led dimming driver 10w for led light by remote control switch







led dimming driver 10w for led light by remote control switch







Small size,High efficiency,High reliablility,Long lifetime;

Working temperature-40~+65°C;

Protection:Overload,Short-circuit pratection,Over-temperature;

Start delay design,which can reduce the starting current when multipe simulatance start;

CE,EMC certificate,ROHS compliant;

Low output ripple noises.














































NO.1 >>  ARE YOU A MANUFACTURE?

Yes, we are 7 years manufacture experience , Already field certification by BV  ( Bureau veritas ).We have Complete production equipment and R & D testing equipment as the Samsung brand SMT equipment, reflow, wave soldering wind And EMC / EMI testing equipment, high voltage tester, harmonic tester, pressure test, oscilloscope ...... etc



NO.2 >> WHAT IS YOUR SUPPLY CAPACITY ?

We can produce 300,000pcs per month.



NO.3 >> HOW DO YOU CONTROL THE QUALITY ?

All of components in the LED driver are at popular brand company,besides,quality inspector is responsibility  for inspection incoming material,which control the quality from the source. 100%  burn-in test before shipping.



NO.4 >> CAN YOU SEND US SAMPLES ?

We can send you the samples, will be according to your order requirements.



NO.5>> WHAT IS YOUR DELIVERY TIME ?

Some items we have stock can delivery in 24hours,we will be according to your order requirements.

Normal products: 5-7 days           Customized products : 10-20 days.



NO.6 >> WHAT IS YOUR PAYMENT TERM ?



NO.7 >> HOW MANY YEARS WARRANTY FOR YOUR PRODCUTS?

Normal products can provide 3 years warranty, also can OEM for 5years.

Life-long maintance service for SOLUXLED's product about AFTER -WARRANTY SERVICE .



NO.8 >>  ABOUT EXCHANGE & WARRANTY POLICY

Quality: 0.5%  more or less is allowed for Electronic products .

For problematic items more then 1% , we will change new items or replace it for you.Send back us to test if possible, so that we can take the solution accordingly depending to the test report.

For all your inquiries,please contact us immediately,We will according to your actual situation to provide the best solution for you.



Remark: Due to products improvements, Product specifications, quality will be subject to the sample and according to the factory's standard configuration.
