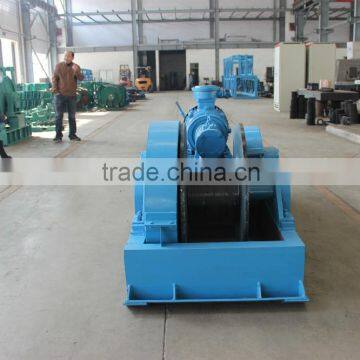

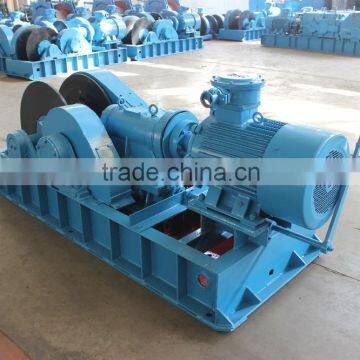

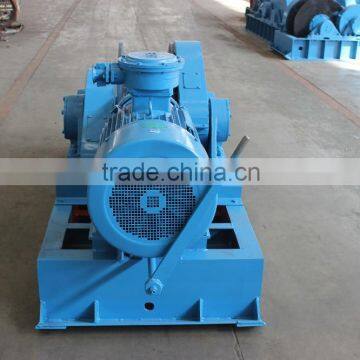

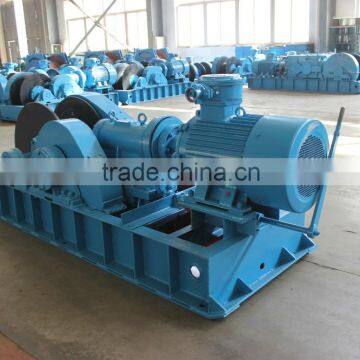

1.JHMB series mainly apply in transferring materials in mine underground roadway and those whose slope is lower than 30°,which also have function of prop-pulling caving.
2.JHMB series consists of one-stage worm screm gearing,two-stage cylindrical gear.
3.Feature: compact structure,relatively smaller volume,light weight,convenient for moving and installment,smooth operation.
4.Caution: JHMB series low speed winch can NOT used for loading people or lifting.
| Model | JHMB-12 | JHMB-14 |
| Wire rope outer maximum static tension KN | 120 | 140 |
| Wire rope average static tension KN | 140 | 170 |
| Wire rope average speed m/s | 0.12 | 0.12 |
| Wire capacity m | 150 | 150 |
| Wire rope diameter mm | 22 | 22 |
| Motor power KW | 18.5 | 22 |
| Motor speed r/min | 740 | 740 |
| Dimension mm | 2750*934*1134 | 2750*934*1134 |
| winch weight kg | 2410 | 2450 |
Xuzhou Mine Equipment Manufacturing Co.,Ltd founded in 1956. As a leader of mining equipment manufacture in China,we have been devoted to creating new and high quality products in mining field for more than 50 years.
Our main products including SQ and JWB endless rope continuous tractor, JSDB series double speed multi-purpose winch, JYB series transport winch, JD series shunting winch, JH series prop-pulling winch, JHMB series slow speed drawing winch, and JZ series sinking winch and etc.
Our sales network is not only in domestic, but also exported to foreign for many years.
Our Packaging: Standard Wooden case, or as customer required.
1. One year warranty for whole machines
2. Low charge for continue maintenance when warranty is expired
3. Exclusive engineer support at any time
Why choose your company?
1. We are the professional maufacturer since 1956,one of biggest supplier in China.
2. We supply high quality products with reasonable price.
3.We have professional sales team.
4.Experienced exporting for all over the world.
5.We provide good after-sales sevice.
Any inquiry,pls feel free to contact us!
