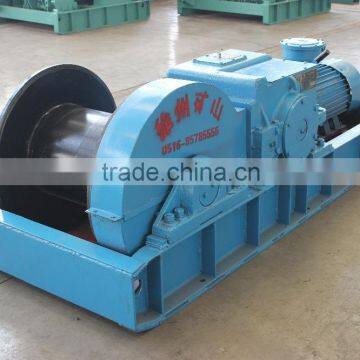

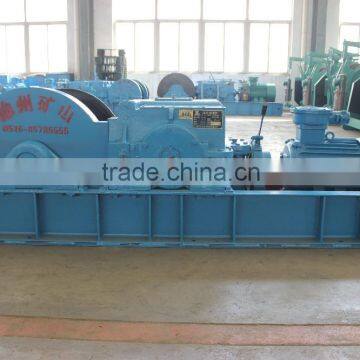

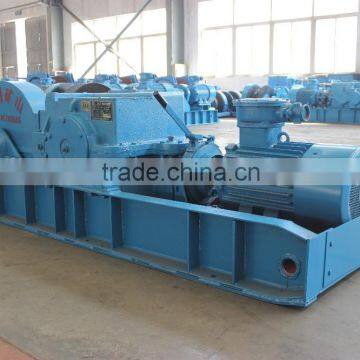

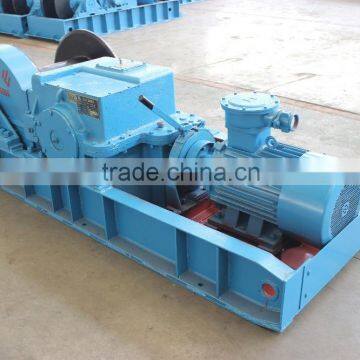

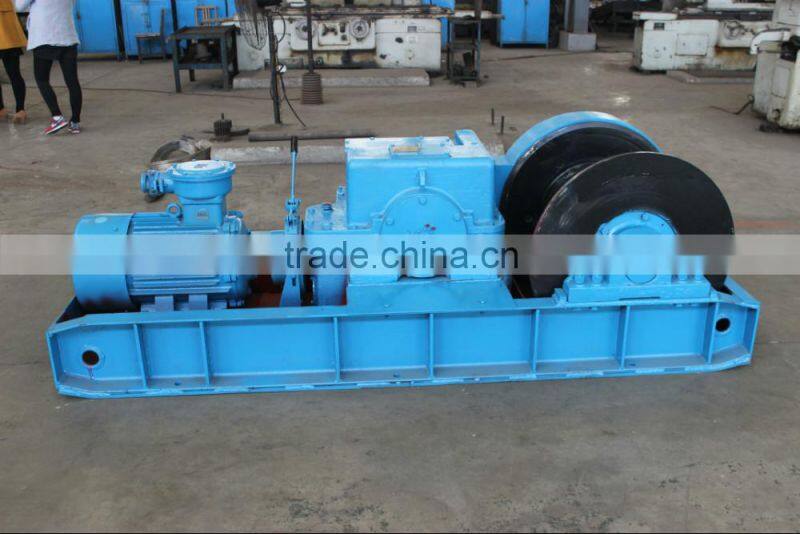

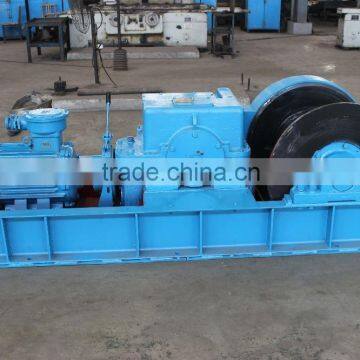

electric 20 ton prop-pulling winch underground mining winch
1.JH-20 series prop-pulling winch are mainly for underground prop pulling, transportation, and chute shifting.
2.High quality mining equipment.
3.Explosion-proof
4.JH series winches, adopting the spherical worm gear pair drive, are compact and small and can be completly down the mine;
5.The mine winches are symmetrically and rectangle arranged with the sledge-shaped chassis, smooth and flexible for underground self-moving; they are for both prop pulling and placing ground anchor due to low center of gravity and good features of chassis, so they are easy to install, smooth to operate, and safe and reliable.
product type and technical parameter
| Model | JH-5 | JH-8 | JY-14 | JH-20 | JH-30 | |||
| wire rope static tension average KN | 50 | 80 | 140 | 200 | 300 | |||
| wire rope speed average m/s | 0.11 | 0.09 | 0.11 | 0.07 | 0.1 | |||
| wire rope capacity m | 80 | 100 | 130 | 170 | 220 | |||
| wire rope diameter mm | 15.5 | 17 | 21.5 | 24.5 | 30 | |||
| motor | power Kw | 7.5 | 7.5 | 11 | 18.5 | 22 | 45 | |
| speed r/min | 1460 | 970 | 970 | 740 | 980 | 990 | ||
| dimension | length mm | 1450 | 1660 | 1645 | 2100 | 2060 | 2700 | 3382 |
| width mm | 580 | 530 | 610 | 775 | 680 | 968 | 1070 | |
| height mm | 515 | 670 | 760 | 955 | 935 | 855 | 1071 | |
| winch weight kg | 630 | 700 | 760 | 1600 | 1450 | 2617 | 4500 | |
| comment | electric 20 ton prop-pulling winch underground mining winch | |||||||
Xuzhou Mine Equipment Manufacturing Co.,Ltd founded in 1956. As a leader of mining equipment manufacture in China,we have been devoted to creating new and high quality products in mining field for more than 50 years.
Our main products including SQ and JWB endless rope continuous tractor, JSDB series double speed multi-purpose winch, JYB series transport winch, JD series shunting winch, JH series prop-pulling winch, JHMB series slow speed drawing winch, and JZ series sinking winch and etc.
Our sales network is not only in domestic, but also exported to foreign for many years.
1. One year warranty for whole machines
2. Low charge for continue maintenance when warranty is expired
3. Exclusive engineer support at any time
Why choose your company?
1. We are the professional maufacturer since 1956,one of biggest supplier in China.
2. We supply high quality products with reasonable price.
3.We have professional sales team.
4.Experienced exporting for all over the world.
5.We provide good after-sales sevice.
Any inquiry,pls feel free to contact us
