High Speed PVC Roll up Door Industrial Door
KJM-300 Industrial Door Product Description
Winson KJM-300 Internal rapid rolling door, it is specifically designed for indoor environment, widely used in factories, business, department stores, warehousing, logistics areas, 300 rapid rolling doors winding speed rapidly, high frequency of use, long life, economical and practical.
KJM-300 Industrial Door Technical Details:
Appearance: High-strength antioxidant aluminum alloy frame 120× 130 mm, silver-white, meet the standard 6063-T6, cold rolled steel with electrostatic spraying/stainless steel.
Power performance: Germany SEW brake motor, power 0.55- 1.5KW, power supply 220V/380V, brake voltage is 220V.
Control system: imported microcomputer frequency conversion to control of electric box (Mitsubishi cpu).
Control voltage: safe low-voltage 24VDC.
Opening speed: open / off 1m / s.
Door curtain material: imported high-density polyester fiber and the surface coating processing, thickness 0.8mm-1.5mm, variety colors can be chose.
Tensile strength: 5700/5100N/5cm, tear strength 900/80N.
Fire-proofing level: German standard MZD / NBL fire resistant.
Usage temperature: -30 ℃ +70 ℃
Transparent window: imported PVC transparent crystal soft plate, thickness 1.5mm, rectangle or oval.
Wind resistant type: aluminum alloy wind resistant ribs, Sub-section connecting, easy to replace.
Wind resistant capability: 9 m / s (50Pa standard 3 × 3).
Sealability: the bottom of the door curtain balloon bags can tight fitting with the uneven ground, door case is U- shaped structure.
Security Configuration: Standard infrared opto-electrical protection, pressure balloon warning lights, anti- collision column, power failure hand crank.
KJM-300 Industrial Door Application:
1. Indoor access, Light industry, food and beverage, electronics, pharmaceutical, printing and packaging, warehousing, chemical and other in high demanding environments.
2. For the places that frequently opening and shutting.

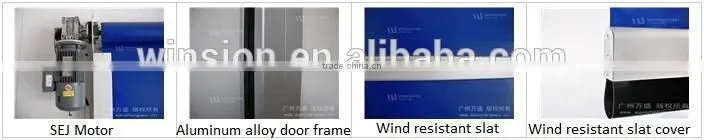

KJM-300 Industrial Door Body Structure:
KJM-300 Industrial Door Products Pictures:
KJM-300 Industrial Door Package:
1.Being packed in plywood box inside with plastic foam for protection;
2. Packaging details:
1). Door top;
2). Door curtain;
3). Door frame;
4). Driving motor;
5). Controller;
6). Photocell plate;
7). Manual button setting;
8). Mannual insruction.
KJM-300 Industrial Door Delivery:
1. After order confirmation, 7~20 working days to delivery as usual;
2. Every delivery will be made after products testing.
Payment Details:
1. TT payment is available;
2. Before production, 50% of the payment will be required to confirm the order; Before delivery, another 50% balance need to be made.
Afterselling Service:
1. Warranty: 1 year;
2. During warranty period, any broke or failure(except of human destroy) to our products will be repaired;
3. Any questions or requirements will be dealt properly within 24 hours.
Company Profile:
Guangzhou Winsion Door Industry Co., Ltd, an industrial doors manufacturer in Guangzhou, China, supplying automatic doors, high speed roll up& fold up doors, industial sectional doors, roller shutter doors, lock levellers, loading bay equipments ect.. All the products have been approved by CE, ISO9001.
Winsion has been in this field for more than 12 years, and attract its customer by its strong responsibility, service and reliable products quality. With more than 100 production staffs, 20 technical staffs, 6 R&D, 10 marketing sales, and advanced production machines, will serve you good service and quality.
It is now developed the business far into Asia, Europe, America, Africa, Australia ect.. And we welcome your join in us and develop our mutual market.
