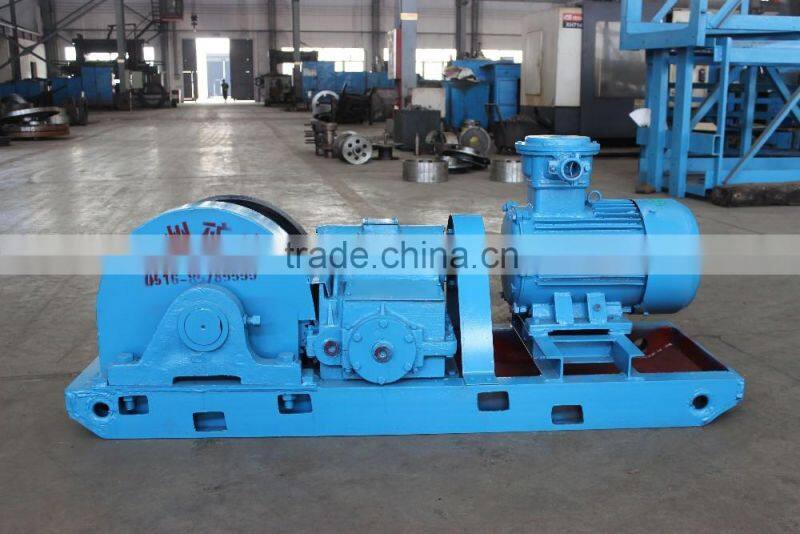

electric prop cable pulling winch
electric prop cable pulling winch
1.JH series prop-pulling winch are mainly for underground prop pulling, especially suitable for vertical groove, thin groove, the thick groove with less pressure of tunnelling working face.
2.JH series prop-pulling winch adopting to spherical worm gear pair drive,the feature is that compact constructure, small volume,light weight, easy move,smooth running,easy maintanance,simple operation etc.
3.JH series prop-pulling winch are symmetrically and rectangle arranged with the sledge-shaped chassis, smooth and flexible for underground self-moving; they are for both prop pulling and placing ground anchor due to low center of gravity and good features of chassis, so they are easy to install, smooth to operate, and safe and reliable.
Product catalog and technical paremeter:
| electric prop cable pulling winch | ||||||||
| Model | JH-5 | JH-8 | JH-14 | JH-20 | JH-30 | |||
| wire rope static tension average KN | 50 | 80 | 140 | 200 | 300 | |||
| wire rope speed average m/s | 0.11 | 0.09 | 0.11 | 0.07 | 0.1 | |||
| wire rope capacity m | 80 | 100 | 130 | 170 | 220 | |||
| wire rope diameter mm | 15.5 | 17 | 21.5 | 24.5 | 30 | |||
| motor | power Kw | 7.5 | 7.5 | 11 | 18.5 | 22 | 45 | |
| speed r/min | 1460 | 970 | 970 | 740 | 980 | 990 | ||
| dimension | length mm | 1450 | 1660 | 1645 | 2100 | 2060 | 2700 | 3382 |
| width mm | 580 | 530 | 610 | 775 | 680 | 968 | 1070 | |
| height mm | 515 | 670 | 760 | 955 | 935 | 855 | 1071 | |
| winch weight kg | 630 | 700 | 760 | 1600 | 1450 | 2617 | 4500 | |

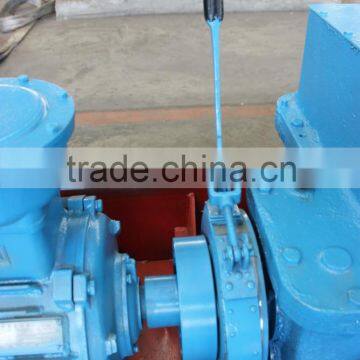

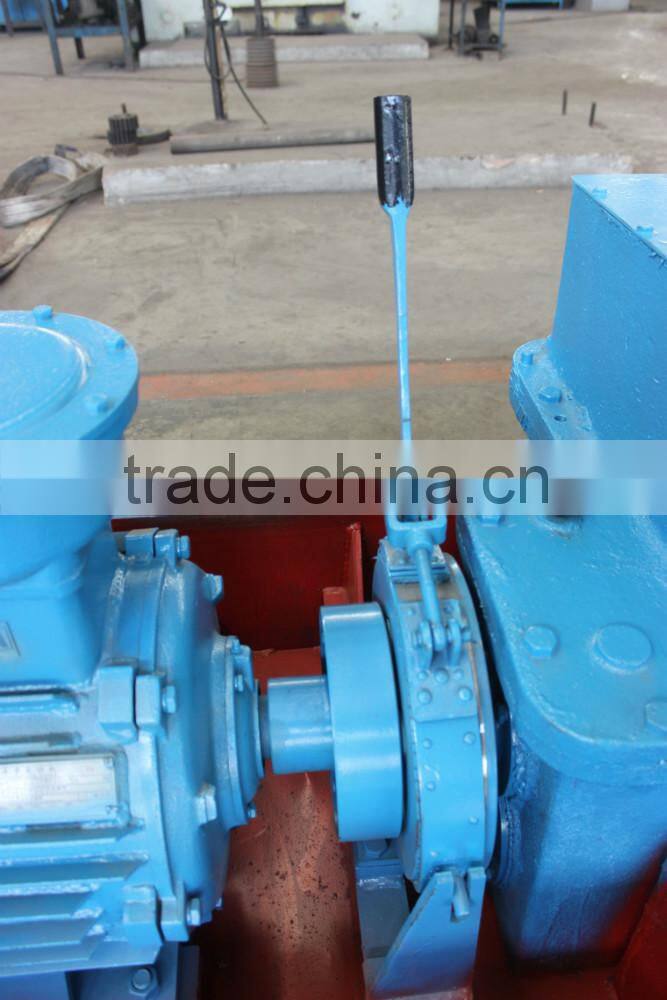

| comment | A hand brake device | A hand brake device | ||||||
Xuzhou Mine Equipment Manufacturing Co.,Ltd founded in 1956. As a leader of mining equipment manufacture in China,we have been devoted to creating new and high quality products in mining field for more than 50 years.
Our main products including SQ and JWB endless rope continuous tractor, JSDB series double speed multi-purpose winch, JYB series transport winch, JD series shunting winch, JH series prop-pulling winch, JHMB series slow speed drawing winch, and JZ series sinking winch and etc.
Our sales network is not only in domestic, but also exported to foreign for many years.
Our packaging: The standard wooden case or as custmers required.
1. One year warranty for whole machines
2. Low charge for continue maintenance when warranty is expired
3. Exclusive engineer support at any time
Why choose your company?
1. We are the professional maufacturer since 1956,one of biggest supplier in China.
2. We supply high quality products with reasonable price.
3.We have professional sales team.
4.Experienced exporting for all over the world.
5.We provide good after-sales sevice.
Any inquiry,pls feel free to contact us!
electric prop cable pulling winch
