Specifications
1. Mounted on a trailer.2. XY-130 max. depth is 130m.
3. It can drill various soft and hard rock.
4. BV & SGS certificate.

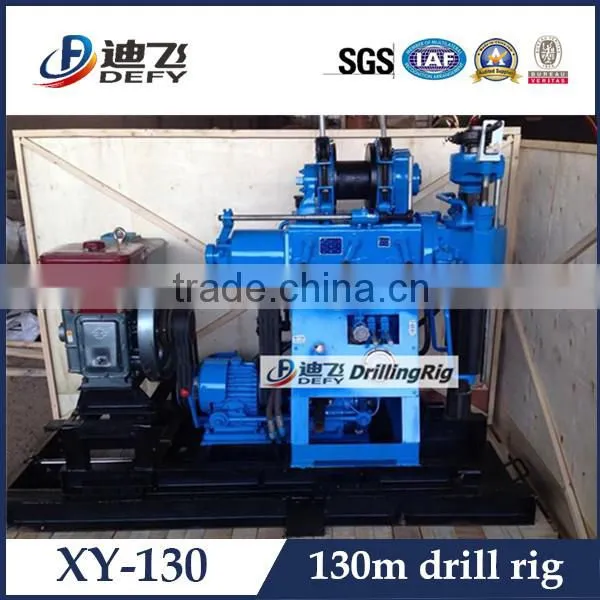

XY-130 130m mineral exploration drilling rig from Zhengzhou Defy factory
Brief Introduce
XY series is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects, etc.
Attracting features
1. Slide base: It is to make machine move when you need to adjust drilling position.
2. It has different types.
Four-wheel, two-wheel.
3. Different bits
Alloy Bit, Diamond Bit. According to your Geological conditions, I can help you choose suitable bit.
4. Spare parts
We provide factory cost accessory all year round.
5. Power
Diesel engine or motor
Specification
Drilling depth |
130m |
Maximum borehole caliber |
300mm |
Minimum borehole caliber |
75mm |
Diameter of Drill pipe |
42, 50, 60mm |
Drilling angle |
90°~75° |
Weight(Not include power) |
810kg |
Unity machine dimension |
2750*950*1600mm |
SPT tools
Package
Different models of same series
Model |
Drilling caliber |
Max. drilling depth |
Application Range |
XY-100 |
300mm~75mm |
100m |
Geological exploration & survey; Mineral prospecting; Water wells; Blast hole; Geothermal heat wells and so on. |
XY-130 |
300mm~75mm |
130m |
|
XY-150 |
400mm~75mm |
150m |
|
XY-180 |
400mm~75mm |
180m |
|
XY-200 |
400mm~75mm |
200m |
Company Certificate
Defy tips:
How to choose a suitable machine?
1. What will you do using drilling rig?
---For water project, core sample, soil test, mineral prospect or others?
2. The depth you need?
---For water well, generally, 30-200m. For core sample, 30-600m, even more.
3. Any requirements to hole diameter?
---Within a certain range, the smaller diameter, the deeper depth. Mathematically, we call it inversely proportional.
4. Working land condition?
A. soil, sand, weathered land, etc. soft stratum.
B. soil, sand, soft and hard rock stratum, mixed one.
C. Mainly hard rock, like granite.
Based on the above information, experienced engineers will help you recommend suitable machine. If you have special demands, please tell us in advance.
