Specifications
DFQ-100W Trailer Mounted Mining Blasting Drilling Rig for Sale1. DTH hammer
2. air feeding and mud pump
3. diesel
4. BV,SGS
DFQ-100W Full Hydraulic Trailer Mounted Mining Blasting Drilling Rig ( feed by air compressor )
I. Introduction
DFQ-100W trailer mounted portable drilling rig is widely applied for mining blasting, water wells, agricultural irrigation well, geothermal air-conditioning hole and other uses, especially for mountainous and rock areas.
II. Specifications of DFQ-100W Trailer Mounted Mining Blasting Drilling Rig
No. |
Item |
DFQ-100W |
1 |
Drilling caliber |
Φ105-203mm |
2 |
Max. drilling depth |
100m |
3 |
Diameter of drill pipe |
60mm, 63.5mm |
4 |
Unit Length of drill pipe |
1500mm |
5 |
Gas consumption |
15-18 m³/min |
6 |
Impacter |
DHD340350 |
7 |
Apply to rock hardness |
f=6-12 |
8 |
Power |
24Kw/2300rpm |
9 |
Walking speed |
0~2.0 Km/h |
10 |
System pressure |
20MPa |
11 |
Propulsion |
5.0tonf |
12 |
Lifting force |
8.5tonf |
13 |
Rotary torque |
1050N.m |
14 |
Weight |
2200 Kg |
15 |
Dimension |
3200*1770*2050mm |

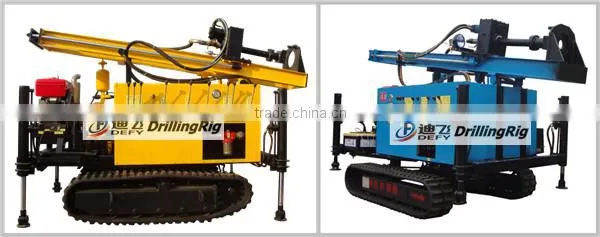

III. Crawler types of portable mining blasthing drilling rig for Choice:
IV. Working site of full hydraulic drilling rig
V. Customer visit to our factory
Contact me if you have any interest in our drilling rig! ^_^
