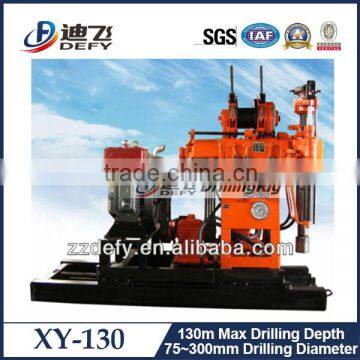

Economical popular Exported 80-130m Portable mini water well drilling rig
Brief Introduction:
1. Power supply:
It can be powered by diesel engine or electric motor as options;
2. Mobile base:

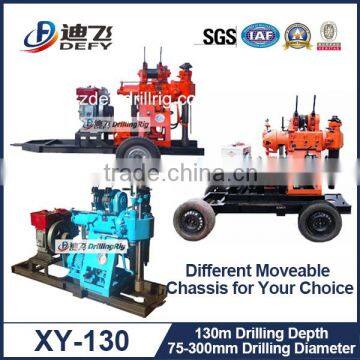

It can be mounted on trailer, crawler or truck for easy move and different drilling environment;
3. Hydraulic control:
more convenient and safe to operate;
4. Three levels for rotation speed
Different grade of speed is designed for different stratums.
5. For different stratum
Soil, sand, gravel, rocks. XY-100 can work with alloy bit for soil and sand, PDC bit for gravel, and diamond bit for rocks and hard rocks.
Specifications:
Unity machine parameter:
Drilling depth: 130m
Maximum open hole caliber: 300mm
End hole caliber: 75mm
Drill rod caliber: 50mm
Drilling angle: 90~75
Drill weight(No include power): 580kg
Unity machine dimensions : 2*0.9*1.4m

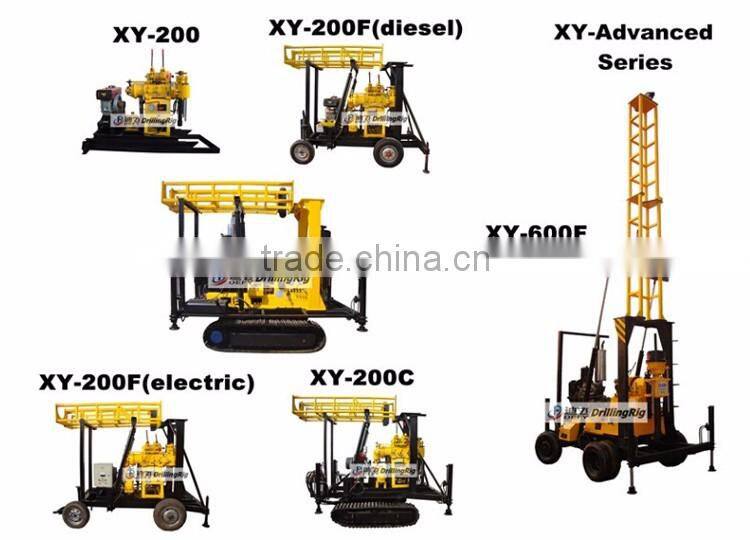

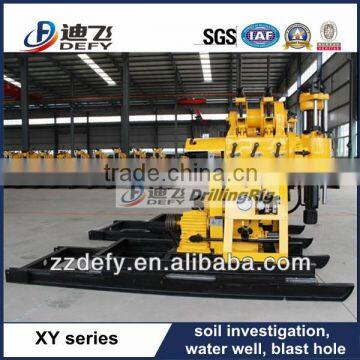

Different models of same series:
Model |
Drilling caliber |
Max. drilling depth |
Application Range |
XY-100 |
300mm~75mm |
100m |
Geological exploration & survey; Mineral prospecting; Water wells; Blast hole; Geothermal heat wells and so on. |
XY-130 |
300mm~75mm |
130m |
|
XY-150 |
400mm~75mm |
150m |
|
XY-180 |
400mm~75mm |
180m |
|
XY-200 |
400mm~75mm |
200m |
Characteristics:
1. Power can be equipped by electrical motor or diesel engine, as per your project needs;
2. Hoist adopts Frictional clutch mechanism, using powder metallurgy friction plate,with good
performance and long service life; With rapid and convenient hydraulic movable base, reliable
hydraulic position locking, greatly improve the working efficiency before drilled hole, such as
adding and taking off the drill rods ;
3. Hydraulic part: piston rod adopts stern sealing ring(sealing ring for shaft),hydro-cylinder piston adopts Glyd ring(sealing ring for hole), up to international advanced level, with good
sealing performance and durability;
4. Easy to be disassembled, installed and operation.
5. With large rotary torque which are better than the other same level drilling machines. The rotaryunit has different rotating speed grades, which can meet the requirements in different layers and
different drilling projects.
Drilling Rig Manufacturer DEFY Service
1.Professional technical support pre-sale, sale and after-sale .
2.Your problems can get feedback in 8 hours and be solved in 24 hours.
3.Machine can be customized as per your requirement.
4.One year quality warranty.
5.Training: operation manual and DVD operation video, overseas installation is also available.
6.Spare parts are available in our factory at cost price for former customers.

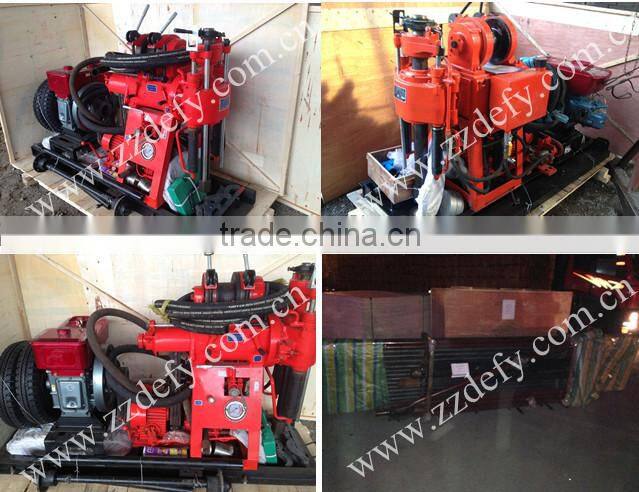

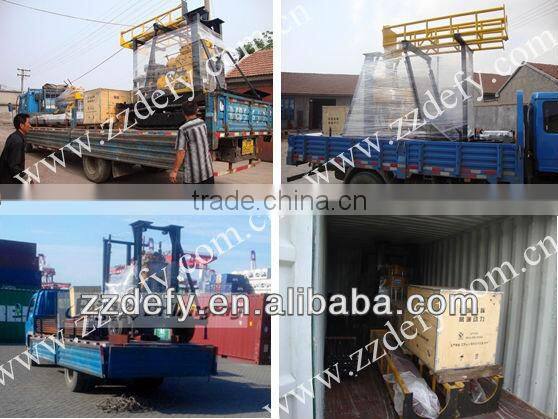

Product Delivery
1. What will you do using drilling rig?
---For water project, core sample, soil test, mineral prospect or others?
2. The depth you need?
---For water well, generally, 30-200m. For core sample, 30-600m, even more.
3. Any requirements to hole diameter?
---Within a certain range, the smaller diameter, the deeper depth. Mathematically, we call
it inversely proportional.
4. Working land condition?
A. soil, sand, weathered land, etc. soft stratum.
B. soil, sand, soft and hard rock stratum, mixed one.
C. Mainly hard rock, like granite.
Based on the above information, experienced engineers will help you recommend suitable
machine. If you have special demands, please tell us in advance.
Thanks for browse our products information. If you have any question, or want to know more about Models and quotation, Pls contact me directly:
Nora
Skype/MSN: nora-drillingrig
Phone/WhatsApp: 86-15286806707
Tel: 86-371-55819257
Fax: 86-371-66770722
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. has more than 40 years experience of production and development of drilling rig equipment.Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. Our professional engineer and sales teams, offering technical support and useful advice whenever you need.
