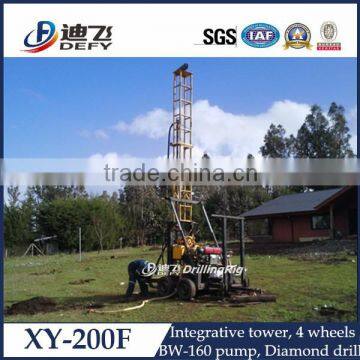

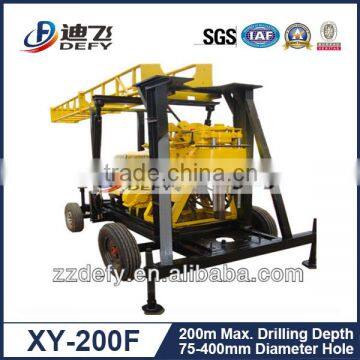

Large drilling depth trailer drilling equipment factory
Soil drilling rig machine Specification
Main parameter | |
Drilling depth |
200m |
Maximum borehole caliber |
400mm |
Minimum borehole caliber |
75mm |
Diameter of Drill pipe |
42,50,60mm |
Drilling angle |
90°~75° |
Weight(Not include power) |
810kg |
Unity machine dimension |
2750*950*1600mm |
Accessories
Advantages:
(1) With integrative drilling tower, supported by two high strength oil cylinder, hydraulic controlling the rise and fall of the tower, operation is extremely convenient, saving time and labor effort,create maximum benefit for the user.
(2) The chassis used trailer type,has wheels and traction, can be pulled directly by a tractor or truck, achieve rapid turnarounds, very convenient.
(3) Chassis have four high strength thread legs (or hydraulic legs) ,quick and convenient to install, while working to support reliable stability.
(4) Uses the electric-start diesel engine, greatly reduces the labor intensity of operators, especially more efficient in the cold season when the diesel engine start is difficult, showing its great advantage.
(5) The machine is equipped with a complete set of independent BW - 160 mud pump, with high pump flow rate and pressure, convenient maintenance, convenient to buy spare and accessory parts all around.
Working sites
Delivery site
1.Professional techinical support pre-sale, sale and after-sale .
2.Your problems can get feedback in 8 hours and soloved in 24 hours.
3.Machine can be customized as per your requirement.
4.One year quality warranty.
5.Training: operation manual and DVD operation video, overseas installation is also
available.
6.Spare parts are available in our factory at cost price for former customers.
How to choose a suitable drilling rig?
1. What will you do using drilling rig?
---For water project, core sample, soil test, mineral prospect or others?
2. The depth you need?
---For water well, generally, 30-200m. For core sample, 30-600m, even more.
3. Any requirements to hole diameter?
---Within a certain range, the smaller diameter, the deeper depth. Mathematically, we call it inversely proportional.
4. Working land condition?
A. soil, sand, weathered land, etc. soft stratum.
B. soil, sand, soft and hard rock stratum, mixed one.
C. Mainly hard rock, like granite.
Based on the above information, experienced engineers will help you recommend suitable machine and price. If you have special demands, please tell us in advance.
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. has more than 40 years experience of production and development of drilling rig equipment.Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. Our professional engineer and sales teams, offering technical support and useful advice whenever you need.
