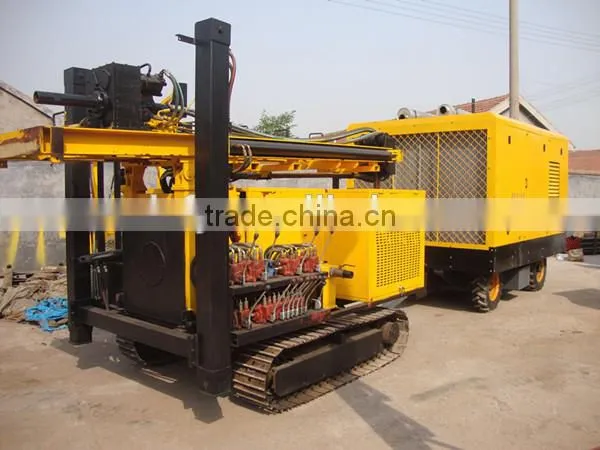

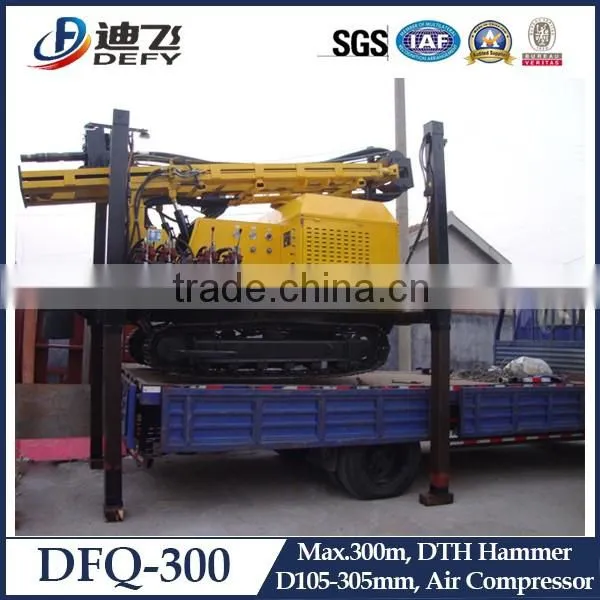

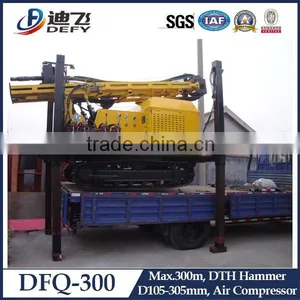

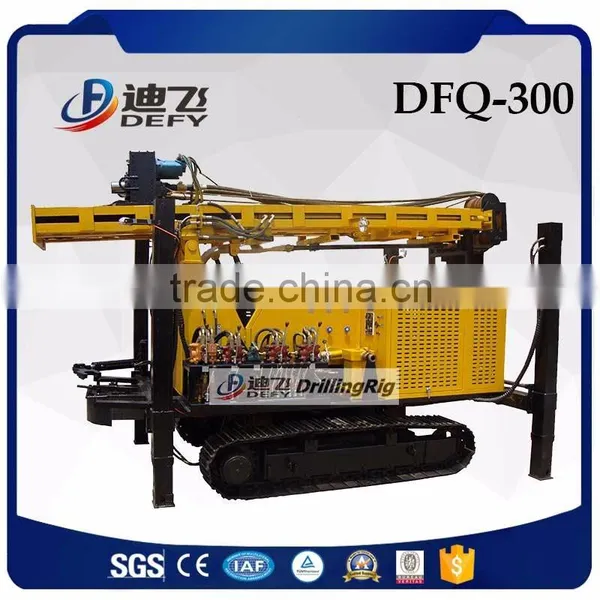

Water Well Drilling Equipment Rig With DTH Hammer and Air Compressor

Water Well Drilling Equipment Rig With DTH Hammer and Air Compressor thumbnail-1
Water Well Drilling Equipment Rig With DTH Hammer and Air Compressor thumbnail-2
Water Well Drilling Equipment Rig With DTH Hammer and Air Compressor thumbnail-3
Water Well Drilling Equipment Rig With DTH Hammer and Air Compressor thumbnail-4
Water Well Drilling Equipment Rig With DTH Hammer and Air Compressor thumbnail-5
Water Well Drilling Equipment Rig With DTH Hammer and Air Compressor thumbnail-6
Water Well Drilling Equipment Rig With DTH Hammer and Air Compressor photo-1
Water Well Drilling Equipment Rig With DTH Hammer and Air Compressor photo-2
Water Well Drilling Equipment Rig With DTH Hammer and Air Compressor photo-3
Water Well Drilling Equipment Rig With DTH Hammer and Air Compressor photo-4
Water Well Drilling Equipment Rig With DTH Hammer and Air Compressor photo-5
Water Well Drilling Equipment Rig With DTH Hammer and Air Compressor photo-6
US$ 30,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin Henan, China
Brand Name DEFY
Model Number DFQ-300
Usage Water Well
Voltage Customized
Power(W) 90kw
Dimension(L*W*H) 5200*2080*2760 mm
Weight 7500kg
Certification ISO, BV, SGS
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Brief introduction

1, It's a light weight, high efficiency and multi-function drilling equipment

2, suitable for drilling water wells, agricultural irrigation well, geothermal air-conditioning hole and other uses, especially for water engineering in mountainous and rock areas.

3, DFQ series can work efficiently under all kinds of geological structure, even very hard rocks, gravel, pebble stratum.

Advantages:


1. Adopts the new type hydraulic technology, equipped with two rotary hydraulic motors with high torque, Max. torque comes to 7200 N · m, spindle rotating speed is between 45~125rpm, 6 grades to switch.

2.Two large caliber high pressure cylinders, 12 tons lifting power, ensure the drill rig have reliable propulsion and lifting force when drilling deep holes.

3.Multi-cylinder water-cooled engine by Famous brand provide abundant power for the hydraulic system.

4.Six rotation and propulsion speeds can meet the demand of different soil and rock drilling.

5.Centralized control of the hydraulic control console, convenient to operate. Unique pump group design, easy maintenance, save the maintenance cost

6.Crawler chassis, strong cross-country ability and easy to transport.

Technical Parameter
water well drilling rig
Item
Unit
Specification
Drilling hole diameter
mm
115~300
Drilling depth(m)
m
300
Work pressure
(MPa)
1.05~2.46
Air consumption
(m³/min)
10~30
Lifting force
(t)
12.5
Rotation torque
(Nm)
3600/7200
Drill rod caliber(mm)
mm
76/89
Drill rod length(m)
m
3
Dimension(mm)
mm
5200*2080*2760
Total weight
(Kg)
7500
Detailed Image

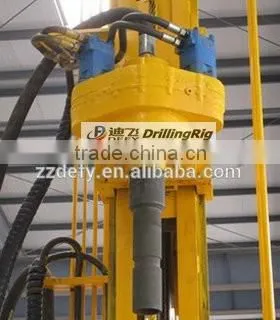

Power Head

Fully hydraulic system, large power, fast drilling speed.




   Steel crawler chassis

   Easy moving on mountain area.




instrument board

Clearly showing the drilling condition

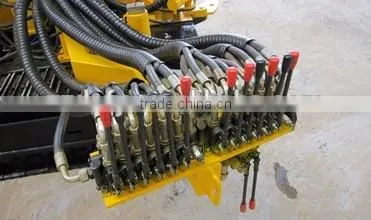

      Operation handle

         Compact structure, Easy operation

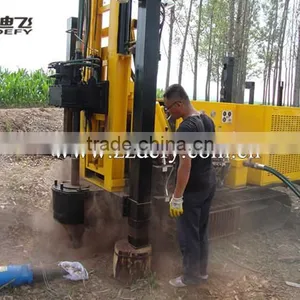

Working site

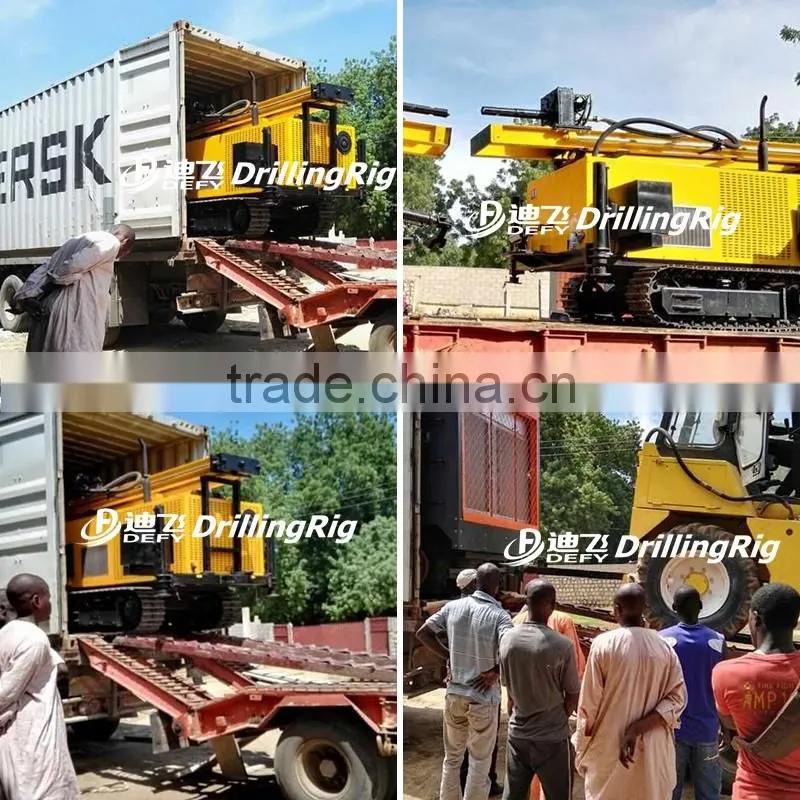

Packing & Delivery
Packaging
Size
5200*2080*2760 mm
Weight
7.5t



Packaging Details
1, Drilling Rig main machine in container

2, accessories in Wooden Case or according to your requirement

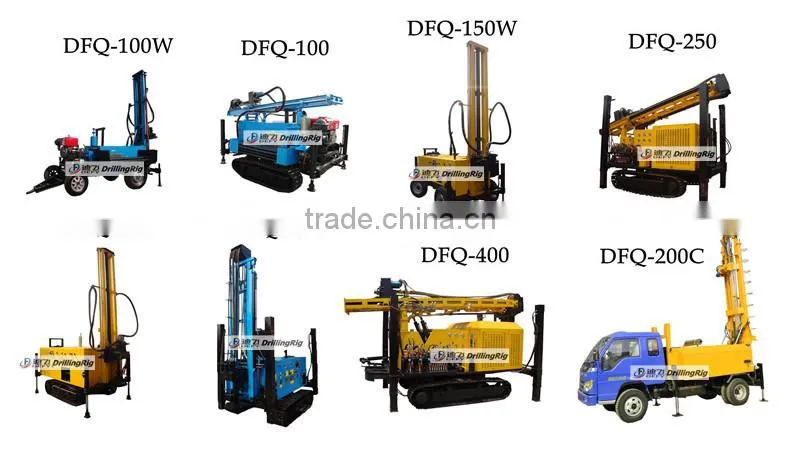

Other models
