DF-150S Cheap and Portable Rock Drilling, Water Wells Drilling Rig Machine

DF-150S Cheap and Portable Rock Drilling, Water Wells Drilling Rig Machine thumbnail-1
DF-150S Cheap and Portable Rock Drilling, Water Wells Drilling Rig Machine thumbnail-2
DF-150S Cheap and Portable Rock Drilling, Water Wells Drilling Rig Machine thumbnail-3
DF-150S Cheap and Portable Rock Drilling, Water Wells Drilling Rig Machine thumbnail-4
DF-150S Cheap and Portable Rock Drilling, Water Wells Drilling Rig Machine thumbnail-5
DF-150S Cheap and Portable Rock Drilling, Water Wells Drilling Rig Machine thumbnail-6
DF-150S Cheap and Portable Rock Drilling, Water Wells Drilling Rig Machine photo-1
DF-150S Cheap and Portable Rock Drilling, Water Wells Drilling Rig Machine photo-2
DF-150S Cheap and Portable Rock Drilling, Water Wells Drilling Rig Machine photo-3
DF-150S Cheap and Portable Rock Drilling, Water Wells Drilling Rig Machine photo-4
DF-150S Cheap and Portable Rock Drilling, Water Wells Drilling Rig Machine photo-5
DF-150S Cheap and Portable Rock Drilling, Water Wells Drilling Rig Machine photo-6
US$ 5,000 - 9,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Electric
Place of Origin Henan, China
Brand Name DEFY
Model Number DF-150S
Usage Water Well
Voltage Customized
Power(W) 24kw
Dimension(L*W*H) 4300*1270*1500mm
Weight 1600
Certification ISO, BV, SGS
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

DF-150S Introduction

1, Economical water well drilling rig,  widely used in agricultural wells, civil water wells, test wells, dewatering well, GSHP hole and other exploration holes and other drilling works.

2,  It has features such as big caliber, profound depth, fast drilling speed, easy to move, adapt for wide geographical region.

3, The rig is a full hydraulic drilling rig driven by a 32 HP engine and hydraulic pump station to complete the operation, which eliminating all electrical equipment in the field.
Technical Parameter
Dimension（mm）
4300*1270*1500
Caliber（mm）
115~254
Max depth（m）
150
Walking speed（Km/h）
0-2
Feeding stroke(mm)
1500
Grade ability（°）
30
Work pressure（MPa）
1.0~2.0
Air consumption（m³／min）
10~20
Leg cylinder stroke（mm）
1600
Ground clearance(mm)
200
Diameter of the drill pipe（mm）
76/89/102
Axial pressure（N）
28000
Lifting force（N）
58000
Hoist（N）
15000
Rotary torque（Nm）
3600
Power（Kw）
24
Impact frequency
840/1500
Apply for rock hardness（f）
6~20

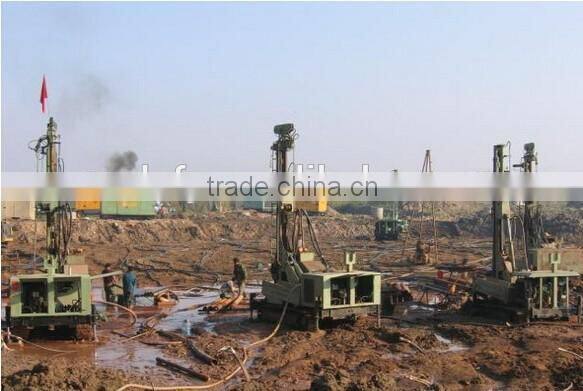

DF series Work site
Customer visiting
Our Service

Delivery time

Depends on the quantity, usually it is 7-10 working days after receiving the deposit.

Quality control

We have QC department, before shipping, goods will be strictly checked.

Tech support

- 24 hours * 7 days online pre & after sale service ;
- Factory site training or engineers go to overseas to train the workers ;
- Manual and DVD operation video.

Our Company

 Zhengzhou Defy Mechanical & Electrical Equipment CO., Ltd. locates in High-tech zone of Zhengzhou City, China. Our factory dedicates to manufacturing drilling rigs since 1970s, more than 40 years experience of production and development make our product quality rank in the leading position at home and abroad.

Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. Our professional engineers and sales team, offering technical support and useful advices whenever you need.
