Product Application

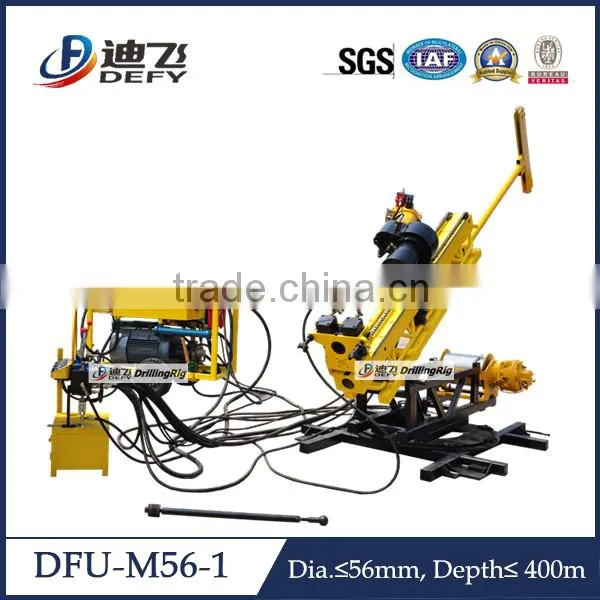

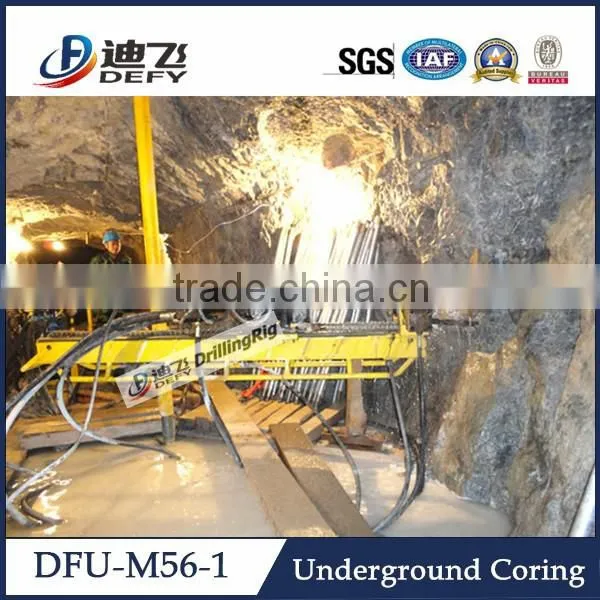

DFU-M56-1 tunnel drilling rig is a portable drilling rig machine, widely used for mining exploration in
underground tunnel. Besides, it can also be used in railway engineering, tunneling and water conservancy project,etc. You will surely benefited a lot by its excellent and reliable performance.
1)Oil pump drive motor to rotate, hydraulic cylinder working without turret.
2)Machine’s rotation, feed, pumping and clamping rely on hydraulic transmission, to make drilling work smoothly.
3)Fast drilling speed can achieve arbitrary direction’s dip angle drilling, high applicability.
4)Adopts V-guide, the highest principal axis’concentricity.
5)Easy to operate, can be disassembled and easy transport.
|
Drilling depth (m) |
Drilling hole diameter (mm) |
Drilling pipe diameter (mm) |
Drilling pipe material |
400 |
36 |
33 |
Aluminum |
200 |
36 |
33 |
Steel |
300 |
46 |
43 |
Aluminum |
180 |
46 |
42 |
Steel |
140 |
56 |
52 |
Steel |
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Established in 1970s, Zhengzhou Defy has growned into one leading drilling rig manufacturer in China, specilizing in drilling rig technology R&D, manufacturing, etc. We spark on conventional rotary drilling rig, new pneumatic drilling rig and are inventing another drilling rig with performance same as pneumatic one, but with much less investment for users.
Our drilling rigs are widely used for water well drilling, irrigation well drilling, geothermal hole drilling, mining blast hole drilling, construction pile work drilling, air-conditioner hole drilling, etc.
DEFY Brand drilling rigs have been widely exported to Chile, Russia, Australia, Malaysia, Kenya, Tansanzia, Zambia, South America, Peru, Zimbabwe, etc.
Every customer is very welcomed to our factory for visiting driling rig, talking onsite and details. ^_^
How to choose a suitable drilling rig?
1. What will you do using drilling rig?
---For water project, core sample, soil test, mineral prospect or others?
2. The depth you need?
---For water well, generally, 30-200m. For core sample, 30-600m, even more.
3. Any requirements to hole diameter?
---Within a certain range, the smaller diameter, the deeper depth. Mathematically, we call it inversely proportional.
4. Working land condition?
A. soil, sand, weathered land, etc. soft stratum.
B. soil, sand, soft and hard rock stratum, mixed one.
C. Mainly hard rock, like granite.
Based on the above information, DEFY experienced engineers will help you recommend suitable machine and price. If you have special demands, please tell us ahead.
