DFU-300 Top Quality 200-300m Boring Machine for Tunnel

DFU-300 Top Quality 200-300m Boring Machine for Tunnel thumbnail-1
DFU-300 Top Quality 200-300m Boring Machine for Tunnel thumbnail-2
DFU-300 Top Quality 200-300m Boring Machine for Tunnel thumbnail-3
DFU-300 Top Quality 200-300m Boring Machine for Tunnel thumbnail-4
DFU-300 Top Quality 200-300m Boring Machine for Tunnel thumbnail-5
DFU-300 Top Quality 200-300m Boring Machine for Tunnel photo-1
DFU-300 Top Quality 200-300m Boring Machine for Tunnel photo-2
DFU-300 Top Quality 200-300m Boring Machine for Tunnel photo-3
DFU-300 Top Quality 200-300m Boring Machine for Tunnel photo-4
DFU-300 Top Quality 200-300m Boring Machine for Tunnel photo-5
US$ 35,000 - 59,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Core Drilling Rig
Power Type Electric
Place of Origin Henan, China
Brand Name DEFY
Model Number DFU-300
Usage Coal
Voltage 220V/380V
Power(W) 45kw
Dimension(L*W*H) 2950*950*1850mm
Weight 2560kg
Certification SGS, BV
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

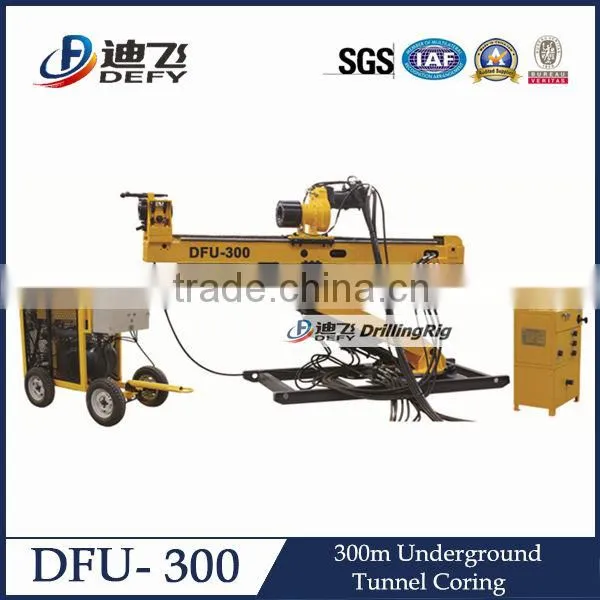

DFU-300 top quality 200-300m boring machine for tunnel

DFU-300 boring machine mainly used in coal, geology, metallurgy and engineering with large diameter, or horizontal tunnel drilling projects.

 1.Drilling depth

 Φ55mm(2.17inch)
 300m(984feet)
 Φ71mm(2.80inch) drill rod
 200m(656feet)
 2. Drill rod spec.
 Φ55×1500mm drill rod ; Φ71×1500mm drill rod
 3. The range of spindle rotating speed
 425-1280rpm
 4.The max. rotating torque of spindle
 795 N·m(586 lbf·ft)
 5. The working pressure:
 25 Mpa(3626 psi)
 6. Spindle stroke
 1600mm(63 inch)
 7. The max. Lifting force of drill head
 62KN(13938 lbf)
 8. max. Feeding force of drill head:
 33KN(7418 lbf)
 9. The sliding stroke of mast
 495mm(19.5 inch)
 10. The swing angle of mast bracket  (left & right)
 90°
 11. The swing angle of arm(up and down)
 100°
 12. Power unit
 YB225M-4(dIICT4) explosion-proof
Features

1. It is separate in structure, small in size, light in weight, flexible in movement and convenient in operation.

2. The hydraulic pump is driven by explosion~proof electric motor through operating system, then the hydraulic pump
enforces hydraulic motor to make drill head rotate, and at the same time, the movement of drill head is realized by oil
cylinder & chain double speed mechanism.

3. Hydraulic chuck can satisfy the function of shackles and power-off protection.

4. The sliding and extending & retracting function of the mast makes it convenient for the bottom of mast to touches the
ground or platform, thus the drill rig will be more stable.

5. The swinging arm and mast can do luffing movement, which satisfy the request of multi-angle drilling.

6. The range of spindle rotating speed is wide and the torque is large.
