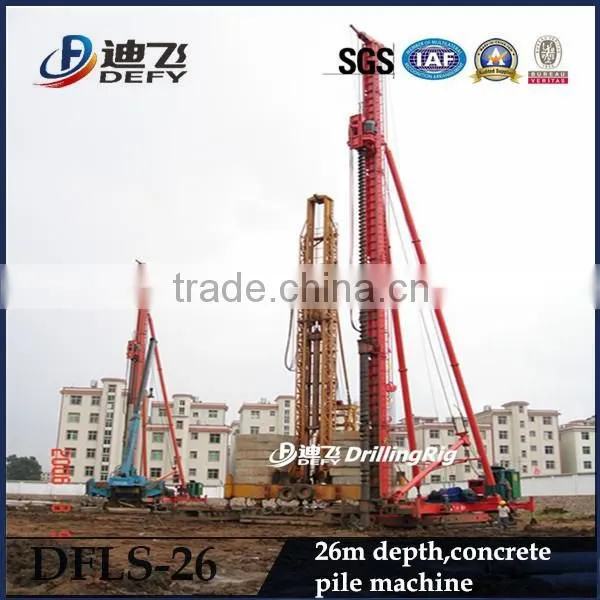

26m depth bore pile drilling rig machine with top quality
Product Specifications of DFLS-26 Piling Rig:
DFLS-26 bore pile drilling machine is new pile foundation construction machinery, adopting hydraulic walking type, electronic hoist, long spiral drilling. Hydraulic drive chassis can achieve 360° rotation, position, movement, leveling etc. Action are quick and accurate.
Self-propelled folded pile frame; uses two electric winches, can do drilling operation, also Lifting reinforcing cage on its own, perfusion operations.
Brief Details of Piling Drilling Rig:
1. Model No.: DFLS-26
2. Max. Drilling Depth: 26m
3. Borehole Diameter: 400~800mm
4. Warranty: One year guarentee excluding wearing parts
5. Certifications: BV,SGS Certificate
6. Applications: foundation piling, municiple infrastructure, construction foundation, etc.
Parameters of DFLS-26 Pile Driver
Drilling diameter (mm) |
400/600/800 |
Drilling depth (m) |
26/26/20 |
Power head power (KW) |
55×2 |
Max. torque (KN·m) |
35.5 |
Drilling pipe rotary speed (r/min) |
24.2 |
Drill pulling force (KN) |
300 |
Max. slope of work ground (°) |
2 |
Column tilt range (°) |
2 |
Ground pressure (Mpa) |
0.2 |
Walk way |
walking-pedrail |
Step size (m) |
1.1 |
Walking speed (m/min) |
3.37, 2.26 |
Rotation speed (m/min) |
0--0.6 |
Rotation angle (°) |
360 |
Transport method |
Trailer+ disassembly parts |
Turning radius (m) |
12 |
Speed limit (km/h) |
15 |
Working Dimensions (m) |
12*5*31 |
Delivery Dimensions (m) |
10.5*3*3.1 |
Whole weight (t) |
46 |
Please kindly tell us your detailed requirement then our professional engineers will give you the most suitable suggestions.
1. What kind of projects you will work for?
---Water well, Borehole, Exploration coring, Foundation Piling, Blast holes, Geothermal air-conditioner holes or others?
2. The Max. depth of drilling you hope to achieve?
3. The hole diameter you want?
4. Condition of the environment?
---Soft ground like soil, mud, sand.
---Hard ground like hard rocks .
---Or mixed.
DERY Service
1.Professional technical support pre-sale, sale and after-sale .
2.Your problems can get feedback in 8 hours and solved in 24 hours.
3.Machine can be customized as per your requirement.
4.One year quality warranty.
5.Training: operation manual and DVD operation video, overseas installation is also available.
6.Spare parts are available in our factory at cost price for former customers.
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. has more than 40 years experience of production and development of drilling rig equipment.Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. DEFY Brand drilling machine have been widely exported to Chile, Russia, Australia, Malaysia, Kenya,Tanzania, Zambia, South America, Peru, Zimbabwe, etc.Our professional engineer and sales teams, offering technical support and useful advice whenever you need.
