Specifications
1.strong pull force, good dismount-ability2.easy handling migration
3. 1200KN

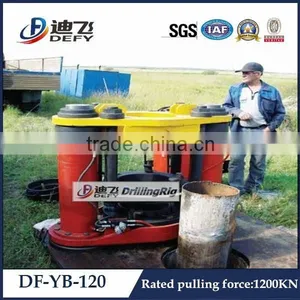

Strong trailer type casing, drill pipe pulling machine
1. introduction
DF~YB~120hydraulic pulling machines are different kinds of engineering and Drilling drill auxiliary equipment for pile construction, jet grouting drilling technology, and other anchor hole drilling projects.It is used for pulling for casing pipe and drill pipe, can also be used to deal with accidents to pull drill casing and drill pipe out of wall.
2.structural features
The series consists of pump stations, extubation cylinder, base and other component parts. When slip grip casing or drill pipe, the reciprocating cylinder to pull from the casing and drill pipe. This series is closed integrated structure, small size, safe and reliable, stable operation and so on.
The machine uses a hydraulic servo~balanced organization, pull smoothly, Cylinder force uniform. users can also use longer tubing with different working site. Pulling casing in larger area, reducing the times of moving.
This pulling machines light weight, strong pull force, good dismount~ability, easy handling migration, especially for the slope, trenches, mountains and other construction sites. Can place a variety of slip seat into the slip seat cone as per customer different requirement, to grip different specifications casing.
3. Parameters
Puller | |
Rated pulling force |
1200KN |
Stroke |
550mm |
Max.pulling diameter |
325mm |
Commutation way |
manual commutation |
Speed Adjustment |
Pulling the direction of one-way flow control |
Hydraulic station | |
Structure |
Trailer type |
Normal system pressure |
31.5 Mpa |
Pump displacement |
60ml/r |
Power supply |
Diesel engine 24kw |
Starting method |
Electric start,24v |
Transmission |
Direct coupling |

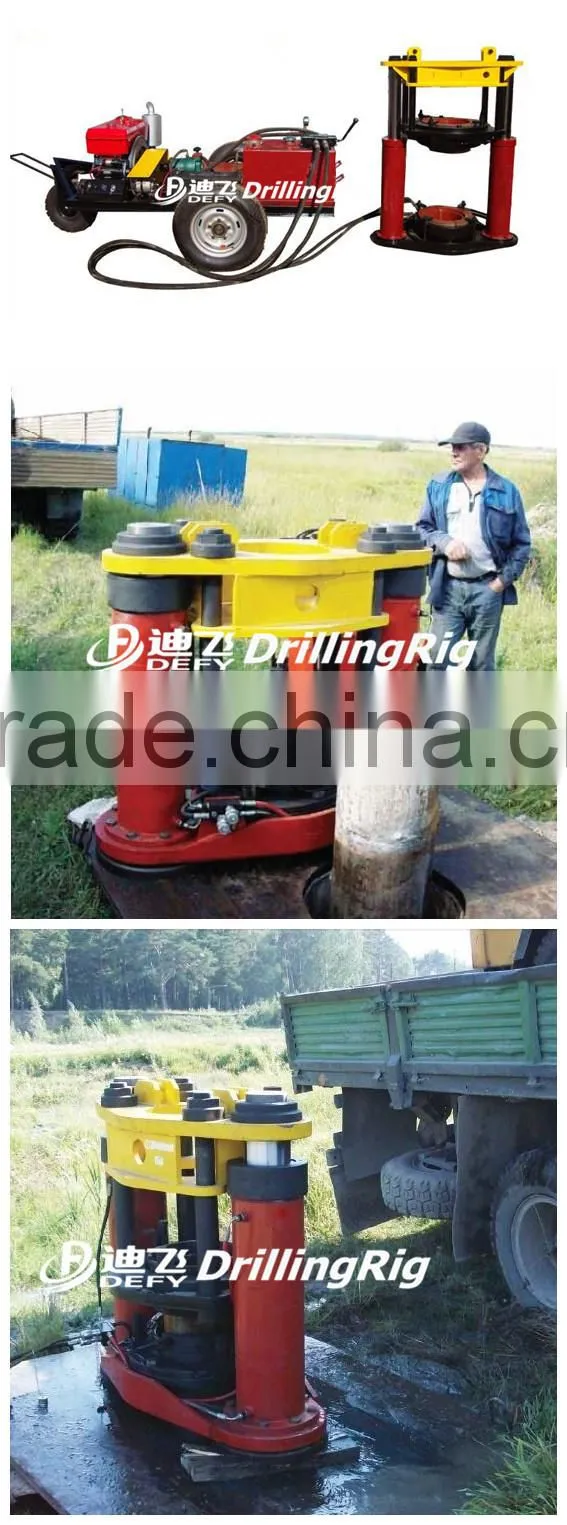

4. Pulling machine working site
5. Zhengzhou DEFY Company
DEFY is proud to offer support through the entire process, including engineering, manufacturing, installation and commissioning. In addition, we provide drilling life-cycle services to our customers, including spare parts, technical support and professional rig training.
If you are interested in the pulling machine, please do not hestitate to contact with us:
Miss Anne Bai
Whatsapp:86-151-36212564
Skype:defy08
Email:anne at
