200m Depth XY-200 Water Well Drilling Machines
with Mud Pump
Brief Details of Water Well Drilling Rig:
1. Model No.: XY-200
2. Max. Drilling Depth:200m
3. Drilling Rod Diameter: 42mm, 50mm
4. Borehole Diameter: 75~~400mm
5. Warranty: One year guarentee excluding wearing parts
6. Certifications: BV, SGS Certificate
7. Applications: Water Well, Irrigation wells, Geological Exploration, Blast Holes, Geothermal Heat Project etc.
First of all, do you have an idea of the drilling rig you are looking for? The following questions will help you to get suitable drilling machine for your business.
1. What kind of projects you will work for,Water well,Borehole,Exploration coring,Foundation
Piling or others?
2. The Max. depth of drilling you hope to achieve?
3. The Min. and Max. hole diameter you estimate?
4. Condition of the environment, Soft ground like soil,mud,Hard ground like rocks or Mixed the
soft and hard layers?
The more details of your need are told from you, the better our engineers are able to recommend you the suitable models.
Parameters of Water well Drilling Rig XY-200
1.Overall parameters | |
Drilling depth |
200m |
Maximum open hole caliber |
400mm |
End hole caliber |
75mm |
Diameter of drill rod |
42mm, 50mm |
Drilling angle |
90~75 degree |
Weight(not include power) |
810kg |
2.Mud pump |
|
Type |
Horizontal single urn twin-action |
Rate of flow |
95/77L/min |
Diameter of water inlet tube |
42mm |
Diameter of water outlet tube |
32mm |
3.Power |
|
Diesel engine |
22HP, 2200r/min |
Electrical motor |
15KW, 1460r/min |

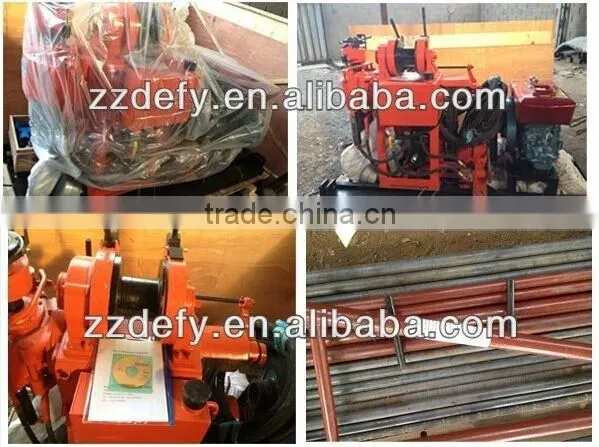

Package of Water well Drilling Rig XY-200
To protect drilling rigs during sea transportation, we give them proper packing.

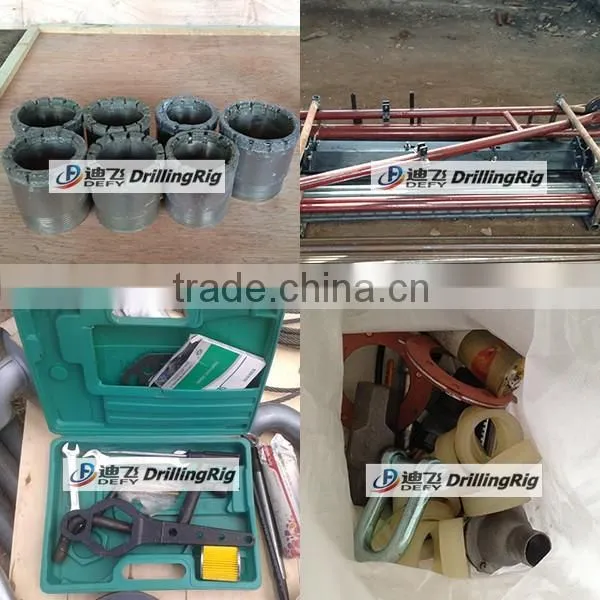

Spare parts: Wooden case or plastic woven bag
Company Info. and Service
We build the portable water well drilling rigs with nothing but the best components and materials. We work with hydraulic experts to help us make sure the rigs we build have an efficient hydraulic system. No matter what model of drilling rig you choose, you can rest assure that we have put many hours builing, testing and inspecting your rig.
Drilling Rig Manufacturer DERY Service
2.Your problems can get feedback in 8 hours and soloved in 24 hours.
3.Machine can be customized as per your requirement.
Contact details
Please do not hesitate to contact us if this model is fit for your business. And you are highly appreciated that if you could tell us more details of your business, then we can recommend most suitable model of drilling rig to you.
