Large and deep mine core drilling rig supplier in China
I. General Introduction

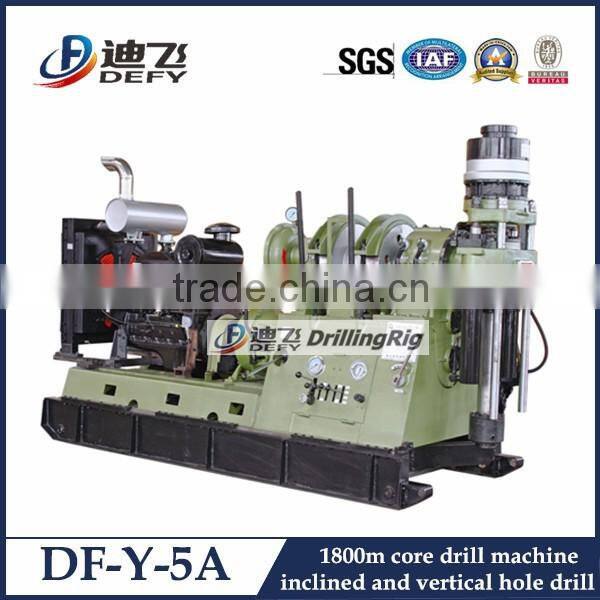

DF-Y-5A CORE DRILL is a kind of hydraulic driven, spindle, diamond bit, small diameter core drill with fairly powerful drilling force. It is mainly suitable for exploration of metal or non-metal solid mineral ore bed. It is widely applied in core drill with diamond bit or hard tungsten-carbide tipped bit in the field of geology, metallurgy, coal mine, hydrological and engineering drilling. It can also be used in the fields of superficial-zone petroleum and natural gas mining, mine workings ventilation and water discharge tunnel drilling as well as foundation pile construction in large diameter.
The machine is fit for engineering works of inclined and vertical hole drilling. It is compact in construction, rational in overall arrangement, moderate in weight, convenient in assembling and wide in range of rotation speed. Equipped with water brake, with high hoisting force, DF-Y-5A CORE DRILL is convenient to operate in low-position and with water brake application.
II. Main Features
1. There are more speed grade (8 grades), reasonable speed range, with low speed but high torque. The rig is adapted for core drilling with tongalley-carbide-tipped and diamond bit, as well as suitable for engineering geological exploration, hydrological well drilling and basic pile engineering.
2. With large spindle I.D. 93mm (3.66 inch), the rig is fed with hydraulic double cylinders with much longer stroke up to 500mm(19.69 inch).With strong technological adaptability, the rig can be adapted on many field, especially on large diameter drill rod drilling, with wire line coring (upper part coring). Thus it is more effective in improving drilling efficiency with less faulty in hole.
3. With powerful drilling capacity, the rated drilling depth comes up to 1,300m(4,264 feet) with 71mm(2.80 inch) drill rod with wire line coring.
4. Light in weight, the rig can be dismantled into 10 parts easily (the biggest one 450kg equivalent to 992 lb). The rig weighs 3,100 kg(6836 lb) (without power unit). It can be moved easily especially in mountain area.
5. The hydraulic chuck adopts one-way oil supply and equipped with hydraulic lock. The chuck is powerful and stable in clamping.
6. Equipped with water brake, the rig is steady and secure in deep hole drilling.
7. Supplying oil with a single-gear pump, it is easy for installation and application; lower in consumption of energy and a low temperature of hydraulic system oil; the rig is for sure in steady drilling. The hand oil pump may be used to hoist the drilling tools in hole upon the faulty of power engine.
8. Compact in structure and reasonable layout, and all exposed outside, non overlapped components, it is easier for maintenance and repair.
9. Low center of gravity and long traveling distance up to 460mm (18.11 inch), the rig is reliable and stable in high speed drilling.
10. It is easy to get to know the conditions in hole with an anti-vibration meter in long working life. Having less operating handle, the rig can be operated credibly and flexibly.
11. Under high generalization rate, the rig is in universal parts and components up to 30 percent with DF-Y-44 drill rig.

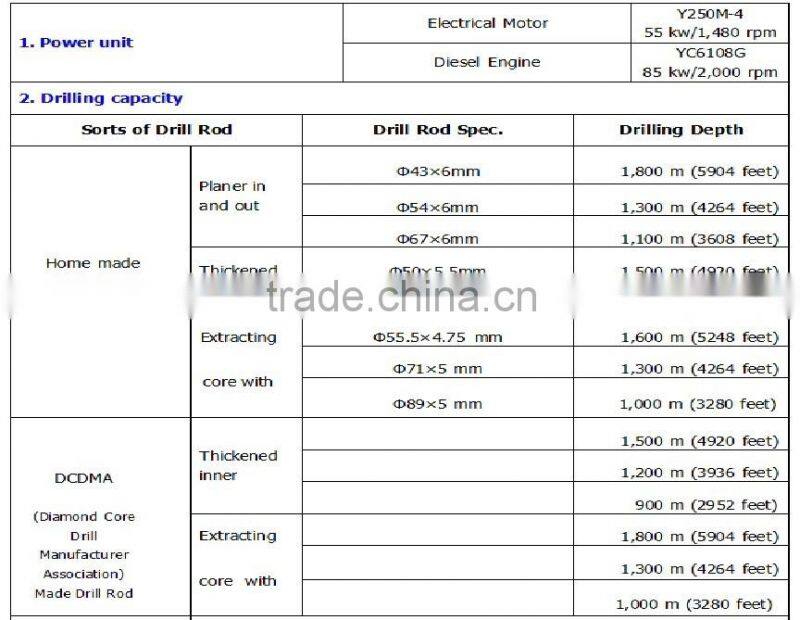

III. Technical parameters
Working site
Please kindly tell us your detailed requirement then our professional engineers will give
you the most suitable suggestions.
1. What kind of projects you will work for?
---Water well, Borehole, Exploration coring, Foundation Piling, Blast holes, Geothermal
air-conditioner holes or others?
2. The Max. depth of drilling you hope to achieve?
---For DF-Y series, it can reach 300-4000m with different models.
3. The Min. and Max. hole diameter you want?
---Usually 96-118mm.
4. Condition of the environment?
---Soft ground like soil, mud, sand.
---Hard ground like hard rocks .
---Or mixed.
DEFY Service
1.Professional technical support pre-sale, sale and after-sale .
2.Your problems can get feedback in 8 hours and be solved in 24 hours.
3.Machine can be customized as per your requirement.
4.One year quality warranty.
5.Training: operation manual and DVD operation video, overseas installation is also
available.
6.Spare parts are available in our factory at cost price for former customers.
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. has more than 40 years experience of production and development of drilling rig equipment.Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal
air-conditioner and so on, capable and functional. Our professional engineer and sales teams, offering technical support and useful advice whenever you need.
