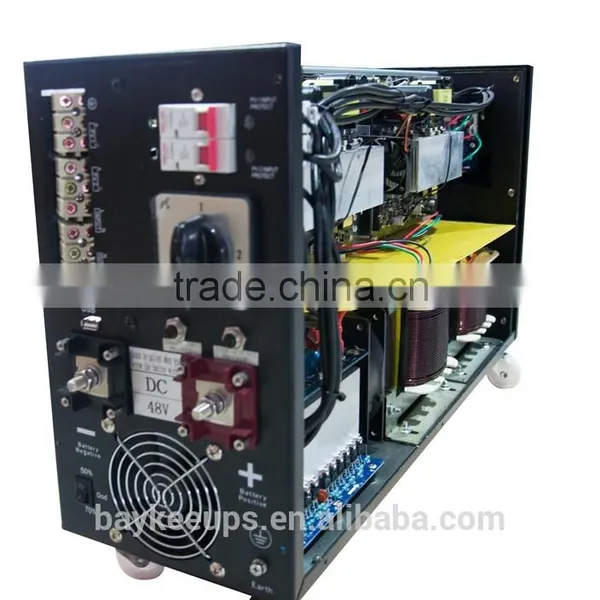

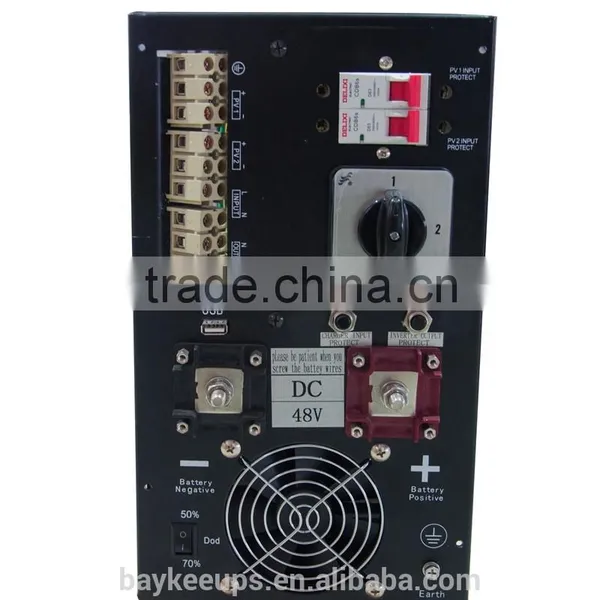

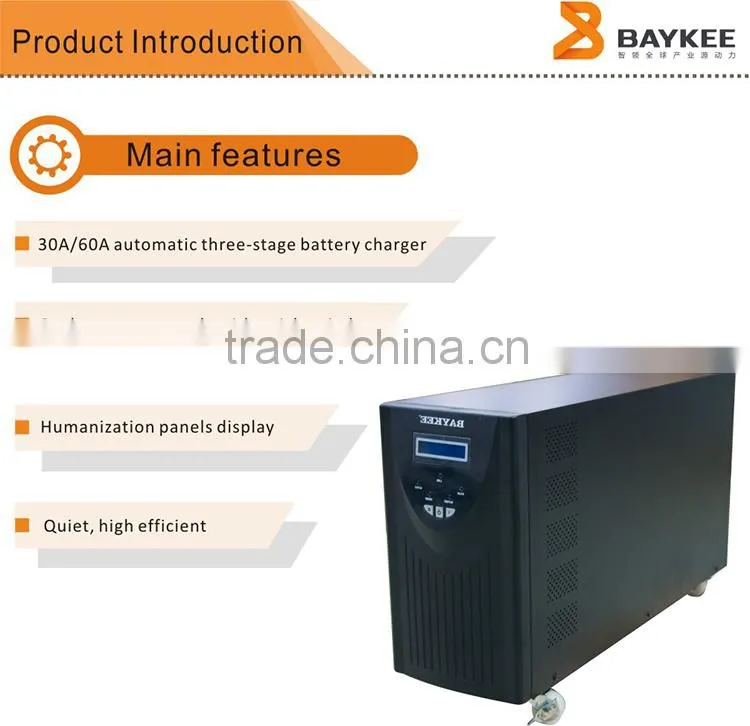

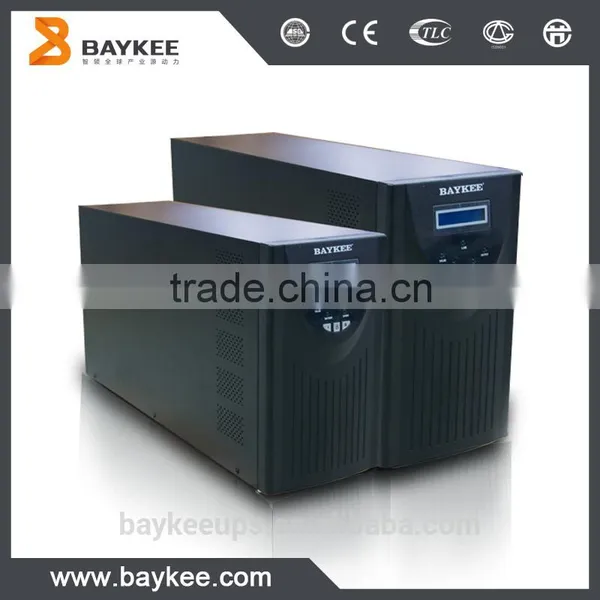

power converter 1kw 2kw 3kw 5kW off gird solar inverter

Series (SNS)

Model

1024

2012

2024

3024

3048

5048

6048

1000W

2000W

2000W

3000W

3000W

5000W

6000W

DC24V

DC12V

DC24V

DC24V

DC48V

DC48V

DC48V

Utility Pattern Specification:

Input Wave Form

Sine wave (Utility or generator)

Nominal Voltage

230VAC

Low Voltage Trip

184VAC±4%

Low Voltage Reengage

194VAC ±4%

High Voltage Trip

253VAC±4%

High Voltage Reengage

243VAC±4%

Max. AC Input Voltage

270Vrms

Nominal Input Frequency

50Hz/ 60Hz (Auto detect)

Low Frequency Reengage

Frequency

58+0.3Hz(60Hz);

48+0.3Hz(50Hz);

Low Frequency Trip

Frequency

57+0.3Hz(60Hz);

47+0.3Hz(50Hz);

High Frequency Reengage

Frequency

64+0.3Hz(60Hz);

54+0.3Hz(50Hz);

High Frequency Trip

Frequency

65+0.3Hz(60Hz);

55+0.3Hz(50Hz);

Output Wave Form

Bypass mode, same as input

Overload Protection

Circuit Breaker

Short Circuit

Circuit Breaker

Efficiency

>95%

Transfer Switch Current

30A

Transfer Time (Ac to Dc)

10ms

Transfer Time (Dc to Ac)

10ms

Bypass without Battery

Connected

yes

Max. Bypass Current

30A

Inverter Pattern Specification:

Series (SNS)

Model

1024

2012

2024

3024

3048

5048

6048

Output wave form

Sine wave

Nominal Output Capacity

(VA)

1000

2000

3000

5000

6000

Nominal Output Power (W)

1000

2000

3000

5000

6000

Power Factor

0.9~1.0

Nominal Output Voltage (V)

230Vac

Nominal Output Frequency

(Hz)

50Hz ± 0.3Hz

Automatic tracking main

frequency(Hz)

Yes( start from the first connection )

50Hz @48-54Hz

60Hz @58-64Hz

Output Voltage Regulation

±10% rms

Efficiency

>80%

Overload Protection

(SMPS load)

(110%< Load <125%) ±10%: No Output after 15mins,

(125%< Load <150%) ±10%: No Output after 10S,

Load>150% ±10%: No Output after 20S

Surge ratings (10s)

3000VA

6000VA

9000VA

15000VA

18000VA

Starting Motor

1HP

2HP

3HP

5HP

6HP

Short Circuit protection

Current limit (fault after 10s)

Circuit breaker Size

30A

30A

30A

50A

50A

Nominal DC Input Voltage

12V/24V/48V

Minimum DC Voltage

10V/20V/40V

Low Voltage Alarm

10.5Vdc±0.3Vdc(12V)/21.0Vdc±0.6Vdc(24V)/42.0Vdc±1.2Vdc(48V)

Low Voltage Trip

10.0Vdc±0.3Vdc(12V)/20.0vdc±0.6Vdc(24V)/40.0Vdc±1.2Vdc(48V)

High Voltage Alarm

16.0Vdc±0.3Vdc(12V)/32.0Vdc±0.6Vdc(24V)/64.0Vdc±1.2Vdc(48V)

High Voltage reengage

15.5Vdc±0.3Vdc(12V)/31.0Vdc±0.6Vdc(12V)/62.0Vdc±1.2Vdc(48V)

Power Saver

Load<=25W
